SIEMENS 6RA8025-6DS22-0AA0 Safety-Reliable DC Drive

SIEMENS 6RA8025-6DS22-0AA0 Safety-Reliable DC Drive for Critical Control Sites

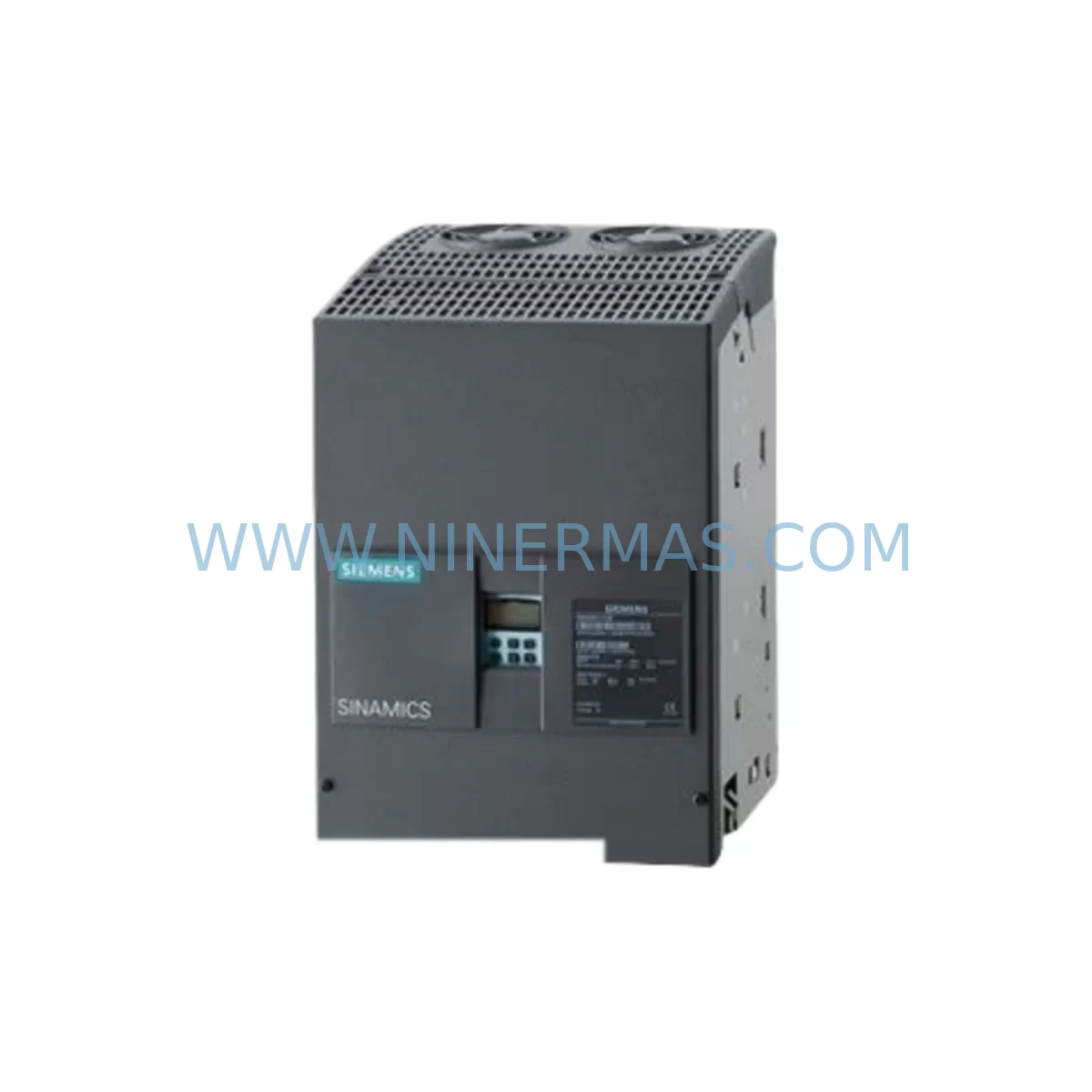

The SIEMENS 6RA8025-6DS22-0AA0 is a fully digital SIMOREG DC Master converter module engineered for demanding industrial environments where control continuity, safety, and reliability are non-negotiable. Rated for continuous duty in heavy industrial applications, this DC drive module delivers precise armature current control, robust field regulation, and stable speed feedback — all within a compact, panel-mount form factor designed for integration into critical control cabinets.

In continuous production facilities — including petrochemical plants, steel mills, mining operations, and port crane systems — an unplanned drive failure can cascade into costly shutdowns, safety incidents, and regulatory non-compliance. The 6RA8025-6DS22-0AA0 is built to minimize these risks through its hardened digital control architecture, which suppresses signal drift, resists electromagnetic interference from adjacent variable frequency drives and high-power contactors, and maintains stable output even under fluctuating supply voltage conditions. Its integrated surge suppression and overvoltage protection circuits guard against transient spikes that are common in heavy industrial power distribution systems, protecting both the drive itself and the connected DC motor from damage.

At NINERMAS, every unit of the 6RA8025-6DS22-0AA0 undergoes rigorous pre-shipment functional testing — including no-load run verification, parameter integrity checks, and insulation resistance measurement — before dispatch. This ensures that replacement units arrive site-ready, reducing commissioning time and minimizing exposure windows during critical maintenance windows.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered DC drive control cabinet, the 6RA8025-6DS22-0AA0 does not operate in isolation — its reliability is directly tied to the quality and compatibility of surrounding components. To achieve maximum uptime and safety in critical interlock circuits, NINERMAS recommends pairing this drive with a SIEMENS SIMOREG field supply unit (such as the 6RA7086 series field controller) to ensure stable excitation current under all load conditions, preventing field weakening faults that can cause uncontrolled motor acceleration — a serious safety hazard in hoisting and winding applications.

On the power input side, a properly rated SIEMENS 3RT series contactor combined with a 3RV motor protection circuit breaker provides upstream short-circuit and overload protection, ensuring that a downstream fault does not propagate to the drive’s thyristor bridge. For applications in environments with significant harmonic distortion — common in facilities running multiple large drives simultaneously — the addition of a line reactor or AC input choke upstream of the 6RA8025-6DS22-0AA0 significantly reduces harmonic current stress on the converter’s rectifier stage, extending service life and reducing nuisance trips.

Signal integrity is equally critical. In high-EMI environments such as arc furnace control rooms or large motor control centers, the tachogenerator or encoder feedback signal to the drive’s speed controller can be susceptible to noise-induced drift. Shielded signal cables, properly grounded at a single point, combined with a SIEMENS SITOP power supply for the 24 V DC control circuit, ensure that the drive’s digital control board receives clean, stable power — eliminating the risk of spurious fault trips or erratic speed regulation. For facilities using PROFIBUS-DP communication, a SIEMENS DP/PA coupler or PROFIBUS repeater maintains signal integrity over long cable runs in electrically noisy environments.

Where the 6RA8025-6DS22-0AA0 is integrated into a safety interlock loop — for example, in emergency stop circuits for winders, extruders, or centrifuges — pairing it with a SIEMENS SIRIUS 3SK safety relay or a 3TK28 safety contactor ensures that the drive’s enable signal is controlled through a certified safety circuit, meeting the requirements of IEC 62061 and ISO 13849 for machinery safety. This combination provides a documented, auditable safety architecture that satisfies both internal engineering standards and third-party safety audits.

Critical Industrial Safety Applications

The SIEMENS 6RA8025-6DS22-0AA0 is deployed across a wide range of critical industrial sectors where DC drive technology remains the preferred solution for its precise torque control, four-quadrant operation, and proven long-term reliability.

In petrochemical and refinery operations, this drive controls extruder screws, compressor auxiliaries, and pump drives in Zone 2 classified areas (when installed in appropriately rated enclosures). Its stable closed-loop current control prevents torque surges that could damage mechanical seals or cause process upsets in continuous reaction systems. In electric power generation and transmission facilities, the 6RA8025-6DS22-0AA0 is used in excitation control systems and auxiliary drive applications where grid disturbances demand a drive with robust voltage ride-through capability.

In mining and mineral processing, the drive powers conveyor belt drives, ball mill auxiliaries, and hoist systems where regenerative braking (four-quadrant operation) is essential for safe load lowering and energy recovery. The drive’s ability to maintain controlled deceleration under regenerative load prevents runaway conditions — a critical safety requirement in inclined conveyor and shaft hoist applications. Water and wastewater treatment facilities rely on the 6RA8025-6DS22-0AA0 for sludge pump drives and aeration blower controls, where the drive’s immunity to supply voltage fluctuations ensures continuous process operation even during grid switching events.

In metallurgical and steel production environments — among the most electrically hostile industrial settings — the drive’s EMC-hardened design withstands the intense electromagnetic interference generated by arc furnaces, induction heaters, and large thyristor rectifiers operating in close proximity. Port and shipyard crane systems depend on the drive’s four-quadrant capability for precise load control during container handling, where smooth acceleration and controlled regenerative braking directly impact both operational safety and structural fatigue life of the crane structure. In continuous paper and textile manufacturing, the drive maintains precise web tension control across multiple driven sections, preventing web breaks that cause production losses and potential injury from sudden mechanical release.
