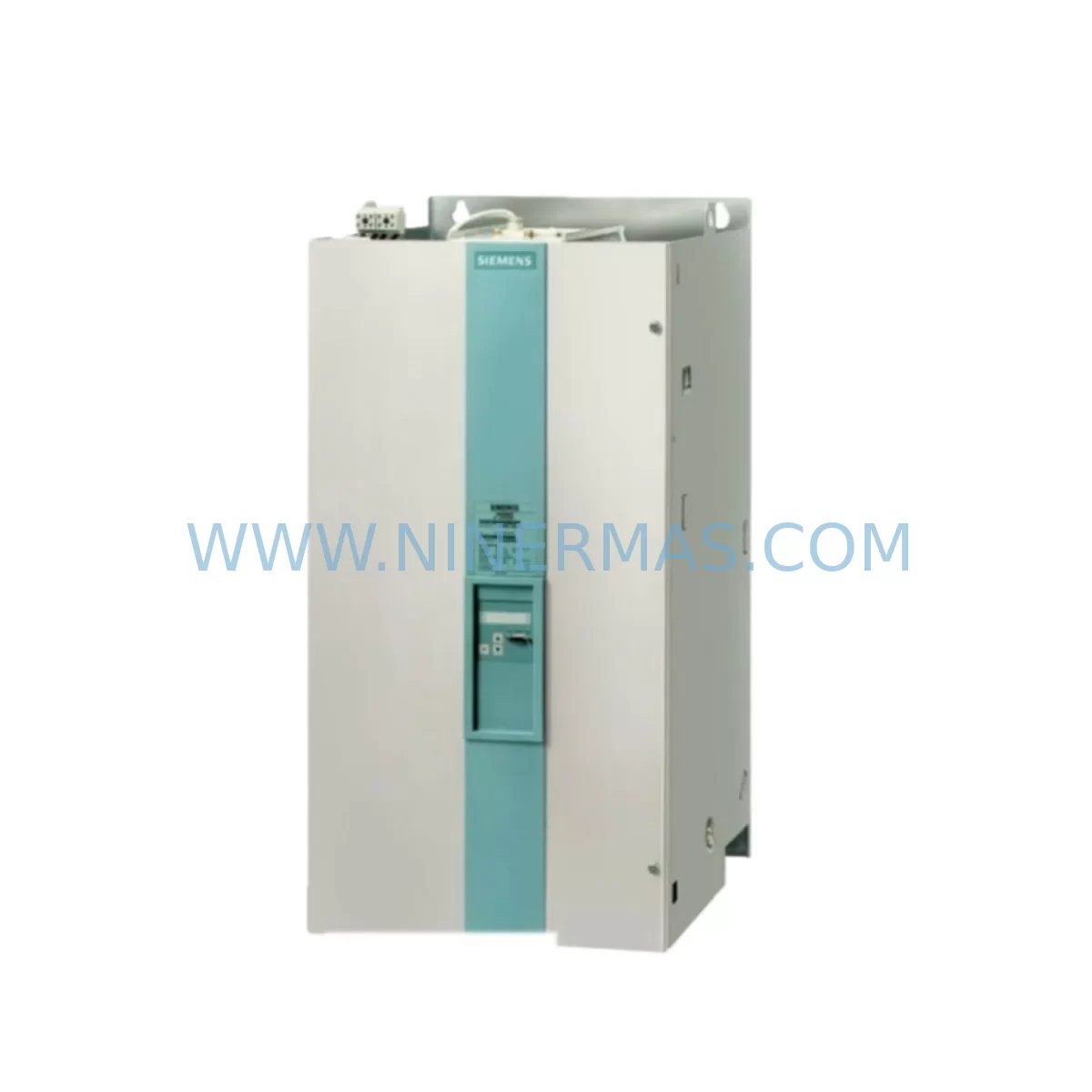

The Siemens 6RA7091-6FS22-0 is a high-performance DC drive unit from the renowned SIMOREG DC Master series, engineered to deliver uncompromising safety and reliability in the most demanding industrial control environments. Designed for continuous production lines, critical interlock circuits, and heavy-duty control cabinet applications, this drive is a cornerstone component wherever unplanned downtime, signal drift, or control interruption carries serious operational or safety consequences.

Whether deployed in petrochemical processing, power generation, metallurgical rolling mills, port crane systems, water treatment facilities, or continuous mining operations, the 6RA7091-6FS22-0 provides the stable, precise DC motor control that safety-critical sites demand. Its robust design addresses the full spectrum of field hazards — high electromagnetic interference (EMI), dust ingress, moisture, high ambient temperatures, mechanical vibration, and surge transients — ensuring that your control loop remains intact and your process stays online.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the Siemens 6RA7091-6FS22-0 does not operate in isolation — it functions as the central DC drive node within a layered protection architecture. To achieve maximum safety and uptime, it is typically paired with complementary components that collectively eliminate the most common failure modes in critical control systems.

On the power supply side, a Siemens SITOP PSU300S 24 V DC stabilized power supply ensures that the drive’s control electronics receive clean, regulated voltage even during upstream grid fluctuations or momentary dips. Upstream of the drive, a Siemens 3RV2 motor protection circuit breaker provides short-circuit and overload protection, preventing fault propagation into the armature circuit. For surge and transient suppression at the cabinet entry point, a Siemens 5SD7 surge protection device (SPD) clamps voltage spikes before they can reach sensitive thyristor bridges inside the 6RA7091-6FS22-0.

The drive’s PROFIBUS-DP communication port integrates seamlessly with a Siemens S7-300 or S7-400 PLC acting as the safety PLC master, enabling real-time speed reference, torque limit commands, and fault acknowledgment over a deterministic fieldbus. Where functional safety requirements demand SIL 2 or PLd compliance, a Siemens SIRIUS 3SK1 safety relay module is wired into the drive’s hardware enable circuit, ensuring that the safe-stop function is executed within the required response time upon an emergency stop (E-stop) signal.

For motor feedback and closed-loop speed accuracy, a Siemens 6FX2001 incremental encoder or compatible pulse encoder is connected to the drive’s digital tachometer input, eliminating speed drift under varying load conditions — a critical requirement in winding, extrusion, and rolling mill applications. Cabinet thermal management is handled by a Siemens SINAMICS cooling fan unit or equivalent forced-air module, maintaining the drive’s junction temperature within safe operating limits in high-ambient-temperature environments such as steel plant motor control centers (MCCs).

On the output side, a Siemens 3RT2 contactor in the armature circuit provides the final switching element for controlled motor isolation during maintenance or emergency conditions, while a Siemens 3NA fuse link in the DC bus protects against catastrophic short-circuit events. Together, these components form a complete, safety-validated drive system that minimizes the risk of control interruption, spurious trips, signal drift, power fluctuation, communication anomalies, surge damage, and unplanned production stops.

Critical Industrial Safety Applications

The Siemens 6RA7091-6FS22-0 has established a proven track record across the most safety-sensitive industrial sectors globally:

Petrochemical & Refinery Plants: In continuous process environments where a drive trip can trigger a cascade of safety interlocks and emergency shutdowns, the 6RA7091-6FS22-0 provides the stable armature current control required for compressor drives, pump drives, and agitator motors operating 24/7 in ATEX-adjacent control rooms. Its robust EMC design prevents interference from variable-frequency drives and high-power switching equipment operating in the same facility.

Power Generation & Utilities: Coal handling conveyors, induced draft (ID) fan drives, and excitation control systems in thermal power plants demand drives that can sustain operation through grid disturbances and voltage sags. The 6RA7091-6FS22-0’s thyristor-based rectifier bridge and closed-loop current regulation maintain motor torque stability during such events, reducing the risk of forced outages.

Mining & Mineral Processing: Underground and surface mining operations subject drive equipment to extreme dust loading, vibration, and temperature cycling. The drive’s IP20 chassis, when housed in a sealed, climate-controlled MCC, delivers reliable hoist drive, conveyor drive, and crusher drive control in these harsh conditions. Its fault memory and diagnostic logging support predictive maintenance programs that reduce unplanned downtime in remote mining sites.

Water & Wastewater Treatment: Pump station drives and aeration blower drives in water treatment facilities must operate continuously with minimal intervention. The 6RA7091-6FS22-0’s PROFIBUS-DP interface enables integration with SCADA systems for remote monitoring, alarm management, and automatic restart after controlled shutdowns, supporting the uninterrupted water supply mandates of municipal utilities.

Metallurgy & Steel Rolling Mills: Precise speed and torque control in roughing and finishing mill stands is non-negotiable for product quality and equipment safety. The drive’s high-resolution digital current control loop and encoder feedback capability deliver the dynamic response required for tension control, speed synchronization, and load sharing in multi-drive rolling mill configurations.

Port & Marine Crane Systems: Ship-to-shore cranes, rubber-tyred gantry (RTG) cranes, and offshore platform winches rely on DC drives for their proven reliability and regenerative braking capability. The 6RA7091-6FS22-0 supports four-quadrant operation, enabling controlled lowering of heavy loads with energy recovery — a critical safety feature that prevents runaway load conditions.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Siemens 6RA7091-6FS22-0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. This includes thyristor bridge failures, control board faults, and communication interface malfunctions. Warranty claims are supported by our technical team with replacement unit dispatch or repair service, minimizing your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 6RA7091-6FS22-0 unit undergoes a comprehensive pre-shipment inspection that includes full power-on functional testing, insulation resistance measurement (Megger test), parameter default verification, communication port check, and visual inspection for physical damage. A test report is available upon request to support your incoming quality control process.

Q3: Is the 6RA7091-6FS22-0 compatible with existing SIMOREG DC Master installations?
Yes. The 6RA7091-6FS22-0 is fully compatible with the SIMOREG DC Master product family and can be integrated into existing control cabinets using standard Siemens parameter sets. It supports PROFIBUS-DP and USS communication protocols, making it directly interoperable with Siemens S7-series PLCs and existing STARTER/DriveMonitor engineering software configurations without requiring hardware redesign.

Q4: Can long-term spare parts supply be guaranteed for critical site maintenance programs?
NINERMAS maintains dedicated inventory of the 6RA7091-6FS22-0 and related SIMOREG DC Master series components to support long-term spare parts programs for critical industrial sites. We provide supply continuity assurance for planned maintenance shutdowns, emergency replacements, and capital spares programs, with fast international shipping to minimize your mean time to repair (MTTR) in the event of an unplanned drive failure.
