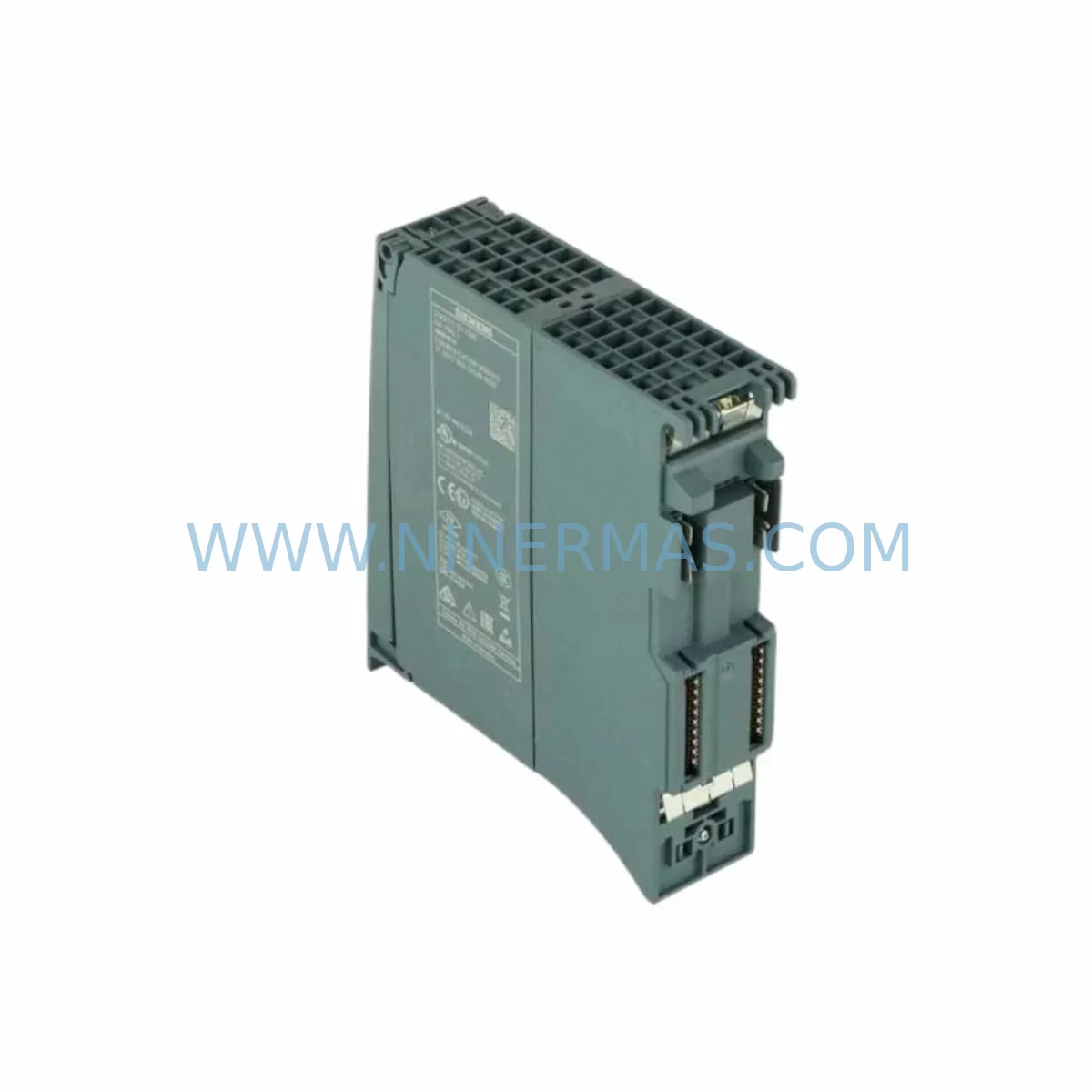

The Siemens 6GK7542-1AX00-0XE0, commercially designated as the CM 1542-1 Communications Module within the SIMATIC S7-1500 controller family, is engineered to deliver uncompromising network connectivity in the most demanding industrial environments. Designed for integration into SIMATIC S7-1500 and ET 200MP distributed I/O stations, this ruggedized Ethernet communication module provides a dedicated, high-integrity PROFINET and Industrial Ethernet interface that operates independently of the CPU’s onboard port — a critical architectural advantage in safety-sensitive and high-availability control architectures.

In continuous production facilities, petrochemical plants, power generation substations, mining hoists, water treatment SCADA systems, metallurgical furnace controls, port crane automation, and marine vessel control rooms, communication integrity is not a convenience — it is a safety prerequisite. The 6GK7542-1AX00-0XE0 addresses this requirement directly by offloading network traffic management from the CPU, reducing cycle-time jitter, and ensuring that critical PROFINET I/O communication remains stable even under high electromagnetic interference (EMI) loads typical of heavy motor drives, arc furnaces, and high-voltage switchgear environments.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet serving a critical process, the 6GK7542-1AX00-0XE0 CM 1542-1 functions as the dedicated network gateway, isolating communication load from the SIMATIC S7-1500 CPU 1515-2 PN or CPU 1517-3 PN/DP processing core. This separation is fundamental to reducing the risk of CPU overload-induced communication timeouts that can trigger spurious safety shutdowns or missed interlock signals in critical control loops.

When paired with a SCALANCE X208 or SCALANCE XC208EEC managed Industrial Ethernet switch, the CM 1542-1 enables PROFINET IRT (Isochronous Real-Time) communication with deterministic cycle times as low as 250 µs — essential for synchronized motion control and high-speed interlock response in rolling mills or press lines. The SCALANCE switch’s integrated port mirroring and SNMP monitoring capabilities further support predictive maintenance strategies by detecting network anomalies before they escalate into production stoppages.

Power supply stability is equally critical. Pairing the S7-1500 rack with a SITOP PSU8600 modular power supply system — featuring integrated buffer modules and selective current limiting — ensures that voltage dips caused by large motor starts or capacitor bank switching do not propagate into the controller backplane. The CM 1542-1’s backplane-powered architecture means it shares this protection directly, eliminating the risk of communication module brownout during power transients.

For safety-instrumented system (SIS) architectures requiring IEC 61511 compliance, the CM 1542-1 is commonly deployed alongside SIMATIC S7-1500F fail-safe CPUs and ET 200SP HA distributed I/O stations. In these configurations, the module handles standard PROFINET traffic while the fail-safe CPU manages PROFIsafe communication over the same physical network — a topology that reduces wiring complexity without compromising safety integrity level (SIL) requirements.

In high-EMI environments such as variable frequency drive (VFD) motor control centers or arc furnace control rooms, the CM 1542-1’s ruggedized design works in concert with SIMATIC NET Industrial Ethernet FC TP Standard Cable and shielded RJ45 connectors to maintain signal integrity. Supplementing the installation with SITOP surge protection devices (SPDs) on incoming power lines and Ethernet ports provides an additional layer of defense against lightning-induced surges and switching transients that are common in outdoor substations and port crane installations.

For remote diagnostics and condition monitoring without interrupting production, the CM 1542-1 supports integration with SINEMA Remote Connect or SCALANCE M876-4 LTE routers, enabling secure VPN-based remote access to the S7-1500 controller. This capability is particularly valuable in geographically distributed assets such as pipeline pump stations, offshore platforms, or water intake facilities where on-site intervention is costly and time-consuming.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation and reactor control systems, the CM 1542-1 maintains uninterrupted PROFINET communication between the S7-1500 safety controller and field instruments, ensuring that emergency shutdown (ESD) interlock signals are transmitted within deterministic timeframes. Its EMI immunity is critical in environments where high-voltage cable trays run parallel to control network infrastructure.

Power Generation & Substation Automation: In thermal power plant turbine control systems and 110 kV/220 kV substation automation panels, the module’s surge immunity and wide operating temperature range allow reliable operation in environments subject to switching transients, ground potential rise, and seasonal temperature extremes. Integration with IEC 61850-compliant protection relays via Ethernet further extends its utility in modern digital substations.

Mining Hoist & Conveyor Control: Underground mining environments present extreme challenges including coal dust accumulation, high humidity, and mechanical vibration from blasting operations. The ruggedized CM 1542-1, installed in sealed IP54 or IP65 control enclosures, maintains communication integrity for hoist safety circuits, skip loading automation, and conveyor belt interlock systems — where a communication failure could result in runaway loads or personnel injury.

Water & Wastewater Treatment SCADA: Municipal water treatment facilities operating 24/7 rely on uninterrupted SCADA communication for pump station control, chemical dosing, and alarm management. The CM 1542-1’s ability to support multiple simultaneous TCP/IP connections enables parallel communication with SCADA servers, HMI panels such as the SIMATIC HMI TP1500 Comfort, and remote I/O stations without communication contention.

Metallurgical & Steel Mill Automation: In electric arc furnace (EAF) and continuous casting line control systems, the module withstands the intense electromagnetic fields generated by high-current bus bars and induction heating equipment. Its IRT capability supports the precise synchronization required between casting speed control and mold oscillation drives, preventing surface defects and breakout incidents.

Port Crane & Material Handling: Container crane automation systems demand high-speed, reliable communication between the main controller and distributed drive systems managing hoist, trolley, and gantry axes. The CM 1542-1’s Gigabit Ethernet capability and PROFINET IRT support ensure that position feedback and torque commands are exchanged within the tight cycle times required for anti-sway control and precise container placement.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6GK7542-1AX00-0XE0?
The 12-month warranty covers all manufacturing defects, component failures, and functional malfunctions arising under normal operating conditions as specified in the Siemens product datasheet. It includes replacement or repair of the module at no additional cost. Warranty claims require the original purchase documentation and a fault description. Physical damage caused by incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded.

Q2: What pre-shipment testing is performed on this module?
Each 6GK7542-1AX00-0XE0 unit undergoes functional verification testing prior to shipment, including power-on self-test, Ethernet port link establishment, and PROFINET communication handshake validation. Units sourced from authorized distribution channels carry Siemens factory test certification. We additionally perform visual inspection for physical integrity and verify the firmware version label before dispatch.

Q3: Is the CM 1542-1 compatible with existing S7-1500 racks and TIA Portal projects?
Yes. The 6GK7542-1AX00-0XE0 is fully compatible with all SIMATIC S7-1500 and ET 200MP rack configurations. It is configured and commissioned via Siemens TIA Portal V15.1 and above using the standard hardware catalog. No special licensing is required. Existing TIA Portal projects can be extended to include the CM 1542-1 without modifying the CPU program, making it suitable for brownfield expansion projects.

Q4: Can long-term supply and replacement support be guaranteed?
We maintain stock of the 6GK7542-1AX00-0XE0 to support both immediate project requirements and long-term spare parts programs. For critical infrastructure operators requiring guaranteed availability over multi-year maintenance contracts, we recommend establishing a framework supply agreement. Our team can advise on recommended spare quantities based on your installed base and mean time between replacement (MTBR) data for SIMATIC NET communication modules in comparable applications.
