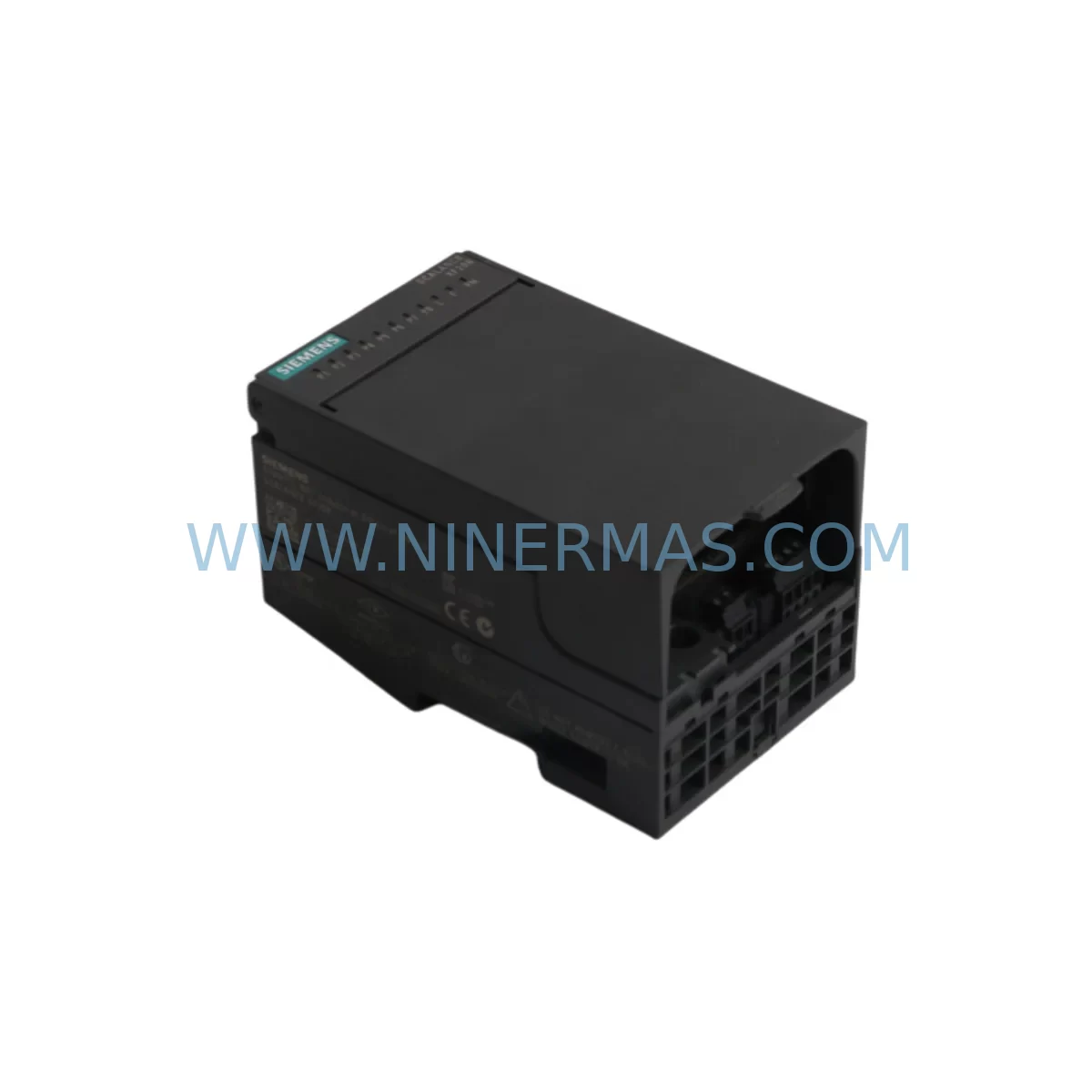

SIEMENS 6GK5208-0BA00-2AF2 Retrofit-Compatible Switch for Legacy Systems

SIEMENS 6GK5208-0BA00-2AF2 Retrofit-Compatible Switch for Legacy Systems

The SIEMENS 6GK5208-0BA00-2AF2 is an 8-port managed industrial Ethernet switch from the SCALANCE X-200 series, designed for reliable deployment in factory automation, process control, and legacy system modernization projects. With 8 × 10/100 Mbps RJ45 ports, integrated PROFINET IO device support, and a compact DIN-rail form factor, this unit serves as a direct retrofit replacement for aging network infrastructure in control cabinets originally built around earlier SCALANCE X-100 or unmanaged third-party switches. Whether you are upgrading a SIMATIC S7-300 or S7-400 network backbone, migrating from a legacy PROFIBUS segment to Industrial Ethernet, or simply restoring a discontinued spare part in a running production line, the 6GK5208-0BA00-2AF2 delivers the port density, managed features, and physical compatibility required for a smooth, low-risk transition.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 6GK5208-0BA00-2AF2 into an existing control architecture, engineers must begin with a thorough audit of the current network topology. In many legacy S7-300 installations, the existing switch occupies a fixed slot in a crowded control cabinet alongside a SIMATIC S7-300 CPU 315-2 PN/DP, a CP 343-1 communications processor, and one or more ET 200M distributed I/O stations connected over PROFINET. The 6GK5208-0BA00-2AF2 fits directly onto the same 35 mm DIN rail without requiring additional mounting hardware, and its 45 mm width profile is consistent with adjacent SIMATIC components, making it straightforward to replace a failed or end-of-life switch without rerouting cable trays.

Power supply compatibility is a critical first checkpoint. The 6GK5208-0BA00-2AF2 accepts 24 V DC with a wide tolerance range of 18–32 V DC, which aligns with the output of standard SITOP PSU100S or SITOP PSU200M power supply modules already installed in most S7-300 cabinets. If the existing cabinet uses a single-channel 24 V rail, verify that the combined current draw of the switch plus connected PROFINET devices does not exceed the PSU’s rated output. For high-availability lines, the dual redundant power input on the 6GK5208-0BA00-2AF2 allows connection to two independent 24 V feeds, eliminating the switch as a single point of failure.

Terminal wiring on the power connector follows the standard SIEMENS push-in terminal block format. When replacing an older SCALANCE X-100 series unit or a third-party unmanaged switch, technicians should label all RJ45 patch cables before disconnection and document the existing IP address assignments and PROFINET device names using SINEMA Network Manager or the built-in web interface of the outgoing switch. The 6GK5208-0BA00-2AF2 supports PROFINET device name assignment via DCP (Discovery and Configuration Protocol), so device names can be reassigned directly from TIA Portal or STEP 7 without modifying the PLC program, provided the MAC address of the new switch is updated in the hardware configuration.

For systems that include an ET 200SP distributed I/O head station or an ET 200M IM 153-4 PN interface module, the switch’s PROFINET IO device role must be correctly configured before the CPU goes online. Verify that the PROFINET IO controller — typically the S7-300 or S7-1500 CPU — has the new switch’s PROFINET device name and IP address entered in the hardware configuration project. If the installation also includes a TP700 Comfort HMI panel or a WinCC Runtime station communicating over the same Ethernet segment, confirm that the HMI’s connection parameters reference the correct CPU IP address and that no IP conflicts exist after the switch replacement. VLAN segmentation available on the 6GK5208-0BA00-2AF2 can be used to isolate HMI traffic from I/O polling traffic, improving determinism on busy networks.

In systems where a CP 343-1 Advanced communications processor handles S7 routing between multiple subnets, the managed features of the 6GK5208-0BA00-2AF2 — including port mirroring, RMON statistics, and SNMP traps — provide visibility into network health that was unavailable with the unmanaged predecessor. This is particularly valuable during the commissioning phase of a retrofit, when unexpected broadcast storms or misconfigured PROFINET device names can cause intermittent CPU stops. A PROFIBUS DP to PROFINET migration that involves a DP/PN Link coupler or a SIMATIC NET IE/PB Link PN IO will also benefit from the switch’s ability to prioritize PROFINET RT frames using IEEE 802.1p QoS tagging.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live-line retrofit. For the 6GK5208-0BA00-2AF2, the recommended approach is a staged cutover: pre-configure the replacement switch offline using TIA Portal or STEP 7 with the exact PROFINET device names, IP addresses, and VLAN settings mirrored from the outgoing unit. Upload the configuration to the new switch via its web interface or SINEMA Network Manager before the maintenance window begins. During the scheduled downtime, the physical swap requires only disconnecting the power terminals and RJ45 patch cables, mounting the new unit, and reconnecting in the same sequence. Because the PROFINET device names and IP parameters are pre-loaded, the CPU can go online immediately after power-up without requiring a full hardware reconfiguration download, which significantly reduces the time the production line remains offline.

To protect the original PLC program logic, do not perform a memory reset on the S7-300 or S7-1500 CPU during the switch replacement. The CPU retains its program in load memory and will resume execution from the last saved state once PROFINET communication is re-established. If the system uses a redundant S7-400H CPU pair with a SCALANCE X-200 switch in the synchronization path, follow the H-system maintenance procedure to take one CPU to STOP before replacing the switch, then bring it back online and verify synchronization before releasing the second CPU. This approach ensures continuous process control throughout the migration.

For installations where the 6GK5208-0BA00-2AF2 connects legacy field devices — such as older SIMATIC HMI OP77B operator panels or third-party Modbus TCP instruments — verify that the switch’s auto-negotiation settings are compatible with the fixed 10 Mbps or 100 Mbps half-duplex configurations sometimes used by older devices. Port-level speed and duplex settings can be locked via the web interface to prevent negotiation failures that would otherwise cause intermittent communication errors after the cutover. All units supplied by NINERMAS undergo pre-shipment functional testing, including port-level link verification and power-on self-test confirmation, to ensure zero-defect delivery and reduce on-site commissioning risk.

Retrofit Support FAQ

Q1: Is the 6GK5208-0BA00-2AF2 a direct replacement for the 6GK5208-0BA00-2AA3?
Yes. The 6GK5208-0BA00-2AF2 is the current production revision of the SCALANCE X208 and is functionally and physically compatible with the earlier 2AA3 suffix. The hardware configuration in TIA Portal or STEP 7 may require updating the GSD/GSDML file to the latest revision, but no changes to the PLC program or I/O mapping are required. The PROFINET device name and IP address can be reassigned to match the outgoing unit exactly.

Q2: What commissioning steps are required after installation?
After mounting and wiring, assign the PROFINET device name using TIA Portal’s “Assign device name” function or via DCP from SINEMA Network Manager. Confirm that the CPU recognizes all downstream PROFINET IO devices (ET 200SP, ET 200M, drives, HMI panels) and that the diagnostic buffer shows no new faults. Verify port link status via the switch’s web interface and check SNMP trap logs if a network management system is in use. Pre-shipment testing performed by NINERMAS covers power-on self-test and port link verification, so physical defects are screened before dispatch.

Q3: Can this switch be used in a mixed PROFIBUS and PROFINET environment?
Yes, with appropriate coupling hardware. The 6GK5208-0BA00-2AF2 operates on the PROFINET (Industrial Ethernet) side of the network. Legacy PROFIBUS DP segments can be integrated using a SIMATIC NET IE/PB Link PN IO or a DP/PN Link coupler connected to one of the switch’s RJ45 ports. The switch itself does not process PROFIBUS frames but provides the Ethernet backbone over which the PN/DP gateway communicates with the S7 CPU.

Q4: What warranty and stock availability does NINERMAS provide?
All 6GK5208-0BA00-2AF2 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Units are pre-shipment tested for power-on operation and port functionality before dispatch. Stock is maintained for immediate shipment; lead time for in-stock units is typically 3–5 business days to major industrial regions. For volume orders or urgent line-down requirements, contact sale@ninermas.com or call +0086 187 5021 5667 for priority fulfillment.
