Siemens 6FX2007-1AD13 Safety-Reliable Handheld Unit for Critical Control

Siemens 6FX2007-1AD13 Safety-Reliable Handheld Unit for Critical Control

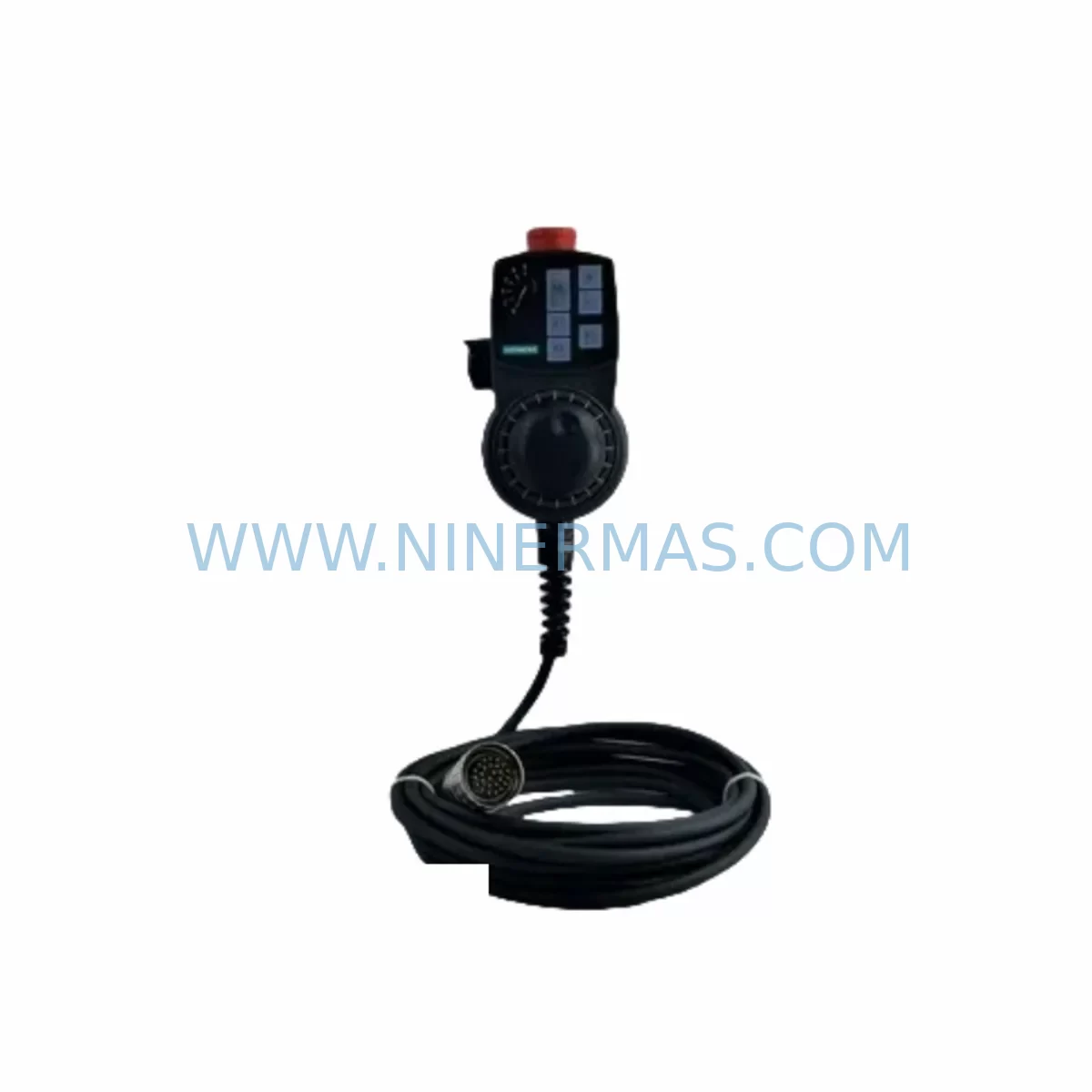

The Siemens 6FX2007-1AD13 is a SINUMERIK Mini Handheld Unit engineered for safety-critical CNC machine tool environments where operator control reliability is non-negotiable. Designed to interface directly with SINUMERIK 840D sl, 828D, and 808D control systems, this compact handheld terminal delivers precise manual traversing, override adjustment, and emergency stop capability at the machine face — exactly where split-second operator intervention can prevent catastrophic equipment damage or personnel injury.

In continuous production facilities — automotive body shops, aerospace machining cells, precision mold shops, and heavy-duty metal cutting lines — the 6FX2007-1AD13 serves as the last line of operator-level safety control. Its robust housing withstands the mechanical shock, coolant mist, and vibration inherent to high-cycle CNC operations, while its sealed keypad and handwheel encoder maintain signal integrity even in environments with elevated electromagnetic interference generated by servo drives, spindle inverters, and high-frequency cutting equipment.

Unplanned downtime caused by a failed or damaged handheld unit can halt an entire machining cell. Replacement lead times for OEM units through standard distribution channels often extend to weeks. NINERMAS maintains verified stock of the 6FX2007-1AD13 with pre-shipment functional testing, ensuring rapid deployment for maintenance teams operating under strict production uptime commitments.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A SINUMERIK-based CNC control cabinet is a tightly integrated safety ecosystem. The 6FX2007-1AD13 handheld unit connects into this ecosystem at the operator interface layer, but its reliable operation depends on the integrity of every upstream and downstream component. When planning a maintenance or retrofit strategy around this handheld unit, engineering teams should evaluate the full signal chain.

At the drive level, the Siemens SINAMICS S120 drive module governs axis motion in response to commands relayed through the handheld unit’s handwheel and override inputs. A degraded drive module can cause erratic axis response even when the handheld unit itself is functioning correctly, creating dangerous ambiguity for operators during manual traversing. Similarly, the SINUMERIK 840D sl NCU (Numerical Control Unit) — the computational core of the control system — must maintain stable communication with the handheld unit via the MPI or PROFIBUS interface; any communication timeout or bus fault will disable manual control precisely when it may be most needed.

Power supply stability is equally critical. The Siemens SITOP PSU100S 24V DC power supply provides the regulated 24V rail that powers both the control logic and the handheld unit interface circuitry. Voltage sag or ripple on this rail — often caused by aging capacitors or inadequate surge protection — can produce intermittent handheld unit dropouts that are difficult to diagnose and dangerous in a live machining environment. Pairing the PSU with a Siemens SIPROTEC surge protection device on the incoming AC supply significantly reduces the risk of transient-induced control faults.

For safety circuit integrity, the Siemens SIRIUS 3SK1 safety relay module monitors the E-Stop and enabling switch outputs from the 6FX2007-1AD13 and enforces safe-state logic in the event of a fault. This relay must be periodically proof-tested per IEC 62061 or ISO 13849 requirements to maintain the safety integrity level of the overall machine guarding system. Alongside this, the Siemens SIMATIC ET 200SP distributed I/O can be used to extend the handheld unit’s digital inputs and outputs to remote field devices within the control cabinet, reducing wiring complexity and improving diagnostic transparency.

In high-EMI environments — particularly those with large spindle drives or welding equipment nearby — the Siemens SINAMICS line filter and ferrite core cable suppressors on the handheld unit’s spiral cable are essential to prevent conducted interference from corrupting handwheel pulse signals. Signal corruption at this level can cause unintended axis movement, a serious safety hazard during precision manual operations. Additionally, the Siemens OP 010 operator panel and TCU (Thin Client Unit) complement the handheld unit in multi-station machining cells, providing fixed-position HMI access while the 6FX2007-1AD13 handles mobile operator control at the machine face.

Critical Industrial Safety Applications

The 6FX2007-1AD13 is deployed across a broad spectrum of safety-critical industrial environments where manual CNC control must be both precise and fail-safe.

In petrochemical and refinery maintenance facilities, CNC-controlled pipe cutting and flange facing machines operate in classified hazardous areas. The handheld unit’s enabling switch ensures that axis motion is only possible when the operator is actively holding the device in the intermediate position — a fundamental safety requirement that prevents unintended machine movement during tool changes or workpiece repositioning in confined spaces.

In electric power generation plants, turbine blade machining and rotor balancing operations demand micron-level manual positioning accuracy. The 6FX2007-1AD13’s high-resolution handwheel encoder provides the fine incremental control necessary for these operations, while its robust E-Stop ensures that any anomaly can be arrested immediately without relying on software-level intervention.

In mining and mineral processing facilities, CNC-controlled drilling rigs and crusher component machining centers operate in environments with extreme dust loading, vibration, and temperature cycling. The IP65-rated housing of the 6FX2007-1AD13 provides reliable protection against ingress of metallic dust and coolant, maintaining operator control integrity throughout extended production shifts.

In water treatment and desalination plants, CNC machining of pump impellers, valve bodies, and pipe fittings requires precise manual control during setup and first-article inspection. The handheld unit’s override selector allows operators to safely reduce feed rates during these critical phases without interrupting the machining program.

In metallurgical and steel mill environments, the combination of high ambient temperatures, heavy electromagnetic interference from induction furnaces, and mechanical vibration from rolling mill equipment creates one of the most demanding operating conditions for any electronic control device. The 6FX2007-1AD13’s compliance with IEC 60068 environmental test standards and EN 61000 EMC requirements makes it one of the few handheld control devices rated for sustained operation in these conditions.

In port and shipyard fabrication facilities, large CNC gantry machines and ship hull section machining centers rely on handheld units for manual positioning during workpiece loading and unloading cycles. The spiral cable design of the 6FX2007-1AD13 accommodates the extended reach required on large-format machines while maintaining signal integrity across the full cable extension range.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the 6FX2007-1AD13?
Every 6FX2007-1AD13 unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with the Siemens SINUMERIK application environment. Warranty claims are processed directly through NINERMAS with priority response to minimize customer downtime.

Q2: What pre-shipment testing is performed on each unit?
Each 6FX2007-1AD13 undergoes a full functional verification prior to dispatch. This includes handwheel encoder signal output verification, E-Stop circuit continuity and reset function testing, enabling switch three-position logic verification, override selector switch position confirmation, and visual inspection of the housing, cable, and connector for physical integrity. Test records are retained and available upon request.

Q3: Is the 6FX2007-1AD13 compatible with all SINUMERIK control generations?
The 6FX2007-1AD13 is designed for use with SINUMERIK 840D sl, 828D, and 808D control systems via the standard MPI/PROFIBUS handheld unit interface. Compatibility with earlier SINUMERIK generations (e.g., 840D classic) should be confirmed against the specific NCU software version and hardware revision in use. NINERMAS technical support can assist with compatibility verification prior to order placement.

Q4: Can NINERMAS support long-term supply requirements for this part?
Yes. NINERMAS specializes in the long-term supply of spare parts for legacy and current-generation Siemens SINUMERIK control systems. For customers with planned maintenance schedules or multi-site fleet standardization requirements, NINERMAS can discuss framework supply agreements to ensure consistent availability of the 6FX2007-1AD13 and associated SINUMERIK components over extended periods. Contact sale@ninermas.com to discuss your supply requirements.
