SIEMENS 6FX1124-6AA02 Service-Ready Spare Part for Industrial Maintenance

SIEMENS 6FX1124-6AA02 Service-Ready Spare Part for Industrial Maintenance

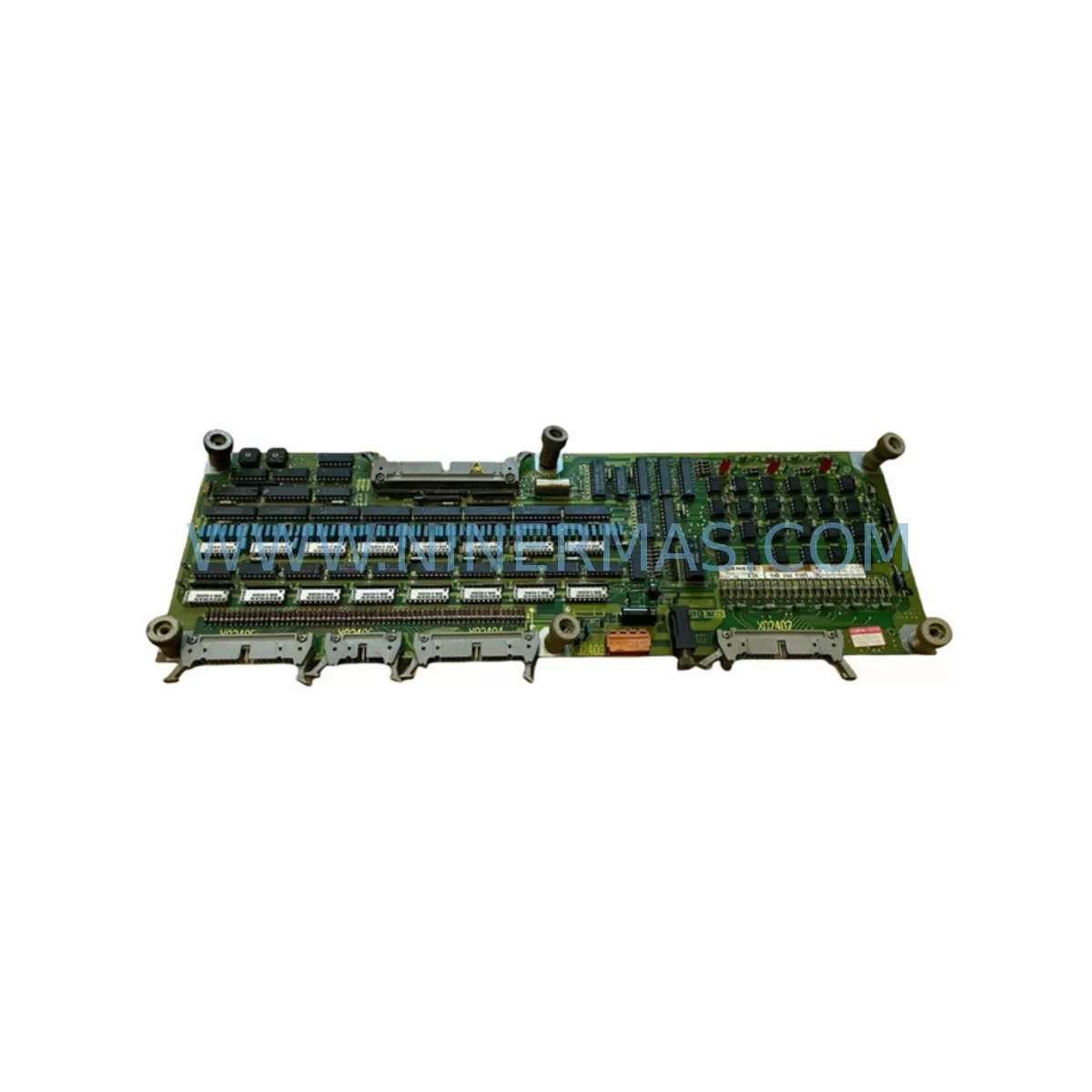

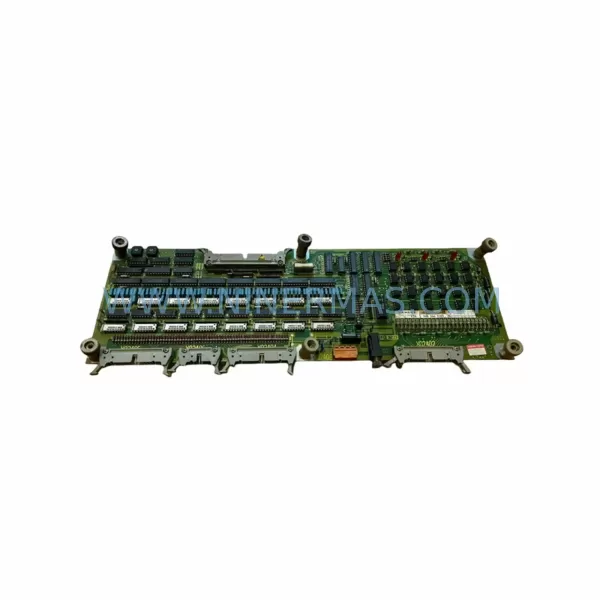

The SIEMENS 6FX1124-6AA02 is an original I/O Drive Board designed for SINUMERIK CNC control systems, widely deployed across discrete manufacturing, machine tool operations, and process automation environments. As a critical interface component between the CNC controller and drive units, the 6FX1124-6AA02 manages I/O signal routing, drive enable logic, and feedback integration — making it a high-priority spare part for any facility running SINUMERIK-based machine tools. Unplanned failure of this board can result in immediate machine downtime, production loss, and extended recovery windows if replacement stock is not pre-positioned. Sourcing a verified, pre-tested unit from a reliable supplier is the fastest path to restoring full operation.

At NINERMAS, every 6FX1124-6AA02 unit is subject to pre-shipment functional testing and visual inspection before dispatch. We maintain long-term stock commitments for SINUMERIK legacy components to support lifecycle extension programs, planned overhauls, and emergency breakdown recovery. Our 12-month warranty covers all shipped units, giving maintenance engineers and procurement teams confidence in both quality and supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6FX1124-6AA02 I/O Drive Board in a SINUMERIK-controlled machine tool, a thorough cabinet inspection is strongly recommended to prevent repeat failures and ensure full system restoration. Maintenance engineers should verify the condition and function of the following associated components before returning the machine to production:

Begin with the SIMODRIVE 611 power supply module — voltage irregularities or ripple on the DC bus are a common upstream cause of I/O board degradation. Check the SINUMERIK NCU (Numerical Control Unit) for fault memory entries that may indicate whether the I/O board failure was a primary event or a consequence of a controller-side fault. Inspect all drive enable and ready signal cables between the NCU and the drive modules; damaged shielding or loose connectors can cause intermittent I/O faults that damage replacement boards if not corrected.

Review the SIMODRIVE 611 axis drive modules for overcurrent or overtemperature history — a failing axis drive can back-feed fault conditions into the I/O board. Check the 24VDC auxiliary power supply feeding the control logic; an out-of-tolerance supply is a frequent but overlooked cause of board failure. Inspect terminal blocks and I/O wiring harnesses for insulation breakdown, especially in high-vibration environments. If the machine uses a SINUMERIK operator panel (OP) or machine control panel (MCP), verify that the panel interface connections are secure and that no panel-side short circuit contributed to the fault.

For systems with PROFIBUS-DP communication between the NCU and drive units, confirm bus termination resistors are correctly installed and that the PROFIBUS cable is undamaged. In older SINUMERIK installations, the battery backup module for SRAM data retention should also be checked — a depleted battery can cause parameter loss that mimics I/O board faults. Finally, inspect the cabinet cooling fans and heat exchangers; thermal stress is a primary aging factor for drive boards in enclosed control cabinets. Addressing all of these points during a planned replacement of the 6FX1124-6AA02 significantly reduces the risk of repeat failure and unplanned downtime.

Site Replacement Workflow

Replacing the SIEMENS 6FX1124-6AA02 on-site follows a structured sequence to minimize downtime and ensure system compatibility:

1. Fault Isolation: Use the SINUMERIK diagnostic display or NCU alarm log to confirm the 6FX1124-6AA02 as the failed component. Document all active alarms before powering down.

2. Safe Shutdown: Follow the machine’s lockout/tagout procedure. Discharge the DC bus capacitors in the SIMODRIVE 611 power section before opening the cabinet.

3. Board Removal: Photograph connector positions and cable routing before disconnecting. Label all connectors if not already marked. Remove the board carefully, noting any visible damage (burn marks, swollen capacitors, cracked traces).

4. Replacement Installation: Install the pre-tested 6FX1124-6AA02 replacement. Reconnect all cables in the documented sequence. Verify that all connectors are fully seated and locking tabs engaged.

5. Power-Up and Verification: Restore power in the correct sequence per the SINUMERIK startup procedure. Clear fault memory and perform a drive reference run. Confirm all I/O signals are responding correctly via the NCU diagnostic interface.

6. Documentation: Record the replacement in the machine maintenance log, including the new board serial number, installation date, and technician name. Update the spare parts inventory to trigger reorder of a replacement stock unit.

This workflow supports rapid recovery from unplanned breakdowns and is equally applicable to scheduled overhaul replacements, ensuring the machine returns to full production capability with minimal disruption.

Spare Parts Support FAQ

Q1: Is the 6FX1124-6AA02 compatible with all SINUMERIK CNC variants?
The 6FX1124-6AA02 is designed for use within the SINUMERIK drive system architecture, primarily associated with SINUMERIK 800/810/820 series and compatible SIMODRIVE configurations. Compatibility should be verified against the machine’s electrical documentation and NCU part list before ordering. Contact our technical team if you need cross-reference support.

Q2: What does the 12-month warranty cover?
Our 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit is pre-tested before shipment. The warranty period begins from the date of dispatch. Warranty claims are supported by our technical team with replacement or repair options.

Q3: Can NINERMAS support long-term or scheduled spare parts supply for the 6FX1124-6AA02?
Yes. We offer stock commitment programs for customers requiring scheduled deliveries or volume reserves of legacy SINUMERIK components. This is particularly valuable for facilities managing multiple machines or planning multi-year lifecycle extension programs. Contact us to discuss a supply agreement.

Q4: What should I check before installing a replacement 6FX1124-6AA02 to avoid repeat failure?
Before installing the replacement board, verify the upstream power supply voltage, inspect all signal cables and connectors for damage, check the SIMODRIVE axis modules for fault history, and confirm the cabinet cooling system is functioning correctly. Addressing root causes before installation protects the replacement unit and extends its service life.
