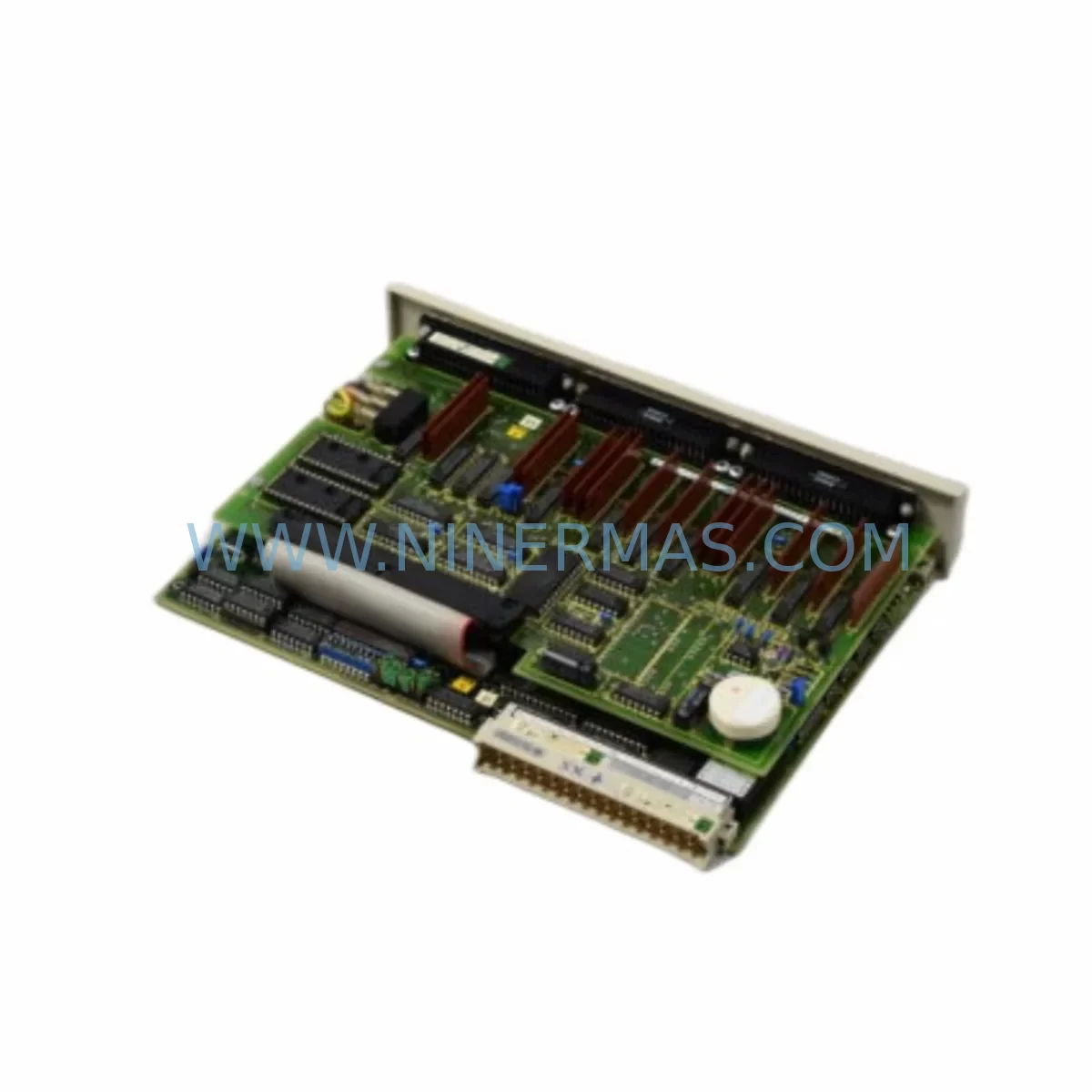

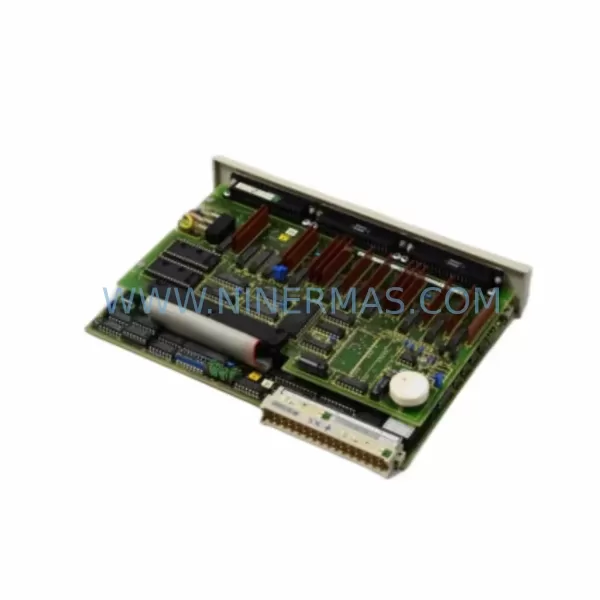

The Siemens 6FM2805-4AS31 is a critical servo drive module within the Siemens FM Series (SIMODRIVE FM) platform, widely deployed across CNC machining centers, automated production lines, and process control cabinets in heavy manufacturing environments. When this module fails or degrades, the downstream impact is immediate: axis faults, spindle loss, and unplanned downtime that can cost thousands per hour in a continuous-process facility. NINERMAS supplies the 6FM2805-4AS31 as a service-ready spare part — tested, verified, and dispatched with a 12-month warranty to support your maintenance team’s fastest possible recovery.

Whether you are managing a scheduled annual overhaul, responding to an emergency axis fault, or building a strategic spare parts inventory for aging SIMODRIVE FM infrastructure, the 6FM2805-4AS31 is a direct-fit replacement that eliminates the compatibility risk and lead-time uncertainty associated with sourcing through general distributors.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6FM2805-4AS31 in isolation rarely resolves the root cause of a servo axis fault. Experienced maintenance engineers know that a failed drive module is often a symptom of broader electrical stress in the control cabinet. When servicing this module, your team should simultaneously inspect and — where appropriate — stock the following associated components to prevent repeat failures and reduce the risk of a second unplanned outage:

• SIMODRIVE FM Power Supply Module (e.g., 6FM2807 series) — The DC bus power supply feeding the 6FM2805-4AS31 should be load-tested. Voltage ripple or under-voltage events are a leading cause of premature drive module failure.
• Siemens SITOP Power Supply (e.g., 6EP1333 / 6EP1336 series) — 24 VDC logic supply units feeding the control section of the FM cabinet should be checked for output stability and capacitor aging.
• Resolver / Encoder Feedback Cable Assembly — Damaged or intermittently shielded feedback cables cause axis oscillation and false fault codes that mimic drive module failure. Inspect connectors and cable routing.
• Siemens SINUMERIK NCU / CCU Communication Board — If the 6FM2805-4AS31 interfaces with a SINUMERIK CNC controller, verify the drive bus communication link and check for firmware compatibility after module replacement.
• FM Series Backplane / Drive Bus Connector — Backplane connectors in aging FM cabinets are subject to fretting corrosion. Clean and inspect all edge connectors when removing the module.
• Siemens 3RT / 3RH Contactor (Motor Contactor) — The motor enable contactor in the spindle or axis circuit should be inspected for contact wear, especially in high-cycle applications.
• Siemens 3NE / 3NA Fuse (DC Bus Fuse) — DC bus fuses protecting the drive module should be replaced as a precaution during any servo drive overhaul, particularly if the original failure involved an overcurrent event.
• Siemens ET 200 / S7-300 I/O Module (Digital Output) — Enable and fault-reset signals from the PLC I/O to the drive should be verified. A faulty DO channel can prevent the replacement module from initialising correctly.
• Siemens OP / TP HMI Panel (e.g., OP7, TP177) — If the machine HMI is used for drive parameter access, confirm the panel communication link is stable before commissioning the replacement module.
• Signal Isolator / Galvanic Separator (e.g., Siemens SITRANS or equivalent) — Analogue speed reference signals entering the drive from a DCS or PLC analogue output should be verified for accuracy and isolation integrity.

Stocking these components alongside the 6FM2805-4AS31 as part of a structured FM Series spare parts kit significantly reduces mean time to repair (MTTR) and supports a proactive maintenance posture for facilities operating aging SIMODRIVE FM infrastructure.

Site Replacement Workflow

Replacing the Siemens 6FM2805-4AS31 on-site follows a structured sequence to ensure system compatibility, safe installation, and minimal downtime:

1. Isolate and Lock Out: De-energise the drive cabinet following your site LOTO procedure. Confirm DC bus discharge (typically wait 5 minutes after power-off before opening the cabinet).
2. Document Existing Configuration: Before removing the old module, photograph the wiring, record any DIP switch or jumper settings, and — if accessible — back up drive parameters via the SINUMERIK or drive commissioning tool.
3. Remove the Faulty Module: Disconnect all connectors in sequence (power, feedback, bus). Label each connector if not already marked. Slide the module out of the backplane or DIN rail mount.
4. Inspect the Cabinet: Check for signs of thermal damage, contaminated bus bars, or corroded connectors before installing the replacement. Address any secondary damage before proceeding.
5. Install the 6FM2805-4AS31 Replacement: Seat the module firmly, reconnect all connectors in reverse order, and verify that the drive bus termination resistor (if applicable) is correctly positioned.
6. Restore Parameters: Upload the saved parameter set or re-enter key parameters (axis type, encoder type, current limits, speed limits) as per the machine documentation.
7. Power-On and Functional Test: Energise the cabinet, clear any residual fault codes, and perform a low-speed jog test on the affected axis before returning the machine to production.
8. Document the Replacement: Record the replacement in your CMMS or maintenance log, including the new module serial number, date, and technician name, to support warranty claims and future maintenance planning.

This workflow is applicable whether you are replacing a failed module on an emergency basis or performing a planned swap during a scheduled maintenance window. The 6FM2805-4AS31 supplied by NINERMAS is pre-tested to OEM specification, reducing commissioning time and the risk of a second call-out.

Spare Parts Support FAQ

Q1: Is the 6FM2805-4AS31 supplied by NINERMAS a new or refurbished unit, and what does the 12-month warranty cover?
All units are either new old-stock or professionally refurbished to original Siemens specification. Each module undergoes a full functional test prior to dispatch. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported by our technical team at sale@ninermas.com.

Q2: How do I confirm compatibility between the 6FM2805-4AS31 and my existing SIMODRIVE FM cabinet before ordering?
Provide your existing module’s full part number (including any suffix variants), your SINUMERIK CNC controller model, and — if available — the machine builder’s drive configuration sheet. Our engineering team will cross-reference these against the 6FM2805-4AS31 specification and confirm compatibility before shipment. We do not dispatch units where compatibility cannot be confirmed.

Q3: What is the typical lead time, and can NINERMAS support long-term or blanket spare parts agreements for the FM Series?
Standard lead time is 3–7 business days from order confirmation, subject to stock availability. For facilities managing multiple SIMODRIVE FM systems or planning multi-year maintenance programmes, NINERMAS offers long-term supply agreements with reserved stock allocation, priority dispatch, and fixed pricing. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your requirements.

Q4: What pre-shipment checks are performed on the 6FM2805-4AS31 before it leaves your facility?
Each unit is subjected to a multi-point inspection covering: visual inspection for physical damage, power-on functional test, drive bus communication verification, and output stage load test where applicable. A test report is available on request. Units that do not pass all checks are not dispatched. This process ensures that your maintenance team receives a module that is ready to install, reducing the risk of a failed replacement and a second unplanned outage.
