Siemens 6FC5370-7AA00-0AA0 Retrofit Panel Processing Unit

Siemens 6FC5370-7AA00-0AA0 Retrofit-Compatible Panel Processing Unit for Legacy CNC Systems

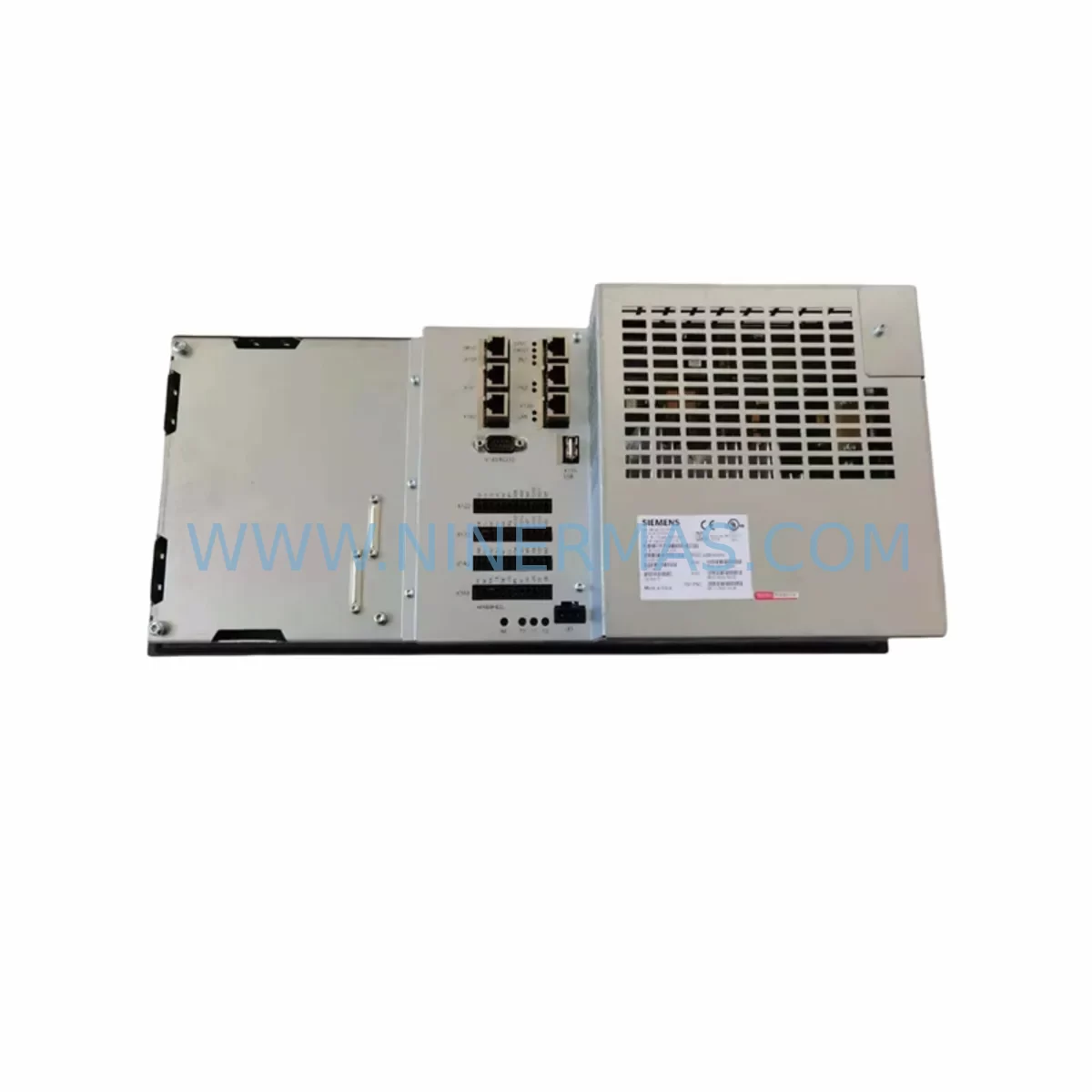

The Siemens 6FC5370-7AA00-0AA0 (PPU281.1) is a Panel Processing Unit designed for the SINUMERIK 828D CNC control platform. As a direct retrofit replacement for discontinued or end-of-life PPU modules, this unit enables machine shops, OEM integrators, and maintenance engineers to restore full CNC functionality without replacing the entire control cabinet. Each unit supplied by NINERMAS undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring reliable deployment in production-critical environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 6FC5370-7AA00-0AA0 into an existing machine tool or production line, a structured retrofit plan significantly reduces risk and unplanned downtime. The PPU281.1 consolidates the NC kernel, PLC, and HMI into a single compact unit, which simplifies the control cabinet layout compared to older distributed architectures. Before beginning the swap, engineers should archive the complete NC backup — including part programs, tool offsets, zero points, and machine data — using the SINUMERIK Operate backup utility or a CF card image.

Power supply compatibility is the first hardware checkpoint. The 6FC5370-7AA00-0AA0 requires a stable 24 V DC rail; if the existing Siemens SITOP PSU10S or PSU8600 power supply is undersized or aging, it should be replaced or supplemented before the PPU is energized. Terminal wiring on the X1 and X2 connectors must be verified against the original machine wiring diagram — particularly the emergency stop chain, axis enable signals, and spindle control lines.

For machines previously running an older SINUMERIK 802D sl or 840D sl controller, the migration path involves remapping I/O addresses in the PLC program. The 828D’s integrated SIMATIC S7-200 Smart-compatible PLC uses a different I/O address space, so any existing ladder logic or STL programs must be reviewed and adapted. Digital input/output modules such as the PP72/48D 2/2A or the MCP483C PN machine control panel should be confirmed compatible with the new PPU firmware version before go-live.

Communication link verification is equally critical. If the machine network uses PROFIBUS DP to connect drives such as the SINAMICS S120 or older SIMODRIVE 611 servo amplifiers, the PROFIBUS master configuration within the PPU must be re-imported or rebuilt using STARTER or Sizer software. For sites migrating to PROFINET IO, the network topology, switch infrastructure, and drive firmware must all support the target protocol version. The 6FC5370-7AA00-0AA0 supports both protocols, but the active interface is determined during commissioning.

HMI screen adaptation is often overlooked during PPU replacements. Existing ShopMill or ShopTurn cycle configurations, custom PLC alarms, and operator panel layouts stored on the original PPU must be exported and re-imported after the new unit is initialized. The SINUMERIK Operate interface on the PPU281.1 is compatible with standard 828D HMI configurations, but any custom screen extensions (SCE packages) should be validated against the installed firmware version. The MCP310C PN or OP 010 operator panel connections should be tested for correct key mapping and spindle override response before returning the machine to production.

For I/O expansion requirements, the 828D platform supports additional PP72/48 I/O modules connected via DRIVE-CLiQ or PROFIBUS, allowing the retrofit to accommodate extra sensors, limit switches, or auxiliary relay outputs without redesigning the control cabinet. Signal isolators may be required when integrating legacy 0–20 mA analog sensors with the PPU’s ±10 V analog input channels. A CF card or USB programming cable is required for initial firmware loading and NC data restoration.

Downtime Control During System Migration

Minimizing machine downtime during a PPU replacement requires preparation before the maintenance window begins. A complete NC and PLC backup should be verified readable on a separate PC before the old PPU is removed. Photographing all terminal connections and labeling each cable with its connector designation eliminates wiring errors during reassembly. Where possible, the new 6FC5370-7AA00-0AA0 should be pre-configured on a bench using the archived machine data, so that on-machine commissioning is limited to final parameter verification and axis referencing.

During the swap, the SINAMICS S120 drive group or SIMODRIVE 611 amplifiers should remain powered down until the PPU has completed its boot sequence and the PROFIBUS or PROFINET network is confirmed active. Axis enable signals should be released only after the NC reports ready status and all safety interlocks — including the SINUMERIK Safety Integrated functions if configured — have been verified. A controlled dry-run cycle without cutting load confirms that axis motion, spindle speed, and coolant outputs respond correctly before resuming production.

For multi-axis machining centers or transfer lines where extended downtime carries significant production cost, a staged approach is recommended: replace and commission one axis group at a time, keeping the remaining axes in a safe parked state. This approach, combined with pre-tested spare units from NINERMAS inventory, allows maintenance teams to achieve controlled, predictable recovery windows rather than open-ended fault-finding exercises.

Retrofit Support FAQ

Q1: Is the 6FC5370-7AA00-0AA0 a direct drop-in replacement for the PPU280.1 or PPU281.0?
The PPU281.1 (6FC5370-7AA00-0AA0) is mechanically compatible with the standard SINUMERIK 828D panel cutout. However, firmware version differences between PPU280.x and PPU281.x generations may require a machine data migration step. NINERMAS recommends verifying the target firmware version against your existing NC backup before installation to avoid parameter incompatibilities.

Q2: What commissioning tools are required for initial setup?
A CF card or USB drive containing the NC backup, a PC running SINUMERIK Operate or the 828D commissioning wizard, and a PROFIBUS or Ethernet connection to the drive group are the minimum requirements. For PROFINET configurations, a managed switch supporting IRT (Isochronous Real-Time) is recommended. NINERMAS supplies units with factory firmware pre-loaded; customer-specific machine data must be restored on-site.

Q3: How is wiring compatibility confirmed before installation?
Compare the X1, X2, and X100–X122 connector pinouts on the 6FC5370-7AA00-0AA0 against the original machine wiring diagram. Pay particular attention to the 24 V DC supply terminals, the PROFIBUS DP port (X126), the Ethernet/PROFINET port (X127), and the DRIVE-CLiQ port (X100). If the original machine used a separate NCU and PCU combination, the integrated PPU architecture eliminates those units but requires remapping their I/O assignments in the PLC program.

Q4: What does the 12-month warranty cover, and is inventory available for urgent orders?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is pre-shipment tested for power-on integrity and basic I/O response before dispatch. NINERMAS maintains stock of the 6FC5370-7AA00-0AA0 and related SINUMERIK 828D components to support urgent replacement requirements. Contact our team for lead time confirmation and expedited shipping options.
