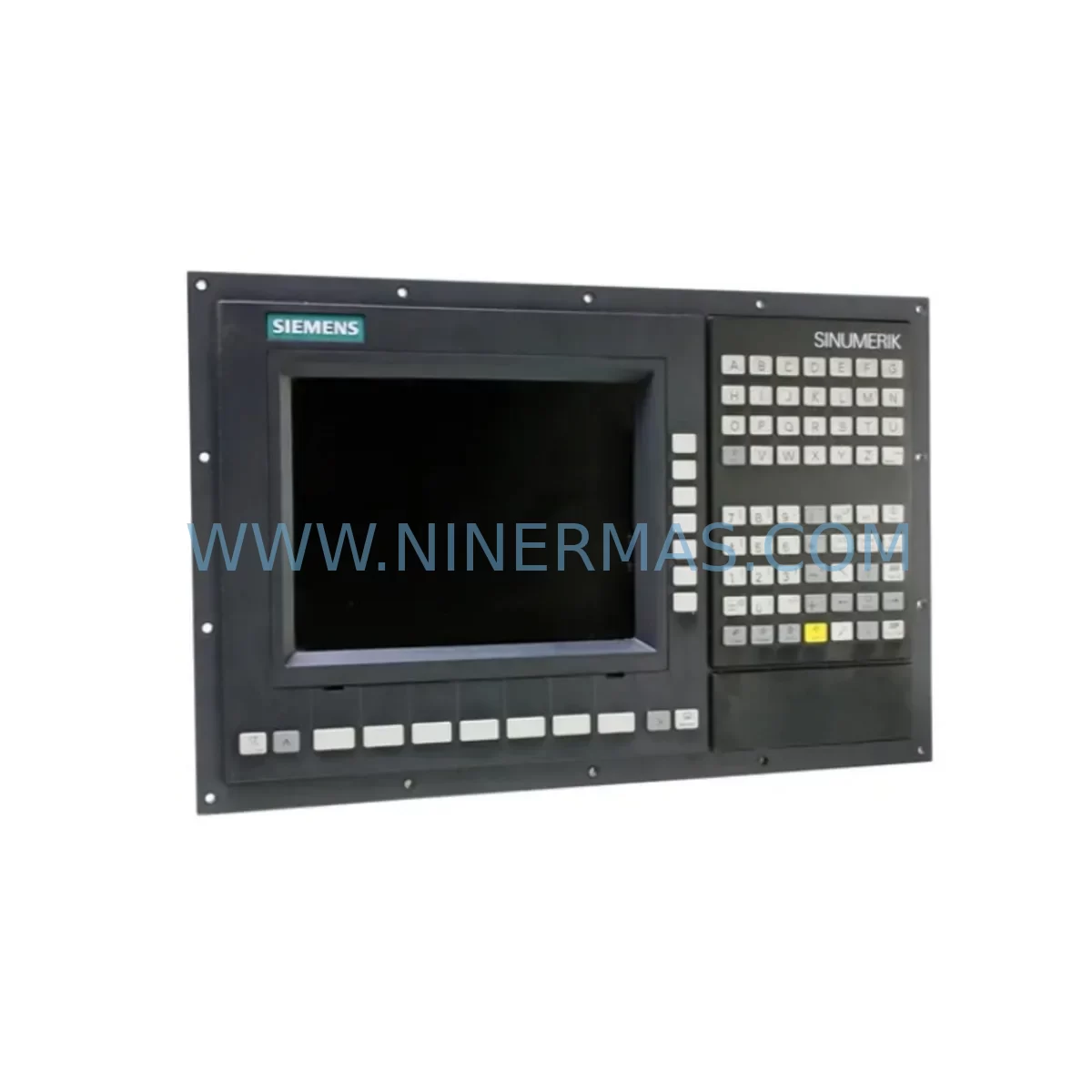

The Siemens 6FC5370-6AA30-0WA0 is a Panel Processing Unit (PPU) designed for the SINUMERIK 828D CNC control platform — one of Siemens’ most widely deployed mid-range CNC systems in turning, milling, and grinding applications worldwide. As a service-ready spare part sourced and tested by NINERMAS, this unit is prepared for direct field replacement, minimizing machine downtime and restoring production continuity with confidence.

For maintenance engineers managing aging CNC assets, the 6FC5370-6AA30-0WA0 represents a critical line-replaceable unit (LRU). When the PPU fails — whether due to display faults, communication errors, axis control loss, or power anomalies — rapid access to a verified replacement is the difference between a two-hour recovery and a multi-day production halt. NINERMAS maintains ready stock of this unit to support emergency callouts, planned overhauls, and long-term spare parts programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6FC5370-6AA30-0WA0 PPU is rarely an isolated task. In a SINUMERIK 828D control cabinet, the PPU is the nerve center — it integrates the HMI, NC kernel, PLC, and drive communication into a single compact unit. A thorough maintenance plan must account for all interconnected components to prevent repeat failures and ensure a stable return to production.

During a PPU replacement, maintenance engineers should simultaneously inspect the SINUMERIK 828D power supply module (6FC5370-6AA00-0AA0 or equivalent), which provides the regulated 24 V DC feed to the PPU. A degraded power supply is a common root cause of PPU instability and should be tested or replaced as a precaution. Equally important is the SINAMICS S120 drive system — the PPU communicates with the drive modules via DRIVE-CLiQ, and any wiring degradation or connector corrosion on the DRIVE-CLiQ cables can cause axis faults that are misdiagnosed as PPU failures.

The I/O modules connected to the PPU’s integrated PLC — including digital input/output expansion boards and the PP72/48D PN I/O module — should be checked for loose terminal connections, blown fuses, and signal integrity. In high-vibration environments, terminal blocks on the I/O side are prone to loosening over time, causing intermittent faults that are difficult to trace without a systematic inspection.

Communication reliability is another key concern. The PROFINET network switch or industrial Ethernet infrastructure connecting the PPU to peripheral devices, HMI extensions, or remote I/O should be verified for correct IP addressing and cable integrity. If the machine uses a Siemens OP 010 or OP 015 operator panel extension, the connection between the PPU and the operator panel must be re-established and tested after replacement.

For machines with safety-integrated functions, the safety relay modules and SMC (Sensor Module Cabinet-Mounted) units interfacing with the drive system must be re-commissioned after a PPU swap, as safety parameters are stored in the PPU and must be reloaded from backup. Procurement engineers building a comprehensive spare parts kit for SINUMERIK 828D lines should also consider stocking the CompactFlash card containing the NC software image, SINAMICS S120 Control Unit CU320-2 PN, and 24 V DC buffer capacitor modules to cover the most common failure modes in a single maintenance event.

Site Replacement Workflow

Step 1 — Pre-replacement preparation: Back up the current NC data, PLC program, drive parameters, and safety parameters using the SINUMERIK 828D backup function (via CF card or USB). Confirm the replacement unit’s firmware version matches or is compatible with the existing system software. NINERMAS supplies units with factory firmware; field upgrades are straightforward via the standard Siemens update procedure.

Step 2 — Safe isolation: Power down the machine following the site LOTO (Lockout/Tagout) procedure. Disconnect the 24 V DC supply to the PPU, then carefully label and disconnect all DRIVE-CLiQ cables, PROFINET connections, USB peripherals, and the operator panel ribbon or cable assembly. Photograph the wiring layout before disconnection to simplify reassembly.

Step 3 — Physical swap: Remove the PPU from the control cabinet mounting. The 6FC5370-6AA30-0WA0 is a panel-mount unit — release the mounting clips or screws, slide the unit forward, and transfer the CF card from the old unit to the replacement unit. This preserves the NC software image and machine-specific data.

Step 4 — Reconnection and power-up: Reconnect all cables in reverse order. Apply 24 V DC and observe the boot sequence. The system should load the NC software from the CF card and enter the standard startup state. If a full restore is required, use the backup created in Step 1 to reload PLC programs, drive parameters, and safety data.

Step 5 — Functional verification: Run a dry-cycle test of all axes, verify I/O signal states, confirm PROFINET communication with all connected devices, and validate safety functions (E-stop, door interlock, axis-specific safety). Log the replacement in the machine maintenance record and update the spare parts inventory accordingly.

This workflow typically achieves a full recovery within 2–4 hours for a prepared maintenance team, compared to days or weeks waiting for an unplanned procurement. Maintaining a pre-tested, ready-to-deploy 6FC5370-6AA30-0WA0 in your site spare parts store is the single most effective measure for reducing CNC downtime risk on SINUMERIK 828D-equipped machines.

Spare Parts Support FAQ

Q1: Is the 6FC5370-6AA30-0WA0 compatible with all SINUMERIK 828D variants?
The 6FC5370-6AA30-0WA0 is a specific PPU variant within the SINUMERIK 828D family. Compatibility depends on the machine’s configured software version and hardware revision. NINERMAS recommends confirming the existing PPU’s order number and firmware version before ordering. Our technical team can assist with compatibility verification based on your machine’s nameplate data and current NC software version.

Q2: What does the 12-month warranty cover, and how is it validated?
All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. The warranty period begins from the date of shipment. In the event of a warranty claim, NINERMAS provides a replacement unit or repair service, subject to inspection confirming the failure is not due to installation error, overvoltage, or physical damage.

Q3: Can NINERMAS support long-term supply agreements for SINUMERIK 828D spare parts?
Yes. NINERMAS offers long-term supply programs for critical CNC spare parts, including the 6FC5370-6AA30-0WA0 and associated SINUMERIK 828D components. These programs include reserved stock allocation, priority lead times, and scheduled delivery to support annual maintenance budgets and multi-site procurement strategies. Contact our sales team to discuss volume commitments and program terms.

Q4: How are units tested before shipment?
Every 6FC5370-6AA30-0WA0 unit is subject to a pre-shipment inspection protocol that includes visual inspection for physical damage, power-on functional test, display verification, communication interface check, and firmware version confirmation. Units that do not pass all test criteria are not shipped. Test records are available upon request for quality-assurance documentation purposes.
