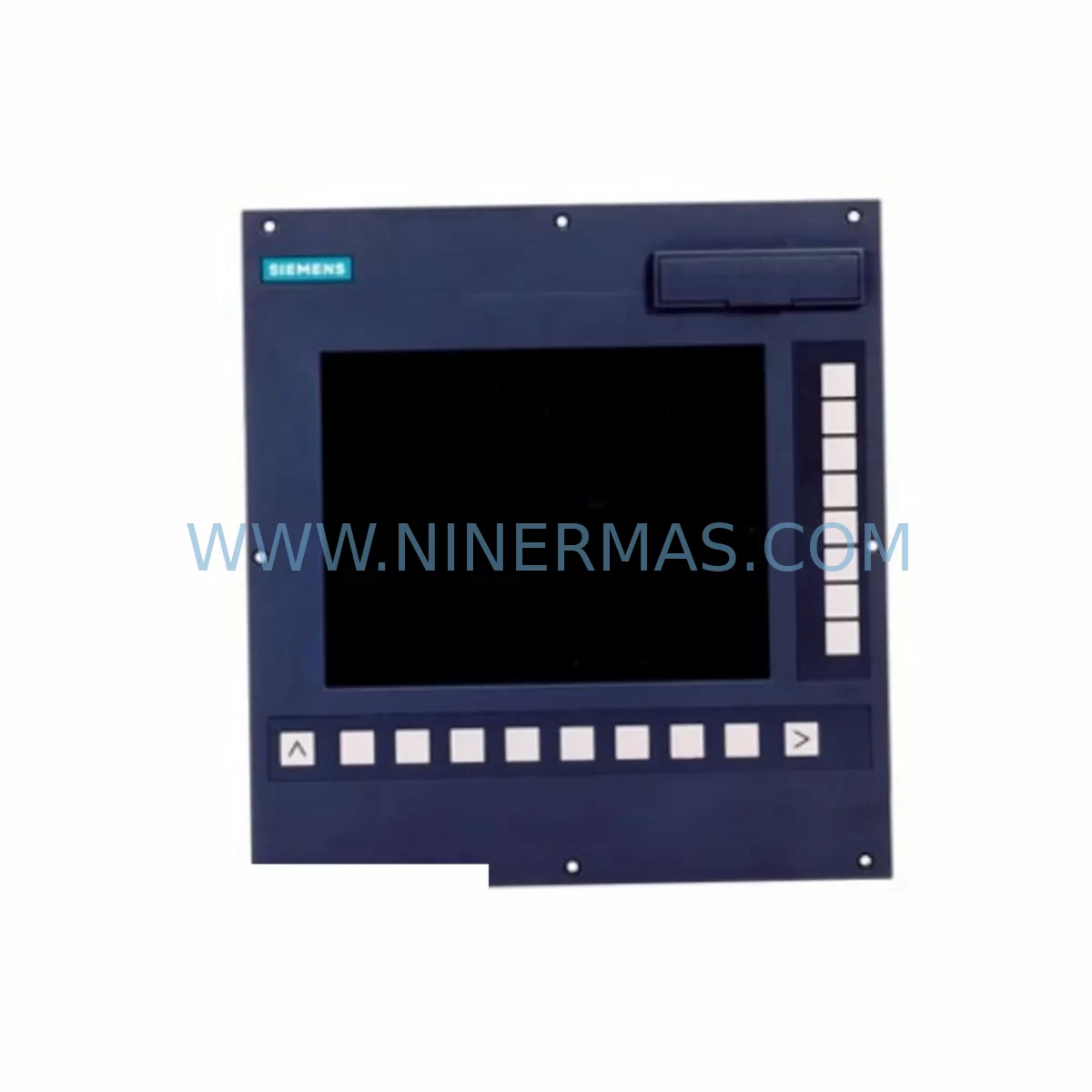

Siemens 6FC5370-0AA00-1AA1 Retrofit-Compatible NC Module

Siemens 6FC5370-0AA00-1AA1 Retrofit-Compatible NC Module: Legacy System Compatibility & Smooth Upgrade

The Siemens 6FC5370-0AA00-1AA1 is a SINUMERIK-series NC (Numerical Control) module widely deployed in legacy CNC machine tool control systems. As original equipment manufacturers discontinue support for older SINUMERIK 840C, 840D, and 810D platforms, the 6FC5370-0AA00-1AA1 remains a critical retrofit and replacement component for facilities seeking to extend the operational life of existing production lines without committing to a full control system overhaul. NINERMAS maintains verified stock of this module, pre-shipment tested and backed by a 12-month warranty, ensuring continuity for your automation infrastructure.

Whether you are replacing a failed NC board in a multi-axis machining center, upgrading a legacy control cabinet, or sourcing a long-term spare to protect against unplanned downtime, the 6FC5370-0AA00-1AA1 provides a direct-fit solution compatible with the original SINUMERIK backplane architecture. Its form factor, connector pinout, and firmware interface align with the original installation, minimizing re-engineering effort during replacement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 6FC5370-0AA00-1AA1 into an existing retrofit project requires a structured approach to avoid configuration drift and unplanned downtime. Before removing the failed module, engineers should archive the current NCK machine data, PLC program (backed up via SINUMERIK HMI Advanced or PCU 50 interface), and any active tool offset tables. This data is essential for restoring the machine to its pre-failure state after the new module is seated.

Power supply compatibility is the first hardware checkpoint. The SINUMERIK power supply module — such as the 6FC5370 series companion PSU or a compatible 6SN1145 SIMODRIVE power module — must deliver stable 24 VDC logic voltage within tolerance. Voltage sag during NC boot can cause initialization errors that are often misdiagnosed as module faults. Verify the power supply output under load before condemning the NC module itself.

Terminal wiring and I/O mapping are the next critical steps. The 6FC5370-0AA00-1AA1 interfaces with digital I/O modules — commonly 6FC5111 or 6FC5114 series I/O boards — through the backplane. Any changes to I/O addressing must be reflected in the PLC program’s symbol table. If the replacement module carries a different firmware revision, confirm that the NCK software version loaded from the CF card or PCU is compatible. Mismatched firmware between the NC module and the 6FC5410 or 6FC5460 series operator panel interface can prevent HMI screen initialization.

Communication link integrity must be verified after module seating. In systems using PROFIBUS-DP for drive communication — connecting to SIMODRIVE 611D drive modules or 6SN1118 control boards — the bus termination resistors and station addresses must remain unchanged. If the system uses MPI for PLC-to-HMI communication (e.g., connecting to a TP270 or OP270 operator panel), confirm that the MPI address of the new NC module matches the original configuration stored in the HMI project.

For systems incorporating a 6FC5203 or 6FC5247 series compact flash memory card, ensure the card is transferred to the replacement module and that the NCK recognizes the license key embedded in the card. Some SINUMERIK configurations store axis-specific compensation data and cycle packages on the CF card, which must be validated after the swap. Additionally, if the machine uses a 6FX2002 series encoder cable connecting the NC module to linear or rotary encoders on the machine axes, inspect the cable connectors for corrosion or pin damage before closing the control cabinet.

Finally, confirm installation space within the control cabinet. The 6FC5370-0AA00-1AA1 occupies a defined slot in the SINUMERIK rack. If the rack has been modified or if adjacent modules such as a 6FC5410 NCU link module or a 6FC5357 communication processor are present, verify that airflow paths are unobstructed and that the module locking mechanism engages fully. Proper seating is essential for backplane signal integrity.

Downtime Control During System Migration

Minimizing production downtime during an NC module replacement is achievable with disciplined pre-swap preparation. The most effective strategy is to complete all data backup and verification steps while the machine is still operational — or immediately after the fault is confirmed — rather than after the module has been removed. A complete NCK data backup, including machine data, setting data, tool data, and the PLC program, should be stored on an external medium such as a USB drive connected to the PCU 50 or HMI Advanced interface.

Once the replacement 6FC5370-0AA00-1AA1 is installed and powered, the restoration sequence follows a defined order: NCK software load, machine data restore, PLC program transfer, and finally axis referencing. Skipping or reordering these steps is the most common cause of extended commissioning time. If the machine uses absolute encoders (e.g., connected via 6FX2002 encoder cables), the reference point procedure may be simplified, but encoder battery status should be checked before relying on stored position data.

For facilities running multiple machines on the same PROFIBUS segment or sharing a common SIMATIC S7-300/400 PLC for cell-level coordination, isolating the affected machine from the network during the swap prevents bus errors from propagating to adjacent equipment. After the replacement module is commissioned and axis motion is verified through a dry-run cycle, the machine can be reconnected to the production network. This approach keeps the overall cell downtime to the minimum required for physical swap and software restore — typically two to four hours for a prepared team with verified backup data.

Retrofit Support FAQ

Q1: Is the 6FC5370-0AA00-1AA1 a direct drop-in replacement for my existing SINUMERIK NC module?
In most SINUMERIK 840C, 840D, and 810D installations, the 6FC5370-0AA00-1AA1 is a direct physical replacement. Confirm the rack generation, backplane connector type, and NCK software version before installation. No hardware modification is typically required, but firmware compatibility between the NC module and the operator panel interface should be verified.

Q2: What commissioning steps are required after installing the replacement module?
After seating the module, reload the NCK software from the CF card or PCU, restore machine data and PLC program from backup, verify PROFIBUS or MPI communication links, and perform an axis reference run. Check HMI screen assignments and tool offset tables before returning the machine to production. A dry-run cycle is recommended before cutting parts.

Q3: Do you provide pre-shipment testing and what does the 12-month warranty cover?
Yes. Every 6FC5370-0AA00-1AA1 unit shipped by NINERMAS undergoes pre-shipment functional testing to verify module initialization, backplane communication, and I/O response. The 12-month warranty covers hardware defects and module failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or environmental factors outside the module’s rated specifications.

Q4: What is your stock availability and lead time?
NINERMAS maintains inventory of the 6FC5370-0AA00-1AA1 to support urgent retrofit and breakdown replacement requirements. Standard lead time for in-stock units is 3–7 business days depending on destination. For time-critical situations, contact our team directly to confirm current stock levels and expedited shipping options.
