Siemens 6FC5357-0BB21-0AE0 Retrofit NCU for Legacy Systems

Siemens 6FC5357-0BB21-0AE0 Retrofit NCU for Legacy Systems: Seamless Compatibility for Aging CNC Infrastructure

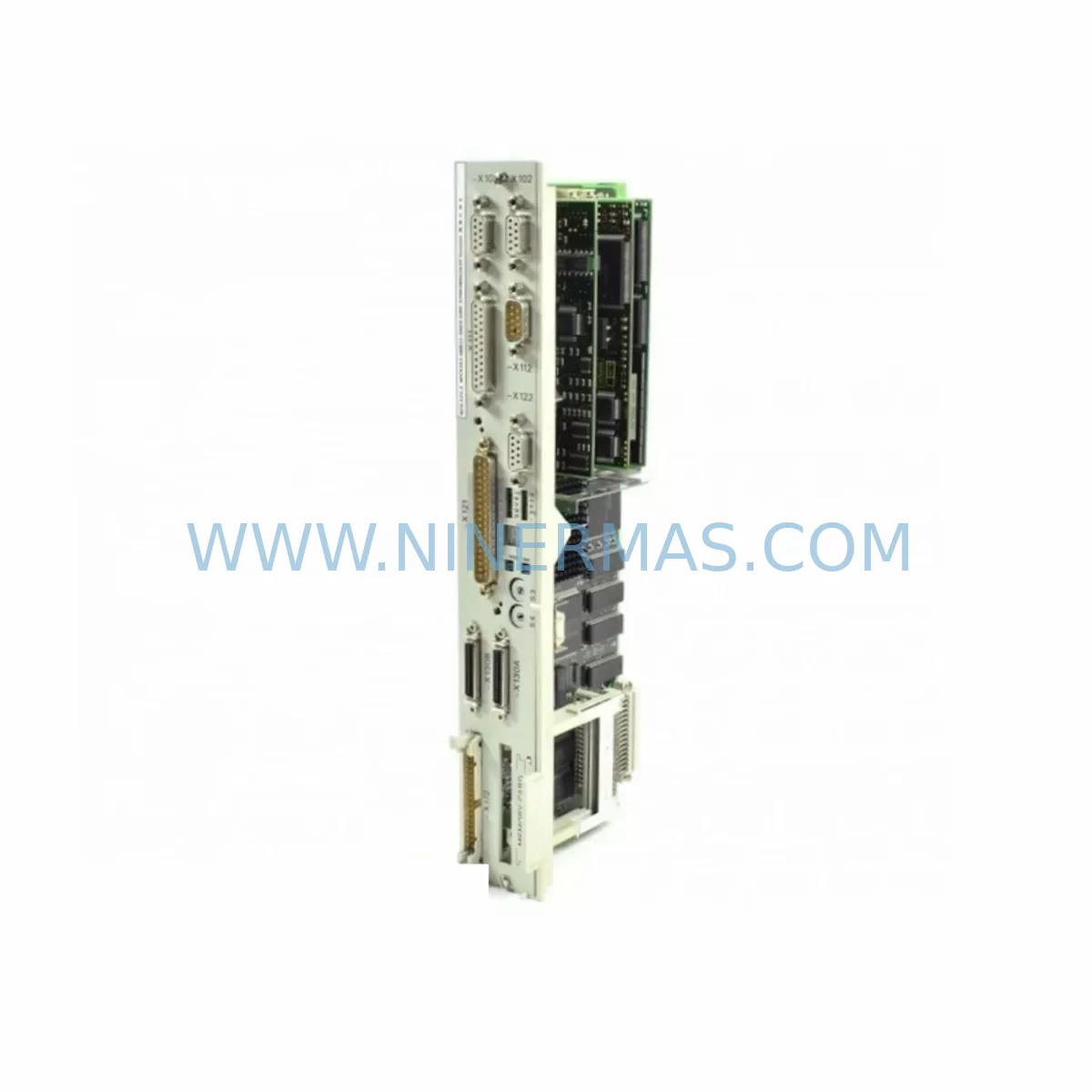

The Siemens NCU572.2 (order number 6FC5357-0BB21-0AE0) is a Numerical Control Unit designed for the SINUMERIK 840D platform — one of the most widely deployed CNC control architectures in precision machining, mold manufacturing, and heavy-duty cutting environments worldwide. As production lines age and original equipment manufacturers discontinue support for legacy hardware, the NCU572.2 remains a critical spare part and retrofit component for facilities that depend on SINUMERIK 840D-based machine tools. NINERMAS maintains verified stock of the 6FC5357-0BB21-0AE0 with pre-shipment functional testing and a 12-month warranty, enabling engineering teams to execute controlled replacements without committing to full platform migrations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the NCU572.2 in a live production environment requires systematic pre-work to avoid extended downtime and data loss. Before removing the 6FC5357-0BB21-0AE0 from the rack, engineers should archive the complete NC data set — including machine data, tool offsets, zero points, and part programs — using the SINUMERIK data backup function accessible through the PCU50 (6FC5210-0DF00-1AA1) or its successor the PCU50.3 (6FC5210-0DF31-2AA0). Both operator computing units store HMI configuration and user cycles independently of the NCU, which means the operator panel interface remains intact after the NCU swap.

Power supply capacity is a frequent oversight in retrofit projects. The 840D rack draws regulated DC voltage from the SIMODRIVE 611D power supply module (6SN1145-1BA02-0CA2). Before installing the replacement NCU572.2, verify that the power supply module is delivering within specification — voltage sag under load is a common cause of NCU boot failures after replacement. Similarly, the drive bus connecting the NCU to individual SIMODRIVE 611D axis modules (such as the 6SN1118-0DM33-0AA2 double-axis module) must be inspected for connector wear and correct termination.

Terminal wiring on the NCU572.2 covers digital I/O, analog override inputs, and safety-relevant signals including hardware limit switches and emergency stop chains. Cross-reference the existing wiring diagram against the NCU572.2 terminal assignment before reconnecting. If the machine uses an external machine control panel (MCP) such as the 6FC5247-0AF08-2AA0, confirm that the MCP address is set correctly on the rotary switch — address conflicts on the MPI bus will prevent the NCU from recognizing the panel after restart.

For machines equipped with the OP010 or OP012 operator panel connected through the 6FC5247-0AA00-0AA3 interface, the MPI bus speed must match the NCU configuration. Mismatched bus speeds are a silent failure mode that produces intermittent communication errors rather than hard faults, making them difficult to diagnose without a bus analyzer. The 6FC5303-0AF50-3BB0 full keyboard unit should also be tested for key response after the NCU is online, as keyboard firmware occasionally requires a re-initialization cycle following an NCU replacement.

If the retrofit scope includes expanding I/O capacity — for example, adding a new axis or integrating a conveyor interface — the 6FC5312-0DA00-0AA2 interface module provides additional digital I/O channels within the existing rack footprint without requiring a new rack or additional power feed. This is particularly useful in control cabinet upgrades where installation space is constrained and adding a second rack is not feasible.

For facilities planning a longer-term migration from SINUMERIK 840D to 840D sl or 828D, the NCU572.2 replacement serves as a bridge solution that preserves existing part programs and machine data while the migration is planned and budgeted. The 6FX2007-1AD03 programming cable is essential for loading archived NC data onto the replacement NCU during commissioning and should be on-site before the maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime during an NCU replacement depends on preparation quality, not execution speed. A structured replacement sequence for the 6FC5357-0BB21-0AE0 typically follows four phases: data backup and verification, hardware swap, parameter restore, and functional validation.

During the data backup phase, all NC machine data, PLC program blocks, and HMI user data should be saved to at least two independent media — typically the PCU50 internal drive and a USB stick. The PLC program (S7-300 compatible ladder or STL) should be exported via SIMATIC Manager or TIA Portal if the machine uses a networked PLC configuration. Confirm the backup is complete and readable before powering down the rack.

The hardware swap itself takes 15–30 minutes for a trained technician. The NCU572.2 slides into the rack slot and connects via the backplane connector — no tools are required for the module itself, though the drive bus and MPI connectors use locking screws that must be torqued correctly to prevent intermittent contact. After seating the new NCU, power the rack and allow the NCU to complete its self-test sequence before attempting to load NC data.

Parameter restore is the highest-risk phase. Load machine data in the correct sequence: general machine data first, then channel machine data, then axis machine data, and finally drive parameters. Incorrect load sequence can result in axis runaway or drive fault conditions on first motion test. After parameter load, perform a reference point run on all axes before releasing the machine to production. Document the commissioning results and retain the backup data for a minimum of 12 months as part of the maintenance record.

Retrofit Support FAQ

Q: Is the 6FC5357-0BB21-0AE0 a direct drop-in replacement for other NCU572.x variants?
A: The NCU572.2 is mechanically and electrically compatible with the NCU572.3 (6FC5357-0BB22-0AE0) slot position, but firmware versions differ. After installing the 6FC5357-0BB21-0AE0, reload the machine data backup from the original NCU version to ensure parameter compatibility. Do not mix NCU firmware versions with drive firmware that was calibrated on a different NCU generation without re-commissioning the drives.

Q: What pre-shipment testing does NINERMAS perform on the NCU572.2?
A: Each 6FC5357-0BB21-0AE0 unit undergoes power-on self-test, firmware version verification, and communication port continuity check before shipment. Units that fail any test stage are quarantined and not shipped. A test report is available on request and accompanies units shipped under warranty claim replacement.

Q: How do I verify wiring compatibility before installing the replacement NCU?
A: Download the NCU572.2 hardware manual (Siemens document 6FC5297-0AD30-0BP3) and compare terminal assignments against your existing wiring diagram. Pay particular attention to the X121 digital input connector and the X122 analog input connector — these are the most frequently rewired terminals during retrofit projects. If the original wiring diagram is unavailable, photograph all connectors before removal and label each wire with its terminal number.

Q: What is covered under the 12-month warranty?
A: NINERMAS provides a 12-month warranty from the shipment date covering manufacturing defects and functional failures under normal operating conditions. The warranty covers free replacement or repair of the defective unit. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental range. Warranty claims are processed within 5 business days of receiving the returned unit.
