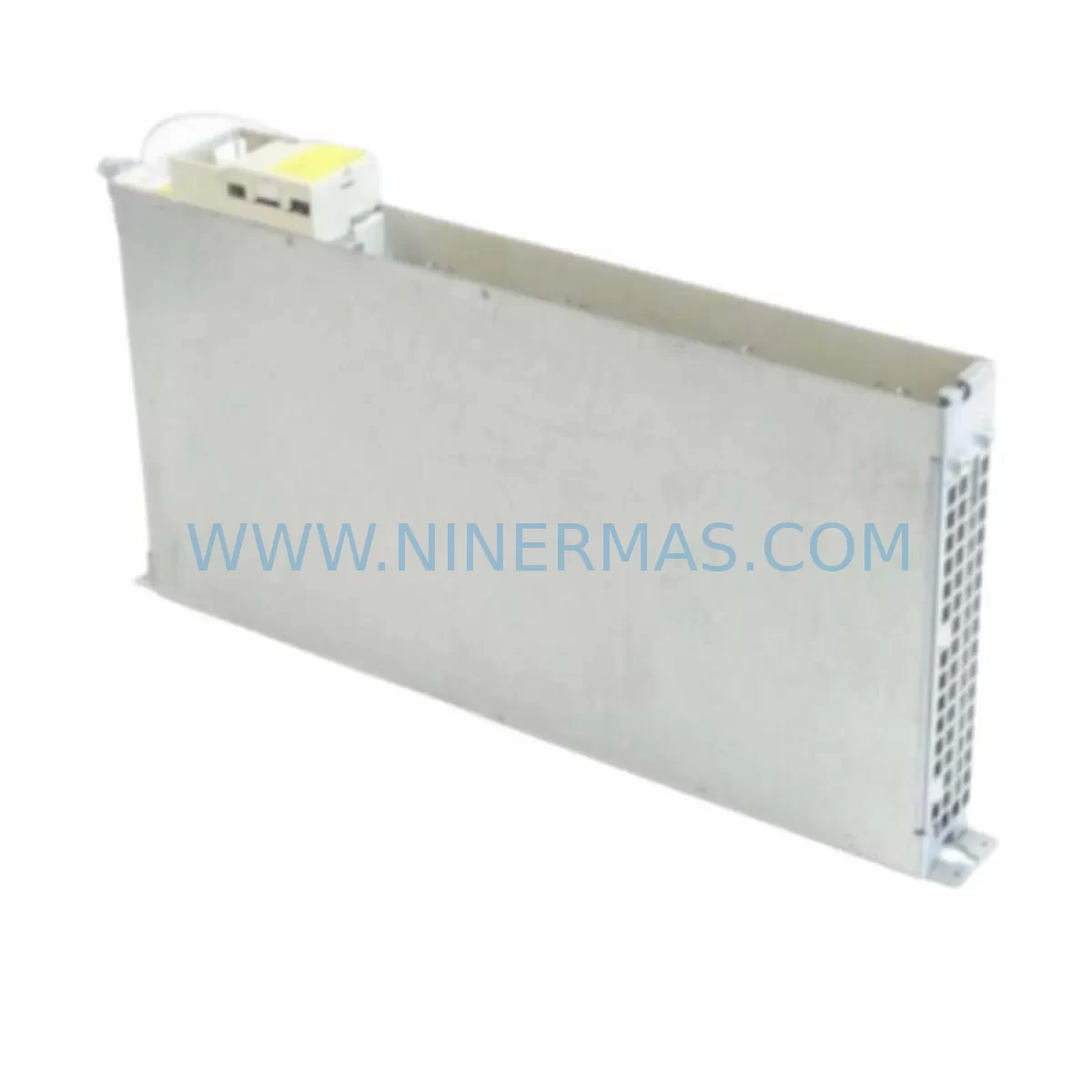

The Siemens 6FC5247-0AA00-0AA3 is a SINUMERIK Numerical Control Unit (NCU) designed for integration into legacy CNC machine tool environments where the original controller has reached end-of-life or has been discontinued. As Siemens progressively phases out older SINUMERIK 840C and 840D series hardware, facilities running multi-axis machining centers, turning centers, and grinding machines face increasing pressure to source verified replacement modules that maintain program compatibility, preserve existing wiring infrastructure, and minimize production downtime. The 6FC5247-0AA00-0AA3 addresses this need directly, offering a tested, stocked, and warranted solution for engineers and maintenance teams executing controlled retrofit programs.

This NCU module interfaces with the SINUMERIK platform’s distributed architecture, coordinating axis interpolation, PLC logic execution, and HMI communication through established PROFIBUS DP and MPI protocol links. When replacing a failed or obsolete NCU in an existing control cabinet, engineers must verify the backplane slot assignment, confirm the 24 VDC logic supply rail capacity from the existing Siemens 6EP1 power supply module, and validate that the SRAM battery backup circuit is intact to preserve part programs and machine data. The 6FC5247-0AA00-0AA3 retains the same physical form factor as predecessor NCU variants in the 840D lineage, which significantly reduces installation space concerns and eliminates the need for cabinet rework in most retrofit scenarios.

Before commissioning, the replacement NCU must be loaded with the correct NCK software version to match the existing machine configuration. Axis parameter sets, tool compensation tables, and zero-offset data stored in the original NCU should be backed up via the SINUMERIK Operate HMI panel or through a PC-based backup using the appropriate service software. If the original HMI panel — such as a OP010, OP012, or OP015A operator panel — is retained, the communication link between the NCU and HMI must be re-established and verified through the system startup sequence. Any mismatch in software release between the NCU firmware and the HMI software version can result in communication faults that delay commissioning.

Drive communication is equally critical during the retrofit process. The 6FC5247-0AA00-0AA3 connects to SINAMICS S120 drive modules or legacy 611D drive systems depending on the machine generation. Engineers should confirm the DRIVE-CLiQ topology or PROFIBUS drive address assignments before powering the system. In cases where the machine uses a 611D drive with an NE module and monitoring module, the drive bus termination resistors and axis address switches must be verified against the original machine documentation. Failure to replicate the original drive topology will result in axis faults during the NCK startup phase.

For facilities managing a broader modernization program, the 6FC5247-0AA00-0AA3 is frequently deployed alongside complementary SINUMERIK components. The SINUMERIK 840D sl NCU 710.3, NCU 720.3, and NCU 730.3 represent the current-generation upgrade path for machines requiring enhanced processing performance, while the 6FC5348-0AA08-0AA0 MSTT machine control panel and 6FC5303-0AF22-0AA0 compact flash card are commonly required accessories during NCU replacement. I/O expansion through the PP72/48 peripheral module or the 6FC5111-0CA01-0AA0 digital I/O module is often necessary when the retrofit scope includes signal interface updates between the NCU and the machine’s relay logic or safety relay circuits.

Signal isolation between the NCU’s digital I/O terminals and field devices — including proximity switches, spindle encoders, and coolant control relays — should be reviewed during the retrofit planning phase. Where original wiring uses unshielded cable runs exceeding recommended lengths, signal isolators or repeater modules may be required to maintain data integrity on encoder feedback lines. The 6FC5247-0AA00-0AA3’s terminal block layout is compatible with standard DIN rail mounting accessories, and the module’s connector pinout follows the documented SINUMERIK 840D hardware specification, allowing direct substitution without rewiring in most installations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6FC5247-0AA00-0AA3 begins with a structured pre-outage audit of the existing control system. The maintenance team should document the current NCK software version, PLC program version, and all machine data parameters before the replacement window opens. This data is typically extracted via the SINUMERIK Operate service menu or through a direct connection to the NCU’s CF card slot using a compact flash reader. The CF card itself — often a 6FC5303-0AF22-0AA0 or equivalent — should be cloned as a backup before the module swap begins.

Cabinet space assessment is a prerequisite for any NCU replacement. The 6FC5247-0AA00-0AA3 occupies the same physical envelope as the original module, but engineers should confirm that adjacent modules — including the NX10.3 or NX15.3 axis extension modules, the 6SL3040-0MA00-0AA1 CU320-2 control unit if present, and any 6FC5111 series I/O modules — are seated correctly and that the backplane connector is free of corrosion or mechanical damage before inserting the replacement unit.

Communication link verification is the final step before the first power-on. The PROFIBUS segment connecting the NCU to field devices, distributed I/O nodes, and drive units must be terminated correctly at both ends of the bus. If the machine uses a SIMATIC S7-300 safety PLC in a fail-safe configuration alongside the SINUMERIK NCU, the F-CPU communication parameters must be re-validated after the NCU swap to ensure the safety channel remains active. Programming cables such as the 6ES7972-0CB20-0XA0 PC adapter USB are commonly used during this phase to access the PLC program and confirm the safety function status.

Downtime Control During System Migration

Minimizing production downtime during an NCU replacement requires a phased approach that separates preparation work from the actual hardware swap. The preparation phase — which includes software backup, spare part verification, and wiring documentation review — should be completed during scheduled maintenance windows or low-production periods, leaving the physical swap and recommissioning as the only tasks requiring machine downtime.

Once the 6FC5247-0AA00-0AA3 is installed and the CF card with the backed-up machine data is inserted, the NCK startup sequence should restore axis parameters, tool data, and zero offsets automatically, provided the software version on the replacement NCU matches the original. If a software version difference exists, the NCK will enter a degraded startup mode and require manual parameter re-entry, which significantly extends the recommissioning time. Sourcing a replacement NCU with a pre-loaded, version-matched CF card from a supplier who performs pre-shipment configuration verification reduces this risk substantially.

Drive alarm clearance and axis referencing are the final steps before returning the machine to production. Each controlled axis must complete its reference point approach cycle, and the spindle orientation function should be verified under no-load conditions before the first production part is run. Retaining the original HMI panel and operator station during the NCU swap — rather than upgrading to a new OP panel simultaneously — isolates the variable set and reduces the number of potential fault sources during the commissioning phase, keeping the overall downtime window predictable and controlled.

Retrofit Support FAQ

Q: Is the 6FC5247-0AA00-0AA3 a direct replacement for the original NCU in my SINUMERIK 840D system?
A: In most cases, yes. The module uses the same backplane connector and physical form factor as the original NCU in the 840D series. However, you must verify that the NCK software version on the replacement unit matches your existing machine data configuration. Our team can advise on software version compatibility before shipment.

Q: What pre-shipment testing is performed on this unit?
A: Every 6FC5247-0AA00-0AA3 unit dispatched from our facility undergoes functional power-on verification and communication interface testing. A test report is available upon request. Units are shipped with protective packaging to prevent ESD damage and connector contamination during transit.

Q: How should I handle wiring and terminal connections during the swap?
A: The terminal block layout of the 6FC5247-0AA00-0AA3 follows the standard SINUMERIK 840D hardware specification. Photograph or document all existing wiring before disconnecting the original module. In most installations, the existing cable harness can be reconnected directly to the replacement unit without modification. If your installation uses custom cable extensions or non-standard shielding arrangements, review the original machine wiring diagram before proceeding.

Q: What does the 12-month warranty cover, and what is your stock availability?
A: The 12-month warranty covers functional defects arising under normal operating conditions from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Stock availability is maintained for this part number; contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm current inventory and lead time before placing your order.
