Siemens 6FC5203-0AF22-0AA2 Retrofit-Compatible CNC Panel

Siemens 6FC5203-0AF22-0AA2 Retrofit-Compatible CNC Panel: Legacy System Compatibility & Smooth Upgrade

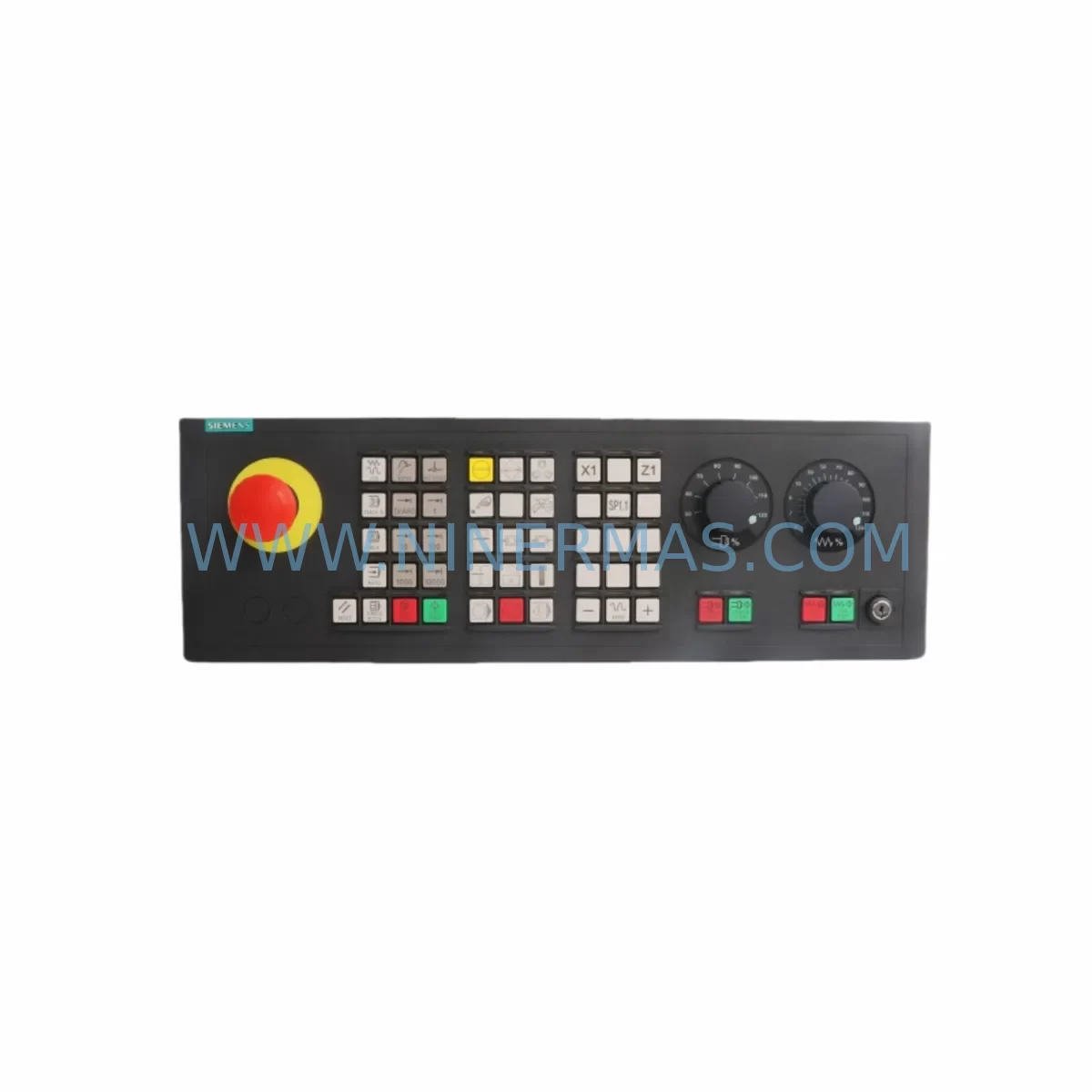

The Siemens 6FC5203-0AF22-0AA2 is a ruggedized CNC control panel module designed for integration into SINUMERIK-based machine tool control systems. As production lines age and original equipment manufacturers discontinue legacy components, the 6FC5203-0AF22-0AA2 has become a critical retrofit solution for facilities operating older SINUMERIK 840D, 810D, and 802D platforms. NINERMAS maintains verified stock of this module to support planned upgrades, emergency replacements, and long-term spare parts lifecycle management — all backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a CNC control panel module in a live production environment requires careful pre-planning across multiple system layers. When integrating the 6FC5203-0AF22-0AA2 into an existing SINUMERIK-based control cabinet, engineers must first audit the current power supply capacity — the Siemens SITOP PSU100S 24V or equivalent regulated DC supply must deliver sufficient current headroom for the panel module alongside co-installed components such as the NCU 720.3 PN or NCU 710.3 B PN controller unit.

Terminal wiring is a frequent source of commissioning delays. The panel module connects to the operator panel interface (OPI) bus, and technicians should verify that the existing cable harness — including the 6FX2002-1AA01 MPI connecting cable or equivalent — is undamaged and correctly pinned before powering up. Backplane interface compatibility must also be confirmed: the physical slot on the operator panel front (OPF) or machine control panel (MCP) must match the 6FC5203-0AF22-0AA2 form factor, particularly when the original unit was a different sub-variant within the 6FC5203 family.

Module addressing is another critical checkpoint. In SINUMERIK 840D sl environments, the HMI Advanced or Operate software must recognize the new panel module at the correct logical address. If the system previously used a TP 015A touch panel or a PCU 50.5 computing unit, the HMI screen layout and softkey assignments may require re-mapping to match the physical key arrangement of the 6FC5203-0AF22-0AA2. Program compatibility should be validated by loading a backup of the NC program archive and confirming that all G-code cycles, tool compensation tables, and zero-point offsets are intact after the swap.

Communication link integrity is especially important in multi-axis or multi-channel configurations. Where the control cabinet also houses a Siemens SINAMICS S120 drive system communicating over PROFIBUS-DP or DRIVE-CLiQ, the panel module replacement must not disrupt the cyclic data exchange between the NCU and the drive line-up. I/O expansion modules such as the PP 72/48D 2/2A PN peripheral module should be re-scanned after the panel swap to confirm that all digital and analog I/O addresses remain correctly mapped in the PLC program.

Installation space confirmation is often overlooked until the replacement unit arrives on-site. The 6FC5203-0AF22-0AA2 has a defined panel cutout requirement; if the control cabinet door or operator station was originally fitted with a different panel variant, a mechanical adapter frame or modified cutout may be necessary. NINERMAS recommends requesting dimensional drawings prior to ordering to avoid on-site fabrication delays.

For facilities running SINUMERIK 802D sl turning or milling cells, the retrofit path may also involve updating the CF card (CompactFlash system card) that holds the NCK software and machine data. A pre-tested CF card image matched to the target software version significantly reduces commissioning time and protects against data loss during the panel swap. Where the existing system uses a Siemens MCP 483C IE machine control panel over Industrial Ethernet, network segment configuration and IP address assignment for the new panel module must be completed before the first power-on.

NINERMAS ships the 6FC5203-0AF22-0AA2 with full functional testing completed prior to dispatch. Each unit undergoes power-on verification, interface continuity checks, and visual inspection. Outgoing test records are available upon request. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units, with express freight options available to minimize planned or unplanned downtime windows.

Downtime Control During System Migration

Minimizing production interruption during a CNC panel module replacement begins well before the maintenance window opens. A structured pre-shutdown checklist should include: full NC program backup to an external storage device or network share, export of all machine data sets (including drive parameters from the SINAMICS S120 if applicable), and photographic documentation of all terminal connections and cable routing within the control cabinet.

During the swap itself, the original PLC program logic — typically stored on the NCU’s integrated memory or on the CF card — must be preserved without modification. Technicians should avoid triggering a factory reset or default data load, as this will overwrite machine-specific compensation data, tool tables, and safety-integrated parameters. If the system uses SINUMERIK Safety Integrated functions, the safety commissioning password and acceptance test records must be available before the system is returned to automatic mode.

Post-installation, a structured commissioning sequence reduces the risk of axis runaway or communication faults. Power up the NCU first, confirm PROFIBUS-DP or PROFINET communication status on the diagnostic screen, then bring the panel module online. Verify that all softkey functions respond correctly, that the spindle and feed override potentiometers (if present on the MCP) operate within expected ranges, and that the emergency stop circuit is fully functional before releasing the machine to operators.

For facilities with strict OEE targets, NINERMAS recommends pre-staging the replacement 6FC5203-0AF22-0AA2 with a pre-loaded CF card image and pre-configured network settings where possible, so that the active downtime window is limited to physical installation, cable reconnection, and a final acceptance run — typically achievable within a 4–8 hour planned maintenance shift.

Retrofit Support FAQ

Q1: Is the 6FC5203-0AF22-0AA2 a direct drop-in replacement for other 6FC5203 sub-variants?
The 6FC5203-0AF22-0AA2 shares the same physical form factor as other modules in the 6FC5203 family, but sub-variant suffixes indicate differences in display type, key layout, or interface options. Always cross-reference the original part number against the machine’s electrical documentation before ordering. NINERMAS technical staff can assist with compatibility verification prior to purchase.

Q2: What commissioning steps are required after installation?
After physical installation, restore the NC program archive and machine data backup, verify PLC program integrity, confirm PROFIBUS-DP or PROFINET communication status, re-map HMI softkey assignments if required, and perform a full axis reference point run. For systems with Safety Integrated functions, a partial acceptance test may be required per Siemens commissioning guidelines.

Q3: Does NINERMAS provide pre-shipment testing for this module?
Yes. Every 6FC5203-0AF22-0AA2 unit shipped by NINERMAS undergoes power-on functional testing, interface continuity verification, and visual inspection before dispatch. Test records are available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the typical stock availability and lead time?
NINERMAS maintains regular inventory of the 6FC5203-0AF22-0AA2 to support both planned retrofit projects and emergency breakdown situations. In-stock units are typically dispatched within 1–3 business days. For urgent requirements, please contact our sales team directly to confirm real-time availability and express shipping options.
