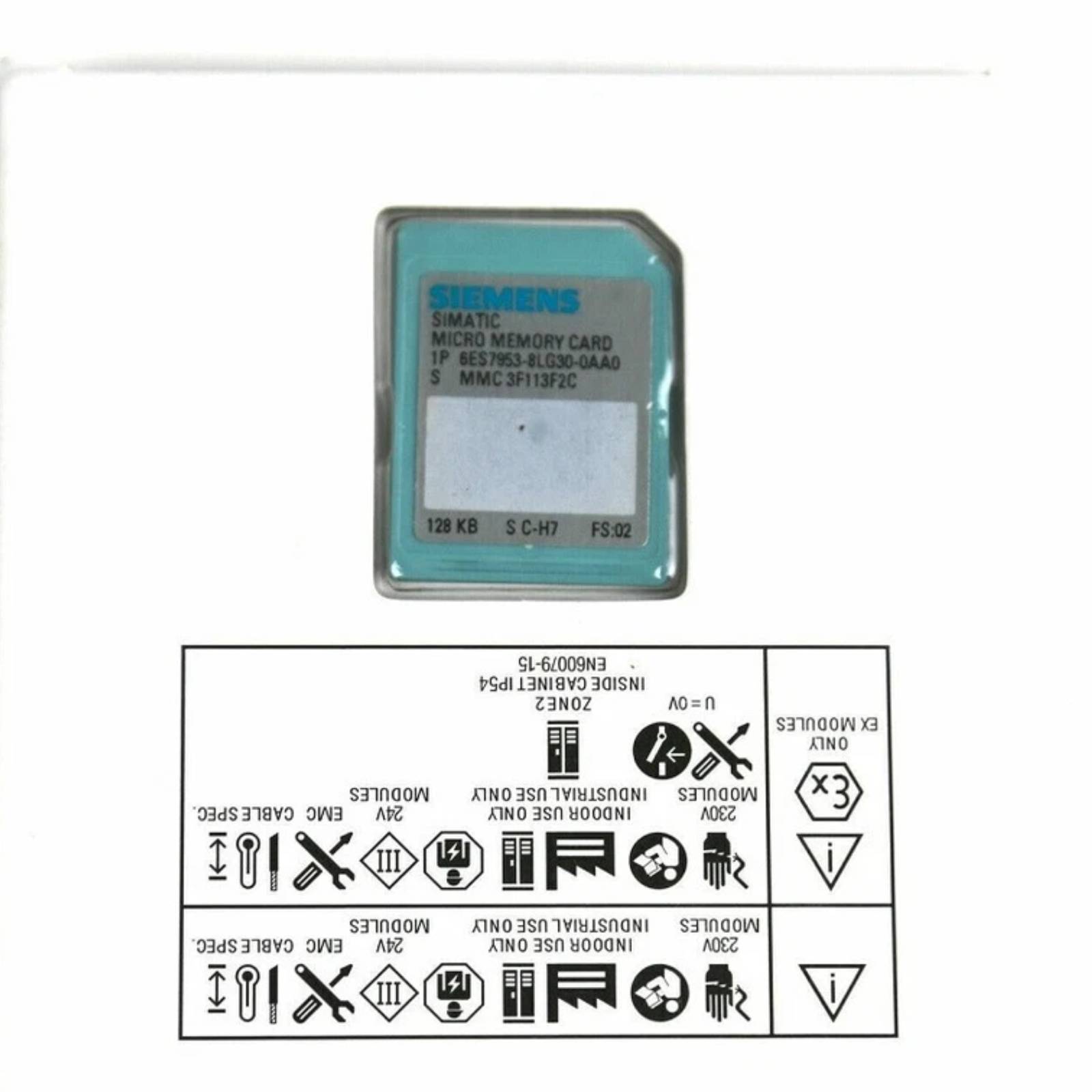

Siemens 6ES7953-8LG30-0AA0 | S7-300 128KB Micro Memory Card — Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Siemens 6ES7953-8LG30-0AA0 is far more than a passive storage medium — it is the operational backbone of any SIMATIC S7-300 control architecture. By providing non-volatile, battery-free program retention, the 6ES7953-8LG30-0AA0 directly elevates system availability, eliminating the single-point failure risk associated with battery-backed SRAM modules. In high-uptime environments where unplanned downtime translates to significant production losses, this distinction is not trivial — it is mission-critical.

Engineered to withstand the rigors of industrial deployment, the 6ES7953-8LG30-0AA0 operates reliably across an ambient temperature range of 0°C to +60°C, with storage tolerance extending to -40°C / +70°C. Its flash EPROM architecture guarantees a minimum data retention period of 10 years at 55°C — a specification that directly supports long-lifecycle automation projects. During installation, field technicians must ensure the S7-300 CPU is fully de-energized before card insertion; the keyed form factor prevents reverse insertion, safeguarding both the card and the CPU’s MMC interface.

For maintenance planners and procurement engineers, stocking the 6ES7953-8LG30-0AA0 as a certified spare part is a cornerstone of any robust Business Continuity Plan (BCP). Its plug-and-play replacement capability — transferring a pre-programmed card directly into a replacement CPU — dramatically compresses Mean Time to Repair (MTTR) and restores Operational Excellence without requiring on-site programming equipment.

Key Operational Features

Battery-Free Non-Volatile Storage — Flash EPROM eliminates battery maintenance cycles and associated failure modes, ensuring High Availability across extended operational periods.
Seamless Integration with SIMATIC S7-300 Ecosystem — Fully compatible with CPU 312 and all higher-series variants (313, 314, 315, 318), enabling Seamless Integration into existing automation architectures without hardware modification.
Rapid Commissioning & Redundancy Support — Pre-program the card offline and deploy across multiple identical controllers, supporting Redundancy strategies and accelerating multi-site rollouts.
100,000 Program/Erase Cycles — Industrial-grade endurance rating supports frequent firmware updates and configuration changes throughout the product lifecycle.
Dual-Function Load Memory — Serves simultaneously as program storage and a portable transfer medium, streamlining System Integration and reducing commissioning tooling requirements.
Certified Compliance — CE marked, UL recognized, and cULus listed, meeting international safety and electromagnetic compatibility standards for global deployment.

Maintenance & Performance Benchmarks

The 6ES7953-8LG30-0AA0 is architected to adapt across a broad spectrum of industrial network configurations, from standalone machine controllers to distributed I/O Modules networks managed by a central S7-300 CPU. In small-scale architectures — single-machine or cell-level control — the 128KB capacity comfortably accommodates ladder logic, function block diagrams, structured text routines, and basic PROFIBUS DP communication parameters.

For medium-scale deployments integrating multiple I/O Modules and remote peripheral devices, the card’s load memory capacity supports programs managing up to several hundred I/O points, provided data block allocation remains within the CPU’s work memory constraints. Process Optimization engineers should benchmark compiled project size in STEP 7 (PLC — Module Information — Memory) prior to card selection, targeting a maximum 80% load memory utilization to preserve headroom for future logic expansions.

In legacy system maintenance scenarios — a growing challenge as S7-300 platforms approach end-of-production — the 6ES7953-8LG30-0AA0 remains a critical Automation Component for sustaining operational continuity. Its compatibility with the full S7-300 CPU range means a single card variant can serve as a universal spare across heterogeneous installed bases, simplifying inventory management and reducing carrying costs.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6ES7953-8LG30-0AA0 dispatched from our facility is supplied in Original Factory Packaging, complete with Siemens AG certification labels, holographic authenticity markings, and full traceability documentation. This ensures that procurement teams and quality assurance departments receive components that meet OEM specifications without compromise.

For urgent maintenance requirements, same-day dispatch is available on confirmed in-stock units (order cut-off times apply — contact our logistics team for current availability). Our global supply network is specifically structured to support End-of-Life (EOL) and Legacy Module sourcing, providing a reliable procurement channel for facilities operating long-lifecycle S7-300 installations where standard distribution channels may no longer carry stock.

Worldwide express freight options — including DHL Express, FedEx International Priority, and UPS Worldwide Express — are available to minimize transit time to any destination. All shipments include full export documentation, commercial invoices, and packing lists compliant with international customs requirements.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the 6ES7953-8LG30-0AA0?
A: Power down the S7-300 CPU completely before inserting the card into the front-panel MMC slot. The card is keyed and inserts in one orientation only. Upon power-up, the CPU automatically detects the card and loads the stored program into work memory. Never insert or remove the card while the CPU is energized.

Q2: Which STEP 7 firmware versions are compatible with this memory card?
A: The 6ES7953-8LG30-0AA0 is compatible with STEP 7 V5.1 SP2 and all subsequent versions, including STEP 7 V5.7. For CPU firmware compatibility, consult the specific CPU’s product manual to verify MMC support for your installed firmware revision.

Q3: Can this card be used to clone a program across multiple S7-300 controllers?
A: Yes. Download your compiled project to the card via one CPU, then physically transfer the card to additional CPUs of the same type. Each CPU will load the identical program upon power-up, enabling rapid multi-unit commissioning without a programming device on-site.

Q4: How is the warranty claim process handled?
A: Contact our technical support team at sale@ninermas.com with your order reference and a description of the observed fault. We will issue a Return Merchandise Authorization (RMA) number and arrange collection. Verified defective units are replaced free of charge within the 12-month warranty period, subject to inspection confirming the fault falls within covered conditions.

Q5: Is 128KB sufficient for my S7-300 application?
A: In STEP 7, navigate to PLC — Module Information — Memory to review your compiled project’s load memory consumption. If your program occupies less than 100KB of load memory, the 6ES7953-8LG30-0AA0 provides adequate capacity with operational headroom. Applications exceeding this threshold should be evaluated for a higher-capacity MMC variant.

Q6: Do you supply documentation confirming component authenticity?
A: Yes. All shipments include a Certificate of Conformity, original Siemens packaging with batch traceability codes, and upon request, third-party inspection reports. This documentation supports incoming quality inspection processes and regulatory compliance requirements.
