Siemens 6ES7951-1KM00-0AA0 Memory Card: Retrofit-Compatible Upgrade for Legacy SIMATIC S7-400 Systems

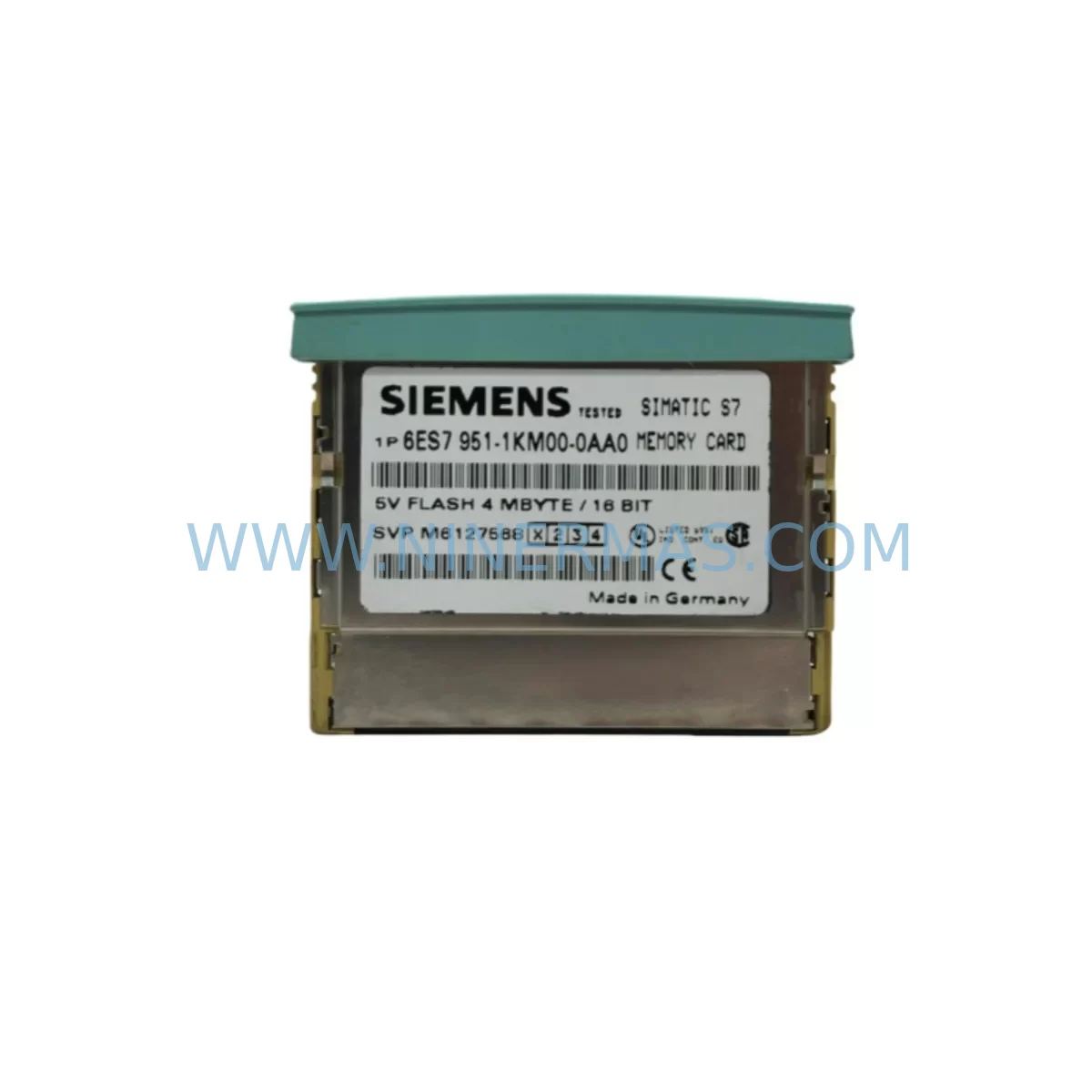

The Siemens 6ES7951-1KM00-0AA0 is a plug-in EPROM/Flash memory card designed for the SIMATIC S7-400 programmable logic controller platform. As aging S7-400 installations approach end-of-life and original Siemens memory cards become increasingly difficult to source, this retrofit-compatible replacement provides a reliable, drop-in solution for facilities that need to maintain program integrity, extend system uptime, and avoid costly full-system migrations.

NINERMAS supplies the 6ES7951-1KM00-0AA0 as a tested, verified spare part backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm read/write compatibility with S7-400 CPUs including the CPU 414-2 DP, CPU 416-2 DP, and CPU 417-4 DP — the most commonly deployed processors in legacy process control and manufacturing automation environments.

For plants running continuous production lines, paper mills, chemical reactors, or power distribution systems, the ability to swap a memory card without reprogramming the CPU or reconfiguring the rack is critical. The 6ES7951-1KM00-0AA0 retains the original program block structure, data blocks, and organisation blocks stored on the card, enabling a cold-swap replacement with minimal disruption to the control logic.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 6ES7951-1KM00-0AA0, engineers must account for the full scope of the S7-400 control cabinet environment. The memory card does not operate in isolation — it is part of a tightly integrated system that includes the CPU module, the PS 407 power supply module (or PS 405 for 24 VDC installations), and the backplane rack that interconnects all modules via the K-bus and P-bus.

Before removing the legacy memory card, confirm that the CPU’s load memory slot is accessible and that the existing card has not been write-protected. In many older S7-400 installations, the program was originally burned to an EPROM card using a dedicated programmer and cannot be re-read from the CPU RAM alone. If the original program source files are available in STEP 7 format, the replacement 6ES7951-1KM00-0AA0 can be programmed via the PG/PC interface using a PC Adapter USB A2 or CP 5611 PROFIBUS communication card before installation, reducing on-site commissioning time significantly.

For systems that also require I/O expansion or signal conditioning during the retrofit, the SM 421 digital input module and SM 422 digital output module are commonly paired with the CPU 414/416 series in the same UR2 rack. If the legacy installation includes analogue process signals, the SM 431 analogue input module provides 8-channel 13-bit resolution and is frequently retained during memory card replacements because the I/O configuration is stored in the CPU’s system data, not on the memory card itself.

Communication infrastructure should also be reviewed. Many S7-400 systems communicate with SCADA platforms or distributed I/O via CP 443-1 Ethernet communication processor or CP 443-5 PROFIBUS DP communication processor. These modules maintain their own firmware and configuration independently of the load memory card, so a card swap does not affect the communication parameters — provided the CPU program correctly initialises the CP modules on startup. Engineers should verify the OB100 (startup organisation block) logic to confirm that CP initialisation routines are intact after the card replacement.

In installations where the S7-400 controls a distributed field network, the IM 460-0 send interface module and IM 461-0 receive interface module handle inter-rack communication across expansion racks. These modules are transparent to the memory card replacement process, but their rack addresses and slot assignments must be confirmed in the hardware configuration (HW Config) before the new card is loaded. Any mismatch between the stored hardware configuration on the card and the physical rack layout will trigger a configuration fault on CPU startup.

HMI panels connected to the S7-400 via MPI or PROFIBUS — such as legacy TP 270 or MP 377 operator panels — will continue to function normally after the memory card swap, as HMI screen logic and tag connections are stored on the panel itself. However, if the CPU program version changes during the retrofit, tag names and data block addresses should be cross-checked against the HMI project to prevent alarm suppression or incorrect process value display.

Downtime Control During System Migration

Minimising unplanned downtime is the primary concern when replacing a memory card in a live production environment. The recommended approach is to perform the swap during a scheduled maintenance window, with the CPU placed in STOP mode before the card is removed. This prevents any mid-cycle program interruption that could leave field devices — valves, drives, or conveyors — in an undefined state.

Before powering down, capture a full CPU backup using STEP 7’s “Upload to PG” function if the program is not already archived. This creates a recoverable copy of all program blocks, data blocks, and system data independent of the physical memory card. Once the 6ES7951-1KM00-0AA0 replacement card is installed and the CPU is powered on, the system will perform an automatic memory reset if the card is blank, or will load the stored program directly if the card was pre-programmed.

For critical processes where even a brief STOP is unacceptable, a parallel commissioning strategy can be used: configure and test the replacement card on a bench CPU of the same type before bringing it to the field. This approach allows the engineering team to verify program load, I/O initialisation, and communication link establishment in a controlled environment, reducing field commissioning time to under 30 minutes in most cases.

Signal isolation during the transition is also important. If the retrofit involves replacing not just the memory card but also adjacent I/O modules, signal isolators such as the SITRANS I/P transducer or dedicated DIN-rail signal conditioners should be used to protect field wiring from transient voltages during module hot-swap or rack power cycling. Maintaining control continuity — particularly for safety-critical loops — requires that all interlocks and permissives are verified before the CPU is returned to RUN mode.

NINERMAS provides pre-shipment test documentation for each 6ES7951-1KM00-0AA0 unit, confirming read/write cycle verification and compatibility with the target CPU firmware. This documentation supports site acceptance testing and can be submitted as part of the plant’s change management records.

Retrofit Support FAQ

Q1: Is the 6ES7951-1KM00-0AA0 a direct replacement for the original Siemens OEM part?
Yes. The NINERMAS-supplied 6ES7951-1KM00-0AA0 is form-fit-function compatible with the original Siemens OEM memory card. It uses the same physical card format, the same memory interface, and is verified for use in S7-400 CPU 41x series processors. No hardware modification is required.

Q2: Can the card be pre-loaded with our existing program before shipment?
The card is supplied blank as standard. Pre-loading requires the customer to provide a valid STEP 7 project file (.s7p or .ap7 archive). If pre-loading is required, please contact NINERMAS at sale@ninermas.com to discuss the process. Alternatively, the card can be programmed on-site using a PG/PC with STEP 7 v5.x or TIA Portal with the appropriate S7-400 support package installed.

Q3: What should be checked during commissioning after the card is installed?
After installation, confirm that the CPU transitions from STOP to RUN without fault LEDs. Check the diagnostic buffer (STEP 7 → CPU → Diagnostic Buffer) for any configuration mismatches. Verify that all I/O modules are recognised in the hardware configuration, that PROFIBUS DP slaves are communicating, and that HMI tag values are updating correctly. Run a full I/O force test before returning the system to automatic mode.

Q4: What warranty and stock availability does NINERMAS offer for this part?
All 6ES7951-1KM00-0AA0 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. Stock is maintained for immediate dispatch. For large-quantity orders or long-term spare parts programmes, NINERMAS can arrange reserved stock agreements to ensure supply continuity for your maintenance schedule. Contact sale@ninermas.com or call +0086 187 5021 5667 for availability confirmation.
