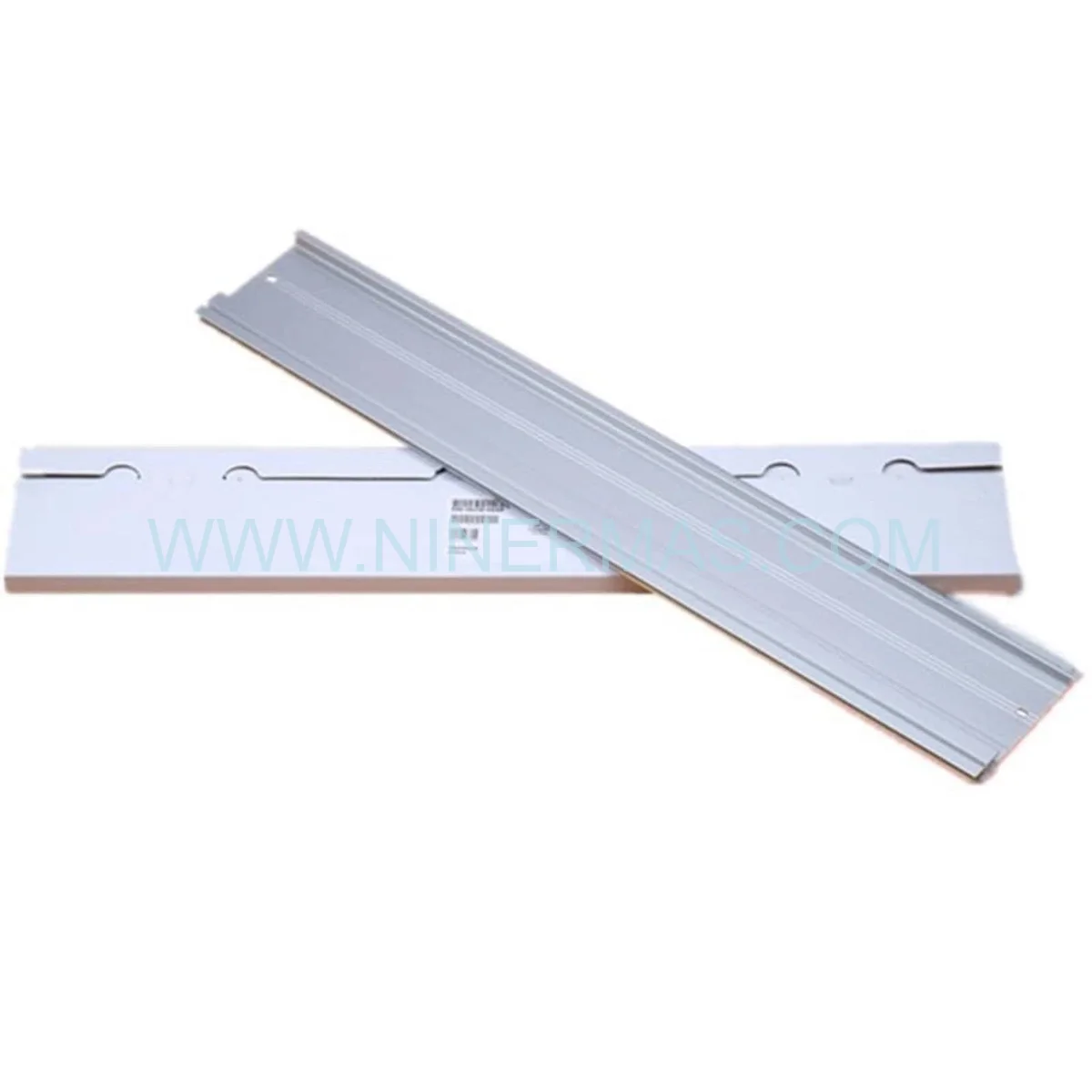

Siemens 6ES7590-1AJ30-0AA0 S7-1500 DIN Mounting Rail | Original Spare Part

Siemens 6ES7590-1AJ30-0AA0 S7-1500 Mounting Rail – Industrial Process Solution

Technical Overview & First Impression

From the perspective of an Industrial Solution Architect, the 6ES7590-1AJ30-0AA0 is far more than a passive mechanical component — it is the structural backbone upon which the entire SIMATIC S7-1500 distributed control system is built. In modern Process Control environments, the integrity of the mounting infrastructure directly determines the long-term reliability of the PLC rack. A compromised rail introduces micro-vibration stress on module connectors, leading to intermittent faults that are notoriously difficult to diagnose in live production systems. This is why specifying the correct, genuine part matters.

What sets the 6ES7590-1AJ30-0AA0 apart from generic DIN rail alternatives is its dimensional precision and material certification. Engineered to Siemens’ exacting tolerances, this rail ensures perfect alignment of S7-1500 CPU, communication, and I/O modules — a critical requirement for Fieldbus signal integrity and backplane bus continuity. Its aluminum alloy construction, combined with a corrosion-resistant surface treatment, delivers consistent performance across the full industrial temperature range, making it equally suited for climate-controlled server rooms and harsh factory floor enclosures.

Original stock of this component is increasingly scarce. As the S7-1500 platform matures and production batches rotate, sourcing Factory Sealed units from certified channels becomes the only way to guarantee authenticity. Our inventory is maintained in climate-controlled warehouses, with each unit verified against Siemens’ original packaging and batch documentation before shipment.

Key Technical Highlights

Precision DIN Rail Profile: Manufactured to IEC 60715 standard, ensuring zero-tolerance fit with all S7-1500 module snap-lock mechanisms — eliminates connector stress and signal degradation.
High-Stability Aluminum Alloy Construction: Resists deformation under sustained mechanical load and thermal cycling; rated for industrial vibration per IEC 61131-2.
Full Backplane Bus Continuity: Maintains uninterrupted electrical grounding path across all mounted modules, a non-negotiable requirement for Redundancy configurations in safety-critical DCS Hardware architectures.
Wide Operating Temperature Range: -40°C to +70°C ambient, supporting deployment in petrochemical outdoor enclosures, cold-storage automation, and marine control rooms.
CE / UL / cULus Certified: Meets global compliance requirements for North American, European, and Asian industrial installations without additional certification overhead.
Factory Sealed Condition: Each unit ships in original Siemens packaging with batch traceability, supporting audit requirements for ISO 9001 and IEC 61511 regulated facilities.

Vertical Industry Applications

Petrochemical & Refining: In high-stakes refinery control rooms, the 6ES7590-1AJ30-0AA0 provides the mechanical platform for S7-1500 controllers managing distillation column sequencing and emergency shutdown logic. A failed mounting rail in this environment can force a full rack replacement — a process measured in hours of unplanned downtime and hundreds of thousands in lost throughput.

Mining & Mineral Processing: Underground and surface mining operations subject control hardware to extreme vibration and dust ingress. This rail’s robust aluminum profile and certified vibration resistance make it the preferred choice for conveyor control and crusher automation panels, where Legacy Components must coexist with modern Fieldbus networks.

Marine & Offshore Platforms: Vessel automation and offshore platform control systems demand components rated for salt-air corrosion and continuous motion. The 6ES7590-1AJ30-0AA0’s surface treatment and material specification meet the environmental demands of marine-grade enclosures, supporting engine room automation and ballast control PLCs.

Power Generation & Utilities: Turbine control and grid-tie automation systems built on the SIMATIC S7-1500 platform rely on this mounting rail to maintain module alignment under the electromagnetic interference typical of high-voltage switchgear environments. Proper grounding continuity through the rail is essential for EMC compliance.

Pharmaceutical & Food Processing: GMP-regulated facilities require full component traceability. The Factory Sealed condition and batch documentation of this unit support validation protocols (IQ/OQ/PQ), reducing the compliance burden during equipment qualification for Distributed Control System upgrades.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 6ES7590-1AJ30-0AA0 supplied through our channel is 100% Original Siemens — sourced directly from authorized distribution networks and stored in climate-controlled facilities to preserve Factory Sealed integrity. We do not supply refurbished, remarked, or third-party compatible substitutes. Each shipment is accompanied by original packaging, batch identification, and where applicable, Siemens Certificate of Conformance documentation.

Our 12-Month Comprehensive Warranty covers manufacturing defects, material failures, and dimensional non-conformance. Should a unit fail within the warranty period under normal operating conditions, we provide direct replacement without bureaucratic delay — because in industrial maintenance, time is the most critical variable.

For Emergency Repair scenarios, we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express, with same-day shipping available for orders confirmed before 14:00 CST. Global delivery to major industrial hubs — including Houston, Rotterdam, Singapore, and Dubai — is typically achieved within 2-5 business days. For remote offshore or mining locations, we coordinate with freight forwarders experienced in hazardous-area logistics.

Buyer’s FAQ — Selection & Sourcing Guide

Q: How do I verify that the 6ES7590-1AJ30-0AA0 I receive is genuinely original and not a counterfeit?
A: Authentic units arrive in sealed Siemens retail packaging with a printed part number label matching 6ES7590-1AJ30-0AA0, a batch/date code on the rail body, and Siemens holographic authentication where applicable. We provide batch documentation upon request. If you have access to Siemens’ Industry Mall, the batch code can be cross-referenced against production records.

Q: Where can I obtain the official Siemens datasheet for this mounting rail?
A: The official product documentation for the 6ES7590-1AJ30-0AA0 is published in the Siemens Industry Online Support (SIOS) portal under the SIMATIC S7-1500 accessories category. We can also provide a copy of the technical data sheet upon inquiry — contact our technical team with your project reference.

Q: Is the 6ES7590-1AJ30-0AA0 compatible with older S7-300 or S7-400 modules?
A: No. This rail is dimensioned and mechanically designed exclusively for the S7-1500 module series. S7-300 and S7-400 modules use different rail profiles and backplane connector geometries. Using this rail with legacy S7-300 hardware will result in improper module seating and potential connector damage.

Q: What is the lead time for emergency orders, and do you support partial shipments?
A: For in-stock units, same-day dispatch is available for orders placed before 14:00 CST. We support partial shipments for large orders where immediate partial delivery is required to restore production, with the balance shipped as soon as available. Contact us directly to arrange emergency logistics coordination.

Q: Can this mounting rail be used in SIL-rated Safety Instrumented Systems (SIS)?
A: The 6ES7590-1AJ30-0AA0 is a mechanical accessory and does not carry an independent SIL rating. However, it is fully compatible with S7-1500F (Fail-Safe) CPU configurations. For SIS applications, the overall system SIL rating is determined by the CPU and I/O modules, not the mounting rail. Consult your functional safety engineer for system-level SIL verification.

Q: Why is sourcing this part from a specialist supplier preferable to waiting for OEM delivery?
A: Siemens’ standard lead times for accessories can range from 4 to 12 weeks depending on regional distribution stock. For Maintenance Stock replenishment or Emergency Repair situations, this delay is operationally unacceptable. Specialist suppliers maintaining physical inventory of Legacy Components and current-production parts provide the only viable path to same-week delivery — which is precisely the service model we operate.
