Siemens 6ES7521-1BH10-0AA0 Retrofit-Compatible DI Module

Siemens 6ES7521-1BH10-0AA0 Retrofit-Compatible DI Module for Legacy Systems

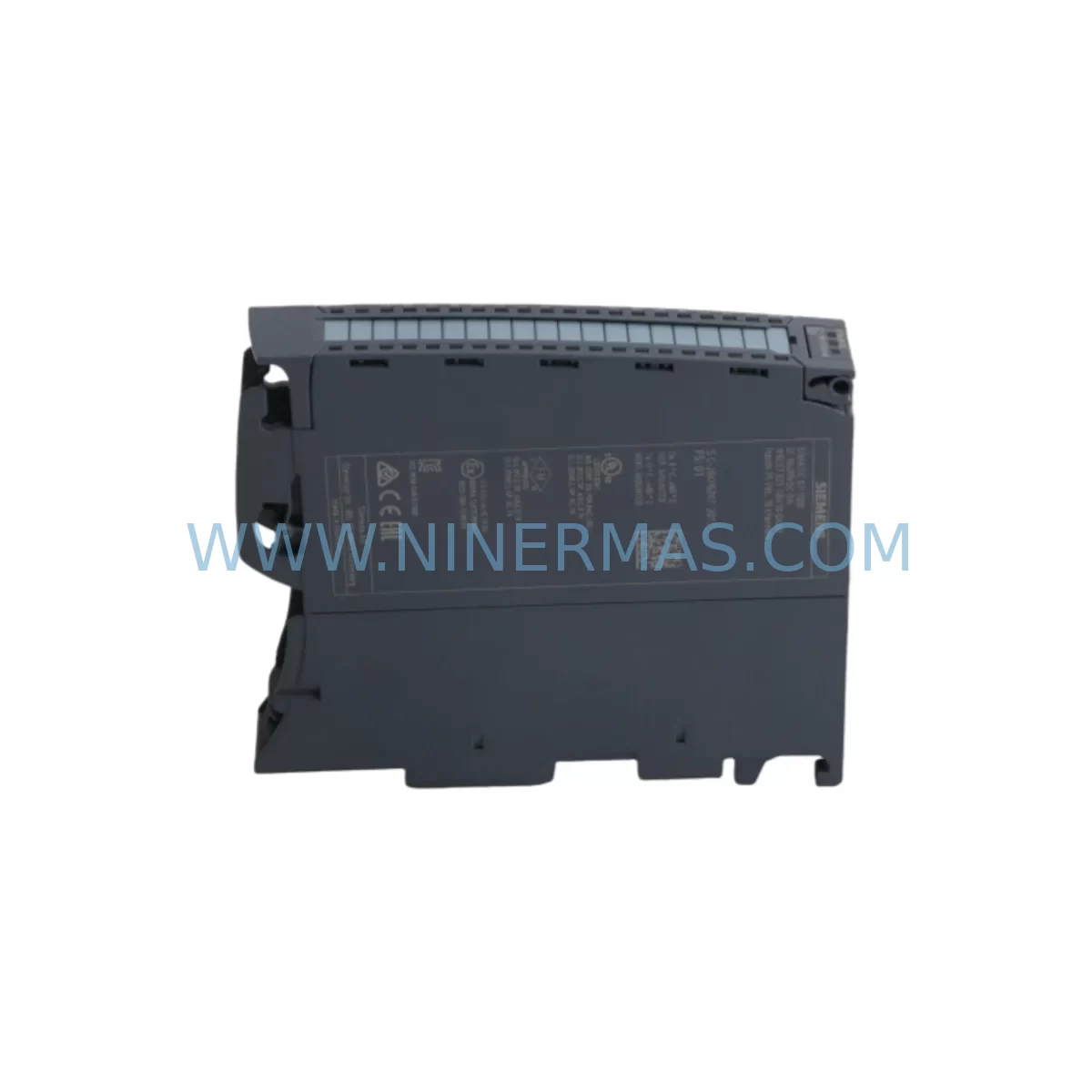

The Siemens 6ES7521-1BH10-0AA0 is a 32-channel 24 V DC digital input module designed for the SIMATIC S7-1500 programmable logic controller platform. As industrial facilities worldwide accelerate the migration from aging S7-300 and S7-400 control architectures to the S7-1500 generation, this module serves as a critical bridge component — enabling engineers to retrofit existing control cabinets with modern, high-density I/O capability while preserving established program logic and field wiring infrastructure wherever possible.

Whether you are replacing a discontinued 6ES7321-1BH02-0AA0 S7-300 digital input card or expanding an existing S7-1500 rack to accommodate additional field signals, the 6ES7521-1BH10-0AA0 delivers the channel density, diagnostic depth, and backplane communication speed required for demanding continuous-process environments. Its compact form factor fits standard S7-1500 mounting rails and interfaces directly with the CPU 1511-1 PN, CPU 1513-1 PN, and CPU 1516-3 PN/DP processors via the high-speed backplane bus, eliminating the communication bottlenecks common in older PROFIBUS-based I/O architectures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit from an S7-300 or S7-400 platform to the S7-1500 architecture requires careful pre-engineering across several interdependent subsystems. The 6ES7521-1BH10-0AA0 is typically introduced during the I/O layer migration phase, but its installation touches nearly every other layer of the control cabinet.

Power supply verification is the first checkpoint. The S7-1500 system draws power through a dedicated PM 70W 120/230V AC or PS 60W 24/48/60V DC power supply module, which must be sized to support the full backplane load including CPU, interface modules, and all I/O cards. Engineers migrating from S7-300 systems often underestimate the inrush current profile of the new backplane and must recalculate the power budget before commissioning.

Rack and backplane selection is equally critical. The 6ES7521-1BH10-0AA0 requires a genuine S7-1500 mounting rail — it cannot be inserted into an S7-300 or ET 200M rack. If the existing cabinet layout cannot accommodate the new rail geometry, a UR2 universal rack or a distributed I/O approach using an ET 200SP station with an IM 155-5 PN ST interface module may be the preferred migration path, particularly in space-constrained panels.

Terminal wiring adaptation is a common source of retrofit delay. The 6ES7521-1BH10-0AA0 uses a 40-pin front connector (6ES7592-1AM00-0XB0) that differs from the 20-pin connector used on S7-300 DI modules. Field cables must be re-terminated or adapted using appropriate cable bridges. Pre-wired connector assemblies can significantly reduce panel modification time and the risk of wiring errors during cutover.

Program logic and HMI screen migration must be handled in TIA Portal. Existing STEP 7 Classic projects require conversion using the TIA Portal migration tool, after which all symbolic addresses referencing the old DI module must be remapped to the new hardware configuration. HMI screens built in WinCC flexible must similarly be migrated to WinCC Advanced or WinCC Unified, with tag bindings updated to reflect the new I/O addressing structure.

Communication link continuity is preserved by retaining the existing PROFINET infrastructure where possible. The S7-1500 CPU’s integrated PROFINET interface supports device-level ring (MRP) topologies, allowing the new controller to communicate with existing SINAMICS G120 drives, ET 200S distributed I/O stations, and third-party PROFINET devices without replacing field network cabling. Where legacy PROFIBUS DP devices must be retained, a CM 1542-5 PROFIBUS communication module or an IE/PB Link PN IO gateway provides the necessary protocol bridge.

Signal isolation and surge protection should not be overlooked during the retrofit. Installing SITOP PSU8600 redundant power supply modules and surge protection devices on the 24 V DC input lines protects the new DI module from transient voltages common in heavy industrial environments such as motor control centers, arc furnace control rooms, and high-voltage switchgear panels.

Downtime Control During System Migration

Minimizing production interruption is the primary constraint in any brownfield retrofit project. For facilities operating continuous processes — chemical reactors, paper machines, rolling mills, or water treatment plants — even a four-hour control system outage can result in significant product loss or safety incidents.

The recommended approach for integrating the 6ES7521-1BH10-0AA0 into an existing system is a parallel commissioning strategy: the new S7-1500 rack is assembled, configured in TIA Portal, and fully tested offline before the cutover window. During the planned maintenance shutdown, the old S7-300 DI module is removed, field cables are re-terminated to the new 40-pin front connector, and the new module is inserted and powered. Because the S7-1500 CPU performs automatic module recognition via the backplane bus, the hardware configuration download is typically completed within minutes, and the first I/O scan cycle begins immediately after the CPU transitions to RUN mode.

To protect original program logic during migration, engineers should export and archive the complete STEP 7 project before beginning any hardware changes. The TIA Portal migration wizard preserves function block structures, data block contents, and network configurations, but manual verification of all I/O force tables, alarm configurations, and safety interlock logic is essential before returning the system to automatic operation.

For critical interlock circuits — emergency shutdown loops, fire and gas detection inputs, or motor protection relay feedback signals — a hot-standby or redundant CPU configuration using the CPU 1517H-3 PN or CPU 1518HF-4 PN should be evaluated to eliminate single-point-of-failure risk during and after the migration. This approach allows the standby CPU to take over seamlessly if any issue arises during the cutover, maintaining field control continuity without operator intervention.

Retrofit Support FAQ

Q1: Is the 6ES7521-1BH10-0AA0 a direct drop-in replacement for the 6ES7321-1BH02-0AA0 used in S7-300 systems?
It is a functional replacement for the same 32-channel 24 V DC digital input capability, but it is not a mechanical drop-in. The S7-1500 module requires a different mounting rail, a 40-pin front connector, and a TIA Portal hardware configuration update. Field wiring must be re-terminated, and the CPU program must be migrated from STEP 7 Classic to TIA Portal before the module can be commissioned.

Q2: What pre-shipment testing is performed before delivery?
Every 6ES7521-1BH10-0AA0 unit supplied by NINERMAS undergoes a functional power-on test and channel continuity verification before dispatch. Units are shipped with original packaging and include a test record. The 12-month warranty covers all manufacturing defects identified after installation under normal operating conditions.

Q3: Can this module be used with ET 200MP distributed I/O stations instead of a central S7-1500 rack?
Yes. The 6ES7521-1BH10-0AA0 is fully compatible with the ET 200MP distributed I/O system when used with an IM 155-5 PN ST, IM 155-5 PN HF, or IM 155-5 DP ST interface module. This configuration is particularly useful when the central control cabinet cannot be relocated but field I/O must be distributed closer to the process equipment.

Q4: What is the long-term supply availability for this module?
NINERMAS maintains stock of the 6ES7521-1BH10-0AA0 to support both new installations and long-term spare parts programs. Customers with multi-year maintenance contracts or large installed bases are encouraged to contact our team to discuss scheduled supply agreements, ensuring parts availability throughout the operational lifecycle of their S7-1500 systems.
