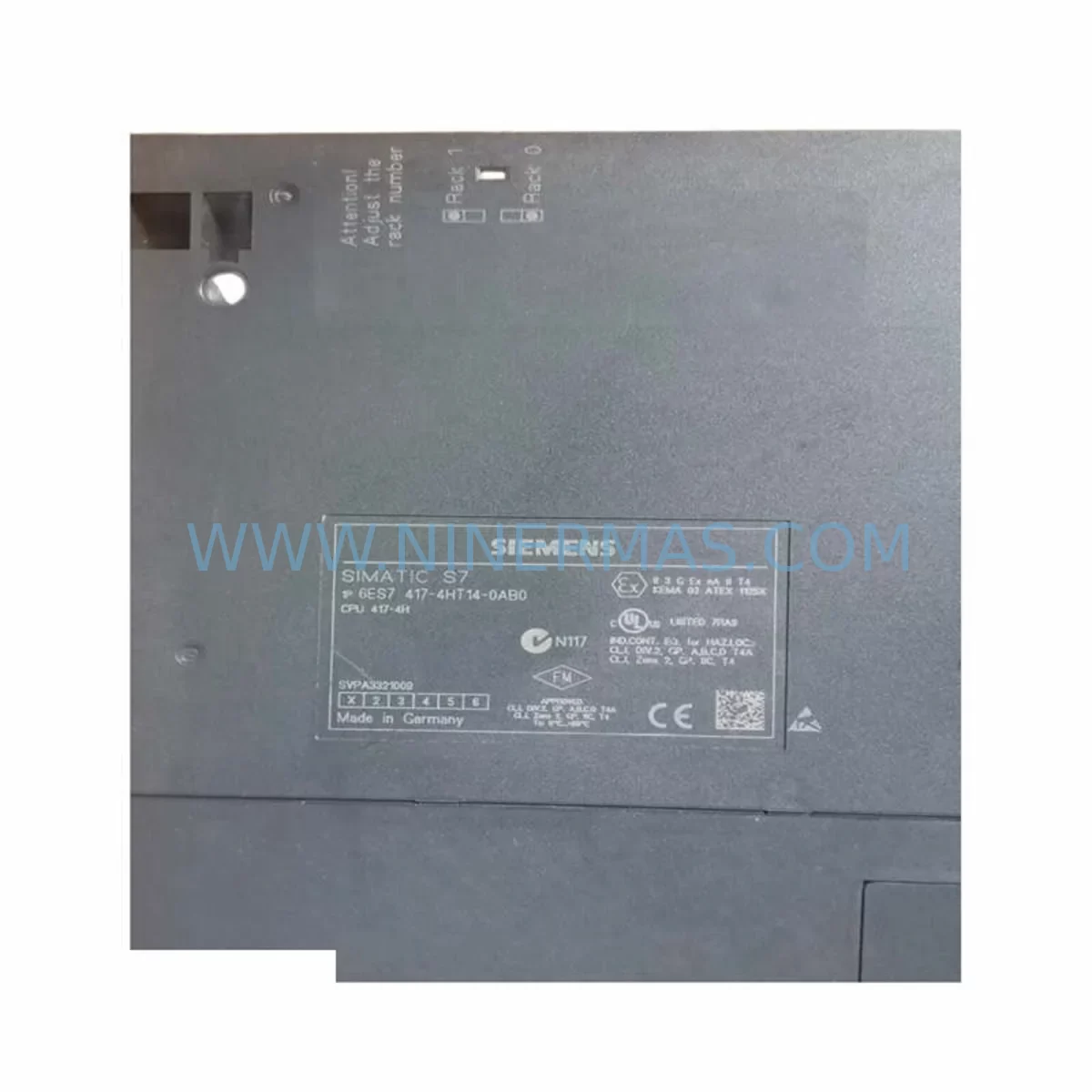

The Siemens 6ES7417-4HT14-0AB0 is a high-performance CPU module from the SIMATIC S7-400 series, designed for demanding process automation environments including oil & gas, chemical processing, power generation, and heavy manufacturing. As original Siemens production of this CPU variant has been discontinued, NINERMAS supplies tested, retrofit-compatible units to support ongoing operations, planned upgrades, and emergency spare parts replacement programs.

This CPU module supports the S7-400 rack architecture and is compatible with standard S7-400 backplanes including the UR1 and UR2 universal racks. It operates with the standard 24 VDC power supply modules such as the PS 407 10A, and integrates directly with existing PROFIBUS DP and MPI communication networks without requiring protocol conversion or gateway hardware. For sites running PROFINET-based infrastructure, migration planning should account for the communication module complement — typically the CP 443-1 Advanced — to bridge legacy PROFIBUS segments to the plant Ethernet backbone.

When replacing a failed or end-of-life 6ES7417-4HT14-0AB0, engineers should verify the firmware version compatibility with the existing STEP 7 project. The CPU’s memory card — typically a 6ES7952-1KK00-0AA0 or equivalent Flash EPROM card — must be transferred or reprogrammed to retain the control logic. Failure to confirm memory card compatibility is one of the most common causes of extended downtime during unplanned CPU replacements.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6ES7417-4HT14-0AB0 into an existing S7-400 control system requires a structured pre-installation review. Begin by auditing the current rack configuration: identify all installed modules by slot position, including digital input modules (SM 421), digital output modules (SM 422), analog input modules (SM 431), and analog output modules (SM 432). Document the module addresses as configured in the STEP 7 hardware configuration, since any slot reassignment will require a corresponding update to the software project.

Power budget verification is critical. The PS 407 10A power supply module provides 10 A at 5 VDC for the backplane. A fully populated UR2 rack with multiple SM modules, a CP 443-5 Extended PROFIBUS communication processor, and the CPU itself can approach this limit. If the existing installation is near capacity, consider upgrading to the PS 407 20A before installing the replacement CPU to avoid intermittent power faults under load.

For sites that have HMI systems connected via PROFIBUS DP — such as Siemens TP 270, OP 270, or MP 277 operator panels — the HMI project must be verified against the new CPU’s MPI/PROFIBUS address settings. Address conflicts between the CPU, HMI, and any ET 200M distributed I/O stations connected via IM 153-2 interface modules are a common source of communication faults after CPU replacement. Confirm all node addresses before powering up the new module.

Where the plant network has already migrated to PROFINET, the 6ES7417-4HT14-0AB0 can coexist with PROFINET infrastructure through the CP 443-1 Advanced communication processor installed in an adjacent rack slot. This allows the CPU to continue managing legacy PROFIBUS DP field devices — including remote I/O stations, variable frequency drives, and intelligent field instruments — while participating in the plant-level Ethernet network for SCADA integration and remote diagnostics.

Signal isolation should also be reviewed during retrofit planning. Where 4–20 mA analog loops connect field transmitters to SM 431 analog input modules, the installation of DIN-rail signal isolators between the field junction box and the rack can protect the new CPU module from ground loop interference and transient voltage events common in older cable infrastructure. This is particularly relevant in retrofit projects where the original cable shielding may be degraded.

Downtime Control During System Migration

Minimizing production downtime during a CPU replacement on a live S7-400 system requires preparation that begins well before the maintenance window. The most effective approach is to perform a full online backup of the existing CPU using STEP 7’s “Upload to PG” function, saving both the program blocks (OBs, FBs, FCs, DBs) and the hardware configuration. Store this backup on a dedicated engineering laptop and verify it can be downloaded to the replacement unit before the scheduled outage.

For high-availability installations using the CPU 417-4H in a redundant H-system configuration with a paired CPU and synchronization modules (IM 460-4 / IM 461-4), the switchover to the standby CPU should be tested in advance. A controlled switchover allows the replacement of the faulty CPU without interrupting the process, provided the standby unit is healthy and the fiber-optic synchronization link between the two CPUs is intact.

During the physical swap, observe ESD precautions and ensure the rack power supply is de-energized before removing the CPU module. After installing the 6ES7417-4HT14-0AB0 replacement unit, insert the memory card, restore power, and use the PC Adapter USB or CP 5611 programming interface to establish an online connection. Perform a “Download to Module” operation from the verified STEP 7 project, then execute a CPU restart (STOP → RUN) and monitor the diagnostic buffer for any configuration mismatches or I/O faults.

NINERMAS ships all 6ES7417-4HT14-0AB0 units with a pre-shipment functional test report. This confirms that the CPU powers up correctly, passes internal self-diagnostics, and communicates on MPI. This documentation supports your site acceptance procedure and reduces the risk of discovering a hardware fault only after the maintenance window has begun.

Retrofit Support FAQ

Q: Is the 6ES7417-4HT14-0AB0 a direct replacement for earlier CPU 417 variants such as the 6ES7417-4HL04-0AB0?
A: The 6ES7417-4HT14-0AB0 is mechanically and electrically compatible with the S7-400 rack slot used by earlier CPU 417 variants. However, firmware and feature differences between hardware revisions mean that the STEP 7 hardware configuration must be updated to reflect the exact order number of the replacement unit. NINERMAS recommends confirming the hardware revision with your STEP 7 project engineer before installation.

Q: Can the existing PROFIBUS DP wiring and field devices be retained after replacing the CPU?
A: Yes. The integrated PROFIBUS DP interface on the 6ES7417-4HT14-0AB0 uses the standard 9-pin Sub-D connector and supports the same baud rates as previous CPU 417 variants. Existing field device configurations, including ET 200S and ET 200M distributed I/O stations, do not require reconfiguration provided the DP master system address and baud rate settings are preserved in the downloaded hardware configuration.

Q: What is included with each unit shipped by NINERMAS, and what warranty coverage applies?
A: Each 6ES7417-4HT14-0AB0 unit supplied by NINERMAS is shipped with a pre-shipment test report confirming functional verification. All units are covered by a 12-month warranty from the date of shipment. Warranty claims are supported by NINERMAS technical staff and cover hardware defects identified under normal operating conditions.

Q: How quickly can NINERMAS supply the 6ES7417-4HT14-0AB0 for an emergency breakdown situation?
A: NINERMAS maintains stock of S7-400 CPU modules to support urgent breakdown requirements. Lead times for in-stock units are typically 1–3 business days for international shipments. Contact our sales team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm current availability and arrange expedited dispatch.
