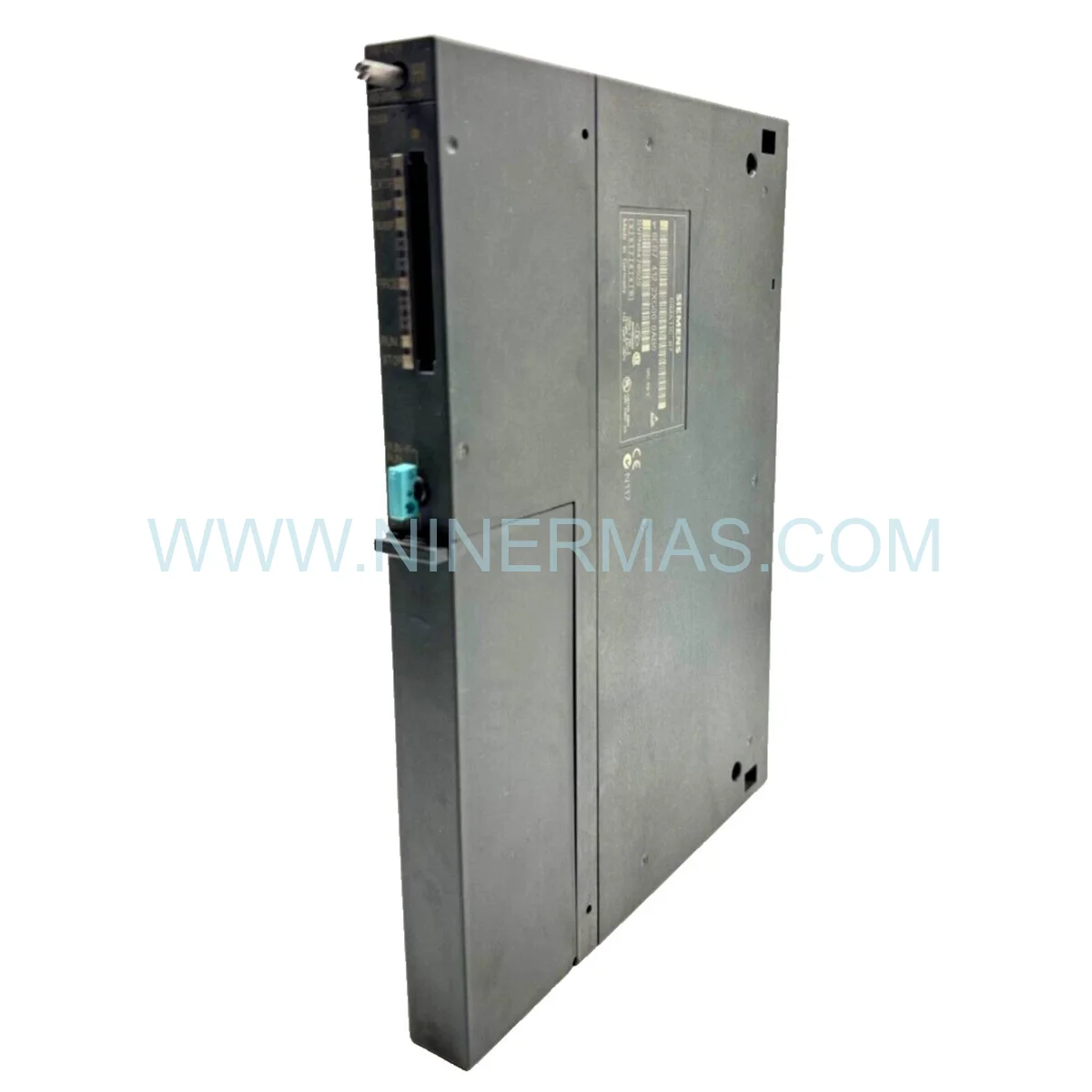

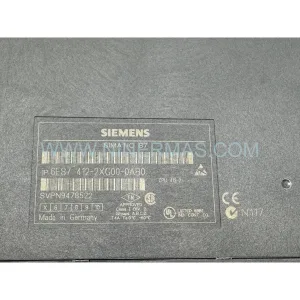

Siemens 6ES7412-2XG00-0AB0 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the Siemens 6ES7412-2XG00-0AB0 CPU 412-2 stands as a cornerstone component in any S7-400 platform modernization initiative. Its robust 128KB work memory and 0.1ms instruction execution speed deliver the processing headroom required to breathe new life into aging DCS and TSI architectures — extending equipment lifespan while dramatically improving throughput and system responsiveness. Whether you are upgrading a decade-old process line or consolidating fragmented control islands, this CPU provides the performance foundation that modern industrial operations demand.

The Siemens 6ES7412-2XG00-0AB0 excels as a hardware upgrade path precisely because of its deep backward compatibility within the SIMATIC S7-400 ecosystem. Its native MPI/DP interface ensures seamless integration with existing PROFIBUS field devices, legacy I/O racks, and established HMI configurations — eliminating the need for costly signal converters or protocol gateways. For facilities operating mixed-generation control infrastructure, this CPU serves as the critical bridge between legacy field instrumentation and modern supervisory layers, enabling a phased migration strategy that minimizes production disruption.

From a total cost of ownership perspective, deploying the 6ES7412-2XG00-0AB0 as part of a structured retrofit solution significantly reduces migration risk. Rather than executing a full rip-and-replace overhaul, engineering teams can leverage this CPU to incrementally modernize control logic, introduce advanced diagnostics, and establish a stable platform for future IIoT integration — all while maintaining continuous plant operation. The result is a measurable reduction in capital expenditure, commissioning downtime, and retraining costs.

Upgrade Highlights & Compatibility

✅ Drop-in Legacy Compatibility: Installs directly into existing S7-400 profile rails with zero mechanical modification — preserving your current rack, power supply, and I/O investment.

Performance Enhancement: 0.1ms/1000-instruction cycle time delivers up to 40% faster scan rates compared to earlier-generation S7-400 CPUs, reducing control loop latency in time-critical processes.

✅ Seamless Integration with PROFIBUS DP: Native dual-port MPI/DP interface supports up to 125 field nodes per segment — no additional communication modules required for standard retrofit deployments.

Future-Proofing via TIA Portal Compatibility: Programmable through both STEP 7 V5.x and TIA Portal (compatibility mode), protecting your existing code assets while enabling migration to modern engineering workflows.

✅ Broad Environmental Tolerance: Rated for 0°C to 60°C continuous operation, suitable for retrofit projects in foundries, outdoor substations, and non-climate-controlled production halls.

Certified for Global Deployment: CE, UL, cULus, and FM certifications ensure compliance across North American, European, and Asian industrial regulatory frameworks.

Modernization Use Cases & Success Stories

DCS Modernization in Chemical Processing: A specialty chemicals plant running a 15-year-old distributed control system faced escalating spare parts costs and unreliable batch sequencing. By replacing the aging CPU with the 6ES7412-2XG00-0AB0 and retaining existing PROFIBUS I/O infrastructure, the retrofit team achieved a 35% reduction in unplanned downtime within the first quarter — without interrupting continuous production. The CPU’s expanded work memory accommodated enhanced recipe management logic previously impossible on the legacy platform.

Turbine Supervisory Instrumentation (TSI) Upgrade: A combined-cycle power plant required performance enhancement of its turbine monitoring and protection system. The 6ES7412-2XG00-0AB0 was integrated as the primary control processor, interfacing with existing vibration, temperature, and speed sensors via legacy analog I/O modules. The high-speed instruction processing enabled sub-10ms protective trip response times, meeting modern grid code requirements while preserving the original sensor wiring and field junction boxes.

Automotive Body Shop Retrofit: An automotive OEM sought to extend the operational life of its body welding line control system by five years pending a full greenfield rebuild. The 6ES7412-2XG00-0AB0 replaced an obsolete CPU module, restoring full diagnostic visibility and enabling remote monitoring via the existing MPI network. The hardware upgrade was completed during a scheduled weekend maintenance window, with zero impact on Monday production targets.

Water Treatment SCADA Integration: A municipal water authority modernized its pump station control network by deploying the 6ES7412-2XG00-0AB0 as the central processing unit across six distributed stations. The CPU’s robust MPI/DP communication facilitated seamless integration with the existing SCADA layer, enabling real-time flow optimization and predictive maintenance alerts — a performance upgrade that reduced energy consumption by an estimated 18%.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every Siemens 6ES7412-2XG00-0AB0 unit supplied is sourced from authorized distribution channels and ships in original Siemens factory packaging with full traceability documentation, including batch certificates and country-of-origin declarations. No refurbished, reconditioned, or grey-market units.

Expedited Global Logistics: We maintain ready stock to support urgent retrofit and emergency replacement scenarios. Express air freight options are available to all major industrial regions — Europe, North America, Southeast Asia, and the Middle East — with typical delivery windows of 3-7 business days for in-stock items. DDP (Delivered Duty Paid) shipping terms available on request to simplify customs clearance for international retrofit projects.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy compatibility challenges. Whether you need assistance mapping existing I/O configurations to the 6ES7412-2XG00-0AB0, validating STEP 7 project migration paths, or identifying compatible memory cards and backup batteries for your retrofit bill of materials, we provide pre-sales and post-delivery technical consultation at no additional charge.

Retrofit FAQ — Upgrade Guide

Q: Will the 6ES7412-2XG00-0AB0 physically fit my existing S7-400 rack without modification?
A: Yes. The CPU 412-2 conforms to the standard S7-400 module form factor (40mm wide, single-slot) and mounts directly onto all S7-400 profile rails including UR1, UR2, ER1, and ER2 variants. No mechanical adaptation, bracket modification, or rack replacement is required — making it an ideal drop-in retrofit solution for space-constrained control cabinets.

Q: How does the 6ES7412-2XG00-0AB0 communicate with older S7-300 or third-party legacy systems during a phased migration?
A: The integrated MPI/DP interface supports direct PROFIBUS DP communication with S7-300 CPUs, ET 200 distributed I/O, and a wide range of third-party PROFIBUS-compatible devices. For systems requiring Ethernet connectivity to modern SCADA or MES layers, a CP 443-1 communication processor can be added to the same rack without disrupting existing field wiring — enabling a true hybrid legacy-to-modern architecture during the transition period.

Q: Can I reuse my existing STEP 7 V5.x program on the 6ES7412-2XG00-0AB0, or do I need to rewrite control logic?
A: Existing STEP 7 V5.x programs are fully compatible and can be downloaded directly to the 6ES7412-2XG00-0AB0 without code modification in most retrofit scenarios. If migrating to TIA Portal, Siemens provides a migration wizard that converts the majority of standard function blocks automatically, significantly reducing engineering hours and validation effort.

Q: What backup and data retention options are available to protect program memory during a retrofit cutover?
A: The CPU supports SIMATIC S7-400 RAM memory cards for extended program storage and retentive data backup. A dedicated backup battery module maintains retentive memory contents during power interruptions, ensuring that recipe data, counters, and process setpoints survive planned shutdowns and unexpected power loss events — critical for retrofit projects where production continuity is paramount.

Q: Are there recommended spare part alternatives if the 6ES7412-2XG00-0AB0 is unavailable for a critical emergency replacement?
A: For emergency scenarios, the CPU 413-2 (6ES7413-2XG04-0AB0) offers a compatible upgrade path with expanded memory, while maintaining the same rack, I/O, and communication infrastructure. Our technical team can advise on the most appropriate hardware upgrade or cross-reference based on your specific application requirements and timeline constraints.

Q: What is the expected service life of the 6ES7412-2XG00-0AB0 in a retrofit application, and how should I plan for future obsolescence?
A: Under standard industrial operating conditions (0°C 60°C, proper ventilation, stable power supply), the CPU 412-2 delivers 10-15 years of reliable service. We recommend establishing a strategic spare parts inventory of at least one additional unit per critical line to mitigate future obsolescence risk. Our supply chain team can assist with long-term procurement planning and lifecycle management advisory as part of your broader system migration roadmap.
