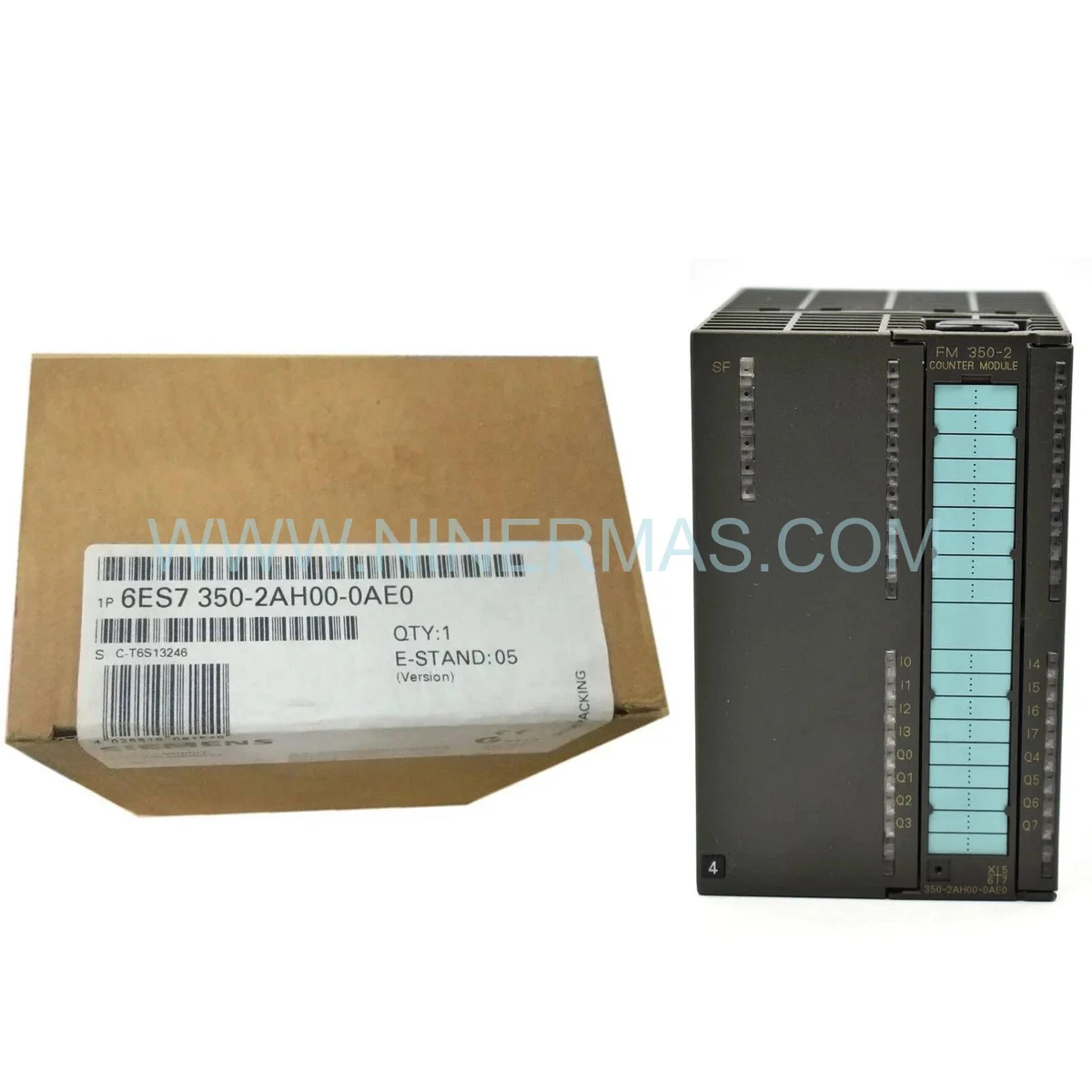

Siemens 6ES7350-2AH00-0AE0 FM 350-2 High-Speed Counter Module – Industrial Process Solution

Technical Overview & First Impression

As a Global Sourcing Manager with deep roots in distributed control system procurement, I can state with confidence that the Siemens 6ES7350-2AH00-0AE0 occupies a uniquely critical position within the SIMATIC S7-300 ecosystem. This 8-channel high-speed counter module — operating at up to 500 kHz per channel — serves as the backbone of precision motion feedback in Process Control environments where encoder data integrity is non-negotiable. Whether deployed in a Fieldbus-integrated packaging line or a standalone DCS Hardware cabinet, the 6ES7350-2AH00-0AE0 delivers deterministic counting performance that few legacy or modern alternatives can match at equivalent cost.

From a technical compatibility standpoint, this module supports four distinct encoder interface types: 24 V incremental, 5 V RS422 differential, SSI absolute, and Namur proximity sensors. This breadth of input compatibility makes it an exceptional bridge component during Legacy Components migration projects — where older encoder wiring must interface with a still-active S7-300 rack without costly rewiring. Its 32-bit counter width and isochronous mode support further extend its relevance in synchronized multi-axis applications that demand microsecond-level repeatability.

Factory Sealed stock of the 6ES7350-2AH00-0AE0 is increasingly scarce. Siemens has transitioned its high-speed counting portfolio toward the ET 200SP TM Count platform and S7-1500 technology modules, making original, unopened units of this FM 350-2 a finite and strategically valuable resource for maintenance engineers managing long-lifecycle S7-300 installations worldwide.

Key Technical Highlights

8 Independent Counter Channels — Each channel operates autonomously at up to 500 kHz, supporting simultaneous multi-axis position tracking without cross-channel interference.
Multi-Encoder Compatibility — Accepts 24 V incremental, 5 V RS422, SSI absolute, and Namur signals; eliminates the need for external signal converters in mixed-encoder environments.
32-Bit Counter Resolution — Provides a counting range of ±2,147,483,648 pulses, suitable for long-travel linear axes and high-revolution rotary applications without overflow risk.
Electronic Cam Switching — 32 compare values and 64 cam positions per channel drive 8 — 24 V / 0.5 A digital outputs directly, replacing mechanical cam controllers and reducing panel wiring complexity.
Isochronous Mode Support — Synchronizes counter acquisition with the S7-300 CPU cycle for Fieldbus-grade determinism in flying shear, rotary knife, and label applicator applications.
Redundancy-Ready Architecture — Compatible with S7-300 redundant CPU configurations, supporting Stability-critical installations in continuous process industries where unplanned downtime is unacceptable.

Vertical Industry Applications

The 6ES7350-2AH00-0AE0 has earned its reputation across some of the most demanding industrial verticals precisely because it reduces system downtime during both normal operation and emergency repair scenarios:

• Petrochemical & Refining: Deployed in pump speed monitoring and valve position feedback loops within Distributed Control System architectures. Its Namur input compatibility allows direct connection to intrinsically safe proximity sensors in Zone 1 hazardous areas, eliminating the need for separate signal conditioners.
• Mining & Mineral Processing: Used in conveyor belt speed control and crusher rotation monitoring. The module’s robust 0-60 °C operating range and vibration tolerance make it well-suited for harsh underground and open-pit environments where Legacy Components must survive years of continuous operation.
• Automotive Manufacturing: Integrated into transfer line indexing systems and robotic welding cell position feedback. The electronic cam output function replaces mechanical limit switches on rotary tables, reducing maintenance intervals and improving positional repeatability to sub-millimeter accuracy.
• Marine & Offshore: Installed in thruster control systems and anchor winch position monitoring aboard vessels and offshore platforms. Factory Sealed Condition units are preferred for marine applications due to strict humidity and contamination control requirements during long-term storage before installation.
• Food & Beverage Packaging: Drives flying shear and rotary knife synchronization on high-speed wrapping and filling lines. The 500 kHz counting rate handles encoder feedback from servo motors running at 3,000 RPM with 2,500 PPR encoders without pulse loss, directly preventing product waste and line stoppages.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 6ES7350-2AH00-0AE0 supplied through our inventory is 100% Original Siemens — sourced exclusively from authorized distribution channels and verified against Siemens’ factory serial number database. No refurbished, remanufactured, or gray-market units are stocked or offered.

• Factory Sealed Condition: All modules are stored in climate-controlled warehouses and shipped in original Siemens anti-static packaging with intact factory seals. Seal integrity is photographically documented before dispatch.
• 12-Month Comprehensive Warranty: Covers all functional failures under normal operating conditions. Warranty claims are processed within 5 business days, with advance replacement available for critical production environments.
• Emergency Delivery via DHL / FedEx / UPS: For Maintenance Stock replenishment and Emergency Repair scenarios, same-day dispatch is available from EU and US warehouse locations. Typical transit time to major industrial hubs: 24-72 hours. Customs documentation, HS code classification, and export compliance are handled in-house.
• Traceability: Each shipment includes a Certificate of Conformity, packing list with serial numbers, and optional third-party inspection report upon request.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the 6ES7350-2AH00-0AE0 I receive is 100% original and not a counterfeit?
A: Authentic units carry a Siemens holographic label on the module housing with a unique serial number traceable in the Siemens Industry Online Support (SIOS) portal. The factory seal on the cardboard packaging should be unbroken, and the PCB inside should display Siemens’ standard green solder mask with white silkscreen markings. We provide high-resolution pre-shipment photos of the label, seal, and module for buyer verification before dispatch.

Q2: Where can I obtain the official datasheet and GSD file for the 6ES7350-2AH00-0AE0?
A: The official product manual (A5E00059543) and GSD file are available through the Siemens Industry Online Support portal under the exact order number 6ES7350-2AH00-0AE0. We can also provide a copy of the manual PDF upon order confirmation as part of our standard documentation package.

Q3: Is the 6ES7350-2AH00-0AE0 compatible with all S7-300 CPU versions, including older 312/314 CPUs?
A: Yes. The FM 350-2 is compatible with all S7-300 CPUs from CPU 312 onward, provided the STEP 7 software version is V5.1 or higher. For isochronous mode operation, a DP master CPU (e.g., CPU 315-2 DP or higher) is required. No firmware update is needed for the module itself — configuration is handled entirely through the FM 350-2 configuration tool within STEP 7.

Q4: Can this module replace a failed 6ES7350-2AH01-0AE0 (the successor version)?
A: The 6ES7350-2AH00-0AE0 is the predecessor to the 6ES7350-2AH01-0AE0. While the hardware is functionally equivalent for most applications, the successor version offers expanded cam memory. In the vast majority of installations, the 6ES7350-2AH00-0AE0 can serve as a direct drop-in replacement for the 01 variant without configuration changes, making it an ideal emergency spare when the 01 version is unavailable.

Q5: What is the lead time for emergency orders, and do you support partial shipments for urgent maintenance needs?
A: For in-stock units, same-day dispatch is available for orders placed before 14:00 CET (EU warehouse) or 12:00 EST (US warehouse). Partial shipments are fully supported — if you require one unit immediately and additional units within 30 days, we can split the order at no additional logistics cost. Emergency air freight via DHL Express or FedEx Priority is the default shipping method for all urgent orders.

Q6: Is the 6ES7350-2AH00-0AE0 classified as an End-of-Life (EOL) component, and what are the long-term supply implications?
A: Siemens has officially transitioned the FM 350-2 product line to the TM Count 2x24V (ET 200SP) and S7-1500 technology module platform. The 6ES7350-2AH00-0AE0 is therefore a Legacy Component with finite new-stock availability. For facilities running long-lifecycle S7-300 systems — particularly in Petrochemical, Mining, and Marine sectors — we strongly recommend procuring Maintenance Stock reserves now, as factory-sealed units will become progressively harder to source at stable pricing over the next 3-5 years.
