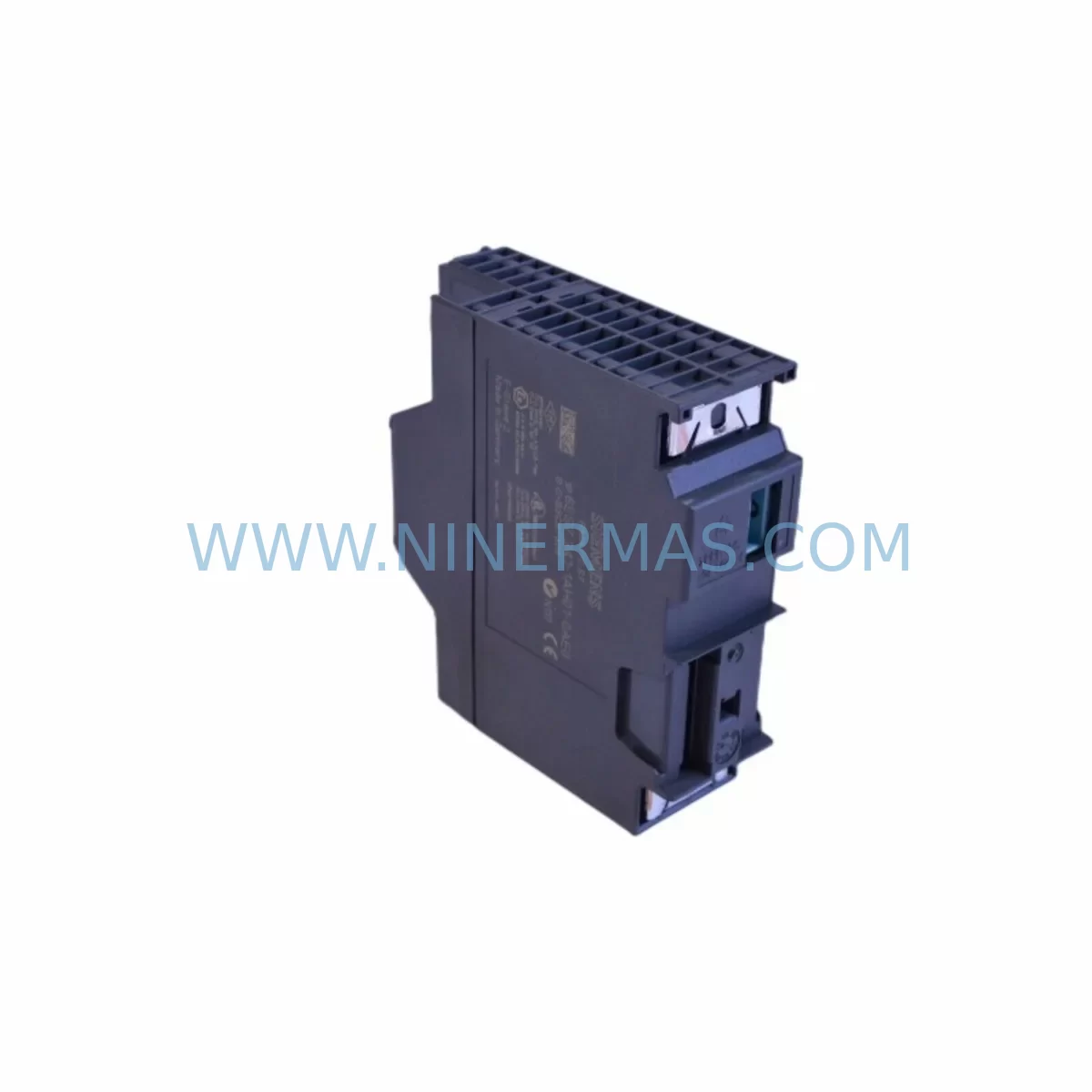

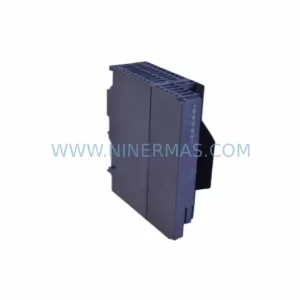

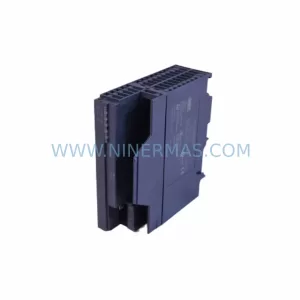

The Siemens 6ES7341-1AH01-0AE0, commonly known as the CP341 Communications Processor, is a point-to-point serial communications module designed for the SIMATIC S7-300 programmable logic controller platform. As legacy S7-300 systems continue to operate across global manufacturing, chemical processing, power generation, and infrastructure facilities, the CP341 remains a critical component for maintaining serial communication links — including ASCII, 3964(R), and Modbus RTU protocols — between PLCs and field devices, drives, analyzers, and remote I/O stations.

NINERMAS maintains verified stock of the 6ES7341-1AH01-0AE0 to support customers engaged in spare parts replenishment, unplanned breakdown recovery, and phased system modernization. Every unit is subject to pre-shipment functional testing and ships with a 12-month warranty, ensuring confidence for both emergency replacements and planned retrofit projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing or upgrading a CP341 within an operational S7-300 system requires careful pre-migration planning to avoid configuration mismatches and extended downtime. Before removing the existing module, engineers should document the current hardware configuration using STEP 7 HW Config, noting the slot address assigned to the CP341, the loaded communication function blocks (typically FC5 / FC6 for 3964R or FC7 / FC8 for ASCII), and the baud rate, parity, and stop-bit settings configured for the connected field device.

The S7-300 rack — whether a standard UR1 or UR2 universal rack — must have an available slot adjacent to the CPU or within the same rack segment. The CP341 occupies one slot and draws power from the backplane; confirm that the installed PS307 power supply module (typically 5A or 10A variant) has sufficient reserve capacity, particularly in racks already populated with analog I/O modules such as the SM334 or SM331, which carry higher current draws.

For systems communicating with variable frequency drives, weighing controllers, or barcode readers via RS-485, the 6ES7341-1AH01-0AE0 supports half-duplex Modbus RTU through a loadable driver. Customers migrating from an older CP340 (6ES7340-1AH01-0AE0) should note that while the physical form factor is identical, the CP341 offers higher baud rates (up to 76.8 kbps) and enhanced diagnostics. The existing terminal wiring on the RS-422/RS-485 sub-D connector can typically be reused without modification, significantly reducing field rewiring time.

Where the S7-300 system includes a CP343-1 Ethernet module for PROFINET or TCP/IP supervisory communication, the CP341 operates independently on the module bus and does not interfere with Ethernet traffic. Similarly, in racks containing FM355 closed-loop control modules or SM321 digital input modules, the CP341 coexists without address conflicts provided STEP 7 slot assignments are correctly maintained.

For systems being partially migrated toward the S7-1500 platform, the CP341 can continue to serve as a serial gateway in the legacy S7-300 segment during a phased transition, bridging serial field devices that are not yet connected to the new CM PtP RS422/485 BA communications module on the S7-1500 side. This hybrid architecture allows production continuity while the new control layer is commissioned in parallel.

All units supplied by NINERMAS are pre-tested for module bus communication, LED diagnostic response, and serial port integrity before shipment. Replacement modules are supplied with firmware consistent with the original order number, ensuring compatibility with existing STEP 7 project files without requiring hardware reconfiguration.

Downtime Control During System Migration

Minimizing production interruption during a CP341 replacement begins with advance preparation. Before the maintenance window, export the complete STEP 7 project — including the hardware configuration, symbol table, and all OB/FB/FC program blocks — to a secure backup location. Confirm that the replacement 6ES7341-1AH01-0AE0 carries the same firmware revision as the outgoing module; if not, a firmware update via STEP 7 may be required before installation.

During the replacement window, power down the S7-300 rack using the PS307 power supply main switch rather than removing the CPU, preserving the CPU’s retentive memory and avoiding an unintended cold restart. Swap the CP341 module, reconnect the serial cable to the sub-D port, and restore rack power. The CPU will automatically recognize the new module in the same slot and resume communication using the stored configuration — no re-download is required in most cases unless the firmware version differs.

For systems where the CP341 manages a critical Modbus RTU link to a SCADA or DCS historian, coordinate the replacement with the control room to suppress alarms during the brief communication interruption. Once the module is reinstalled and the serial link is re-established, verify communication status via the CP341 diagnostic buffer in STEP 7 Online mode. Normal link restoration typically occurs within 30–60 seconds of power-up, keeping total controlled downtime well under 15 minutes for a prepared team.

NINERMAS maintains buffer stock of the 6ES7341-1AH01-0AE0 to support same-day or next-day dispatch for emergency breakdown scenarios, reducing the risk of extended production halts caused by spare parts lead time. Long-term supply agreements are available for customers managing large S7-300 installed bases approaching end-of-life.

Retrofit Support FAQ

Q1: Is the 6ES7341-1AH01-0AE0 a direct drop-in replacement for an existing CP341 in my S7-300 rack?
Yes. The 6ES7341-1AH01-0AE0 is a direct physical and functional replacement for any CP341 module of the same order number. It uses the same S7-300 backplane connector, occupies the same single slot, and is recognized by STEP 7 without hardware reconfiguration, provided the slot address is unchanged.

Q2: Can this module replace a CP340 (6ES7340-1AH01-0AE0) in an existing installation?
The CP341 is the successor to the CP340 and is physically compatible with the same rack slot. However, the CP341 uses different loadable function blocks (FC5–FC8) compared to the CP340 (FC1–FC4). Program blocks must be updated in STEP 7 and a hardware configuration re-download is required. Wiring to the serial port is generally compatible.

Q3: What pre-shipment testing does NINERMAS perform on the 6ES7341-1AH01-0AE0?
Each unit undergoes functional verification including backplane communication check, LED diagnostic response, and serial port integrity testing before dispatch. Units are supplied with original firmware and include a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q4: Does NINERMAS offer long-term supply support for S7-300 spare parts?
Yes. NINERMAS maintains ongoing inventory of S7-300 series modules including CP341, SM series I/O, and PS307 power supplies to support customers managing aging installed bases. Contact sale@ninermas.com or +0086 187 5021 5667 to discuss volume pricing, reserved stock arrangements, or technical compatibility questions.
