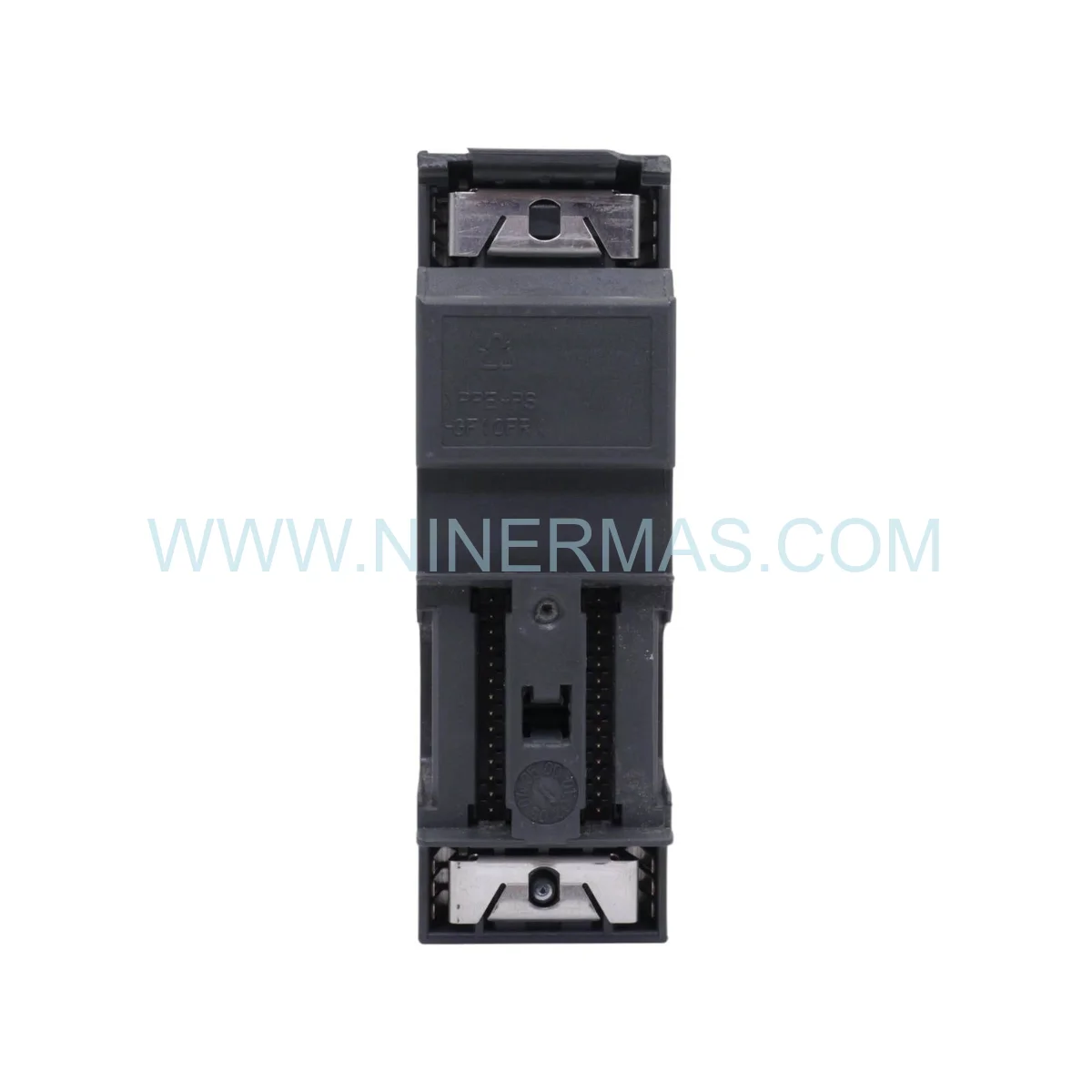

Siemens 6ES7331-7HF01-0AB0 | SM 331 Safety Analog Retrofit Module

Siemens 6ES7331-7HF01-0AB0 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across chemical plants, power generation facilities, and global manufacturing bases, the Siemens 6ES7331-7HF01-0AB0 stands as a cornerstone hardware asset in any safety-critical modernization roadmap. This SM 331 failsafe analog input module delivers 8-channel SIL 3-rated measurement capability — enabling aging distributed control systems (DCS) and turbine supervisory instrumentation (TSI) to sustain operational integrity while the broader migration architecture is staged and validated. The 6ES7331-7HF01-0AB0 is not merely a replacement part; it is a strategic bridge component that allows facilities to extend the productive life of their S7-300 F-series infrastructure without forcing a disruptive full-platform cutover.

From a legacy compatibility standpoint, this module slots directly into existing S7-300 racks, preserving the original backplane wiring, front connector pinout (40-pin, 6ES7392-1AM00-0AA0), and STEP 7 / TIA Portal F-library configurations. Its backward compatibility with the 6ES7331-7HF00-0AB0 variant — with the added advantage of full HART v7 pass-through — makes it the preferred hardware upgrade path for plants that need to introduce smart transmitter diagnostics without redesigning the entire I/O layer. This seamless integration capability dramatically reduces engineering hours and commissioning risk during phased retrofit projects.

In terms of migration cost containment, deploying the 6ES7331-7HF01-0AB0 as part of a controlled hardware upgrade strategy eliminates the need for intermediate safety barriers, reduces panel space requirements, and leverages existing T V-certified safety loops — cutting total retrofit expenditure by preserving validated SIL architectures rather than rebuilding them from scratch.

Upgrade Highlights & Compatibility

• ✅ SIL 3 / Cat 4 / PL e Certified — Meets IEC 61508, EN 954-1, and ISO 13849-1 for the most demanding safety loops without additional external components
• Full HART v7 Pass-Through — Enables smart transmitter diagnostics and remote configuration, a critical feature for Performance Enhancement in legacy field device networks
• ✅ 16-Bit Resolution, <0.05% Accuracy — Precision analog measurement for pressure, flow, temperature, and level signals across all 8 channels simultaneously
• Dual-Channel SIL 3 Architecture — Supports single-channel SIL 2 and two-channel SIL 3 configurations, providing Future-proofing flexibility as safety requirements evolve
• ✅ Comprehensive Onboard Diagnostics — Wire-break, short-circuit, over/under-range, and HART status monitoring reduce unplanned downtime and support predictive maintenance strategies
• Direct S7-300 Rack Compatibility — Zero mechanical or electrical modification required; plug-and-play Legacy Compatibility with existing S7-300 F-CPU installations

Modernization Use Cases & Success Stories

DCS Safety Loop Consolidation — Refinery Upgrade: A mid-scale petroleum refinery operating a legacy S7-300 F-system faced T V recertification pressure due to aging SM 331 modules with no HART capability. By deploying the 6ES7331-7HF01-0AB0 as a direct Retrofit Solution, the facility eliminated 24 external HART multiplexers, reduced panel wiring complexity by 40%, and achieved SIL 3 recertification within a single planned shutdown window — a textbook example of Performance Enhancement through targeted hardware upgrade.

Turbine Supervisory System (TSI) Modernization — Power Plant: A combined-cycle power plant required enhanced vibration and temperature monitoring for its gas turbine fleet without replacing the existing S7-300 F-CPU backbone. The 6ES7331-7HF01-0AB0’s 16-bit resolution and 20 ms per-channel conversion time provided the measurement fidelity needed for turbine protection logic, enabling Seamless Integration of new smart sensors into the legacy TSI architecture. The result: zero unplanned turbine trips in the 18 months following the retrofit.

Chemical Plant ESD System Upgrade — Batch Process Safety: An emergency shutdown (ESD) system upgrade project required maintaining SIL 3 integrity across 64 analog safety inputs while transitioning from a proprietary DCS to a Siemens SIMATIC Safety platform. The 6ES7331-7HF01-0AB0 served as the System Migration anchor module, allowing parallel operation of old and new safety loops during the phased cutover — minimizing production risk and demonstrating the module’s value as a Legacy Compatibility enabler in complex multi-phase retrofit programs.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | Complete Part Number | **6ES7331-7HF01-0AB0** | | Platform | Siemens SIMATIC S7-300 Safety (F-Series) | | Analog Input Channels | 8 — Failsafe (4-20 mA / ±20 mA / ±10 V, floating) | | Safety Integrity Level | SIL 3 (IEC 61508), Category 4, PL e | | Resolution | 16-bit including sign | | Measurement Accuracy | < 0.05% of full scale | | HART Protocol Support | Full pass-through v7 — enables smart transmitter integration | | Diagnostics Coverage | Wire-break, short-circuit, over/under-range, HART status | | Channel Conversion Time | 20 ms per channel (all 8 channels active) | | Common Mode Rejection | > 120 dB | | Channel-to-Channel Isolation | 500 V DC | | Power Consumption | 4.5 W typical | | Front Connector | 40-pin (6ES7392-1AM00-0AA0) | | Dimensions (W — H — D) | 40 — 125 — 120 mm | | Operating Temperature | 0 to +60 °C | | Weight | 0.32 kg | | Lifecycle Status | Active — Current Production | | Direct Predecessor | 6ES7331-7HF00-0AB0 (no HART) | | S7-1500 F Migration Path | 6ES7531-7QF00-0AB0 | | Condition Available | Factory New, Original Siemens Sealed Packaging |

Supply Chain & Deployment Support

• Original & Factory Sealed: Every 6ES7331-7HF01-0AB0 unit is supplied in original Siemens packaging with full traceability documentation, T V safety certificate, and factory test report — essential for SIL 3 validation audits and insurance compliance.
• Expedited Global Logistics: EU and US buffer stock enables 24-hour dispatch to support emergency retrofit timelines. Air freight and DDP (Delivered Duty Paid) options available for critical plant shutdowns across Asia-Pacific, Middle East, and European markets.
• Technical Support for Obsolete & Legacy Hardware: Our retrofit engineering team provides STEP 7 / TIA Portal F-library configuration guidance, front connector wiring diagrams, and SIL validation documentation support — ensuring your Hardware Upgrade project proceeds without costly delays.
• Long-Term Supply Assurance: As an authorized distributor with multi-year inventory commitments, we provide supply continuity planning for facilities operating extended S7-300 F-system lifecycles, bridging the gap until full System Migration to S7-1500 F platforms is feasible.

Retrofit FAQ — Upgrade Guide

Q1: Is the 6ES7331-7HF01-0AB0 physically compatible with my existing S7-300 rack and front connector wiring?
Yes. The 6ES7331-7HF01-0AB0 uses the standard S7-300 module form factor (40 mm width) and the same 40-pin front connector (6ES7392-1AM00-0AA0) as its predecessor. No rack modification, backplane rewiring, or panel layout changes are required — making it the lowest-disruption Hardware Upgrade option for in-service S7-300 F installations.

Q2: Can the 6ES7331-7HF01-0AB0 communicate with both legacy 4-20 mA transmitters and new HART-enabled smart devices simultaneously?
Absolutely. The module’s full HART v7 pass-through capability allows it to read standard 4-20 mA process values from conventional transmitters while simultaneously extracting diagnostic and configuration data from HART-enabled smart instruments on the same loop — a key enabler for phased System Migration without replacing field devices prematurely.

Q3: What is the recommended spare parts strategy for facilities planning a long-term S7-300 F to S7-1500 F migration?
For facilities with a 3-5 year migration horizon, we recommend maintaining a minimum 2-unit buffer stock of 6ES7331-7HF01-0AB0 per rack to cover unplanned failures during the transition period. This Retrofit Solution approach ensures production continuity while the S7-1500 F migration is engineered, validated, and staged — avoiding emergency procurement premiums and unplanned downtime.

Q4: How does the dual-channel SIL 3 configuration of the 6ES7331-7HF01-0AB0 work in practice?
In two-channel (1oo2) mode, two independent sensor signals are wired to separate channel pairs on the module. The F-CPU continuously compares both readings; if discrepancy exceeds the configured tolerance within the discrepancy time window, the safety function is triggered. This architecture achieves SIL 3 without external voting logic — simplifying the retrofit design and reducing component count in upgraded safety loops.

Q5: Are there alternative modules if the 6ES7331-7HF01-0AB0 is required for a higher-channel-count upgrade?
For applications requiring more than 8 failsafe analog inputs per slot, the S7-1500 F platform offers the 6ES7531-7QF00-0AB0 with 8 channels and enhanced diagnostics as the forward migration path. However, for facilities committed to the S7-300 F architecture in the near term, multiple 6ES7331-7HF01-0AB0 modules can be deployed in parallel racks to scale channel capacity while maintaining full Legacy Compatibility with existing F-CPU configurations.

Q6: What documentation is provided to support SIL 3 re-validation after installing the 6ES7331-7HF01-0AB0?
Each unit is supplied with the original Siemens factory test certificate, T V S D safety assessment report, and the current Siemens Safety Manual (A5E00085586). Our technical team can additionally provide application-specific wiring diagrams, F-library function block documentation, and PFD/PFH calculation support to streamline your post-retrofit SIL validation audit.
