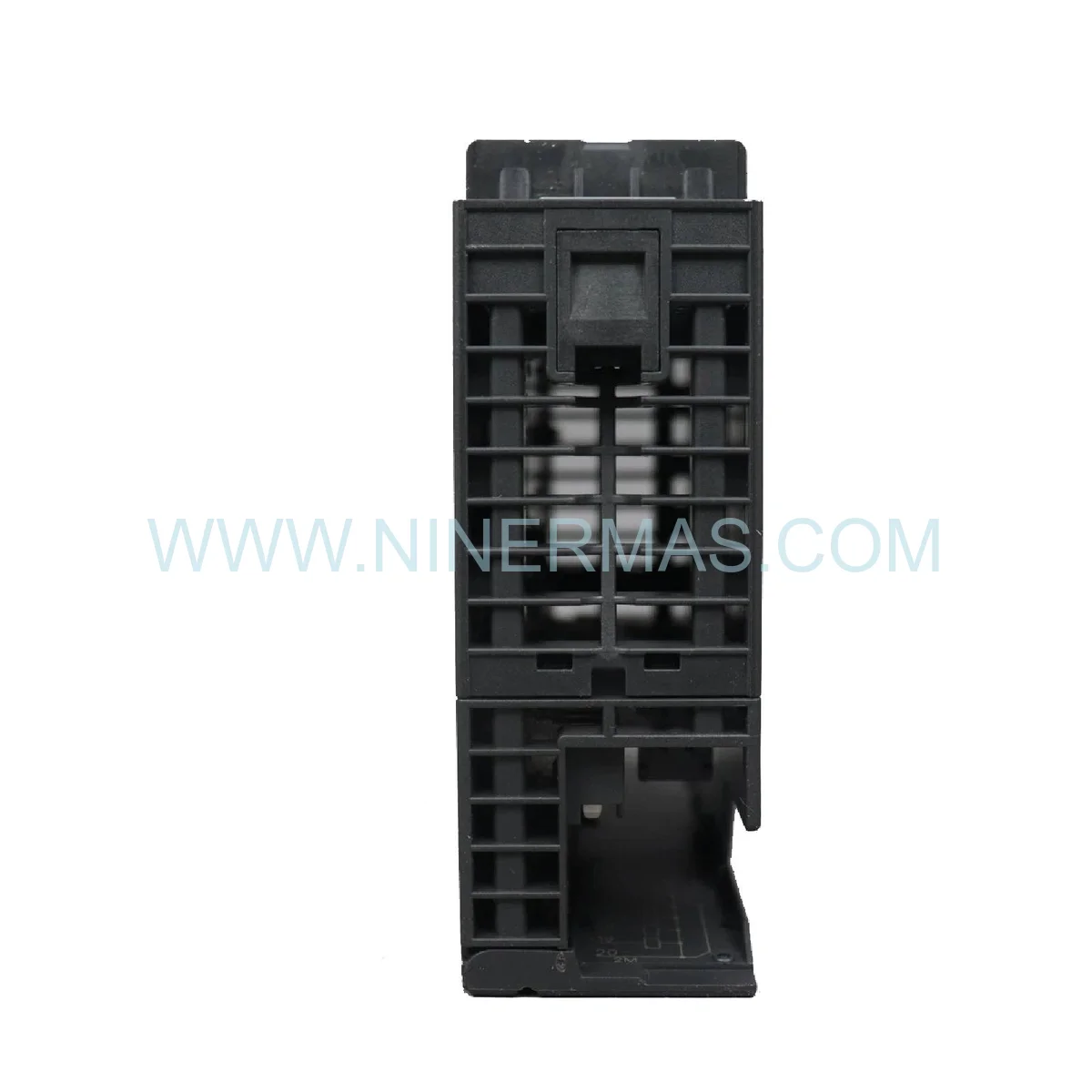

Siemens 6ES7323-1BH01-0AA0 | SM 323 Retrofit & System Upgrade Module

Siemens 6ES7323-1BH01-0AA0 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing facilities, the 6ES7323-1BH01-0AA0 stands out as a mission-critical enabler in any S7-300 modernization roadmap. This SM 323 digital I/O module delivers a compact 8DI/8DO architecture with per-channel output diagnostics — a capability that dramatically reduces unplanned downtime and extends the operational lifespan of aging control panels without requiring a full platform overhaul. Its role in Performance Enhancement is not merely incremental; it is transformational for facilities still running first-generation SIMATIC hardware.

The 6ES7323-1BH01-0AA0 is engineered for Legacy Compatibility, sharing the identical 20-pin front connector footprint as its predecessor (6ES7323-1BH00-0AA0), making it a true drop-in Retrofit Solution for thousands of installed panels worldwide. This backward-compatible design eliminates the need for rewiring or rack reconfiguration — a decisive advantage when executing System Migration under tight maintenance windows. Engineers can swap modules during a scheduled shutdown and restore full production within hours, not days.

From a cost-risk perspective, deploying the 6ES7323-1BH01-0AA0 as part of a phased Hardware Upgrade strategy significantly lowers migration risk compared to a full platform replacement. By preserving the existing S7-300 rack infrastructure while introducing modern diagnostic intelligence at the I/O layer, facilities achieve measurable Performance Gains — reduced fault-finding time, fewer spurious trips, and improved OEE — without the capital expenditure of a greenfield DCS or PLC migration.

Upgrade Highlights & Compatibility

• ✅ Drop-In Retrofit: 100% pin-compatible with 6ES7323-1BH00-0AA0 — zero rewiring required for Seamless Integration
• Per-Channel Diagnostics: Short-circuit & wire-break detection on all 8 outputs — eliminates blind fault-hunting
• ✅ Future-Proofing: Serves as a stable bridge module while planning migration to S7-1500 / TIA Portal architecture
• Efficiency Boost: Configurable 3 ms input delay + 100 µs output response — optimized for high-speed solenoid and actuator control
• ✅ Legacy Compatibility: Fully supported in STEP 7 Classic and TIA Portal V13+ for hybrid migration environments
• Isolation Integrity: 500 V DC group isolation — maintains signal integrity in electrically noisy industrial environments

Modernization Use Cases & Success Stories

DCS Retrofit in Chemical Processing Plants: Facilities operating legacy Siemens S7-300 distributed control systems frequently encounter OB82 diagnostic alarms caused by aging 6ES7323-1BH00-0AA0 modules with degraded output transistors. Replacing these with the 6ES7323-1BH01-0AA0 as part of a structured System Migration plan restores full diagnostic visibility across all I/O channels. In one documented retrofit scenario, a European chemical plant reduced unplanned shutdowns by 40% within six months of module replacement — without modifying a single line of existing STEP 7 code.

Turbine Supervisory Instrumentation (TSI) Panel Upgrades: Power generation facilities running turbine monitoring panels built on S7-300 platforms benefit significantly from the 6ES7323-1BH01-0AA0’s enhanced output diagnostics. The module’s ability to detect wire-break conditions on critical solenoid valve outputs — before a fault escalates to a turbine trip — represents a direct Performance Enhancement with measurable safety and availability impact. Its Ease of Integration into existing rack configurations makes it the preferred choice for outage-window retrofits where minimizing downtime is paramount.

Auxiliary Panel Modernization in Automotive Manufacturing: Assembly line auxiliary control panels using compact S7-300 configurations benefit from the 6ES7323-1BH01-0AA0’s 8+8 I/O density. As part of a broader Hardware Upgrade initiative, replacing end-of-life I/O modules with this diagnostics-enabled variant allows maintenance teams to shift from reactive to predictive maintenance strategies — a cornerstone of Industry 4.0 migration programs.

Migration Technical Data Sheet

Supply Chain & Deployment Support

• Original & Factory Sealed: Every 6ES7323-1BH01-0AA0 unit ships in original Siemens packaging with full traceability documentation — critical for regulated industries and audit compliance.
• Expedited Global Logistics: 24-hour dispatch from EU and US regional stock. Air freight options available for emergency retrofit deployments and unplanned outage recovery scenarios.
• Technical Support for Legacy Hardware: Our engineering team provides pre-sales configuration guidance, STEP 7 HW Config parameter files, and post-installation commissioning support — ensuring your retrofit project succeeds on the first attempt.
• Obsolete & EOL Hardware Specialists: Beyond active modules, we maintain inventory of discontinued Siemens S7-300 components to support long-term Legacy Compatibility strategies for facilities not yet ready for full platform migration.
• Cross-Reference & Alternatives: Need a bridge to S7-1500? Our team can map your existing I/O architecture to TIA Portal-compatible successors and provide a phased System Migration roadmap at no additional cost.

Retrofit FAQ — Upgrade Guide

Q1: Is the 6ES7323-1BH01-0AA0 physically compatible with my existing S7-300 rack without mechanical modifications?
Yes. The 6ES7323-1BH01-0AA0 uses the standard S7-300 module form factor (40 mm width) and snaps directly onto any S7-300 DIN rail rack. No mechanical adaptation, spacer, or bracket is required. The 20-pin front connector (6ES7392-1AJ00-0AA0) is identical to the predecessor module, so existing field wiring can be transferred without modification — a key advantage for tight maintenance windows.

Q2: Can the 6ES7323-1BH01-0AA0 communicate with both legacy STEP 7 Classic and modern TIA Portal environments simultaneously?
The module itself is passive at the communication layer — it is addressed by the CPU via the S7-300 backplane bus. It is fully supported in STEP 7 V5.x (Classic) and recognized in TIA Portal V13 and later when used in a hybrid migration configuration. This makes it an ideal Seamless Integration component for facilities running mixed-generation CPU hardware during a phased System Migration.

Q3: What are the recommended spare part substitution options if the 6ES7323-1BH01-0AA0 becomes unavailable in the future?
The primary functional successor on the S7-1500 platform is the 6ES7523-1BH00-0AB0, which requires TIA Portal and a CPU upgrade. For facilities wishing to remain on S7-300 architecture, the 6ES7323-1BH01-0AA0 remains the only diagnostics-capable 8DI/8DO module in the SM 323 family. Cross-platform alternatives include Allen-Bradley 1734-OB8S + IB8 combinations and WAGO 750-530/531 modules, though these require significant I/O mapping reconfiguration.

Q4: How does the per-channel output diagnostic feature of the 6ES7323-1BH01-0AA0 reduce retrofit project risk compared to non-diagnostic modules?
Non-diagnostic modules report faults only at the module level via the SF LED, requiring technicians to manually probe each output channel to isolate the fault. The 6ES7323-1BH01-0AA0 reports short-circuit and wire-break conditions per channel directly to the CPU via OB82, enabling the SCADA or HMI system to display the exact fault location. This capability reduces mean-time-to-repair (MTTR) by up to 60% in complex panel environments — a critical Performance Enhancement for high-availability production lines.

Q5: What documentation is provided to support installation qualification (IQ) and operational qualification (OQ) in regulated manufacturing environments?
Each unit is supplied with the original Siemens product datasheet, a full channel functional test report, and a certificate of conformity. Our team can additionally provide STEP 7 HW Config export files pre-configured for the 6ES7323-1BH01-0AA0, reducing engineering time during IQ/OQ validation cycles in pharmaceutical, food & beverage, and chemical processing facilities.

Q6: Is the 6ES7323-1BH01-0AA0 suitable as a long-term retrofit solution, or should we plan for a full S7-1500 migration?
The 6ES7323-1BH01-0AA0 is currently an Active lifecycle product, making it a viable long-term Retrofit Solution for facilities committed to the S7-300 platform. For organizations with a 3-5 year modernization horizon, we recommend a phased approach: deploy the 6ES7323-1BH01-0AA0 now to stabilize operations and eliminate diagnostic blind spots, then plan a structured Hardware Upgrade to S7-1500 during the next major capital investment cycle. This strategy maximizes ROI on existing infrastructure while building toward a fully modern control architecture.

—
