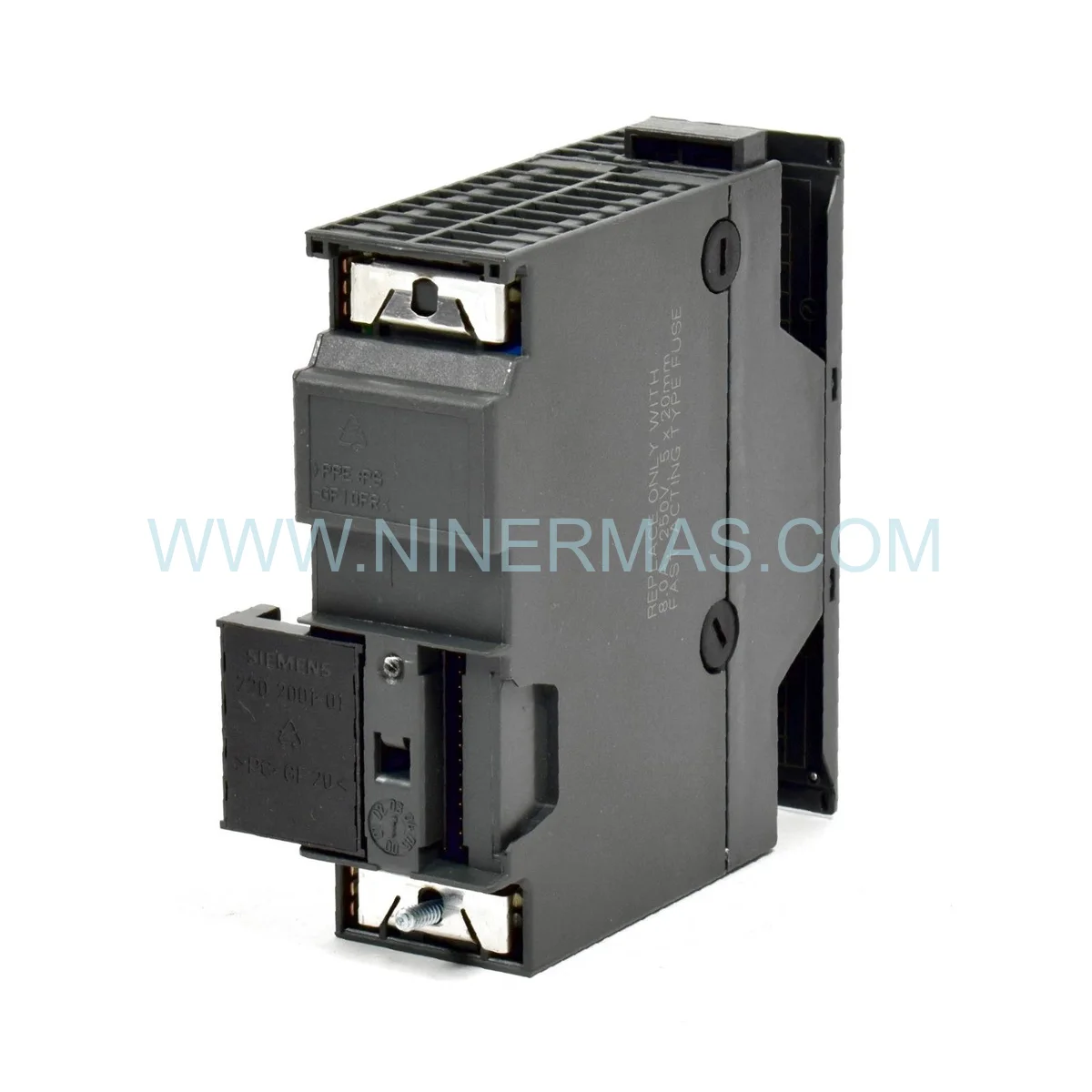

Siemens 6ES7322-1FH00-0AA0 | SM 322 Relay Output Module

Siemens 6ES7322-1FH00-0AA0 SM 322 Relay Output Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry the operational weight of a relay output module in a live Distributed Control System. The Siemens 6ES7322-1FH00-0AA0 is a 16-channel relay output module engineered for the SIMATIC S7-300 platform — a cornerstone of Process Control infrastructure deployed across refineries, power stations, and heavy manufacturing facilities worldwide. Its role is not peripheral; it sits at the critical junction between the controller’s logic and the physical actuators that keep industrial processes running. Because the 6ES7322-1FH00-0AA0 provides full galvanic isolation between each relay channel and the backplane, it is uniquely suited for mixed-voltage panels where 230 V AC loads must be switched directly without interposing relays.

Technical compatibility is a decisive factor when sourcing Legacy Components for aging DCS Hardware. This module integrates seamlessly into any S7-300 rack alongside existing SM 321 input modules and CP communication processors, requiring no firmware changes or configuration overrides. For facilities managing a Legacy Upgrade strategy — migrating gradually from S7-300 to S7-1500 — the 6ES7322-1FH00-0AA0 remains a fully supported drop-in replacement that preserves existing STEP 7 programs and hardware configurations without costly re-engineering.

Original stock of this module is increasingly scarce. As Siemens has transitioned its primary development focus to the S7-1500 series, factory-sealed units of the 6ES7322-1FH00-0AA0 represent a finite and diminishing supply. Procurement teams managing Maintenance Stock for critical facilities must act decisively — this is not a component that can be substituted with a generic relay board without significant re-wiring and validation effort.

Key Technical Highlights

16 Independent Relay Outputs — Each channel features a normally-open (NO) contact rated at 1 A @ 230 V AC / 1 A @ 30 V DC, enabling direct switching of motors, solenoid valves, and contactors without auxiliary relays.
Full Channel Isolation — 1500 V AC galvanic isolation between each channel and the S7-300 backplane, delivering the Redundancy and Stability demanded by Safety Instrumented Systems (SIS) and high-availability process lines.
Built-in Varistor Suppression — Integrated inductive load protection eliminates the need for external freewheeling diodes, reducing panel complexity and improving long-term reliability in Fieldbus-integrated environments.
Proven Industrial Durability — Rated for continuous operation from 0 to +60 °C with a documented MTBF exceeding 25 years in harsh environments including cement plants, offshore platforms, and mining operations.
Plug-and-Play S7-300 Compatibility — Mounts directly onto any S7-300 rail; recognized automatically by STEP 7 and TIA Portal in S7-300 compatibility mode. No additional drivers or GSD files required.
High-Speed Diagnostic Feedback — Integrated SF LED and OB86 diagnostic messaging allow maintenance engineers to isolate faults to the channel level within seconds, minimizing Mean Time to Repair (MTTR).

Vertical Industry Applications

The 6ES7322-1FH00-0AA0 has earned its place as a Critical Part for Industry Safety across multiple demanding sectors:

• Petrochemical & Refining: Controls pump start/stop sequences and emergency shutdown valve actuators in HAZOP-reviewed process loops. Its isolated relay contacts prevent ground loops that could trigger spurious trips in SIS architectures, directly reducing unplanned system downtime.
• Mining & Mineral Processing: Manages conveyor belt starters, crusher motor contactors, and dust suppression solenoids in environments with extreme vibration and electrical noise. The module’s robust mechanical relay design outperforms solid-state alternatives in high-inrush applications.
• Marine & Offshore: Deployed in vessel automation and offshore platform control panels where DNV-GL and ABS class requirements demand proven, type-approved hardware. The wide operating temperature range and sealed relay contacts resist salt-air corrosion.
• Power Generation: Interfaces turbine auxiliary systems, cooling water pumps, and breaker control circuits within DCS Hardware architectures. The 230 V AC switching capability eliminates the need for intermediate control relays in most substation panel designs.
• Pharmaceutical & Food Processing: Supports CIP/SIP valve sequencing and batch reactor control in FDA-regulated environments where validated hardware configurations cannot be altered — making an exact-match replacement like the 6ES7322-1FH00-0AA0 the only compliant option.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 6ES7322-1FH00-0AA0 supplied through our network undergoes a rigorous multi-stage verification process before dispatch. We source exclusively from authorized distribution channels and factory-sealed inventory, ensuring that each module arrives in its original Siemens packaging with intact tamper-evident seals and full factory documentation.

• 100% Original Siemens Manufacturing: No refurbished, reconditioned, or third-party remanufactured units. Each module carries a traceable Siemens production batch code verifiable against the manufacturer’s records.
• 12-Month Comprehensive Warranty: Full replacement or repair coverage from date of delivery, covering manufacturing defects and premature component failure under normal operating conditions.
• Emergency Delivery via DHL / FedEx / UPS: For Emergency Repair scenarios, we offer same-day dispatch with next-flight-out courier options to any global destination. Average transit time to major industrial hubs: 24-72 hours.
• Full Load Test Certificate Available: Upon request, units can be supplied with a pre-shipment functional test report, validating relay contact resistance, isolation voltage, and output switching performance.
• Export Documentation: Commercial invoice, packing list, certificate of origin, and ECCN classification provided for all international shipments to facilitate customs clearance.

Buyer’s FAQ — Selection & Sourcing Guide

Q1: How do I verify that a 6ES7322-1FH00-0AA0 unit is genuinely original and not a counterfeit?
Authentic units feature a holographic Siemens product label on the module housing with a scannable QR code linked to Siemens’ Industry Mall verification portal. The factory carton carries a sealed Siemens barcode label with a 10-digit material number matching 6ES7322-1FH00-0AA0. Internal PCB markings and relay brand (typically TE Connectivity or Omron OEM) are consistent across genuine production batches. We provide high-resolution photos of the actual unit, carton, and label upon request before payment.

Q2: Where can I obtain the official datasheet and wiring diagram for the 6ES7322-1FH00-0AA0?
The official Siemens product manual (document number A5E00105506) is available through the Siemens Industry Online Support portal. We can also provide a copy of the relevant SM 322 hardware manual chapter covering the 6ES7322-1FH00-0AA0 wiring diagram, terminal assignment, and diagnostic LED interpretation as part of our technical support package — contact our engineering team directly.

Q3: Is the 6ES7322-1FH00-0AA0 compatible with all S7-300 CPU versions, including older 314 and 315 CPUs?
Yes. The SM 322 relay output module communicates via the S7-300 backplane bus and is recognized by all S7-300 CPU variants from CPU 312 through CPU 319-3 PN/DP. No firmware update is required on the CPU. The module is also compatible with ET 200M distributed I/O stations using the IM 153-x interface module, extending its use in Fieldbus and PROFIBUS-DP architectures.

Q4: Can this module be used as a direct replacement in a system currently running STEP 7 V5.5?
Absolutely. The 6ES7322-1FH00-0AA0 is a hardware-identical replacement. Simply insert the new module into the rack slot, restore the front connector, and perform a hardware configuration download if the CPU is in STOP mode. No changes to the STEP 7 project are required provided the slot assignment remains unchanged. The CPU will recognize the module automatically upon power-up.

Q5: What is the lead time for emergency orders, and do you stock multiple units?
For in-stock units, same-day dispatch is available for orders confirmed before 14:00 local time. We maintain buffer stock of the 6ES7322-1FH00-0AA0 specifically to support Emergency Repair and unplanned maintenance scenarios. For larger Maintenance Stock requirements (5+ units), contact us for volume pricing and reserved allocation agreements.

Q6: Is the 6ES7322-1FH00-0AA0 suitable for use in SIL-rated Safety Instrumented Systems?
The standard 6ES7322-1FH00-0AA0 is a standard (non-F) module and is not independently SIL-certified for use as a safety output device in IEC 61511 / IEC 61508 SIS architectures. For safety-rated applications, Siemens offers the F-series SM 326 DO 10 — DC 24V/2A PP (6ES7326-2BF41-0AB0). However, the 6ES7322-1FH00-0AA0 is widely used in non-safety output layers of SIS-adjacent systems where its isolation and reliability characteristics are valued.
