Siemens 6ES7321-1CH00-0AA0 Retrofit-Compatible DI Module for Legacy Systems

Siemens 6ES7321-1CH00-0AA0 Retrofit-Compatible DI Module for Legacy Systems

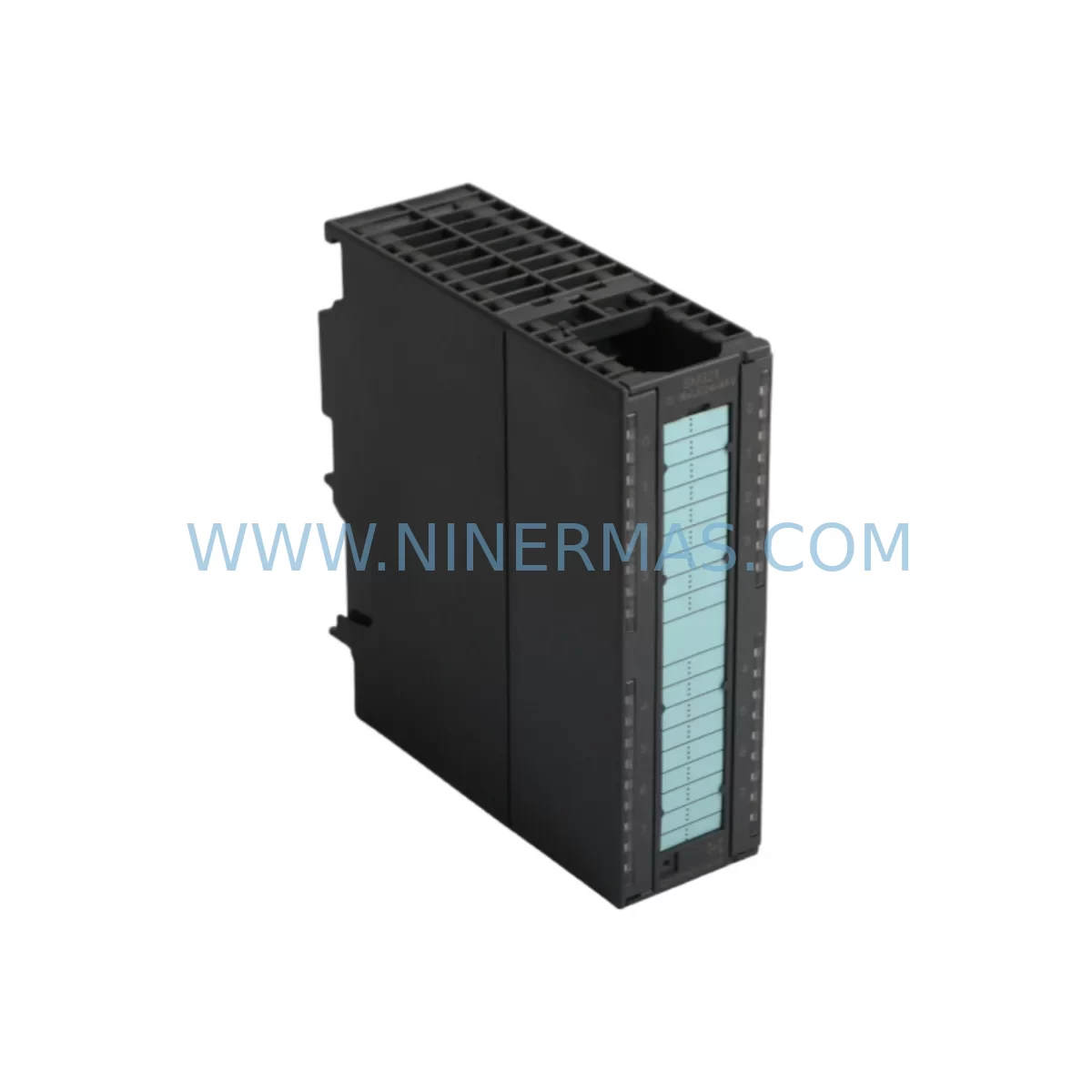

The Siemens 6ES7321-1CH00-0AA0 is a 16-channel digital input module belonging to the SM 321 signal module family within the SIMATIC S7-300 programmable logic controller platform. As Siemens progressively phases out legacy S7-300 hardware in favor of the S7-1500 series, procurement of tested and verified spare parts for the 6ES7321-1CH00-0AA0 has become a critical priority for plant engineers managing aging control infrastructure. NINERMAS maintains verified stock of this module to support retrofit projects, emergency replacements, and planned lifecycle extension programs across process and discrete manufacturing environments.

This module accepts 16 digital input signals at 24 VDC and interfaces directly with the S7-300 backplane via the standard S7-300 bus connector. It is fully compatible with the UR1 and UR2 universal racks as well as the CR3 compact rack, and can be installed in any slot position from slot 4 onward. The module communicates with the CPU — such as the CPU 315-2 DP (6ES7315-2AH14-0AB0) or CPU 314C-2 PN/DP (6ES7314-6EH04-0AB0) — via the internal S7-300 backplane bus without requiring additional configuration beyond standard hardware configuration in STEP 7 or TIA Portal.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6ES7321-1CH00-0AA0 in an operational S7-300 system requires a structured approach to avoid unplanned downtime and configuration errors. Before initiating the swap, engineers should document the existing hardware configuration using STEP 7 or TIA Portal, noting the module’s slot address, I/O byte assignments, and any special diagnostic interrupt settings. The front connector — typically a 6ES7392-1AJ00-0AA0 20-pin screw terminal connector — should be labeled and photographed prior to removal to preserve field wiring integrity.

Power supply capacity is a key verification point. The PS 307 5A (6ES7307-1EA01-0AA0) or PS 307 10A (6ES7307-1KA02-0AA0) power supply modules feeding the rack must have sufficient headroom to support the replacement module’s current draw. The 6ES7321-1CH00-0AA0 draws approximately 50 mA from the 5 VDC backplane bus; confirm the total rack current budget has not been exceeded, particularly in densely populated racks running analog output modules such as the SM 332 AO 4x12Bit (6ES7332-5HD01-0AB0) alongside multiple digital I/O modules.

For systems where the S7-300 CPU communicates with remote I/O via PROFIBUS DP — for example, using a DP slave ET 200M (6ES7153-1AA03-0XB0) — the replacement of a local SM 321 module does not affect the PROFIBUS network topology. However, if the retrofit scope includes migrating from a PROFIBUS-based architecture to PROFINET, additional planning is required for the IM 153-4 PN (6ES7153-4AA01-0XB0) interface module and associated network switch infrastructure.

In control cabinets where space is constrained, the physical dimensions of the 6ES7321-1CH00-0AA0 (standard 40 mm S7-300 module width) allow direct slot-for-slot replacement without cabinet modification. Engineers should confirm that the DIN rail mounting and rack end brackets — such as the 6ES7390-1AE80-0AA0 — are secure before reinserting the module. For systems using a SIMATIC Panel PC or TP700 Comfort HMI (6AV2124-0GC01-0AX0) connected via the CPU’s PN port, no HMI screen modifications are required when replacing a digital input module, as the tag database references I/O addresses rather than physical module identifiers.

Where the retrofit involves upgrading from an S7-300 platform to S7-1500, the I/O mapping from the 6ES7321-1CH00-0AA0 can be migrated using TIA Portal’s migration assistant. The equivalent S7-1500 peripheral module — such as the SM 521 DI 16x24VDC HF (6ES7521-1BH00-0AB0) — offers enhanced diagnostics and channel-level interrupt capability, but requires updated hardware configuration and potential revision of OB interrupt routines in the user program. Signal isolators such as the SITRANS I/P transducer or third-party DIN-rail signal conditioners may be required if field sensor wiring does not meet S7-1500 input threshold specifications.

Downtime Control During System Migration

Minimizing unplanned downtime during a digital input module replacement on an S7-300 system begins with pre-staging the replacement 6ES7321-1CH00-0AA0 and verifying its functionality on a bench test rack before the maintenance window. NINERMAS performs functional I/O verification on every unit prior to shipment, reducing the risk of receiving a non-functional module during a time-critical outage.

The recommended procedure is to place the S7-300 CPU in STOP mode, remove the front connector from the faulty module (preserving all field wiring on the connector body), extract the module from the rack, insert the replacement module into the same slot, and reattach the front connector. The CPU can then be returned to RUN mode. Because the slot address and I/O byte mapping are stored in the CPU’s hardware configuration rather than the module itself, no program changes are required for a like-for-like replacement. The CPU will automatically recognize the new module and resume normal scan cycle operation.

For systems where a brief CPU STOP is not acceptable — such as redundant architectures using a CPU 317F-2 DP (6ES7317-2FK14-0AB0) in a fault-tolerant configuration — the replacement should be coordinated with the process control team to identify a safe maintenance window aligned with production scheduling. In non-redundant systems, the total replacement time from CPU STOP to RUN confirmation is typically under 15 minutes when the front connector is pre-labeled and the replacement module is on-site.

Maintaining a local spare parts inventory that includes the 6ES7321-1CH00-0AA0 alongside related modules — such as the SM 322 DO 16x24VDC/0.5A (6ES7322-1BH01-0AA0) for digital outputs and the SM 331 AI 8x12Bit (6ES7331-7KF02-0AB0) for analog inputs — significantly reduces mean time to repair (MTTR) for S7-300-based control systems. NINERMAS supports long-term supply agreements and stock-commitment programs to ensure availability of these components beyond Siemens’ standard end-of-life dates.

Retrofit Support FAQ

Q1: Is the 6ES7321-1CH00-0AA0 a direct drop-in replacement for other SM 321 variants?
The 6ES7321-1CH00-0AA0 is a 16-channel 24 VDC digital input module. It is not pin-compatible with 32-channel SM 321 variants (e.g., 6ES7321-1BL00-0AA0) or AC input variants. Confirm the channel count, input voltage, and front connector type before ordering. NINERMAS technical support can assist with cross-reference verification prior to purchase.

Q2: Can this module be used in TIA Portal V16 and later?
Yes. The 6ES7321-1CH00-0AA0 is supported in TIA Portal from V13 onward as part of the S7-300 hardware catalog. In TIA Portal V16+, the module can be configured under the S7-300 station with full diagnostic and interrupt parameter access. No firmware update is required on the module itself.

Q3: What pre-shipment testing does NINERMAS perform on this module?
Each 6ES7321-1CH00-0AA0 unit undergoes functional I/O verification prior to dispatch, confirming that all 16 input channels respond correctly to 24 VDC test signals. Units are inspected for physical damage, connector integrity, and backplane bus contact condition. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions.

Q4: What is the lead time and supply availability?
NINERMAS maintains stock of the 6ES7321-1CH00-0AA0 to support urgent replacement and planned retrofit projects. Standard lead time for in-stock units is 3–7 business days for international shipment. For projects requiring guaranteed supply over a 12–24 month horizon, NINERMAS offers stock-commitment programs with fixed pricing and reserved inventory allocation. Contact sale@ninermas.com for volume pricing and long-term supply terms.
