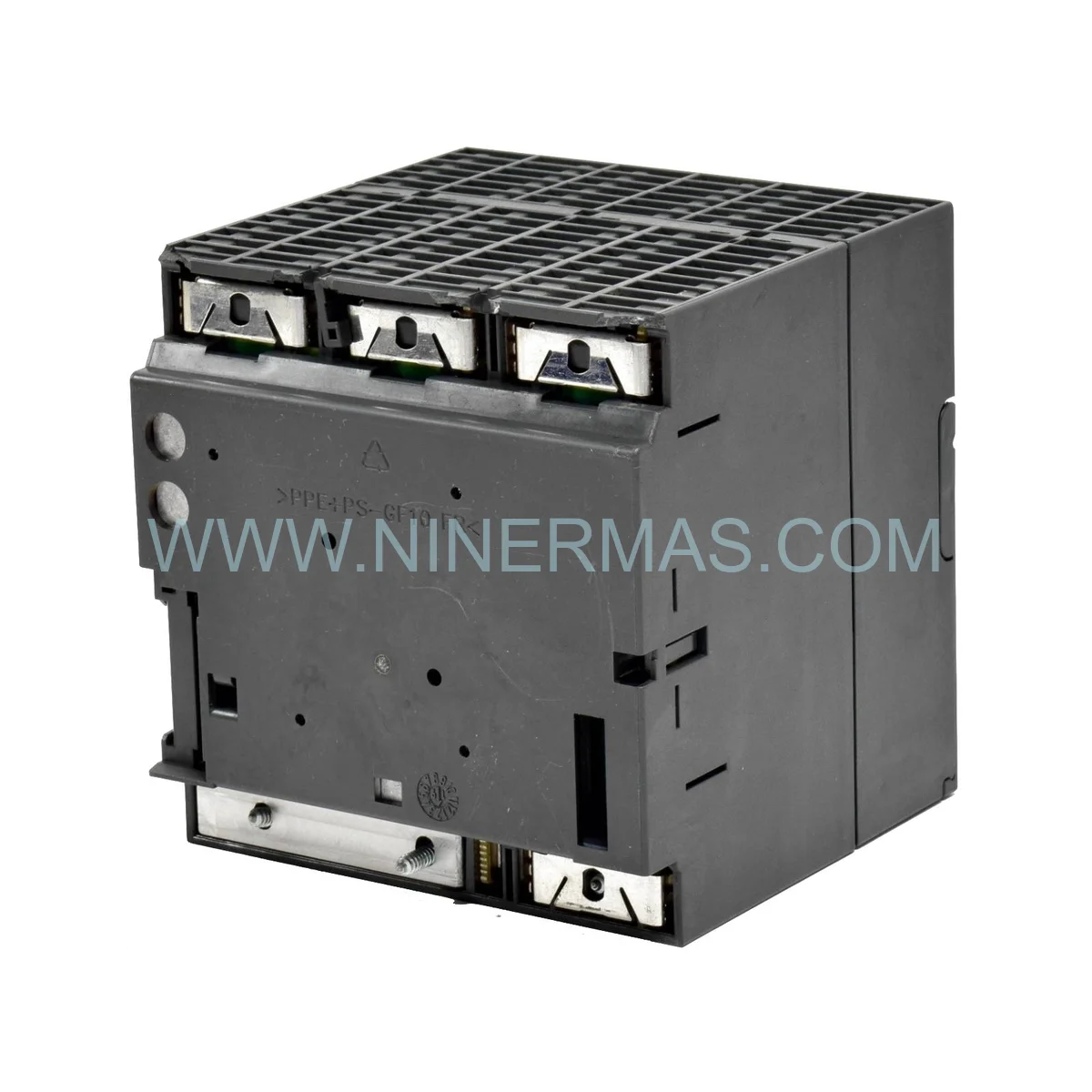

Siemens 6ES7318-3FL01-0AB0 CPU 319F-3 PN/DP — New & Original

Siemens SIMATIC S7-300 6ES7318-3FL01-0AB0 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer operating in high-stakes process environments, the 6ES7318-3FL01-0AB0 represents a cornerstone of mission-critical automation infrastructure. This failsafe CPU module integrates seamlessly into SIMATIC S7-300 architectures, delivering the processing headroom and dual-channel safety logic required to sustain system availability in continuous-operation facilities — from petrochemical refineries to automotive body-in-white lines. The 6ES7318-3FL01-0AB0 executes safety-integrated user programs at 32-bit RISC speed, enabling deterministic cycle times that underpin Operational Excellence across distributed I/O networks.

Engineered for durability in demanding industrial environments, this CPU operates reliably across a 0°C to 60°C ambient temperature range with an IP20 protection rating, making it suitable for standard control cabinet installations. During commissioning, engineers should ensure the Micro Memory Card (MMC) is correctly seated prior to power-up, and that PROFINET port assignments align with the existing network topology. Grounding discipline and shielded cable routing are non-negotiable in high-EMI zones to preserve signal integrity across MPI/DP and Ethernet interfaces.

As production lines age and OEM support windows close, maintaining a verified stock of this CPU as a critical spare is a fundamental risk-mitigation strategy. Unplanned downtime caused by a failed safety CPU can halt an entire production cell; having a pre-tested, original-packaged 6ES7318-3FL01-0AB0 on the shelf converts a potential multi-day outage into a sub-hour swap — protecting both throughput and safety compliance.

Key Operational Features

Integrated Failsafe Architecture — Executes F-programs compliant with IEC 61508 SIL 3 / EN 954-1 Cat. 4, supporting Redundancy and High Availability in safety-critical loops.
Triple Communication Interfaces — MPI/DP (12 Mbit/s), PROFIBUS DP master/slave, and PROFINET IRT for Seamless Integration into heterogeneous plant networks.
2.5 MB Integrated Work Memory — Accommodates complex F-programs and standard user logic without external memory bottlenecks, sustaining Process Optimization at scale.
Scalable Load Memory — MMC support up to 64 MB enables large program archives and recipe management for multi-product manufacturing lines.
Broad Certification Portfolio — CE, UL, cULus, CSA markings confirm compliance for global System Integration projects across North American and European regulatory frameworks.
Compact DIN-Rail Form Factor — 40 — 125 — 130 mm footprint slots directly into existing S7-300 racks, minimizing retrofit engineering effort and panel space consumption.

Maintenance & Performance Benchmarks

The 6ES7318-3FL01-0AB0 is architected to serve as the central processing node in both small-scale standalone safety cells and large distributed I/O networks spanning multiple ET 200M remote stations. Its PROFINET interface supports up to 128 I/O Modules across a segmented network, while the integrated PROFIBUS DP port can simultaneously manage legacy field devices — a critical capability when modernizing brownfield installations without full rip-and-replace investment.

Benchmark data from field deployments indicates cycle times below 1 ms for standard logic blocks, with F-program execution adding a deterministic overhead proportional to safety channel complexity. For plants running continuous batch processes, this translates to sub-10 ms safety reaction times — well within the requirements of most SIL 2 and SIL 3 process shutdown applications. The CPU’s diagnostic buffer retains up to 3,200 entries, giving maintenance teams granular fault history for root-cause analysis without requiring an active STEP 7 connection.

When deployed in redundant configurations alongside a hot-standby partner CPU, switchover times remain transparent to the process, ensuring Automation Components at the field level continue operating without interruption. This architecture is particularly valued in utilities and water treatment facilities where regulatory frameworks mandate zero-gap safety coverage.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 6ES7318-3FL01-0AB0 unit dispatched from our facility ships in Original Factory Packaging, complete with manufacturer labels and traceability documentation — eliminating counterfeit risk for safety-classified installations. For urgent plant recovery scenarios, same-day dispatch is available on confirmed in-stock units, with worldwide express freight options covering major industrial hubs across Asia, Europe, the Americas, and the Middle East.

As an End-of-Life (EOL) and legacy module specialist, we maintain buffer stock of discontinued Siemens SIMATIC components to support plants operating beyond standard product lifecycle windows. Our sourcing network spans authorized distribution channels and certified secondary-market suppliers, with each unit subject to incoming inspection before dispatch. Procurement teams can request a Certificate of Conformance (CoC) and test report upon order confirmation.

Engineering Support & FAQ

Q1: What STEP 7 version is required to program the 6ES7318-3FL01-0AB0?
A: STEP 7 V5.5 SP4 or later is the minimum recommended version. For F-program development, the S7 Distributed Safety or S7 F Systems add-on package must be installed alongside the base STEP 7 software.

Q2: Is a Micro Memory Card included with the CPU?
A: No. The MMC is ordered separately. A minimum 512 KB MMC is required for basic operation; larger capacities (up to 64 MB) are recommended for projects with extensive data logging or recipe management requirements.

Q3: Can this CPU operate as a PROFIBUS DP master and slave simultaneously?
A: Yes. Interface 2 supports both DP master and DP slave modes, configurable via HW Config in STEP 7. This enables flexible topologies where the CPU acts as a slave to a higher-level controller while simultaneously mastering its own field device network.

Q4: What is the firmware compatibility range for this part number?
A: The 6ES7318-3FL01-0AB0 ships with firmware V3.1. It is backward-compatible with projects developed on earlier S7-300 CPU 319F variants. Firmware updates are available via Siemens Industry Online Support using the MMC update procedure.

Q5: What warranty terms apply to this unit?
A: All units carry a 1-Year Warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed within 5 business days of RMA authorization, with advance replacement available for critical production environments.

Q6: How do I verify authenticity upon receipt?
A: Inspect the Siemens holographic label on the module housing and cross-reference the serial number against the included documentation. Our team provides a pre-shipment inspection report upon request, and units can be verified via Siemens’ official product identification portal using the printed serial number.
