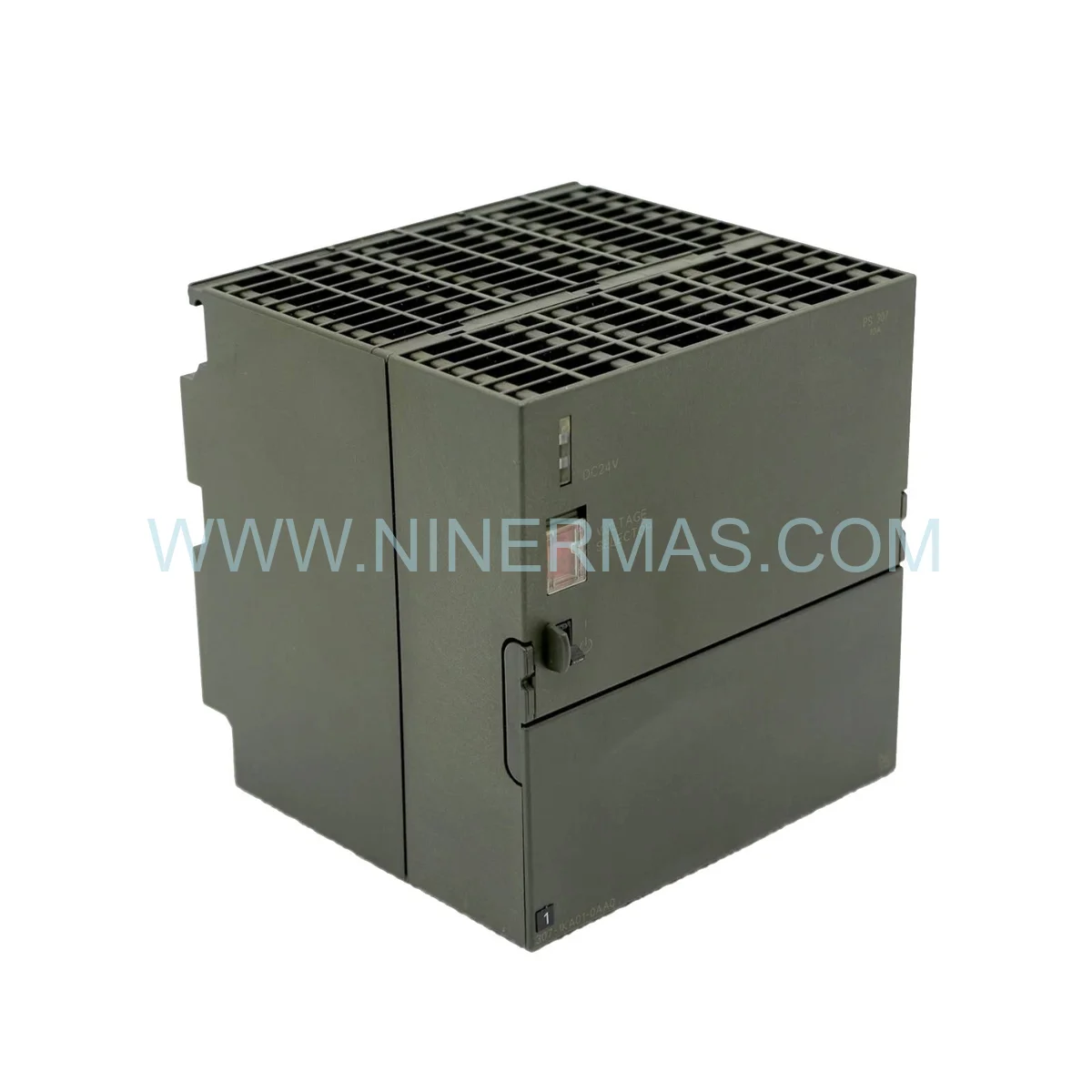

Siemens 6ES7307-1KA01-0AA0 | PS307 10A Power Supply Retrofit

Siemens 6ES7307-1KA01-0AA0 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and power generation facilities, the Siemens 6ES7307-1KA01-0AA0 stands as a cornerstone component in any S7-300-based modernization initiative. This 240 W, 24 V DC / 10 A stabilized power supply delivers the electrical backbone required to breathe new life into aging automation architectures — extending operational lifespan while dramatically improving system reliability and energy efficiency. Its role in performance enhancement is not merely supplementary; it is foundational to any credible upgrade roadmap.

The Siemens 6ES7307-1KA01-0AA0 maintains full downward compatibility with the entire S7-300 ecosystem — including CPU 312 through 318, IM 360/361 interface modules, and ET 200M distributed I/O — making it the ideal hardware upgrade bridge between legacy field installations and modern industrial network architectures. Whether your facility is running a 15-year-old DCS backbone or a turbine supervisory system that predates current IEC standards, this power supply slots directly into the leftmost rack position without requiring structural modifications, ensuring seamless integration with zero downtime risk during the transition phase.

From a migration cost perspective, deploying the 6ES7307-1KA01-0AA0 as part of a phased retrofit solution significantly reduces capital expenditure compared to full platform replacement. Its active Power Factor Correction (PFC — 0.95), 88% efficiency at full load, and robust overload/short-circuit protection with auto-recovery eliminate the hidden costs of power instability — a leading cause of unplanned downtime in legacy control environments. This is hardware upgrade economics at its most compelling.

Upgrade Highlights & Compatibility

Drop-in Legacy Compatibility: Direct replacement for aging PS307 units across all S7-300 rack configurations — no rewiring, no rack modification required.
? Performance Enhancement: Active PFC ( 0.95) and 88% efficiency reduce heat load and energy consumption vs. older generation supplies.
Redundancy & Parallel Operation: Supports up to 3-unit parallel configuration with load-sharing module 6ES7307-1KA02-0AA0 for mission-critical uptime.
? Future-Proofing: Compatible with SITOP RED1200/RED2400 redundancy modules — enabling a clear upgrade path toward modern power architectures.
Wide Input Range: Auto-selectable 85-132 V AC / 170-264 V AC input accommodates global facility power standards without hardware changes.
? Certified for Hazardous Environments: FM Class I Div 2, ATEX Zone 2 — suitable for petrochemical, oil & gas, and chemical plant retrofit deployments.

Modernization Use Cases & Success Stories

DCS Power Infrastructure Overhaul: In distributed control system modernization projects, the 6ES7307-1KA01-0AA0 is routinely deployed to replace failed or end-of-life power modules within existing S7-300 racks. Its 20 ms hold-up time at 120 V AC and 150 ms at 230 V AC ensures that CPU and I/O modules remain powered through brief grid disturbances — a critical requirement in continuous-process industries such as refining and pharmaceuticals where even a 50 ms power interruption can trigger costly process shutdowns.

Turbine Supervisory System (TSI) Retrofit: Power generation facilities operating legacy turbine monitoring systems built on S7-300 platforms have successfully integrated the 6ES7307-1KA01-0AA0 as a performance upgrade to replace original PS307 5A units. The step-up to 10 A output capacity accommodates expanded I/O configurations added during TSI modernization — supporting additional vibration, temperature, and speed sensors without requiring a new rack or CPU migration.

ET 200M Remote I/O Expansion: In manufacturing base upgrades where ET 200M stations are being expanded to support additional field devices, the 6ES7307-1KA01-0AA0 provides the current headroom needed to power new analog and digital I/O modules alongside existing legacy cards — enabling a seamless integration approach that preserves existing wiring infrastructure while delivering measurable performance gains.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every unit of the Siemens 6ES7307-1KA01-0AA0 supplied through our network is sourced from authorized distribution channels and delivered in original Siemens factory packaging with full traceability documentation — critical for regulated industries where component provenance must be auditable.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit timelines. Express air freight to major industrial hubs across Asia, Europe, the Americas, and the Middle East is available with typical lead times of 3-7 business days for in-stock units. Emergency same-day dispatch is available for critical plant shutdown scenarios.

Technical Support for Legacy Hardware: Our engineering support team specializes in obsolete and legacy hardware integration. Whether you need assistance with rack slot configuration, parallel operation wiring, or redundancy module pairing for your retrofit project, our technical advisors provide pre-sales consultation and post-delivery commissioning guidance at no additional charge.

Retrofit FAQ — Upgrade Guide

Q1: Can the 6ES7307-1KA01-0AA0 physically replace a PS307 5A unit in an existing S7-300 rack without mechanical modification?
A: Yes. The 6ES7307-1KA01-0AA0 occupies the same physical slot width as the PS307 5A (6ES7307-1EA01-0AA0) and uses identical DIN rail or rack mounting geometry. No mechanical modification to the rack or cabinet is required. The upgrade from 5 A to 10 A output capacity is achieved transparently, making this a true drop-in retrofit solution for capacity-constrained installations.

Q2: How does the 6ES7307-1KA01-0AA0 communicate with legacy S7-300 CPUs during a system migration?
A: The PS307 series, including the 6ES7307-1KA01-0AA0, interfaces with the S7-300 CPU and I/O modules via the S7-300 backplane bus for power distribution — not data communication. There is no firmware or protocol configuration required. The power supply is recognized automatically by the rack upon installation, ensuring seamless integration with all S7-300 CPUs from CPU 312 through CPU 318 without any software changes to the existing PLC program.

Q3: What is the recommended spare part substitution strategy if the 6ES7307-1KA01-0AA0 reaches end-of-availability in the future?
A: Siemens’ recommended migration path from the S7-300 platform is toward the S7-1500 series. However, for facilities committed to maintaining S7-300 infrastructure, the 6ES7307-1KA01-0AA0 remains actively produced. As a long-term retrofit strategy, we recommend maintaining a minimum 2-unit buffer stock and evaluating SITOP PSU300S series supplies as a potential cross-compatible alternative for future hardware upgrade cycles.

Q4: Can multiple 6ES7307-1KA01-0AA0 units be operated in parallel for high-current retrofit applications?
A: Yes. Up to three units can be operated in parallel using the 6ES7307-1KA02-0AA0 load-sharing module, delivering a combined output of up to 30 A at 24 V DC. This parallel configuration is a proven performance upgrade strategy for large S7-300 racks with high I/O density or for ET 200M stations supporting extensive field device networks in DCS modernization projects.

Q5: Is the 6ES7307-1KA01-0AA0 suitable for retrofit deployments in hazardous area classifications?
A: Yes. The unit carries FM Class I Division 2 and ATEX Zone 2 certifications, making it suitable for retrofit deployments in petrochemical plants, offshore platforms, and chemical processing facilities where explosive atmospheres may be present. Always verify the specific hazardous area classification of your installation against the unit’s certification scope before deployment.

Q6: What documentation is available to support the commissioning of the 6ES7307-1KA01-0AA0 in a legacy system migration project?
A: Full Siemens technical documentation is available, including the PS307 Hardware Installation Manual, the S7-300 System Manual covering power supply selection and rack configuration, and the SITOP redundancy module integration guide. Our technical support team can provide application-specific wiring diagrams and configuration checklists tailored to your retrofit project scope upon request.

—
