Siemens 6ES7288-2QR16-0AA0 | Retrofit & System Modernization Module

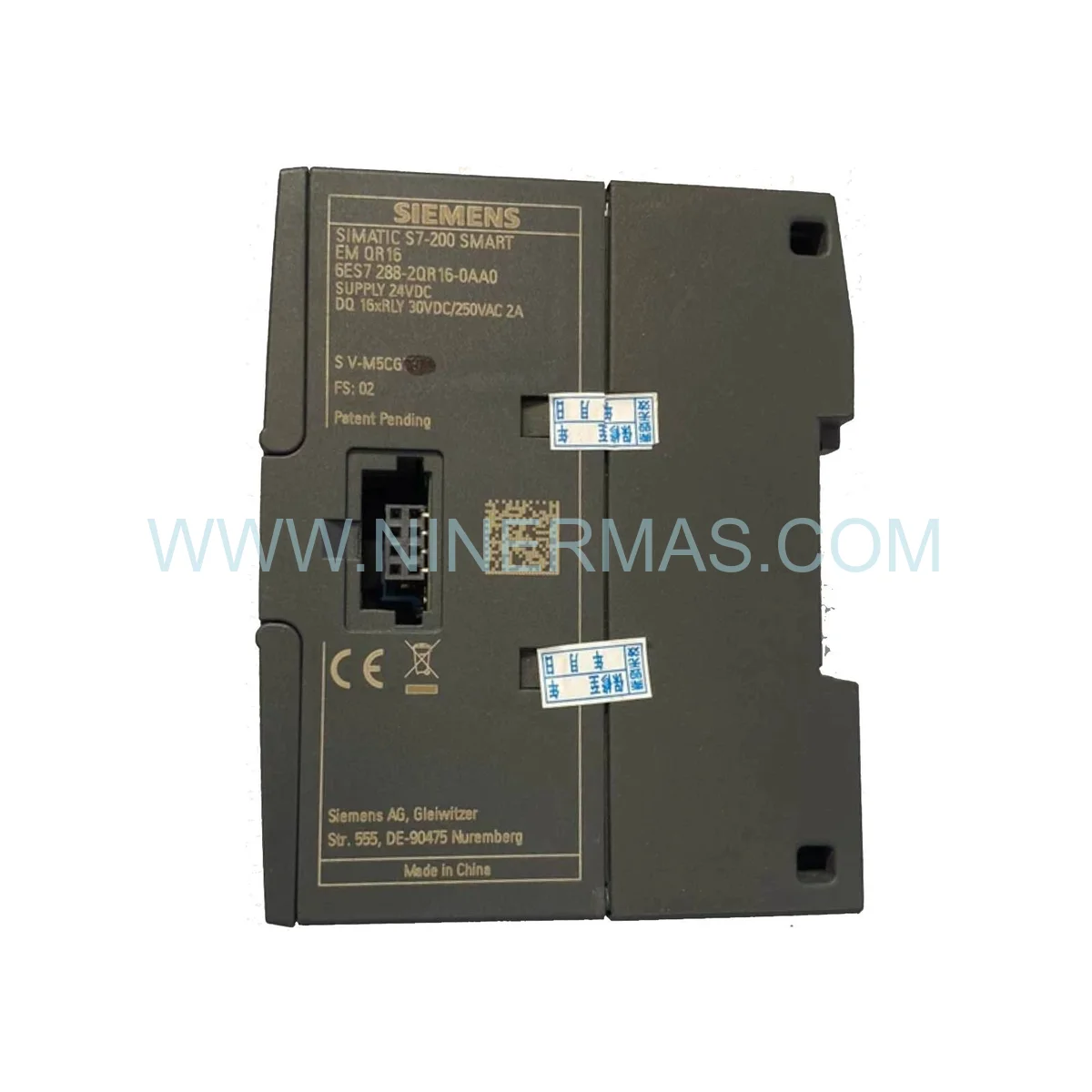

Siemens 6ES7288-2QR16-0AA0 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and power generation facilities, the Siemens 6ES7288-2QR16-0AA0 stands out as a mission-critical component in any modernization roadmap. This 16-channel relay digital output expansion module for the SIMATIC S7-200 SMART platform delivers the performance enhancement and hardware upgrade capability that aging production lines urgently require. By integrating this module into existing control architectures, engineers can extend equipment service life by years while dramatically improving output reliability and system responsiveness — without the capital expenditure of a full platform replacement.

Legacy compatibility is one of the defining strengths of the Siemens 6ES7288-2QR16-0AA0. Designed to slot directly into the S7-200 SMART expansion rack, it maintains full backward compatibility with existing S7-200 SMART CPUs and I/O frameworks. This makes it an ideal retrofit solution for facilities that have invested heavily in Siemens S7-200 SMART infrastructure and need to expand or replace degraded output modules without triggering a full system migration. Its relay output architecture ensures seamless integration with both legacy field devices and modern actuators, bridging the gap between old and new control paradigms.

From a migration risk and cost perspective, deploying the 6ES7288-2QR16-0AA0 as part of a phased retrofit strategy significantly reduces downtime exposure. Rather than executing a disruptive rip-and-replace overhaul, project teams can incrementally modernize output capacity — preserving existing wiring, programming logic, and operator familiarity while achieving measurable performance gains. This approach lowers total migration cost, shortens commissioning windows, and minimizes production loss during transition phases.

Upgrade Highlights & Compatibility

Drop-in Legacy Compatibility: Direct expansion into S7-200 SMART CPU racks — zero rewiring of existing field circuits required.

✅ Performance Enhancement: 16 isolated relay outputs rated at 2 A per channel (8 A total) — supports high-power actuators, solenoids, and motor starters that transistor outputs cannot drive.

Future-Proofing: Relay contact isolation enables mixed-voltage field devices (AC/DC), protecting your retrofit investment as field equipment evolves.

✅ Efficiency Gains: Consolidates 16 discrete output points in a compact 71 — 80 — 62 mm footprint — maximizes panel density during cabinet retrofit projects.

Robust Environmental Tolerance: Operates from 0°C to 60°C (horizontal/vertical), with storage down to -40°C — suitable for harsh industrial retrofit environments.

✅ Certified for Global Deployment: CE, UL, cULus, and CSA approvals ensure compliance across North American, European, and Asian retrofit projects.

Modernization Use Cases & Success Stories

DCS Migration — Chemical Plant Output Expansion: A regional chemical processing facility running an aging distributed control system (DCS) needed to expand discrete output capacity without replacing its S7-200 SMART CPU backbone. By deploying the 6ES7288-2QR16-0AA0 as a relay output retrofit module, the engineering team added 16 new control points for valve actuators and pump starters — completing the expansion in a single planned maintenance window with zero PLC program changes.

TSI System Retrofit — Power Generation Turbine Monitoring: A turbine supervisory instrumentation (TSI) upgrade project at a 300 MW thermal power plant required reliable relay output modules to interface legacy vibration monitoring trip circuits with a modernized SCADA layer. The 6ES7288-2QR16-0AA0’s isolated relay contacts provided the electrical separation needed between the TSI trip logic and the new SCADA I/O, enabling seamless integration without signal interference or ground loop issues.

Automotive Assembly Line Modernization: An automotive body shop undergoing a performance upgrade of its PLC-controlled welding robot sequencing system replaced worn transistor output modules with the 6ES7288-2QR16-0AA0 relay variant. The higher current capacity per channel eliminated nuisance tripping on inductive loads, improving line throughput by reducing unplanned stops — a direct, quantifiable performance gain from a targeted hardware upgrade.

Water Treatment SCADA Retrofit: A municipal water authority modernizing its pump station control infrastructure used the 6ES7288-2QR16-0AA0 to replace end-of-life output cards in existing S7-200 SMART panels. The retrofit solution preserved all existing field wiring and HMI screens, cutting retrofit labor costs by over 40% compared to a full panel replacement approach.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: All units are sourced as genuine Siemens product — factory sealed, with original packaging and full manufacturer documentation. No refurbished or gray-market stock. Traceability records available upon request for regulated industries.

Expedited Global Logistics: Stocked for rapid dispatch to support urgent retrofit and emergency replacement scenarios. Air freight and express courier options available to all major industrial regions including Europe, North America, Southeast Asia, and the Middle East. Typical lead time: 3-7 business days for in-stock units.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Siemens S7-200 SMART system architecture. We provide pre-sales compatibility verification, wiring diagram review, and post-installation commissioning guidance — ensuring your retrofit project succeeds from first inquiry to final sign-off.

Retrofit FAQ — Upgrade Guide

Q1: Can the 6ES7288-2QR16-0AA0 physically replace an older EM DO module in an existing S7-200 SMART panel without cabinet modifications?
A: Yes. The 6ES7288-2QR16-0AA0 uses the standard S7-200 SMART expansion connector and shares the same DIN rail mounting profile as other EM series modules. In most retrofit scenarios, the module slots directly into the existing expansion position with no cabinet cutout or rail modification required. Verify the total expansion bus current budget of your CPU before adding modules.

Q2: How does the 6ES7288-2QR16-0AA0 handle communication between the new module and an existing legacy S7-200 SMART CPU during a phased system migration?
A: Communication is handled entirely through the S7-200 SMART local expansion bus — no additional configuration or network setup is needed. The CPU automatically detects the new module during power-up. Existing ladder logic addressing for output Q bytes can be remapped in STEP 7-Micro/WIN SMART without modifying the overall program structure, making phased migration straightforward.

Q3: What are the recommended spare part substitution options if the 6ES7288-2QR16-0AA0 is unavailable during an emergency retrofit?
A: The closest functional alternative within the S7-200 SMART family is the 6ES7288-2QR08-0AA0 (8 DO relay), which can be used in pairs to replicate the 16-channel capacity. For transistor output applications, the 6ES7288-2QT16-0AA0 provides 16 DO transistor outputs but requires field wiring review due to different load characteristics. Always consult your system integrator before substituting output module types in safety-related circuits.

Q4: Is the 6ES7288-2QR16-0AA0 suitable for interfacing with older field devices that operate on 110 V AC or 220 V AC in a legacy system retrofit?
A: Yes. The relay contacts of the 6ES7288-2QR16-0AA0 are voltage-agnostic on the load side — they switch the field circuit regardless of whether the load operates on 24 V DC, 110 V AC, or 220 V AC (within the relay’s rated switching capacity of 2 A). This makes it particularly valuable in legacy compatibility scenarios where mixed-voltage field devices are common.

Q5: What documentation is available to support a retrofit project using the 6ES7288-2QR16-0AA0?
A: Siemens provides the full S7-200 SMART System Manual, EM QR16 module datasheet, and STEP 7-Micro/WIN SMART programming guide — all available through official Siemens Industry Online Support. Our team can also provide application-specific wiring diagrams and retrofit checklists tailored to your installation environment upon request.

Q6: How does deploying the 6ES7288-2QR16-0AA0 reduce total migration cost compared to a full PLC platform replacement?
A: By retaining the existing S7-200 SMART CPU, HMI, and field wiring infrastructure, the retrofit approach eliminates the need for full program rewrite, new panel fabrication, and operator retraining — typically the three largest cost drivers in a platform migration. Engineering estimates consistently show 40-65% cost reduction versus full replacement when the existing CPU and network architecture remain serviceable.
