Siemens 6ES7234-4HE32-0XB0 Service-Ready Spare Part

Siemens 6ES7234-4HE32-0XB0 Service-Ready Spare Part: Spare Parts Replacement and Downtime Risk Control

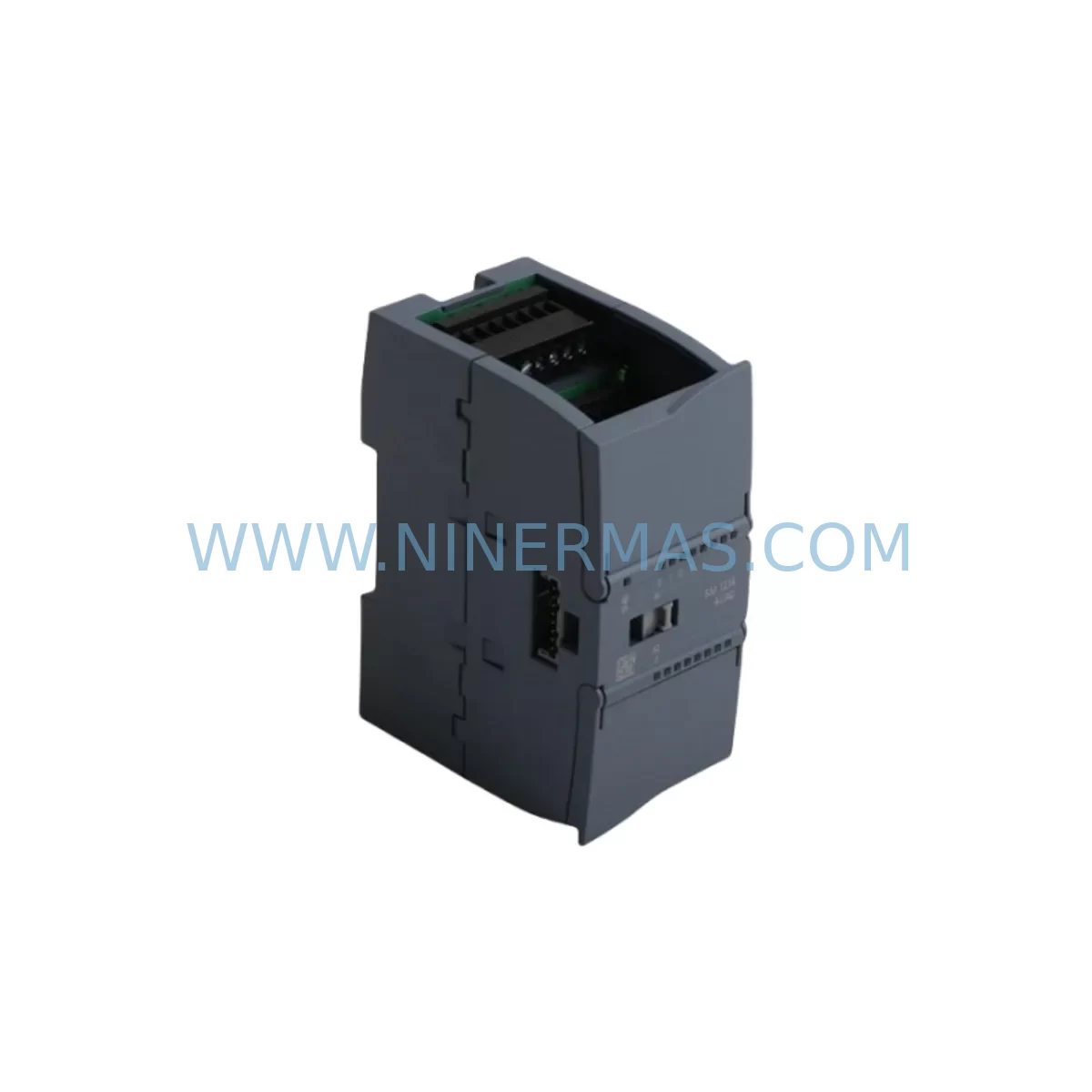

The Siemens 6ES7234-4HE32-0XB0 is a high-performance analog input/output module designed for the SIMATIC S7-1200 PLC platform. As a combined 4AI/2AO signal module, it plays a critical role in process monitoring, closed-loop control, and field instrumentation interfacing across a wide range of industrial automation environments. When this module fails or degrades, the impact on production continuity can be immediate and severe — making rapid access to a verified, service-ready replacement unit an essential element of any maintenance strategy.

At NINERMAS, we stock the 6ES7234-4HE32-0XB0 as a tested, original spare part with full 12-month warranty coverage. Each unit undergoes pre-shipment functional verification to confirm analog channel accuracy, signal range integrity, and communication bus compatibility before dispatch. Our long-term supply program ensures that maintenance engineers and procurement teams can source this module reliably — even as the S7-1200 platform matures and OEM availability tightens.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7234-4HE32-0XB0 in a live S7-1200 control cabinet requires a structured approach that goes beyond swapping the module itself. Maintenance engineers should treat this replacement as an opportunity to inspect the full analog signal chain and associated power infrastructure to prevent secondary failures and reduce the risk of repeat downtime.

Begin with the 24 V DC power supply feeding the S7-1200 system — modules such as the Siemens PM 1207 or equivalent SITOP PSU100S power supply should be checked for output voltage stability and ripple, as degraded power quality is a common root cause of analog module faults. Inspect the S7-1200 CPU module (e.g., CPU 1214C DC/DC/DC) for firmware currency and expansion bus connector condition, since a worn bus connector can cause intermittent communication errors that mimic module failure.

Review the terminal block wiring on the SM 1234 signal connector — corroded or loose terminals on analog input channels are a frequent source of signal drift and out-of-range alarms. If the system uses signal isolators (such as Phoenix Contact MACX or Pepperl+Fuchs KFD series) between field transmitters and the PLC analog inputs, verify isolation barrier integrity and check for ground loop conditions that can corrupt 4–20 mA readings.

For systems with digital I/O modules installed alongside the SM 1234 — such as the Siemens SM 1221 (DI) or SM 1222 (DO) — inspect the shared 24 V DC bus and confirm that inductive load switching from output channels is not introducing noise into the analog measurement circuits. A Siemens CM 1241 RS485 communication module or CM 1243-5 PROFIBUS DP master, if present in the same rack, should also be checked for firmware compatibility with the replacement module’s hardware revision.

Field instruments connected to the analog inputs — including pressure transmitters, temperature transmitters (PT100/PT1000 via external converters), and flow meters — should be loop-tested after module replacement to confirm calibration integrity. If the system includes a Siemens KTP700 or KTP900 HMI panel communicating with the S7-1200 CPU, verify that analog tag mappings and alarm thresholds remain correctly configured post-replacement. Finally, inspect the miniature circuit breakers and fuse terminals (e.g., Weidmüller or Phoenix Contact fuse terminal blocks) protecting the 24 V DC supply lines to the module — a blown fuse is sometimes misdiagnosed as module failure.

Site Replacement Workflow

The 6ES7234-4HE32-0XB0 is a direct plug-in replacement for the SM 1234 position in any S7-1200 expansion rack. No hardware configuration changes are required in TIA Portal when replacing a like-for-like unit of the same firmware-compatible hardware revision. The following workflow minimizes downtime and ensures system integrity:

Step 1 — Pre-replacement backup: Export the current TIA Portal project and perform a CPU memory backup (MRES or online backup via TIA Portal) before any hardware changes. Confirm the replacement module’s hardware revision (printed on the module label) matches or is compatible with the existing TIA Portal hardware configuration.

Step 2 — Safe isolation: Switch the S7-1200 CPU to STOP mode via TIA Portal or the onboard mode selector. De-energize the 24 V DC supply to the expansion modules using the appropriate circuit breaker. Do not remove the module under power.

Step 3 — Module swap: Disconnect the signal connector (wiring harness) from the faulty SM 1234 module. Release the DIN rail locking tab and slide the module out of the expansion slot. Insert the replacement 6ES7234-4HE32-0XB0, ensuring the expansion bus connector seats fully. Reconnect the signal connector.

Step 4 — Power-up and verification: Re-energize the 24 V DC supply. Switch the CPU to RUN mode. Confirm the DIAG LED on the new module shows green (no fault). In TIA Portal, perform an online comparison to verify the hardware configuration matches. Execute a loop test on each analog channel to confirm signal accuracy within specification.

Step 5 — Documentation: Record the replacement date, new module serial number, and loop test results in the site maintenance log. Update the spare parts inventory to trigger reorder of a replacement unit for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is the 6ES7234-4HE32-0XB0 still available as a new original spare part?
Yes. NINERMAS maintains stock of the 6ES7234-4HE32-0XB0 as a new, original Siemens spare part under our long-term supply program. Even as this module approaches end-of-mainstream-availability from OEM channels, we support lifecycle extension for S7-1200 installations through committed stock and scheduled procurement. Contact our team to discuss volume reservation or annual supply agreements.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7234-4HE32-0XB0 dispatched by NINERMAS undergoes functional analog channel verification, including input signal range testing across voltage and current modes, output channel accuracy confirmation, and expansion bus communication check. Test records are available upon request for quality-critical procurement processes.

Q3: How do I confirm hardware revision compatibility before ordering?
The hardware revision (e.g., HW: 01, FW: V2.x) is printed on the module label and visible in TIA Portal under the online device view. When placing an order, provide your existing module’s hardware revision and firmware version to our sales team — we will confirm compatibility and, where necessary, advise on TIA Portal hardware catalog updates required to support a newer hardware revision.

Q4: What warranty and return policy applies to this spare part?
All 6ES7234-4HE32-0XB0 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are eligible for replacement or credit. Our quality assurance process and pre-shipment testing significantly reduce the risk of DOA (dead-on-arrival) units reaching your site.

—
