Siemens 6ES7231-7PB22-0XA0 Safety-Reliable Analog Input Module

Siemens 6ES7231-7PB22-0XA0 Safety-Reliable Analog Input Module for Critical Control Sites

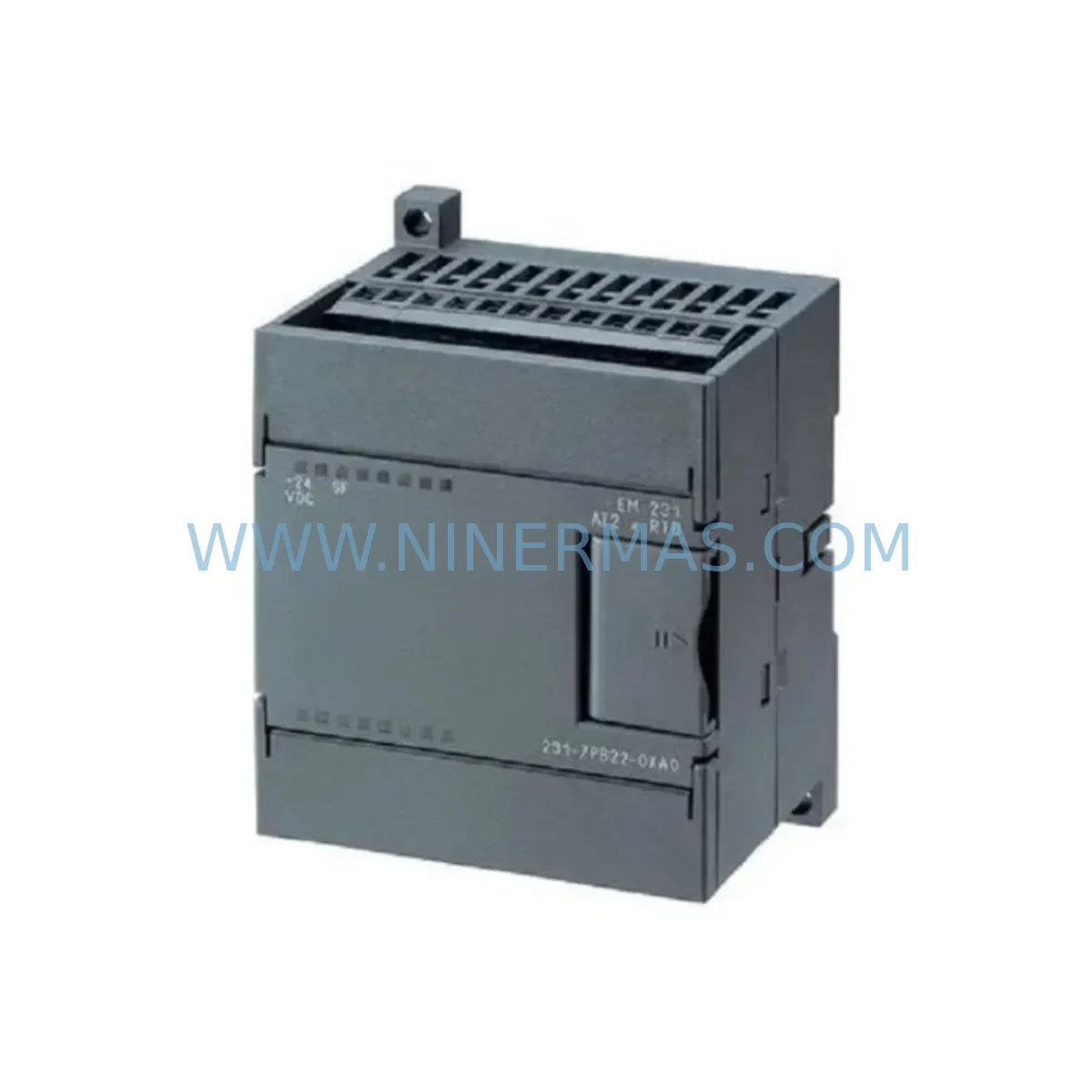

The Siemens 6ES7231-7PB22-0XA0 is a ruggedized analog input module engineered for the SIMATIC S7-200 Micro PLC platform, purpose-built to deliver uninterrupted signal acquisition in the most demanding industrial environments. Designed for critical control sites where signal integrity directly impacts process safety, this module provides stable, high-accuracy analog measurement under conditions of high electromagnetic interference, wide temperature fluctuation, mechanical vibration, and elevated humidity — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, water treatment stations, and continuous manufacturing lines.

At NINERMAS, every unit of the 6ES7231-7PB22-0XA0 is sourced from verified supply channels, pre-shipment tested, and backed by a 12-month warranty, ensuring your procurement team can plan spare-parts programs with confidence and minimize unplanned downtime risk.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In heavy-duty control cabinet architectures — particularly those serving continuous process industries — analog signal integrity is the first line of defense against control loop instability. The 6ES7231-7PB22-0XA0 addresses this directly through its 500 VAC optical isolation barrier, which decouples field-side noise from the logic bus and prevents ground loop interference from propagating into the Siemens S7-200 CPU 224XP or CPU 226 processing core.

In high-EMI environments — such as those adjacent to variable frequency drives (VFDs), large motor starters, or arc welding equipment — signal drift and false readings are a persistent risk. The 6ES7231-7PB22-0XA0’s EMC-hardened design, combined with proper shielded cable termination at the Siemens EM 277 PROFIBUS-DP communication module, ensures that thermocouple readings remain stable even when the cabinet houses high-current switching devices on the same DIN rail.

Power supply stability is equally critical. Pairing this analog input module with a Siemens SITOP PSU100S 24V/5A power supply or equivalent regulated DC source eliminates voltage ripple that can introduce measurement offset errors. For applications requiring redundant power paths, integrating a Siemens SITOP UPS1600 uninterruptible power supply module provides seamless ride-through during mains interruptions, protecting both the analog acquisition chain and the connected S7-200 CPU from data corruption during power transients.

Surge protection at the field wiring terminals is a non-negotiable element of any safety-conscious cabinet design. Deploying Phoenix Contact TRABTECH surge protection devices or equivalent DIN-rail-mounted SPDs on thermocouple input lines guards the 6ES7231-7PB22-0XA0 against lightning-induced surges and switching transients — a common failure mode in outdoor process installations and long cable runs across plant floors.

For cabinet-level safety interlock architectures, the analog measurements acquired by the 6ES7231-7PB22-0XA0 are frequently used as process variable inputs to safety-rated logic solvers. When integrated alongside Siemens SIRIUS 3SK safety relays or a Siemens ET 200SP fail-safe CPU, the module contributes to a layered protection strategy that satisfies SIL 1–2 process safety requirements in accordance with IEC 61511. The Siemens EM 222 digital output module can then actuate shutdown valves or alarm annunciators based on threshold breaches detected through the analog input channel.

For distributed I/O architectures, the 6ES7231-7PB22-0XA0 integrates seamlessly into S7-200 expansion racks alongside the Siemens EM 231 analog input module (standard voltage/current variant) and EM 232 analog output module, enabling mixed thermocouple and process signal acquisition within a single compact control cabinet — reducing wiring complexity and minimizing potential failure points in the signal chain.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing environments, precise temperature monitoring of reactors, heat exchangers, and distillation columns is a safety-critical function. The 6ES7231-7PB22-0XA0 provides thermocouple-grade accuracy for high-temperature process monitoring, supporting emergency shutdown (ESD) logic that prevents runaway reactions. Its FM Class I, Division 2 certification makes it suitable for installation in zones where flammable vapors may be present under abnormal conditions.

Power Generation & Substation Control: Thermal monitoring of generator windings, transformer oil temperature, and turbine bearing temperatures demands reliable analog acquisition under intense electromagnetic fields generated by high-voltage switchgear. The module’s EMC immunity and optical isolation ensure measurement fidelity in these electrically hostile environments, supporting predictive maintenance programs that reduce forced outage risk.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide ambient temperature swings. The 6ES7231-7PB22-0XA0’s IEC 68-2-6 vibration compliance and ruggedized construction support reliable temperature monitoring of conveyor drive motors, crusher bearings, and ventilation fan systems — enabling condition-based maintenance before catastrophic failure occurs.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require continuous monitoring of process temperatures in biological reactors, sludge digesters, and chemical dosing systems. The module’s resistance to high humidity environments (up to 95% RH non-condensing) and its stable low-drift measurement capability make it well-suited for these moisture-intensive installations.

Metallurgy & Steel Production: Furnace temperature control in electric arc furnaces, continuous casting lines, and rolling mills demands thermocouple input modules capable of withstanding intense radiated heat, vibration from heavy rolling equipment, and the electromagnetic interference generated by large thyristor-controlled drives. The 6ES7231-7PB22-0XA0 delivers the measurement stability required to maintain tight temperature control windows critical to product quality and energy efficiency.

Port & Marine Automation: Ship engine room automation and port crane control systems operate in salt-air environments with high humidity and vibration. The module’s environmental ratings support reliable analog acquisition in these corrosive, mechanically demanding conditions, contributing to safe crane load monitoring and engine thermal management systems.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the 6ES7231-7PB22-0XA0?
Every unit supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes direct technical assistance and replacement coordination to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
All 6ES7231-7PB22-0XA0 modules undergo functional verification testing prior to dispatch, including power-on self-test confirmation, analog channel response checks, and visual inspection for physical integrity. Units are shipped in anti-static protective packaging to prevent ESD damage in transit.

Q3: Is the 6ES7231-7PB22-0XA0 compatible with all S7-200 CPU variants?
Yes. The module is fully compatible with the complete SIMATIC S7-200 CPU range, including CPU 221, CPU 222, CPU 224, CPU 224XP, and CPU 226. It connects via the standard S7-200 expansion bus and is configured through STEP 7-Micro/WIN programming software without requiring additional hardware adapters.

Q4: Can NINERMAS support long-term spare-parts supply for this module?
Yes. NINERMAS maintains dedicated inventory reserves for critical SIMATIC S7-200 spare parts, including the 6ES7231-7PB22-0XA0, to support long-term procurement programs for customers managing legacy automation systems. We offer stock-commitment arrangements for high-volume or multi-site customers requiring guaranteed supply continuity over extended maintenance cycles.
