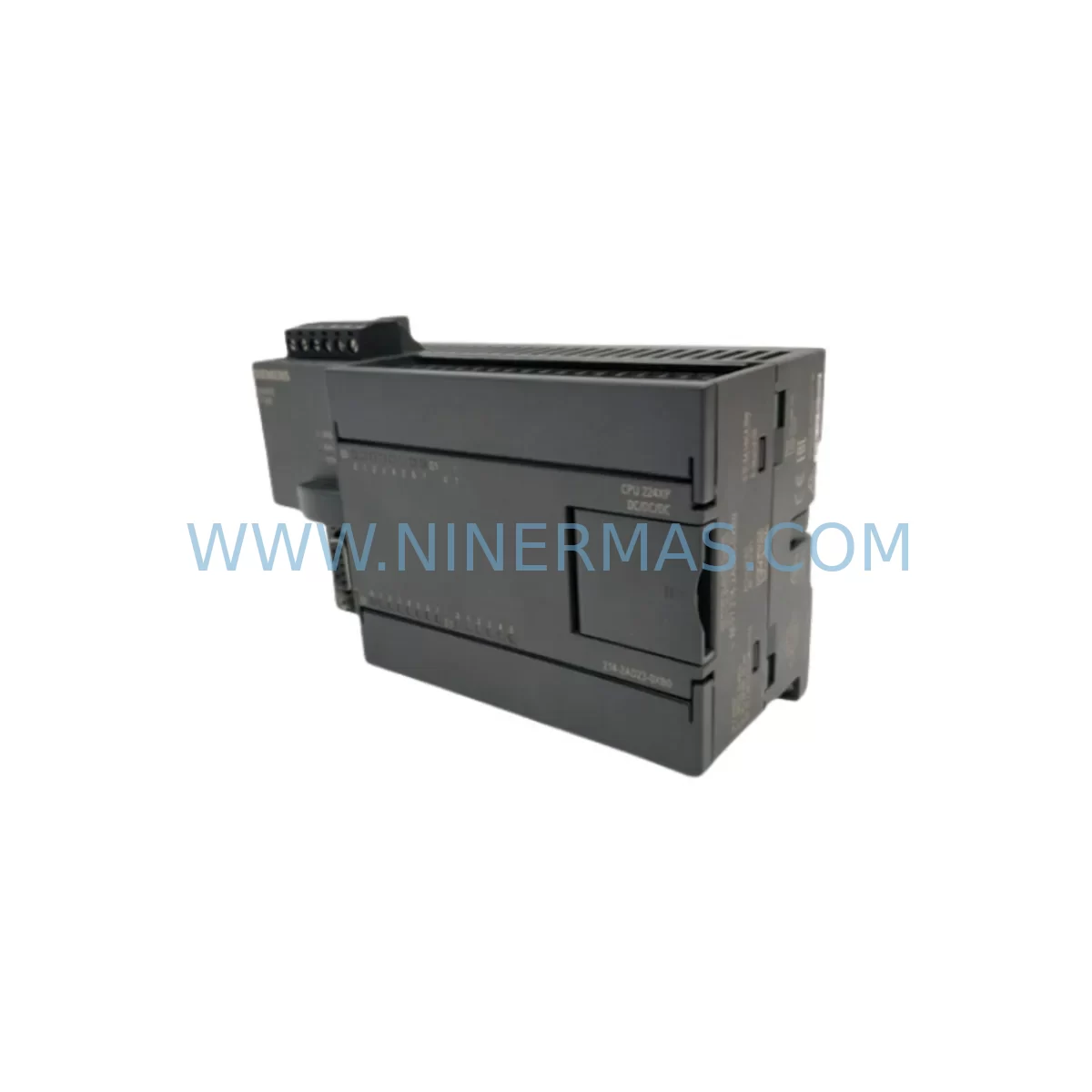

The Siemens 6ES7214-2AD23-0XB0 is a ruggedized CPU module from the S7-200 SMART series, engineered to deliver uninterrupted, safety-reliable control performance in the most demanding industrial environments. Designed for critical control sites where downtime is not an option, this CPU module provides robust processing power, high-noise immunity, and stable communication architecture — making it a trusted backbone for continuous production lines, safety interlocks, and heavy-duty control cabinet installations.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical furnaces, port logistics systems, and continuous manufacturing lines, control system failures carry severe safety and financial consequences. The 6ES7214-2AD23-0XB0 addresses these risks directly through its hardened design, wide operating temperature tolerance, and proven resistance to electromagnetic interference, vibration, dust ingress, and moisture — conditions that routinely compromise standard-grade controllers.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the 6ES7214-2AD23-0XB0 as the central processing unit in a control cabinet significantly reduces the risk of unplanned shutdowns and safety interlock failures. Its transistor output design eliminates mechanical relay wear, ensuring faster and more reliable switching for motor starters, solenoid valves, and safety relay circuits. When paired with Siemens 6ES7288-3AE04-0AA0 analog expansion modules, the system gains precise signal acquisition for pressure transmitters, flow meters, and temperature sensors — critical for process safety monitoring in chemical reactors and boiler control loops.

Power supply stability is a foundational requirement for any safety-critical control cabinet. Integrating a Siemens SITOP PSU100S 24V/5A (6EP1333-2BA20) regulated power supply upstream of the CPU ensures clean, stable 24 V DC delivery even during grid fluctuations or surge events, protecting the 6ES7214-2AD23-0XB0 from voltage transients that could cause program corruption or unexpected output activation. For surge protection at the field wiring level, Phoenix Contact TRABTECH surge protection devices are commonly installed on I/O terminal blocks within the same cabinet to absorb lightning-induced surges and switching transients before they reach the CPU’s input circuits.

Communication reliability is equally critical. The onboard Ethernet port of the 6ES7214-2AD23-0XB0 supports PROFINET-compatible communication, enabling integration with Siemens KTP700 Basic HMI panels (6AV2123-2GB03-0AX0) for real-time operator monitoring and alarm management. In high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace control rooms, shielded Ethernet cables and Siemens SCALANCE X005 industrial Ethernet switches are recommended to maintain signal integrity across the network. For legacy RS485 field devices, the CPU’s built-in RS485 port supports Modbus RTU and USS protocol communication with Siemens MICROMASTER 440 drives and third-party instrumentation without requiring additional communication modules.

In safety interlock architectures, the 6ES7214-2AD23-0XB0 is frequently deployed alongside Pilz PNOZ safety relays or Siemens 3SK1 safety relay modules to form a dual-channel emergency stop and safety gate monitoring circuit. The CPU handles standard process logic while the safety relay provides hardwired, category-rated protection — a proven architecture for machinery safety compliance under ISO 13849 and IEC 62061. For digital output expansion in large control cabinets, Siemens 6ES7288-2DR16-0AA0 relay output expansion modules extend the system’s switching capacity for high-current loads such as contactors and motor protection circuit breakers.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 6ES7214-2AD23-0XB0 is deployed in pump station control panels, compressor sequencing systems, and emergency shutdown (ESD) pre-logic circuits. Its resistance to hydrogen sulfide-laden atmospheres and high ambient temperatures makes it suitable for outdoor field junction boxes and pressurized control rooms where standard CPUs degrade rapidly.

Power Generation & Substation Automation: In coal-fired, gas turbine, and hydroelectric power plants, this CPU module manages auxiliary equipment control — cooling water pumps, lubrication oil systems, and generator excitation sequences. Its high EMI immunity is essential in environments saturated with high-voltage switching transients from transformers and bus bars.

Mining & Mineral Processing: Underground and open-pit mining operations rely on ruggedized PLCs for conveyor belt interlocking, ventilation fan control, and dewatering pump automation. The 6ES7214-2AD23-0XB0’s wide temperature range and vibration tolerance make it a reliable choice for mobile crushing stations and fixed screening plant control panels.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use this CPU for dosing pump sequencing, UV disinfection control, and SCADA-integrated remote monitoring. Its compact form factor fits standard DIN-rail control cabinets in pump houses with limited space and high humidity.

Metallurgy & Steel Manufacturing: Rolling mill auxiliary drives, ladle transfer car controls, and continuous casting machine interlocks demand CPUs that withstand radiated heat, metallic dust, and intense electromagnetic fields from induction furnaces. The 6ES7214-2AD23-0XB0 meets these requirements with its hardened housing and certified EMC performance.

Port Logistics & Ship-to-Shore Equipment: Container crane control systems, ship loader sequencing, and bulk material conveyor automation in port environments expose control hardware to salt-laden air, wide temperature swings, and mechanical shock. This CPU’s ruggedized design and reliable Ethernet communication support safe, continuous port operations.
