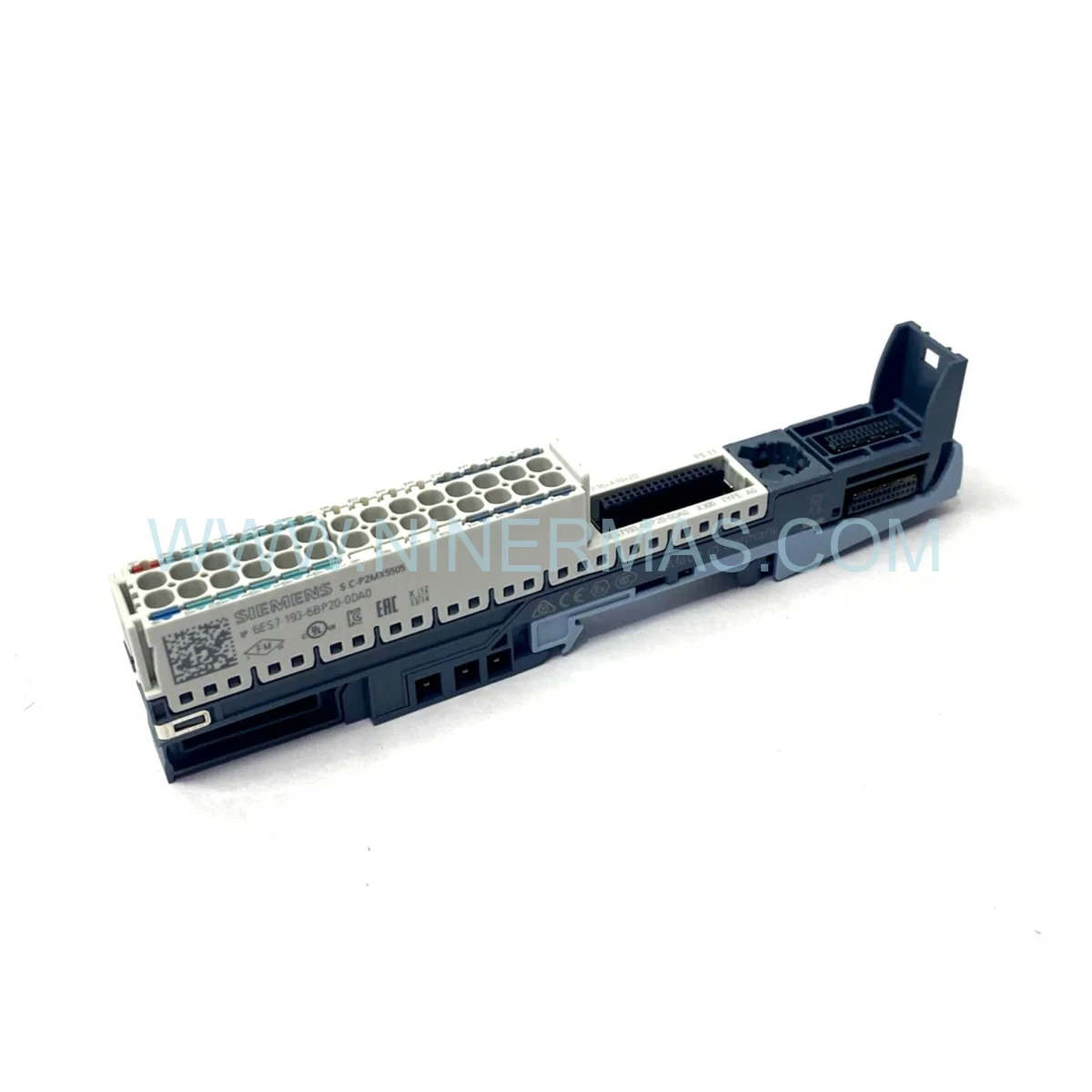

Siemens 6ES7193-6BP20-0DA0 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

From the perspective of a System Migration Architect, the Siemens 6ES7193-6BP20-0DA0 stands as a pivotal hardware upgrade component in any industrial modernization initiative. As factories and process plants worldwide face mounting pressure to extend equipment lifecycles while simultaneously improving throughput and reliability, this SIMATIC ET 200SP BaseUnit BU15-P16+A10+2D delivers precisely the performance enhancement needed to breathe new life into aging distributed I/O architectures. Its compact 15 mm form factor and dual data connector design allow engineers to maximize panel real estate while achieving measurable gains in signal integrity and system responsiveness — making it an indispensable technical cornerstone for any retrofit project targeting DCS or TSI modernization.

A critical advantage of the Siemens 6ES7193-6BP20-0DA0 lies in its exceptional legacy compatibility. Whether your facility operates on legacy S7-300/400 platforms or is mid-transition toward S7-1500 architectures, this BaseUnit bridges the gap with seamless integration across PROFINET IO networks. The A10 auxiliary voltage connector specifically addresses the power segmentation requirements of older module generations, enabling a phased migration strategy that avoids costly full-system replacements. This backward-compatible design dramatically reduces the engineering risk typically associated with large-scale system migration projects.

From a total cost of ownership perspective, deploying the 6ES7193-6BP20-0DA0 as part of a structured retrofit solution yields significant savings. By enabling hot-swap module replacement without system shutdown, it minimizes unplanned downtime — one of the largest hidden costs in industrial operations. Combined with its wide operating temperature range (-40°C to +70°C) and IP20 protection, this component reduces both maintenance frequency and emergency replacement expenditures, delivering a compelling ROI for any hardware upgrade program.

Upgrade Highlights & Compatibility

✅ Full Legacy Compatibility: Integrates with S7-300, S7-400, S7-1200, and S7-1500 controllers via PROFINET IO — no gateway hardware required for most retrofit scenarios.

Performance Enhancement via Dual Data Connectors: Redundant 2D communication paths ensure zero single-point-of-failure risk, a critical requirement for safety-instrumented systems undergoing modernization.

✅ A10 Auxiliary Power Rail: Supports mixed-generation module populations, enabling incremental hardware upgrade without full I/O station replacement.

Hot-Swap Capability: Replace individual I/O modules during live operation — a game-changer for continuous process industries where planned shutdowns are costly or infrequent.

✅ Future-Proofing via ET 200SP Ecosystem: As Siemens’ flagship distributed I/O platform, ET 200SP ensures long-term parts availability, firmware support, and compatibility with next-generation TIA Portal engineering tools.

DIN Rail 35mm Standard Mounting: Drop-in physical compatibility with existing panel infrastructure eliminates mechanical retrofit costs and accelerates commissioning timelines.

Modernization Use Cases & Success Stories

DCS Modernization in Chemical Processing Plants: A major petrochemical facility replaced its aging Siemens S7-300 remote I/O racks with ET 200SP stations anchored by the 6ES7193-6BP20-0DA0 BaseUnit. The A10 auxiliary connector allowed simultaneous operation of legacy 24VDC modules and new high-density analog cards during the phased cutover — achieving a 40% reduction in panel footprint and a 25% improvement in scan cycle performance without a single unplanned process interruption.

Turbine Supervisory Instrumentation (TSI) Retrofit: In a combined-cycle power plant TSI upgrade, engineers selected the 6ES7193-6BP20-0DA0 as the backbone of a new vibration and temperature monitoring I/O layer. Its dual data connector architecture provided the communication redundancy mandated by IEC 61511 functional safety requirements, while hot-swap capability allowed individual sensor channel cards to be replaced during scheduled maintenance windows rather than full outages — cutting annual maintenance downtime by an estimated 60 hours per turbine train.

Automotive Body Shop Distributed I/O Expansion: A Tier-1 automotive supplier integrated 6ES7193-6BP20-0DA0 BaseUnits into an existing ET 200SP station to expand discrete I/O capacity for a new robotic welding cell. The seamless integration with the existing PROFINET topology required zero changes to the PLC program structure, demonstrating the component’s value as a true plug-and-play performance upgrade for manufacturing execution systems.

Water Treatment SCADA Modernization: Municipal water authorities upgrading legacy remote terminal units (RTUs) to modern SCADA architectures have leveraged the 6ES7193-6BP20-0DA0 for its wide temperature tolerance and IP20 rating, enabling deployment in outdoor equipment enclosures across geographically distributed pump stations — all managed from a centralized TIA Portal engineering environment.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | **6ES7193-6BP20-0DA0** | | Product Family | SIMATIC ET 200SP | | BaseUnit Designation | BU15-P16+A10+2D | | Width | 15 mm (space-optimized for high-density retrofit panels) | | Power Connector | P16 — 16-pin main power distribution | | Auxiliary Voltage | A10 — 10-pin auxiliary supply for legacy module compatibility | | Data Interface | 2D — Dual data connectors for redundant communication | | Mounting Standard | DIN Rail 35 mm — universal panel compatibility | | Operating Temperature | -40°C to +70°C — suitable for harsh industrial environments | | Protection Rating | IP20 | | Controller Compatibility | S7-300, S7-400, S7-1200, S7-1500 via PROFINET IO | | Hot-Swap Support | Yes — live module replacement without system shutdown | | Certifications | CE, UL, cULus, ATEX | | Country of Origin | Germany | | Lifecycle Status | Active — current production, long-term Siemens support confirmed | | Migration Risk Level | Low — backward-compatible with existing ET 200SP infrastructure |

Supply Chain & Deployment Support

Original & Factory Sealed: Every 6ES7193-6BP20-0DA0 unit shipped is sourced directly from authorized Siemens distribution channels. Factory-sealed packaging with intact tamper-evident labels guarantees authenticity — a non-negotiable requirement for safety-critical retrofit projects subject to IEC or OSHA compliance audits.

Expedited Global Logistics: We maintain ready stock of the 6ES7193-6BP20-0DA0 to support urgent retrofit timelines. Express air freight options are available to all major industrial regions including Europe, North America, Southeast Asia, and the Middle East — with typical door-to-door transit of 3-7 business days for most destinations.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in retrofit solution design for aging Siemens SIMATIC platforms. Whether you need assistance selecting compatible I/O modules, validating power budgets for mixed-generation stations, or developing a phased system migration roadmap, our technical advisors are available to support your project from initial assessment through commissioning.

Documentation Package: Full Siemens product documentation, including the ET 200SP BaseUnit manual, wiring diagrams, and TIA Portal device description files (GSDML), is provided with every order to accelerate your retrofit deployment.

Retrofit FAQ (Upgrade Guide)

Q1: Will the 6ES7193-6BP20-0DA0 physically fit in my existing ET 200SP mounting rail without panel modifications?
A: Yes. The 6ES7193-6BP20-0DA0 uses the standard 35 mm DIN rail mounting system common to all ET 200SP BaseUnits. Its 15 mm width is identical to other BU15-series units, meaning it can be inserted into any existing ET 200SP station without mechanical panel modifications. This makes it an ideal drop-in hardware upgrade for capacity expansion projects.

Q2: How does the 6ES7193-6BP20-0DA0 handle communication between new S7-1500 controllers and legacy S7-300 I/O modules during a phased migration?
A: The ET 200SP architecture abstracts the I/O module layer from the controller layer via PROFINET IO. The 6ES7193-6BP20-0DA0 BaseUnit, when paired with an appropriate ET 200SP interface module, presents a standardized PROFINET device to the controller — regardless of whether the connected I/O modules are legacy or current-generation. This enables a true phased system migration where the controller can be upgraded independently of the field I/O hardware.

Q3: What is the role of the A10 auxiliary connector in a retrofit scenario involving mixed-voltage I/O modules?
A: The A10 auxiliary voltage connector on the 6ES7193-6BP20-0DA0 provides a separate 10-pin power rail that can supply an independent voltage potential to I/O modules requiring isolated logic power. In retrofit projects where legacy modules operate at different voltage levels than new modules, the A10 connector enables power segmentation within a single BaseUnit — eliminating the need for additional power terminal blocks and simplifying the retrofit wiring design.

Q4: Are there approved spare part substitutes if the 6ES7193-6BP20-0DA0 is unavailable, and how do they affect system performance?
A: The closest functional alternative within the ET 200SP family is the 6ES7193-6BP00-0DA1 (BU15-P16+A0+2D), which omits the A10 auxiliary connector. If your retrofit application does not require auxiliary voltage segmentation, this variant is a viable substitute with identical mechanical and communication characteristics. However, for applications requiring the A10 power rail, no direct substitute exists — making proactive stock management of the 6ES7193-6BP20-0DA0 a recommended practice for facilities with large ET 200SP installations.

Q5: Can the 6ES7193-6BP20-0DA0 support IEC 61511 / SIL-rated safety applications in a TSI retrofit?
A: The 6ES7193-6BP20-0DA0 itself is a standard (non-F) BaseUnit and is not independently SIL-rated. However, it is fully compatible with Siemens ET 200SP F-series safety I/O modules when used in conjunction with an F-capable interface module. In TSI retrofit projects, the standard BaseUnit is typically used for non-safety monitoring channels, while dedicated F-BaseUnits handle SIL-rated measurement loops — allowing both safety and standard I/O to coexist within the same ET 200SP station architecture.

Q6: What is the expected lead time for 6ES7193-6BP20-0DA0 in urgent retrofit situations, and is expedited support available?
A: For urgent retrofit and emergency replacement scenarios, we maintain dedicated safety stock of the 6ES7193-6BP20-0DA0. Standard orders ship within 1-2 business days; expedited orders with express air freight can typically reach most global destinations within 3-5 business days. Contact our retrofit support team directly to confirm current stock levels and arrange priority shipment for time-critical projects.
