Siemens 6ES7155-6BU00-0CN0 Service-Ready Spare Part for Industrial Maintenance

Siemens 6ES7155-6BU00-0CN0 Service-Ready Spare Part for Industrial Maintenance

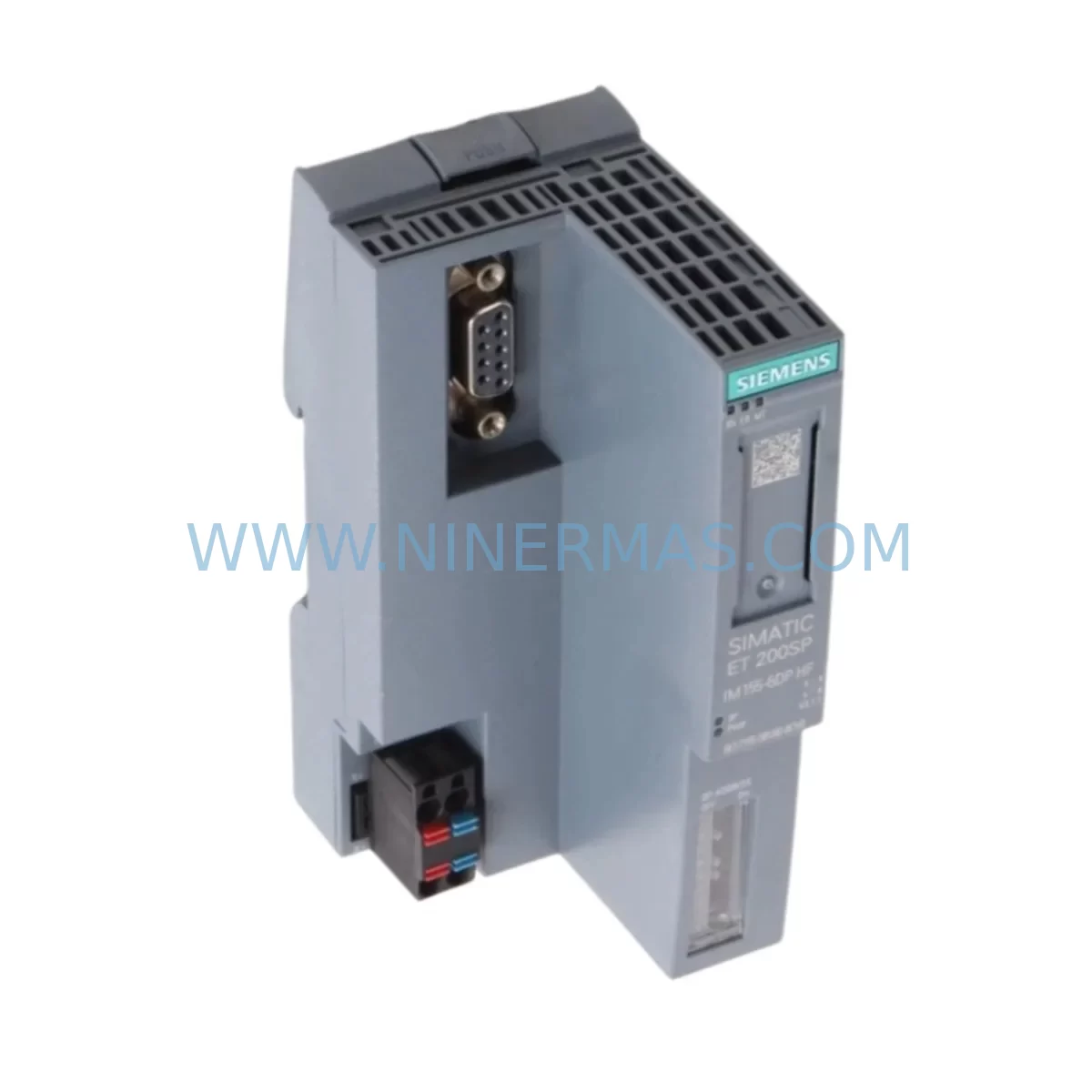

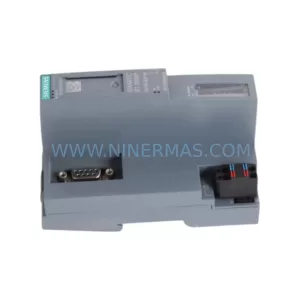

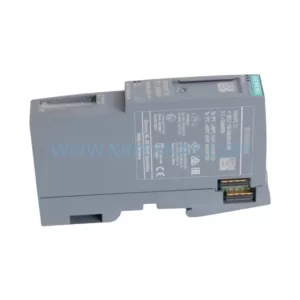

The Siemens 6ES7155-6BU00-0CN0 is a PROFIBUS interface module designed for the ET 200SP distributed I/O system — one of Siemens’ most widely deployed field-level automation platforms. As production lines age and original hardware reaches end-of-life, maintaining a verified, service-ready stock of this interface module becomes a critical element of any industrial maintenance strategy. Unplanned downtime caused by a failed interface module can halt an entire production segment within minutes. Having a pre-tested, original-specification replacement on hand is the most effective way to reduce mean time to repair (MTTR) and protect operational continuity.

At NINERMAS, every unit of the 6ES7155-6BU00-0CN0 is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are a maintenance engineer managing a multi-line facility or a procurement engineer building a strategic spare parts inventory, this module is available for immediate shipment with full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PROFIBUS interface module such as the 6ES7155-6BU00-0CN0 fails or is flagged during a scheduled inspection, the replacement process rarely ends with the module itself. Experienced maintenance engineers understand that a single component failure often signals stress across adjacent components in the same control cabinet or electrical loop.

Before or during replacement of the 6ES7155-6BU00-0CN0, it is strongly recommended to inspect and verify the following associated components:

• ET 200SP BaseUnit (BU type A0/B0) — The BaseUnit carries the backplane bus connections and power distribution rails. A damaged or corroded BaseUnit can cause intermittent faults even after the interface module is replaced. Inspect for burn marks, loose terminal contacts, and proper seating.
• PROFIBUS DP cable and connectors (e.g., 6XV1830-0EH10) — Verify cable shielding integrity, connector pin condition, and termination resistor status at both ends of the PROFIBUS segment. A degraded cable is a common root cause of DP communication errors that are often misdiagnosed as interface module failures.
• 24 V DC power supply module (e.g., SITOP PSU100S 6EP1334-2BA20) — Confirm that the supply voltage to the ET 200SP station is stable and within tolerance. Voltage dips or ripple can cause the interface module to reset or fail to initialize on the PROFIBUS network.
• Digital Input / Output modules (e.g., 6ES7131-6BF01-0BA0, 6ES7132-6BF01-0BA0) — After restoring PROFIBUS communication, validate I/O signal integrity across all connected DI/DO modules. A station restart may reveal latent faults in I/O modules that were masked by the communication failure.
• Analog Input modules (e.g., 6ES7134-6GD01-0BA1) — For process-critical loops, verify analog signal accuracy and channel calibration after the interface module replacement, particularly in temperature or pressure measurement applications.
• PROFIBUS repeater or OLM (Optical Link Module) — In larger PROFIBUS networks, check repeaters and optical link modules for proper signal regeneration. A failing repeater can cause segment-wide communication instability that mimics interface module faults.
• Fuse elements and circuit protection (e.g., 3NW6 series fuse holders) — Inspect fuse holders and miniature circuit breakers in the control cabinet supply circuit. Overcurrent events that caused the original module failure may have also stressed upstream protection devices.
• Terminal blocks and wiring (e.g., Weidmüller or Phoenix Contact terminal strips) — Check for loose, corroded, or thermally stressed terminal connections on the power and signal wiring associated with the ET 200SP station.
• SIMATIC S7-300/S7-400 or S7-1500 CPU (master controller) — Confirm that the PROFIBUS master CPU has re-established communication with the ET 200SP station after replacement. Review the CPU diagnostic buffer for any residual fault entries related to the DP slave address of this station.
• HMI panel (e.g., SIMATIC TP700 Comfort or KTP900) — After restoring the PROFIBUS station, verify that the HMI is correctly reflecting updated process values and that no alarm suppression or communication timeout conditions remain active.

Building a maintenance kit that includes the 6ES7155-6BU00-0CN0 alongside a spare BaseUnit, a tested PROFIBUS cable assembly, and a backup 24 V power supply module significantly reduces the risk of extended downtime during emergency repairs. Procurement engineers are advised to maintain at least one unit of this interface module per active ET 200SP PROFIBUS station in critical production environments.

Site Replacement Workflow

Replacing the 6ES7155-6BU00-0CN0 on-site is a structured process that, when followed correctly, minimizes system downtime and eliminates the risk of configuration errors during restoration.

Step 1 — Isolate and document: Before removing the failed module, record the PROFIBUS DP slave address configured on the existing unit. On the 6ES7155-6BU00-0CN0, the station address is set via rotary switches on the front face of the module. Photograph or note the current address setting before powering down the station.

Step 2 — Power down safely: De-energize the ET 200SP station by switching off the 24 V DC supply at the control cabinet. Confirm voltage absence with a calibrated multimeter before proceeding.

Step 3 — Remove and replace: Slide the interface module out of the BaseUnit. Insert the new 6ES7155-6BU00-0CN0, ensuring the module clicks firmly into the BaseUnit backplane connector. Set the rotary address switches to match the previously recorded PROFIBUS slave address.

Step 4 — Restore power and verify: Re-energize the station and observe the module’s diagnostic LEDs. A solid green RUN LED and absence of BF (Bus Fault) or SF (System Fault) indicators confirm successful PROFIBUS re-integration. Cross-check the PROFIBUS master CPU diagnostic buffer to confirm the slave station is online.

Step 5 — Functional test: Cycle through I/O signals from the SCADA or HMI to confirm all connected modules are responding correctly. Document the replacement in the maintenance log with the date, technician name, and new module serial number.

This workflow applies equally to planned annual maintenance replacements and emergency fault recovery scenarios. The 6ES7155-6BU00-0CN0’s plug-and-play compatibility with the ET 200SP BaseUnit system means no firmware flashing or complex reconfiguration is required in most standard installations, making it one of the most field-serviceable interface modules in the SIMATIC portfolio.

Spare Parts Support FAQ

Q1: Is the 6ES7155-6BU00-0CN0 compatible with all ET 200SP BaseUnit types?
The 6ES7155-6BU00-0CN0 is designed for use with ET 200SP BaseUnit type A0 (BU type A0). It is not compatible with BU type B0 or BU type A1 variants. Always verify the BaseUnit type installed in your cabinet before ordering. NINERMAS technical support can assist with compatibility confirmation based on your existing system configuration.

Q2: How does NINERMAS verify the condition of spare modules before shipment?
Every 6ES7155-6BU00-0CN0 unit dispatched by NINERMAS undergoes a pre-shipment inspection that includes visual examination for physical damage, connector pin integrity check, and functional power-on verification where applicable. Units are packaged in anti-static protective packaging with original or equivalent documentation. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this module replace older or discontinued Siemens PROFIBUS interface modules?
The 6ES7155-6BU00-0CN0 is the current-generation PROFIBUS interface module for the ET 200SP platform and is the designated replacement for earlier IM 155-6 variants used in PROFIBUS DP environments. For legacy ET 200S or ET 200M systems, a direct drop-in replacement is not possible without hardware adaptation. NINERMAS can advise on migration paths and compatible alternatives for older system architectures.

Q4: What is the recommended inventory strategy for this module in a multi-line facility?
For facilities operating three or more ET 200SP PROFIBUS stations, maintaining a minimum of two spare units of the 6ES7155-6BU00-0CN0 is recommended. This buffer supports simultaneous emergency replacement on one line while keeping a second unit available for the next scheduled maintenance cycle. For facilities with annual shutdown windows, procurement engineers should review spare parts consumption data from the previous 12 months and replenish stock at least 8 weeks before the planned maintenance period to account for lead time variability.
