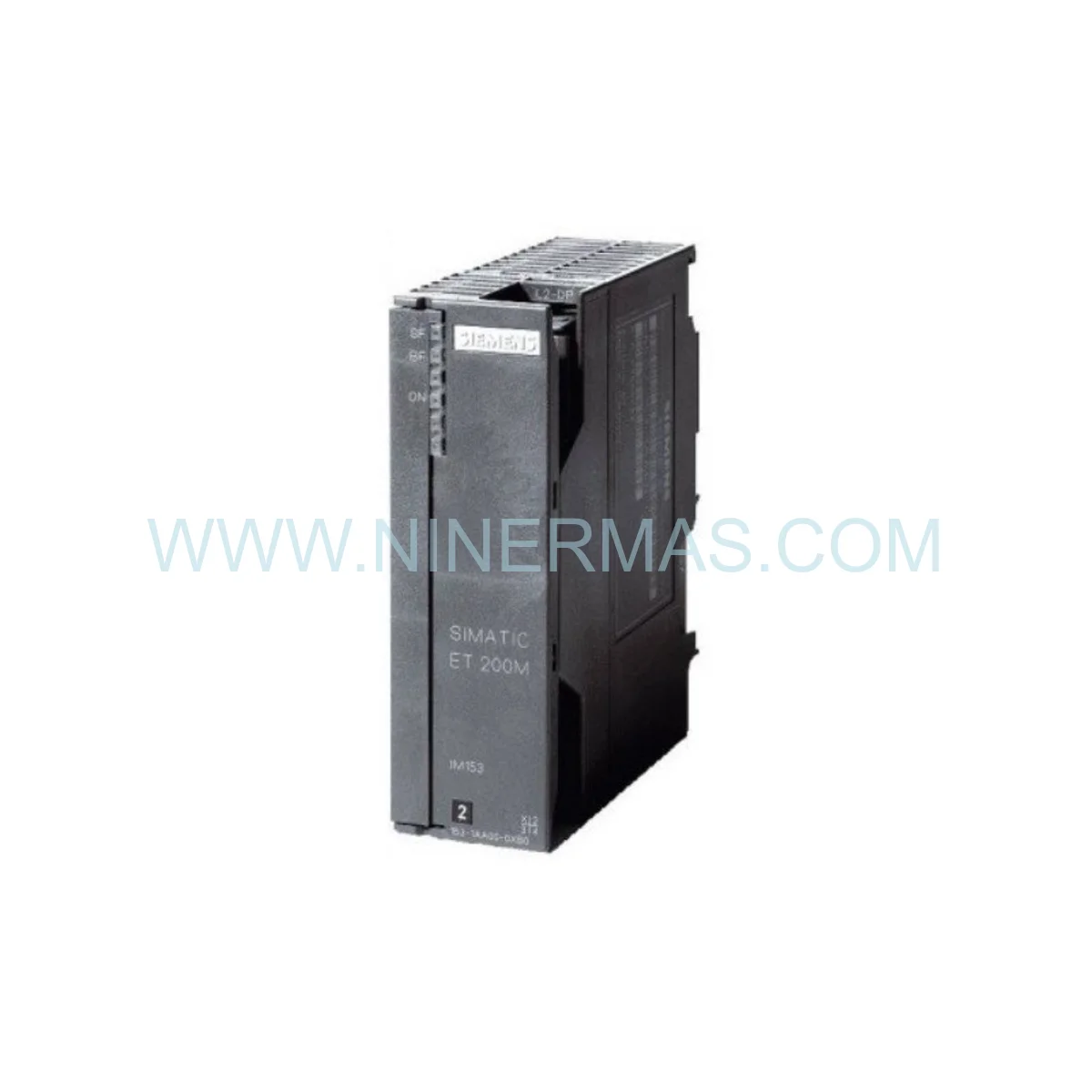

Siemens 6ES7153-2AR04-0XA0 ET 200M Redundant PROFIBUS DP Module (IM 153-2 HF)

Siemens 6ES7153-2AR04-0XA0 | ET 200M Redundant PROFIBUS DP Interface Module — Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Siemens 6ES7153-2AR04-0XA0 represents a cornerstone component in high-availability distributed I/O architectures. Deployed within ET 200M stations, this IM 153-2 HF interface module sustains uninterrupted PROFIBUS DP communication by maintaining dual active channels simultaneously — a design philosophy that directly reduces unplanned downtime and supports operational excellence across mission-critical automation networks. The 6ES7153-2AR04-0XA0 enables seamless bumpless switchover between primary and redundant communication paths, ensuring process continuity even during partial network failures.

Engineered for demanding industrial environments, this module withstands operating temperatures from 0°C to +60°C and carries an IP20 protection rating suitable for enclosed control cabinet installations. During commissioning, engineers should verify correct PROFIBUS address assignment and confirm cable shielding continuity at both ends to prevent signal degradation at high baud rates. Proper DIN rail grounding is equally critical to suppress electromagnetic interference in high-noise plant floors.

As a strategic spare part, maintaining at least one unit of the 6ES7153-2AR04-0XA0 in your critical spares inventory is a recognized best practice in process optimization programs. End-of-life procurement windows for legacy SIMATIC ET 200M components are narrowing — securing verified original stock now mitigates future sourcing risk and protects long-term system integration investments.

Key Operational Features

Dual-Channel Redundancy: Simultaneous active/standby PROFIBUS DP paths for zero-interruption failover
High Availability Architecture: Bumpless switchover with no data loss during channel transition
Seamless Integration: Native compatibility with SIMATIC S7-400H and S7-1500R redundant controller families
Hot-Swap Capability: Module replacement during live operation without process shutdown
Integrated Diagnostics: Real-time fault detection with detailed status reporting via TIA Portal and STEP 7
Scalable I/O Expansion: Supports up to 12 I/O modules per ET 200M station for flexible system integration
Industrial-Grade Construction: Compact DIN rail form factor optimized for high-density cabinet layouts

Maintenance & Performance Benchmarks

The 6ES7153-2AR04-0XA0 is engineered to adapt across diverse industrial network architectures — from small standalone ET 200M stations with a handful of I/O modules to large-scale distributed control systems spanning multiple PROFIBUS DP segments. At maximum baud rates of 12 Mbit/s, the module sustains deterministic cycle times essential for time-sensitive process control loops in chemical, pharmaceutical, and energy generation facilities.

Preventive maintenance protocols should include periodic verification of PROFIBUS segment termination resistors, inspection of D-sub connector pin integrity, and firmware version alignment with the host PLC’s hardware catalog revision. The IM 153-2 HF’s integrated diagnostic buffer logs communication errors with timestamps, enabling root-cause analysis without requiring physical access to the field station — a significant advantage for remote or hazardous-area installations. This level of I/O module intelligence directly contributes to measurable improvements in mean time between failures (MTBF) across the automation network.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6ES7153-2AR04-0XA0 dispatched from our facility is supplied in original Siemens factory packaging, complete with manufacturer labels, serial number traceability, and anti-static protective materials — preserving component integrity from warehouse to installation point. For urgent plant recovery scenarios, same-day dispatch is available for in-stock units confirmed before the daily cut-off time, with express courier options covering major industrial hubs across Asia, Europe, the Americas, and the Middle East.

As a specialist supplier of automation components including end-of-life (EOL) and legacy SIMATIC modules, we maintain strategic buffer stock of the 6ES7153-2AR04-0XA0 to support customers operating long-lifecycle production systems where OEM availability has been discontinued. Our global supply network ensures that mission-critical spares reach your facility on schedule, regardless of geographic location.

Engineering Support & FAQ

Q1: What are the installation steps for integrating the 6ES7153-2AR04-0XA0 into an existing ET 200M station?
A: Power down the ET 200M station, remove the existing interface module, insert the 6ES7153-2AR04-0XA0 onto the active bus module, and restore power. Configure the PROFIBUS DP address using the address switch on the module front panel. Import the updated GSD file into TIA Portal or STEP 7 and perform a hardware configuration download to the master PLC. Verify redundancy status via the diagnostic LEDs before returning the station to service.

Q2: Which firmware versions are compatible with the S7-400H redundant controller?
A: The 6ES7153-2AR04-0XA0 is compatible with STEP 7 V5.5 SP4 and above, as well as TIA Portal V13 SP1 and later releases. For S7-400H systems, ensure the CPU firmware is at V6.0 or higher to support the HF redundancy feature set. Always cross-reference the hardware catalog (HSP) version in your engineering software with the module’s firmware stamp.

Q3: Can this module operate in a non-redundant PROFIBUS DP network?
A: Yes. The IM 153-2 HF supports both redundant and standard single-channel PROFIBUS DP configurations. In non-redundant mode, only one PROFIBUS port is active; the second port remains inactive. This makes the module a future-proof investment when planning network upgrades toward full redundancy.

Q4: How does the warranty claim process work?
A: All units carry a 12-month warranty from the date of invoice. To initiate a claim, contact our technical support team with the module serial number, purchase order reference, and a description of the observed fault. We will arrange return logistics and provide a replacement or repair within the agreed service window. Warranty coverage includes manufacturing defects and verified performance deviations from Siemens published specifications.

Q5: What diagnostic tools can be used to monitor module health in real time?
A: The 6ES7153-2AR04-0XA0 supports diagnostic access via TIA Portal’s online device view, STEP 7 hardware diagnostics, and PROFIBUS DP acyclic services (DP-V1). The module’s front-panel LEDs provide immediate visual indication of power status, PROFIBUS communication state, and redundancy channel health — enabling rapid fault isolation without engineering workstation access.

Q6: Is the module compatible with third-party PROFIBUS DP masters?
A: Compatibility with third-party masters depends on the master’s support for the IM 153-2 HF GSD file and DP-V1 acyclic services. Standard PROFIBUS DP (DP-V0) operation is broadly compatible; however, redundancy features require a Siemens S7-400H or S7-1500R master. Consult the GSD file documentation and your master vendor’s compatibility matrix before deployment.
