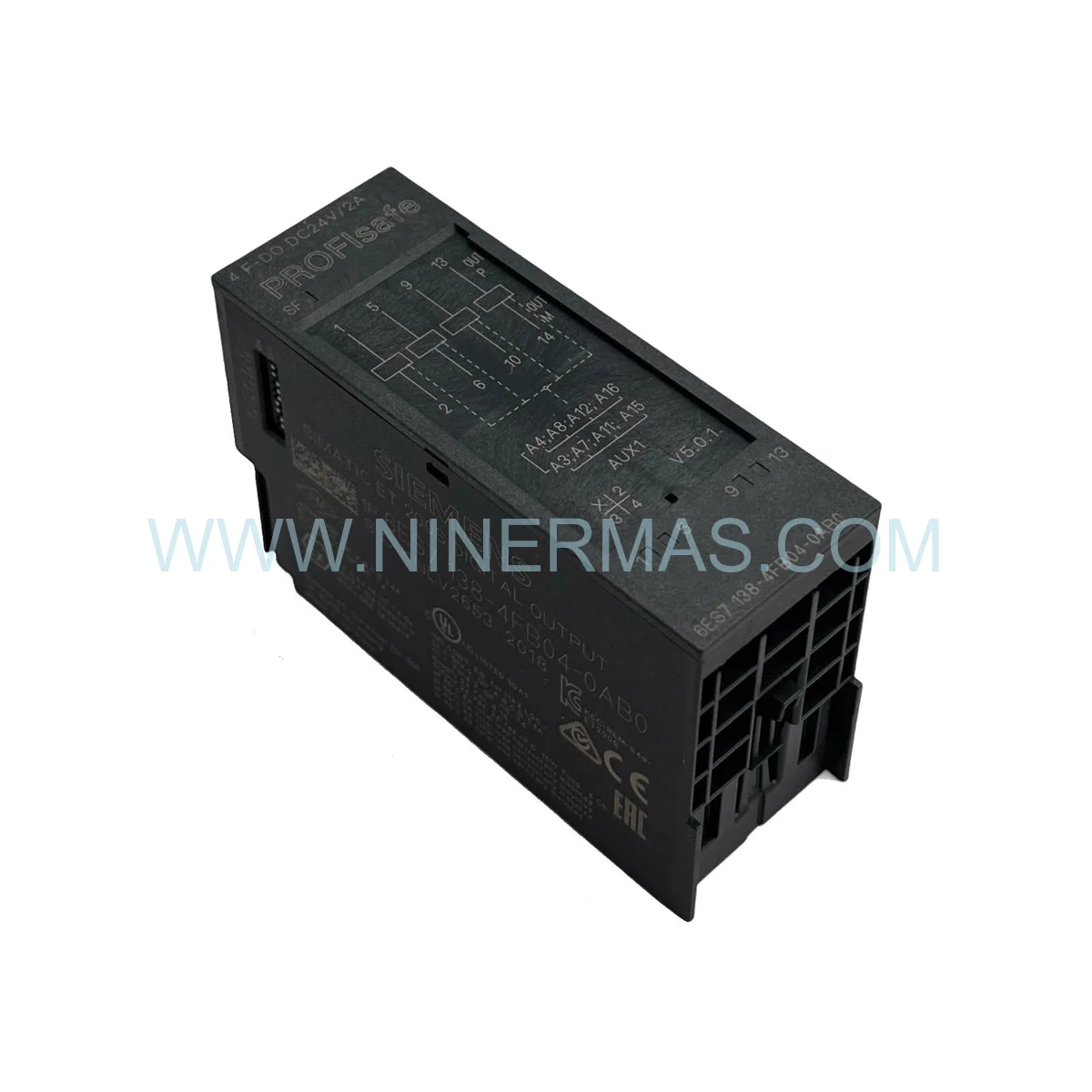

Siemens 6ES7138-4FB04-0AB0 ET 200S F-DO PROFIsafe Module — New & Original

Siemens 6ES7138-4FB04-0AB0 ET 200S 4 F-DO PROFIsafe Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing distributed safety architectures, the 6ES7138-4FB04-0AB0 stands as a cornerstone component for sustaining system availability in mission-critical process environments. Deployed within the SIMATIC ET 200S distributed I/O platform, this fail-safe electronics module delivers four PROFIsafe-certified digital outputs rated to Performance Level e (PL e) and Safety Integrity Level 3 (SIL 3) — the highest tier demanded by emergency shutdown and personnel protection systems. Its deterministic communication over PROFIBUS DP ensures that safety commands are executed within validated response windows, directly reducing the probability of dangerous failures and supporting operational excellence across the plant floor.

In harsh industrial environments — characterized by electromagnetic interference, thermal cycling, and mechanical vibration — the 6ES7138-4FB04-0AB0 demonstrates exceptional durability. Rated for continuous operation from 0°C to +60°C and constructed with industrial-grade components, this module maintains signal integrity under conditions that compromise lesser hardware. During installation, engineers should verify correct terminal module pairing (TM-E series), confirm PROFIsafe address assignment via STEP 7 Safety Advanced, and validate F-CRC signatures prior to commissioning. Proper torque on terminal connections and shielded cabling for output circuits are non-negotiable practices for sustaining long-term reliability in process optimization workflows.

For maintenance planners and procurement teams, stocking the 6ES7138-4FB04-0AB0 as a critical spare is a strategic imperative. As a legacy-compatible yet actively supported module within the SIMATIC DP ecosystem, its availability directly determines Mean Time to Repair (MTTR) for safety-instrumented systems. A single unplanned shutdown in a continuous process plant can cost tens of thousands of dollars per hour — maintaining verified inventory of this automation component is the most cost-effective insurance against that risk.

Key Operational Features

SIL 3 / PL e Certified Safety Outputs — Compliant with IEC 61508 and EN ISO 13849-1 for the most demanding safety-instrumented functions
Redundant Output Architecture — Dual-channel internal circuitry with continuous cross-monitoring ensures high availability and fail-safe de-energization
Seamless PROFIsafe Integration — Native protocol support enables direct system integration with SIMATIC S7-300F / S7-400FH safety controllers without additional gateways
Comprehensive Channel Diagnostics — Real-time detection of short circuits, wire breaks, and overload conditions minimizes unplanned downtime and accelerates fault isolation
Hot-Swap Capability — Module replacement under live bus conditions reduces maintenance windows and supports process optimization without full system shutdown
Compact Modular Footprint — 30mm width integrates cleanly alongside standard ET 200S I/O modules, maximizing cabinet density in space-constrained installations

Maintenance & Performance Benchmarks

The 6ES7138-4FB04-0AB0 is engineered to adapt across diverse industrial network architectures — from small standalone safety cells to large-scale, multi-zone distributed control systems. In single-station configurations, it operates as a dedicated safety output node within a compact ET 200S assembly, ideal for machine guarding and localized ESD functions. In enterprise-scale architectures, multiple ET 200S stations — each equipped with this F-DO module — can be daisy-chained across PROFIBUS DP segments spanning hundreds of meters, with each node independently addressable and diagnostically transparent to the central safety PLC.

Performance benchmarks confirm safety-related response times typically between 20ms and 150ms, dependent on configured F-monitoring time and bus cycle parameters. For process optimization in high-throughput manufacturing, engineers can tune these parameters within STEP 7 Safety Advanced to balance response speed against diagnostic coverage. The module’s self-test routines execute cyclically without interrupting output states, ensuring that diagnostic overhead does not compromise I/O module throughput or system integration timing.

Firmware compatibility is maintained across the SIMATIC DP ET 200S product generation. The module supports GSD file-based configuration for legacy PROFIBUS masters and is fully compatible with TIA Portal Safety projects when used with appropriate interface modules. This cross-generational compatibility makes it a preferred choice for brownfield system integration projects where replacing the entire I/O infrastructure is not economically viable.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 6ES7138-4FB04-0AB0 unit dispatched by our team is supplied in original factory packaging, complete with Siemens product labeling, barcode verification, and tamper-evident sealing — guaranteeing authenticity and traceability from manufacturer to end-user. For urgent plant maintenance scenarios, same-day dispatch is available on confirmed in-stock units, with worldwide express logistics options covering major industrial hubs across Asia, Europe, the Americas, and the Middle East.

We specialize in global supply for EOL (End-of-Life) and legacy automation components, maintaining strategic inventory of discontinued SIMATIC DP modules that are no longer available through standard distribution channels. This capability is critical for facilities operating long-lifecycle process equipment where upgrading the entire control system is not operationally or financially feasible. Our sourcing network spans certified Siemens partners and authorized secondary market channels, ensuring every unit undergoes condition verification before shipment.

Engineering Support & FAQ

Q1: What terminal module is required for the 6ES7138-4FB04-0AB0?
A: This electronics module requires a compatible TM-E terminal module from the ET 200S series. The terminal module provides the mechanical mounting interface and field wiring connections. Consult the ET 200S system manual to confirm the correct TM-E variant for your output circuit configuration (sourcing or sinking).

Q2: Which firmware versions are compatible with this F-DO module?
A: The 6ES7138-4FB04-0AB0 is compatible with STEP 7 Safety Advanced V5.4 SP5 and later, as well as TIA Portal Safety V13 SP1 and above when used with a supported interface module. Always verify the GSD file version matches your engineering tool version to avoid configuration mismatches during commissioning.

Q3: Can this module be used in Zone 2 hazardous area installations?
A: The standard 6ES7138-4FB04-0AB0 is not rated for direct installation in Zone 1 or Zone 2 classified areas. For hazardous area applications, Siemens offers the ET 200iSP product line with ATEX/IECEx-certified modules. However, this module can control field devices located in hazardous zones via appropriately rated Zener barriers or galvanic isolators installed in the safe area panel.

Q4: How is the warranty claim process handled?
A: Units covered under our 1-year warranty are eligible for replacement or repair in the event of verified manufacturing defects. To initiate a claim, contact our technical support team with the unit serial number, purchase documentation, and a description of the observed fault. Our engineering team will conduct remote diagnostics where possible before authorizing a return merchandise authorization (RMA).

Q5: What is the safe state behavior when a fault is detected?
A: Upon detection of any internal fault — including output short circuit, cross-circuit fault, or communication timeout — the 6ES7138-4FB04-0AB0 automatically passivates all four outputs, driving them to the de-energized (safe) state. A diagnostic message is simultaneously transmitted to the safety controller, enabling the control system to initiate the appropriate safety response without operator intervention.

Q6: Is it possible to replace this module without shutting down the entire ET 200S station?
A: Yes. The ET 200S architecture supports hot-swap replacement of electronics modules while the terminal module remains wired and the station remains powered. After inserting the replacement 6ES7138-4FB04-0AB0, the safety controller will automatically re-establish PROFIsafe communication and resume normal operation following a brief re-parameterization cycle — minimizing production interruption during corrective maintenance.
