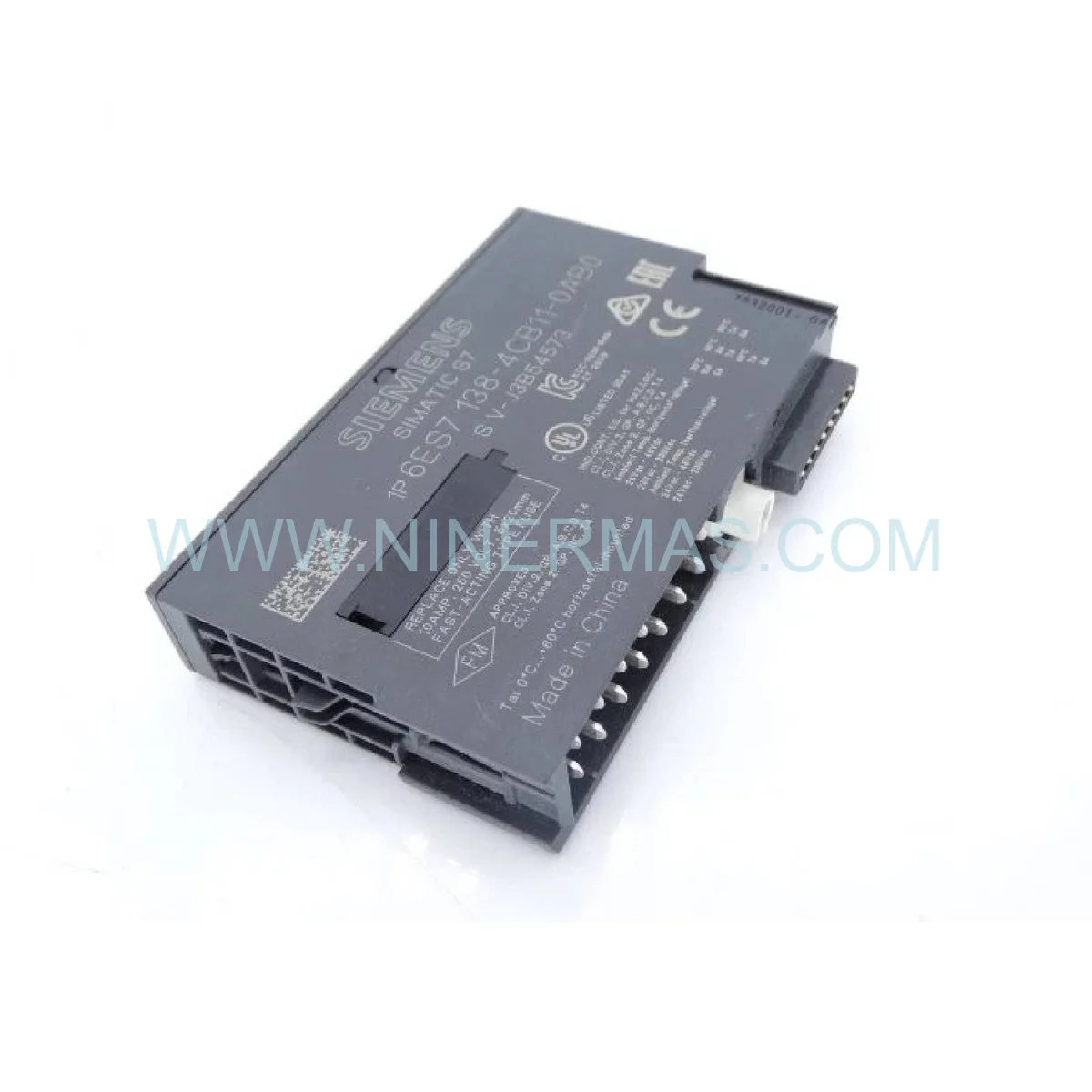

Siemens 6ES7138-4CB11-0AB0 PM-E Power Module (Siemens) – New & Original in Stock

Siemens 6ES7138-4CB11-0AB0 PM-E Power Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing distributed control architectures, the Siemens 6ES7138-4CB11-0AB0 stands as a cornerstone component in sustaining system availability across ET200S-based I/O networks. Its role in delivering stable, regulated 24V DC power to downstream I/O modules directly reduces unplanned downtime — a factor that defines Operational Excellence in any mission-critical production environment. The 6ES7138-4CB11-0AB0 integrates seamlessly into SIMATIC ET200S stations, enabling Process Optimization through consistent power segmentation and real-time fault isolation.

Engineered for durability in harsh industrial conditions, this PM-E module operates reliably across a wide ambient temperature range (0°C to +60°C) and is rated IP20 for standard cabinet installations. During commissioning, engineers should verify DIN rail seating, confirm input voltage polarity, and validate PROFIBUS DP address assignment via STEP 7 hardware configuration. Its electronic overload protection eliminates the need for external fusing on individual I/O segments — a critical advantage in high-density Automation Components deployments.

As production lines age and OEM support windows close, maintaining a verified stock of the 6ES7138-4CB11-0AB0 becomes a strategic imperative. Legacy system continuity depends on sourcing original, factory-packaged modules that preserve firmware compatibility and CE/UL certification integrity. Procurement teams and maintenance planners alike recognize this module as an essential spare for any facility running SIMATIC ET200S infrastructure.

Key Operational Features

Wide Input Voltage Flexibility: Accepts 24-48V DC or 24-230V AC — supports global power standards without additional conversion hardware
Electronic Fuse & Overload Protection: Automatic short-circuit and reverse-polarity safeguards protect downstream I/O Modules from cascading failures
Integrated LED Diagnostics: Real-time visual status for power OK, overload, and fault states — accelerates fault isolation during maintenance windows
High Availability Design: Supports hot-swap replacement in properly configured redundant topologies, minimizing Mean Time to Repair (MTTR)
Seamless Integration: Plug-and-play compatibility with the full SIMATIC ET200S module family — no additional adapters required for System Integration
Compact 30mm Form Factor: Maximizes cabinet density while maintaining full 240W output capacity for multi-module I/O stations

Maintenance & Performance Benchmarks

The 6ES7138-4CB11-0AB0 is engineered to adapt across industrial network architectures of varying scale — from compact standalone ET200S stations with 4-6 I/O modules to large distributed installations spanning multiple PROFIBUS DP segments with 32+ slave devices per network.

In small-scale deployments, a single PM-E module typically powers an entire I/O station within its 240W / 10A output envelope. For larger architectures, power segmentation using multiple PM-E modules per station provides fault containment — isolating a tripped segment without affecting adjacent I/O groups. This architecture is a proven strategy for achieving Redundancy and High Availability in continuous-process industries such as chemical, pharmaceutical, and energy generation.

Preventive maintenance intervals should include annual inspection of terminal torque values (0.5-0.6 Nm recommended), LED status verification under load, and thermal imaging of the module surface to detect early-stage derating. Under ambient temperatures 40°C with adequate cabinet ventilation, the module sustains rated output indefinitely — a benchmark consistent with Siemens’ industrial-grade component standards.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 6ES7138-4CB11-0AB0 unit dispatched from our facility is sourced directly from authorized distribution channels and ships in Original Factory Packaging — complete with Siemens product labeling, holographic authenticity seals, and full documentation including the EU Declaration of Conformity. Batch traceability records are maintained for every shipment.

Same-Day Dispatch: Orders confirmed before 14:00 (GMT+8) on business days are processed for same-day shipment where stock is confirmed available
Worldwide Express Logistics: DHL Express, FedEx International Priority, and UPS Worldwide Expedited options available — typical transit 2-5 business days globally
EOL & Legacy Module Supply: We maintain dedicated inventory buffers for End-of-Life and discontinued SIMATIC components, ensuring Global Supply continuity for aging automation infrastructure
Export Compliance: All shipments are processed with full commercial invoice, packing list, and HS code documentation for seamless customs clearance

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 6ES7138-4CB11-0AB0?
A: Mount the module on a 35mm DIN rail adjacent to the ET200S interface module. Connect input power (verify polarity for DC variants), then configure the module in SIMATIC STEP 7 or TIA Portal under the ET200S hardware catalog. Download the hardware configuration to the CPU and verify the green PWR LED illuminates under load. Terminal tightening torque: 0.5-0.6 Nm.

Q2: Which firmware and STEP 7 versions are compatible with this module?
A: The 6ES7138-4CB11-0AB0 is compatible with SIMATIC STEP 7 V5.4 SP5 and above, as well as TIA Portal V13 SP1 and later. The module GSD file (SIEM80B3.GSD) must be installed in the hardware catalog for proper recognition. No firmware update is required for standard operation.

Q3: How does the electronic fuse protection differ from a conventional fuse?
A: Unlike a conventional fuse that requires physical replacement after a fault, the electronic protection circuit in the 6ES7138-4CB11-0AB0 automatically resets after the overload condition is cleared. This reduces maintenance intervention time and eliminates the need to stock replacement fuses for each I/O segment.

Q4: What is the warranty claim process for this module?
A: Units are covered by a 1-year warranty from the date of invoice. To initiate a claim, contact sale@ninermas.com with your order number, a description of the fault symptom, and photographic evidence of the module label. Replacement or repair is processed within 5-7 business days upon receipt of the returned unit.

Q5: Can this module be used in a Safety Integrated (SIL) application?
A: The 6ES7138-4CB11-0AB0 is a standard PM-E power module and is not certified for Safety Integrated (SIL 2/3) applications. For safety-rated power distribution within ET200S, Siemens offers dedicated PM-E F variants. Consult your Siemens safety system documentation for compliant alternatives.

Q6: Is the 6ES7138-4CB11-0AB0 still in production, and what are the alternatives if discontinued?
A: This module has reached End-of-Life status in Siemens’ current portfolio. We maintain verified original stock to support legacy system continuity. The recommended migration path is the 6ES7138-4CB14-0AB0 (successor variant), which offers backward-compatible mounting and equivalent electrical specifications.
