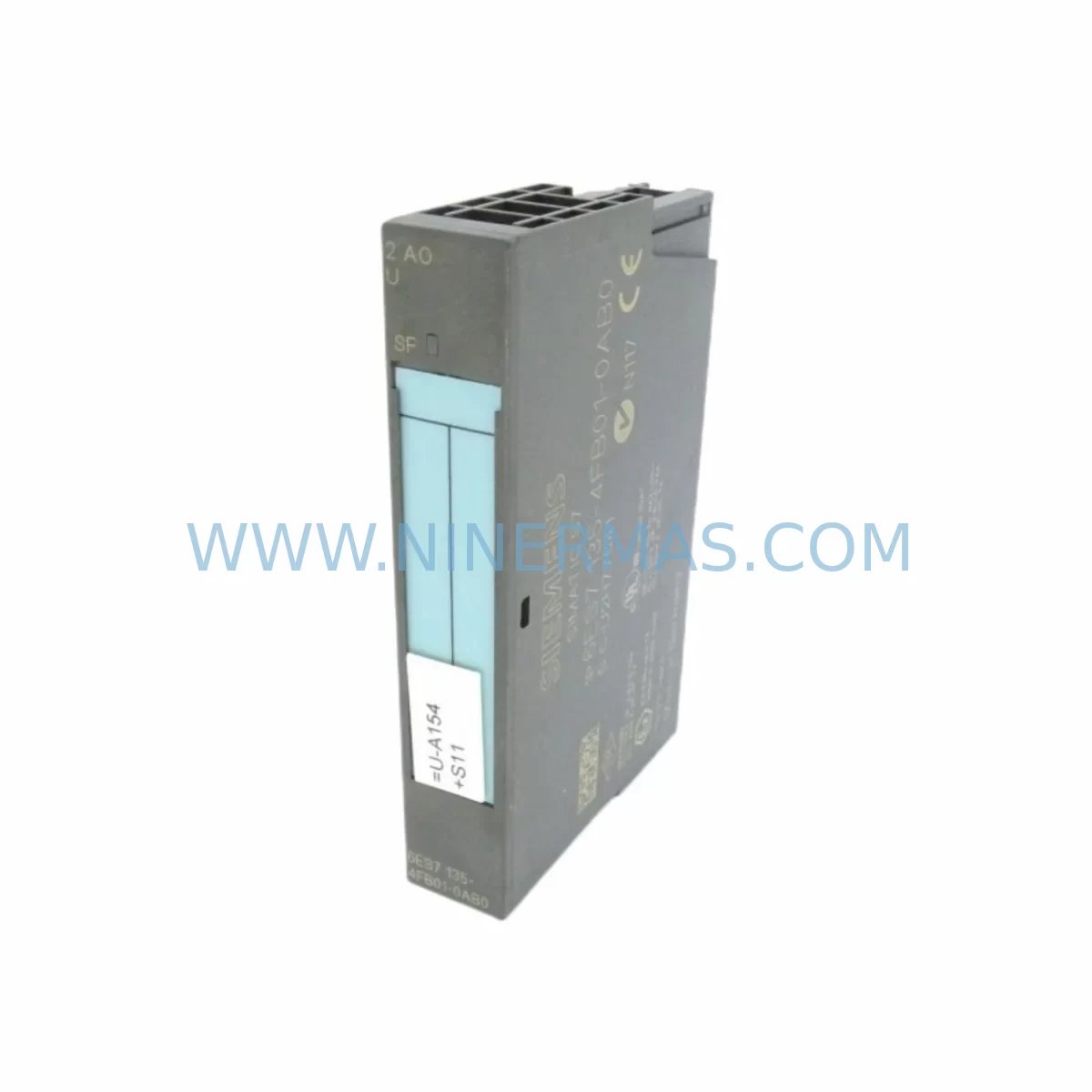

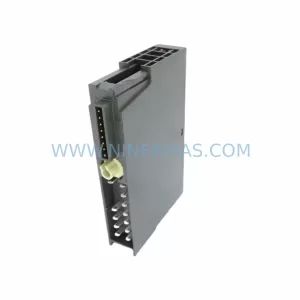

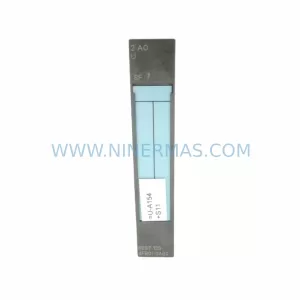

The Siemens 6ES7135-4FB01-0AB0 is a ruggedized analog output module designed for the SIMATIC ET 200S distributed I/O system, widely deployed across process automation, discrete manufacturing, and utility control environments. As a critical field-level component in S7-300 and S7-400 PLC architectures, this module handles precision analog signal output to actuators, control valves, variable frequency drives, and positioners. When this module fails or degrades, the downstream impact on process control can be immediate — making a verified, service-ready spare essential for any maintenance-conscious operation.

At NINERMAS, every 6ES7135-4FB01-0AB0 unit is sourced, inspected, and dispatched with full functional verification. We support maintenance engineers and procurement teams across industries including oil & gas, chemical processing, water treatment, automotive assembly, and power generation — providing reliable access to original Siemens spare parts with a 12-month warranty and documented test records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7135-4FB01-0AB0 in the field is rarely an isolated task. Experienced maintenance engineers understand that analog output faults often originate from — or propagate to — adjacent components in the same control loop or cabinet. A structured inspection during replacement significantly reduces the risk of repeat failures and unplanned downtime.

When servicing this module, begin by verifying the ET 200S IM 151-1 interface module (e.g., 6ES7151-1AA05-0AB0), which governs PROFIBUS or PROFINET communication for the entire ET 200S station. A degraded interface module can cause intermittent AO faults that are misdiagnosed as module failure. Simultaneously, inspect the terminal module (TM-E or TM-A series) on which the 6ES7135-4FB01-0AB0 is seated — worn spring contacts or cracked housings are a common source of signal instability.

Check the 24 V DC power supply module feeding the ET 200S rack. Siemens SITOP PSU100S or equivalent regulated supplies should be load-tested; voltage ripple beyond specification will directly affect analog output accuracy. If the cabinet also contains 6ES7138-4CA01-0AA0 power modules (PM-E DC24V), verify their output under full load before signing off the repair.

For control loops driving motorized valves or positioners, inspect the signal isolators and loop-powered transmitters downstream of the AO channel. A failed isolator can back-feed noise into the module, causing premature wear. In cabinets with mixed I/O, also review nearby 6ES7131-4BF00-0AA0 digital input modules and 6ES7132-4BF00-0AA0 digital output modules for signs of thermal stress or contamination — ruggedized variants are often deployed in environments where dust and humidity accelerate aging across all modules simultaneously.

If the system includes SIMATIC HMI panels (such as the TP700 Comfort or KTP900 Basic) connected to the same S7-300 CPU, confirm that the PLC program’s analog output scaling blocks (FC105/FC106) are correctly parameterized after module swap. Misconfigured scaling is a frequent post-replacement issue that delays production restart. For systems using PROFIBUS DP, verify GSD file alignment and station address settings on the replacement module before powering up.

Procurement engineers should consider maintaining a minimum stock of two units of the 6ES7135-4FB01-0AB0 per production line, particularly in facilities running continuous processes where MTTR targets are under four hours. Pairing this with stocked terminal modules, interface modules, and a spare SITOP power supply creates a self-sufficient first-response spare kit that eliminates dependency on expedited freight during critical shutdowns.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the ET 200S station via the upstream circuit breaker. Confirm LOTO (Lockout/Tagout) compliance. Note the module slot position and terminal wiring before disconnection.

Step 2 — Module Removal: Release the 6ES7135-4FB01-0AB0 from its terminal module by pressing the release lever. Do not remove the terminal module itself unless replacement is also required — this preserves field wiring continuity.

Step 3 — Inspection: Visually inspect the terminal module contacts, backplane bus connector, and adjacent modules for burn marks, corrosion, or mechanical damage. Clean with dry compressed air if contamination is present.

Step 4 — Installation: Seat the new 6ES7135-4FB01-0AB0 firmly onto the terminal module until the locking lever clicks. Verify correct slot assignment matches the hardware configuration in STEP 7 or TIA Portal.

Step 5 — Configuration Verification: Power up the station and confirm the module appears online in the PLC diagnostic buffer without fault codes. Validate analog output values against process setpoints using a calibrated loop tester or multimeter.

Step 6 — Documentation: Record the replacement date, module serial number, and test results in the site maintenance log. Update the spare parts inventory accordingly.

This workflow supports a target replacement time of under 45 minutes for trained technicians, minimizing production impact and supporting rapid line recovery after unplanned failures.

Spare Parts Support FAQ

Q1: Is the 6ES7135-4FB01-0AB0 compatible with both S7-300 and S7-400 systems?
Yes. The 6ES7135-4FB01-0AB0 operates within the ET 200S distributed I/O platform, which is compatible with SIMATIC S7-300, S7-400, and S7-1500 CPUs via PROFIBUS DP or PROFINET interface modules. Always verify the interface module firmware version and GSD/GSDML file compatibility before installation.

Q2: How does NINERMAS verify spare parts before shipment?
Each unit undergoes visual inspection, label and date code verification, and functional bench testing prior to dispatch. Test records are available upon request. All units are shipped in anti-static packaging with protective end caps to prevent transit damage.

Q3: What is the recommended inventory strategy for this module?
For facilities with multiple ET 200S stations, we recommend maintaining one spare per five installed units, with a minimum of two units on-site. High-criticality lines (continuous process, cleanroom, or safety-instrumented systems) should maintain immediate hot-swap availability. NINERMAS offers blanket order arrangements for long-term supply security.

Q4: What warranty and after-sales support does NINERMAS provide?
All 6ES7135-4FB01-0AB0 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. In the event of a warranty claim, we provide rapid replacement dispatch and root-cause support documentation. Our technical team is available to assist with compatibility verification, configuration guidance, and procurement planning.
