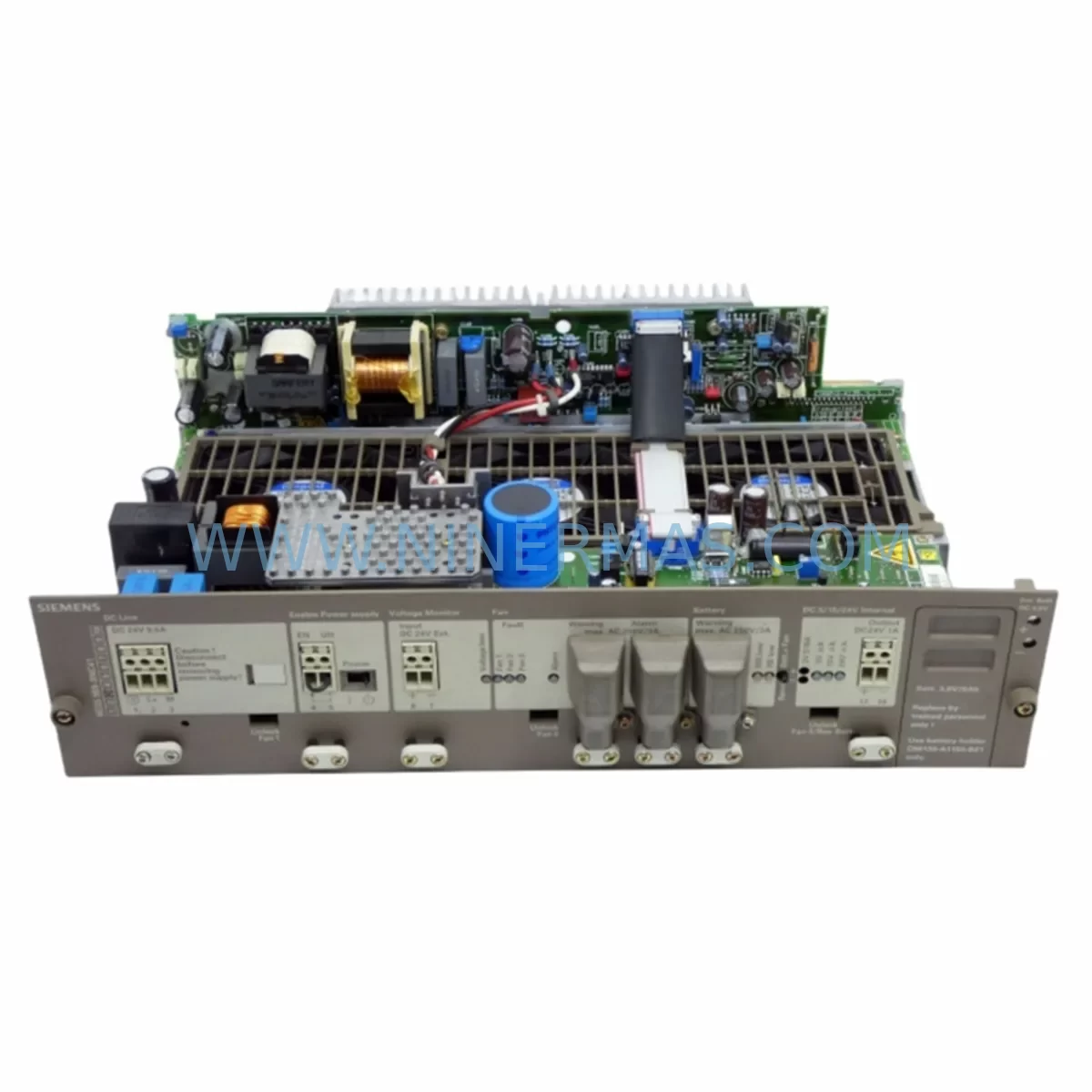

The Siemens 6ES5955-3NC4 is a ruggedized DC power supply module engineered for the SIMATIC S5 programmable controller platform — one of the most widely deployed legacy PLC families in global process and manufacturing industries. Designed to operate reliably in harsh electrical environments, this module delivers stable regulated DC output to the S5 central processing unit, I/O expansion racks, and peripheral devices. For maintenance engineers managing aging control infrastructure, the 6ES5955-3NC4 represents a critical single point of failure: when it degrades or fails, the entire PLC rack loses power, triggering unplanned downtime across the production line.

NINERMAS stocks the 6ES5955-3NC4 as a verified, service-ready spare part. Each unit undergoes pre-shipment functional testing to confirm output voltage stability, inrush current behavior, and thermal performance before dispatch. With a 12-month warranty and long-term supply commitment, this module is suitable for both emergency breakdown replacement and planned annual maintenance stock programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A power supply failure in an S5 rack is rarely an isolated event. When the 6ES5955-3NC4 degrades, the resulting voltage instability often cascades into adjacent modules before a hard fault is logged. Experienced maintenance engineers treat a PSU replacement as a trigger for a broader cabinet inspection — and for good reason.

Begin by verifying the 24 V DC feed from the upstream industrial power supply unit (PSU), such as a Siemens SITOP series unit or equivalent DIN-rail mounted supply. A failing external PSU can stress the 6ES5955-3NC4 and cause premature failure of a replacement module. Check input fuses and terminal blocks on the incoming DC rail before installing the new spare.

With the rack de-energized, inspect the S5 backplane bus connector for oxidation or mechanical damage. The backplane carries both power and data signals to all installed modules, including the CPU — typically a 6ES5948-3UA21 or 6ES5928-3UB21 — and any installed digital input/output modules such as the 6ES5420-7LA11 (DI) or 6ES5440-7LA11 (DO). A corroded bus contact can cause intermittent faults that mimic PSU failure.

Review the I/O wiring terminations on installed signal modules. Loose or corroded connections on terminal strips introduce ground loops that load the 5 V bus unevenly. If the cabinet includes analog I/O modules such as the 6ES5464-8ME11, verify that signal cable shielding is properly grounded at one end only — improper shielding is a common source of noise that accelerates PSU wear in sensitive measurement loops.

For systems with communications capability, inspect the CP (communications processor) modules — for example, a 6ES5523-3UA11 or 6GK1543-series interface — and confirm that the serial or PROFIBUS connections are intact. A communications module drawing excessive current due to a wiring fault can contribute to PSU overload conditions.

If the cabinet includes a relay output module or an external relay panel, verify coil suppression diodes are in place. Relay switching transients without suppression are a known cause of premature power supply degradation in S5 installations. Similarly, check any installed signal isolators or barriers on intrinsically safe loops — these devices can develop high leakage currents over time that are invisible to standard multimeter checks but measurable with a clamp meter on the DC rail.

Finally, if the system includes an OP (operator panel) or TP (touch panel) HMI connected to the S5 CPU via MPI or serial interface, confirm that the HMI power supply is independently sourced and not drawing from the PLC rack bus. Co-powering HMI devices from the PLC rack is a common field modification that shortens PSU service life significantly.

Stocking the 6ES5955-3NC4 alongside complementary spares — including a backup CPU module, at least one digital I/O module per installed type, a spare CP module, and a replacement SITOP PSU — provides a complete first-response kit that enables full rack restoration within a single maintenance shift.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. Isolate the 24 V DC supply to the S5 rack at the upstream circuit breaker or fuse. Confirm zero voltage at the PSU input terminals with a calibrated multimeter before proceeding.

Step 2 — Document current configuration: Photograph the rack slot layout and note the position of all installed modules. Record any DIP switch or jumper settings visible on the existing 6ES5955-3NC4 before removal. These settings define output current sharing behavior in multi-PSU rack configurations.

Step 3 — Module extraction: Release the front panel locking levers on the 6ES5955-3NC4 and slide the module out of the rack slot. Inspect the bus connector pins on the module and the rack for damage or contamination.

Step 4 — Replacement installation: Configure the replacement 6ES5955-3NC4 to match the DIP switch settings recorded in Step 2. Slide the new module into the slot until the bus connector seats fully and the locking levers engage. Do not force the module — misalignment will damage the backplane connector.

Step 5 — Power-up and verification: Restore the 24 V DC supply. Observe the PSU status LED — a steady green indicates normal operation. Measure the 5 V DC output at the rack test points if accessible. Confirm that the CPU restarts normally and that all I/O modules return to their pre-fault states. Log the replacement in the site maintenance record with the new module serial number and warranty start date.

Step 6 — System handover: Notify the operations team that the PLC is back in service. Retain the failed module for root cause analysis if required by site quality procedures. Update the spare parts inventory to trigger reorder of a replacement 6ES5955-3NC4 for the next maintenance cycle.
