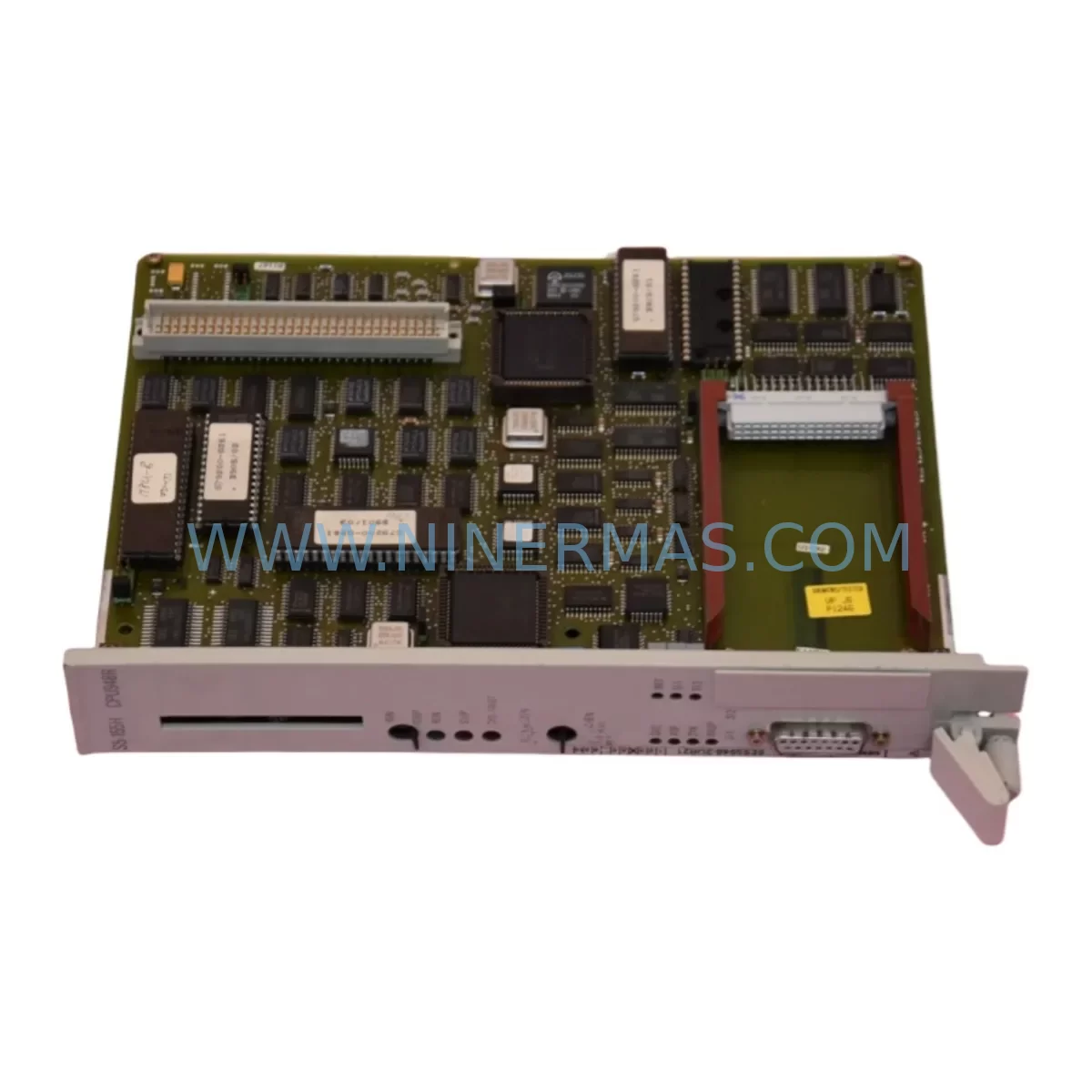

The Siemens 6ES5948-3UR21 is a ruggedized CPU module from the SIMATIC S5 series, engineered for continuous operation in harsh industrial environments including high-vibration, wide-temperature, and high-humidity process plant conditions. As a service-ready spare part sourced and verified by NINERMAS, this unit is pre-tested, fully inspected, and dispatched with a 12-month warranty to support your maintenance team’s uptime objectives.

For maintenance engineers managing aging SIMATIC S5 control systems, unplanned CPU failure represents one of the highest-risk downtime events on the plant floor. The 6ES5948-3UR21 ruggedized variant — distinguished by its extended operating temperature range and reinforced board design — is a critical line-replaceable unit (LRU) in S5-based control cabinets found across oil & gas, chemical processing, power generation, and heavy manufacturing facilities. Holding a verified spare in your maintenance inventory eliminates the lead-time risk that typically extends emergency shutdowns from hours into days.

When sourcing the 6ES5948-3UR21, procurement engineers should confirm compatibility with the installed S5 backplane and power supply configuration. The S5-948 CPU operates within the SIMATIC S5-115U/H and S5-135U/H rack systems, interfacing with the S5 bus via the standard 48-pin edge connector. Before installation, verify that the existing 6ES5955-3LC41 or 6ES5955-3LF41 power supply module is delivering stable 5 VDC and 24 VDC rails, as CPU instability is frequently traced to power supply degradation rather than CPU failure itself.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy around the 6ES5948-3UR21 must account for the full electrical ecosystem of the S5 control cabinet. During scheduled annual maintenance or control cabinet inspection, maintenance engineers should simultaneously assess the condition of the following components to prevent cascading failures after CPU replacement:

The 6ES5955-3LC41 power supply module is the most common root cause of apparent CPU faults — ripple voltage or output sag under load will cause the S5-948 CPU to reset or fail to initialize. Always measure DC rail stability before condemning the CPU. Similarly, the 6ES5316-8MA12 digital input module and 6ES5318-8MA12 digital output module should be inspected for relay contact wear and I/O channel integrity, particularly in high-cycle applications such as conveyor control or press automation.

For systems using serial communication, the 6ES5734-1BD20 CP communications processor handles SINEC L1 or point-to-point links and should be checked for firmware integrity and cable termination condition. In multi-rack configurations, the 6ES5700-8MA11 expansion interface module and its associated rack interconnect cables are frequent sources of intermittent faults that mimic CPU failure. Inspect connectors and cable shielding during every planned outage.

Signal integrity in analog loops should be verified at the 6ES5464-8ME11 analog input module level — drift in 4–20 mA channels often indicates module aging rather than field instrument failure. Where signal isolation is required between field devices and the S5 rack, inline signal isolators and loop-powered barriers should be part of the annual inspection checklist. Terminal blocks and DIN-rail mounted fuse holders within the same cabinet should be torque-checked and visually inspected for discoloration indicating thermal stress.

For facilities running SIMATIC S5 systems alongside newer SIMATIC S7 infrastructure, the 6ES7972-0CB20-0XA0 PROFIBUS DP connector and associated gateway modules may bridge legacy and modern networks — these interface points are high-priority inspection items during any S5 CPU replacement event. Finally, the OP7 or OP17 HMI operator panels connected to the S5 CPU via MPI or TTY should be tested for display integrity and keypad response after CPU swap, as communication parameter mismatches can prevent panel reconnection.

Site Replacement Workflow

Replacing the 6ES5948-3UR21 in a live industrial environment requires a disciplined procedure to minimize downtime and avoid configuration loss. Follow this sequence to ensure a safe, compatible, and fully verified swap:

Step 1 — Pre-replacement backup: Connect a SIMATIC PG (programming device) or compatible S5 programming software via the CPU’s PG port and perform a full program backup to EPROM or PC storage. Confirm the backup checksum before proceeding.

Step 2 — Power isolation: Follow your site’s lockout/tagout (LOTO) procedure. Isolate the rack power supply and verify zero-energy state with a calibrated meter before touching any module.

Step 3 — Module extraction: Release the CPU module locking levers, extract the 6ES5948-3UR21 from its slot, and immediately bag and label the removed unit for failure analysis or return.

Step 4 — Replacement installation: Insert the NINERMAS-supplied 6ES5948-3UR21 into the same slot. Ensure the module seats fully on the backplane connector. Re-engage locking levers.

Step 5 — Memory module transfer: If the original CPU carried a plug-in EPROM or RAM memory module, transfer it to the replacement unit. If the memory module is suspect, restore from the backup taken in Step 1.

Step 6 — Power-up and verification: Restore rack power and observe CPU status LEDs. Confirm RUN mode is achieved and no fault LEDs are active. Reconnect the PG and verify program integrity against the backup checksum.

Step 7 — I/O functional test: Cycle through critical I/O points with the process in a safe state to confirm all digital and analog channels respond correctly before returning the system to automatic operation.

This workflow is compatible with both hot-standby (S5-948H redundant) and single-CPU configurations. For redundant systems, consult the S5-948H system manual for switchover testing procedures after replacement.

Spare Parts Support FAQ

Q1: Is the NINERMAS 6ES5948-3UR21 an original Siemens module or a compatible replacement?
All units supplied by NINERMAS are original Siemens manufactured modules — not clones, not rebranded alternatives. Each unit is sourced from verified industrial supply channels, inspected for physical and functional integrity, and tested before shipment. You receive the same hardware that was originally installed in your system, with a 12-month warranty covering functional defects.

Q2: How do I confirm compatibility with my existing S5 rack before ordering?
The 6ES5948-3UR21 is compatible with SIMATIC S5-115U/H, S5-135U/H, and S5-155U/H rack systems. To confirm compatibility, provide your rack order number (e.g., 6ES5183-3UA11) and existing CPU slot configuration when contacting NINERMAS. Our technical team will cross-reference your system configuration and confirm fit before dispatch.

Q3: What is included in the pre-shipment testing process?
Every 6ES5948-3UR21 unit undergoes a bench power-up test, LED status verification, and where applicable, a basic program load and execution test using S5 programming tools. Units that do not achieve a clean RUN state are quarantined and not dispatched. A test report is available upon request for quality-critical procurement processes.

Q4: Can NINERMAS support long-term supply agreements for S5 spare parts?
Yes. NINERMAS specializes in long-term spare parts programs for legacy industrial control systems including the full SIMATIC S5 range. We can establish scheduled delivery agreements, hold safety stock on your behalf, and provide multi-year supply commitments to support your plant’s lifecycle extension strategy. Contact our team at sale@ninermas.com to discuss a tailored spare parts support program.
