Siemens 6ES5941-7UB11 Service-Ready Spare Part

Siemens 6ES5941-7UB11 Service-Ready Spare Part for Industrial Maintenance

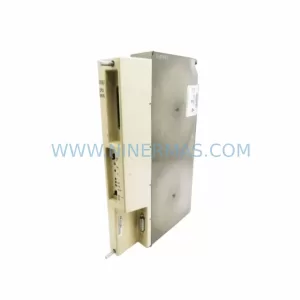

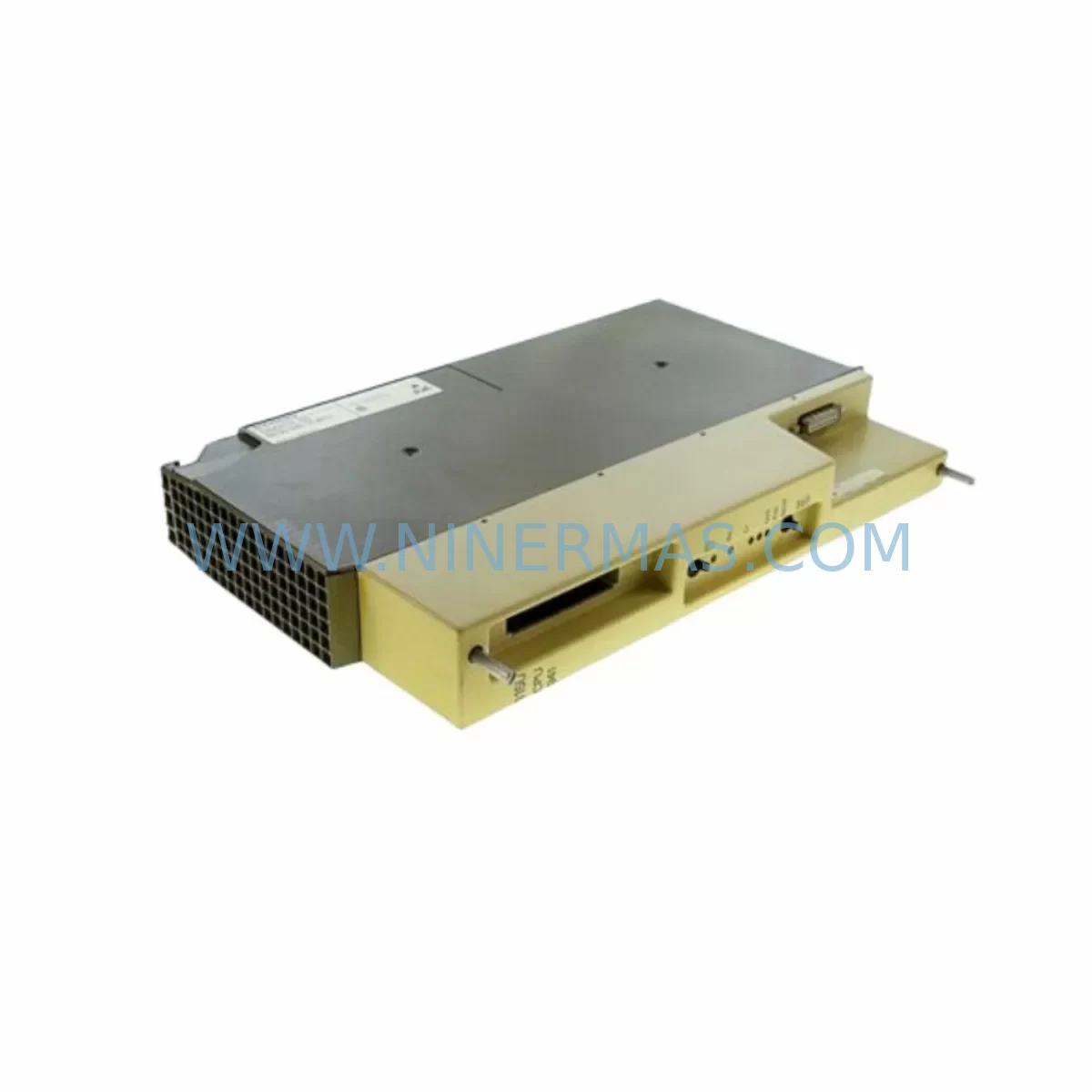

The Siemens 6ES5941-7UB11 is a ruggedized CPU processor module designed for the SIMATIC S5-115U programmable logic controller series — one of Siemens’ most widely deployed PLC platforms in heavy industrial environments. For maintenance engineers managing aging automation infrastructure, this module represents a critical line-of-defense against unplanned downtime. Whether you are responding to an emergency fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory, the 6ES5941-7UB11 delivers the processing reliability and compatibility your control system demands.

Industrial facilities running SIMATIC S5 systems — including steel mills, chemical plants, water treatment stations, automotive assembly lines, and power generation facilities — continue to depend on this CPU module for continuous operation. As original production of legacy S5 hardware has been discontinued by Siemens, sourcing a service-ready, tested replacement unit from a reliable industrial spare parts supplier is essential for sustaining uptime and avoiding costly system migrations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES5941-7UB11 CPU module fails or is flagged during a routine control cabinet inspection, the fault rarely exists in isolation. Experienced maintenance engineers know that a CPU fault in an S5-115U rack is often accompanied by — or caused by — degradation in adjacent components. A thorough site assessment should include inspection of the 6ES5955-3LC13 power supply module, which provides regulated 24 VDC to the backplane; a failing PSU can cause intermittent CPU resets that mimic processor faults.

The 6ES5316-8MA12 digital input module and 6ES5340-3KB21 digital output module should be checked for contact wear and signal integrity, particularly in high-cycle applications. If the system uses analog process signals, the 6ES5464-8ME11 analog input module warrants inspection for drift or calibration errors that may have triggered protective shutdowns. Communication integrity between the CPU and remote I/O stations should be verified via the 6ES5318-8MB12 interface module or equivalent IM submodule.

For systems using SINEC L1 or point-to-point serial links, the CP 521 SI communications processor should be tested for correct baud rate configuration and cable continuity. Terminal blocks and wiring harnesses — particularly Weidmüller or Phoenix Contact screw-type terminal strips — should be inspected for corrosion, loose connections, and insulation breakdown, especially in high-humidity or chemically aggressive environments. Signal isolators protecting analog loops from ground faults are another common failure point and should be replaced proactively during any CPU swap.

If the facility uses an OP7 or OP17 HMI operator panel connected to the S5 CPU via MPI or TTY, verify panel communication parameters after CPU replacement, as memory addressing may shift. Fuse holders on the power distribution rail — typically rated at 2A or 4A — should be checked and replaced if discolored or showing signs of thermal stress. Maintaining a stocked spare parts kit that includes the CPU module, PSU, at least one I/O module of each type in use, and a set of communication cables significantly reduces mean time to repair (MTTR) during emergency shutdowns.

Site Replacement Workflow

Replacing the Siemens 6ES5941-7UB11 in a live industrial environment requires a structured approach to minimize downtime and ensure system integrity. Begin by performing a full program backup from the existing CPU using a PG 702 or PG 740 programming device (or compatible S5 programming software such as STEP 5 on a Windows-compatible industrial PC). Document all current memory submodule configurations, including EPROM addresses and I/O assignment tables.

Power down the control cabinet following your site’s lockout/tagout (LOTO) procedure. Remove the faulty CPU module by releasing the front panel locking mechanism and carefully extracting it from the backplane slot. Inspect the backplane connector for bent pins or oxidation before inserting the replacement 6ES5941-7UB11. Seat the module firmly and verify the front panel LED indicators upon power-up: the RUN LED should illuminate green, and the STOP LED should extinguish after successful program load.

Restore the program from backup and perform a full I/O scan to confirm all field devices are responding correctly. Test all critical interlocks and safety circuits before returning the system to automatic mode. Document the replacement in your maintenance management system (CMMS) with the new module’s serial number, installation date, and test results. This record supports warranty claims and future lifecycle planning.

For facilities managing multiple S5-115U racks, consider standardizing on the 6ES5941-7UB11 as your primary CPU spare across all compatible installations. This reduces spare parts SKU complexity, simplifies technician training, and enables faster emergency response when multiple lines share the same controller platform.

Spare Parts Support FAQ

Q1: Is the 6ES5941-7UB11 compatible with all SIMATIC S5-115U rack configurations?
The 6ES5941-7UB11 is designed for the SIMATIC S5-115U central processing unit slot. Compatibility depends on the specific rack variant (CR700, ER701, etc.) and the firmware version of adjacent interface modules. We recommend confirming your rack model and existing CPU firmware revision before ordering. Our technical team can assist with compatibility verification based on your system documentation.

Q2: How is the module tested before shipment?
Every 6ES5941-7UB11 unit undergoes functional testing prior to dispatch, including power-on self-test verification, backplane communication check, and LED status confirmation. Units are shipped in anti-static packaging with individual test records. A 12-month warranty covers all defects in materials and workmanship from the date of delivery.

Q3: Can you support long-term or blanket purchase orders for ongoing maintenance programs?
Yes. NINERMAS supports long-term supply agreements for industrial maintenance programs, including scheduled delivery, reserved stock allocation, and priority fulfillment for critical spare parts. Contact our sales team to discuss volume pricing and supply continuity arrangements for your facility’s annual maintenance budget.

Q4: What should I do if the replacement CPU does not restore normal operation?
If the system does not return to RUN mode after installing the 6ES5941-7UB11, the fault may reside in the power supply module, a memory submodule, or an I/O module rather than the CPU itself. We recommend systematically isolating each rack component using your S5 diagnostic tools. Our technical support team is available to assist with fault isolation guidance. If the replacement unit itself is found to be defective, it is covered under our 12-month warranty for full replacement or refund.
