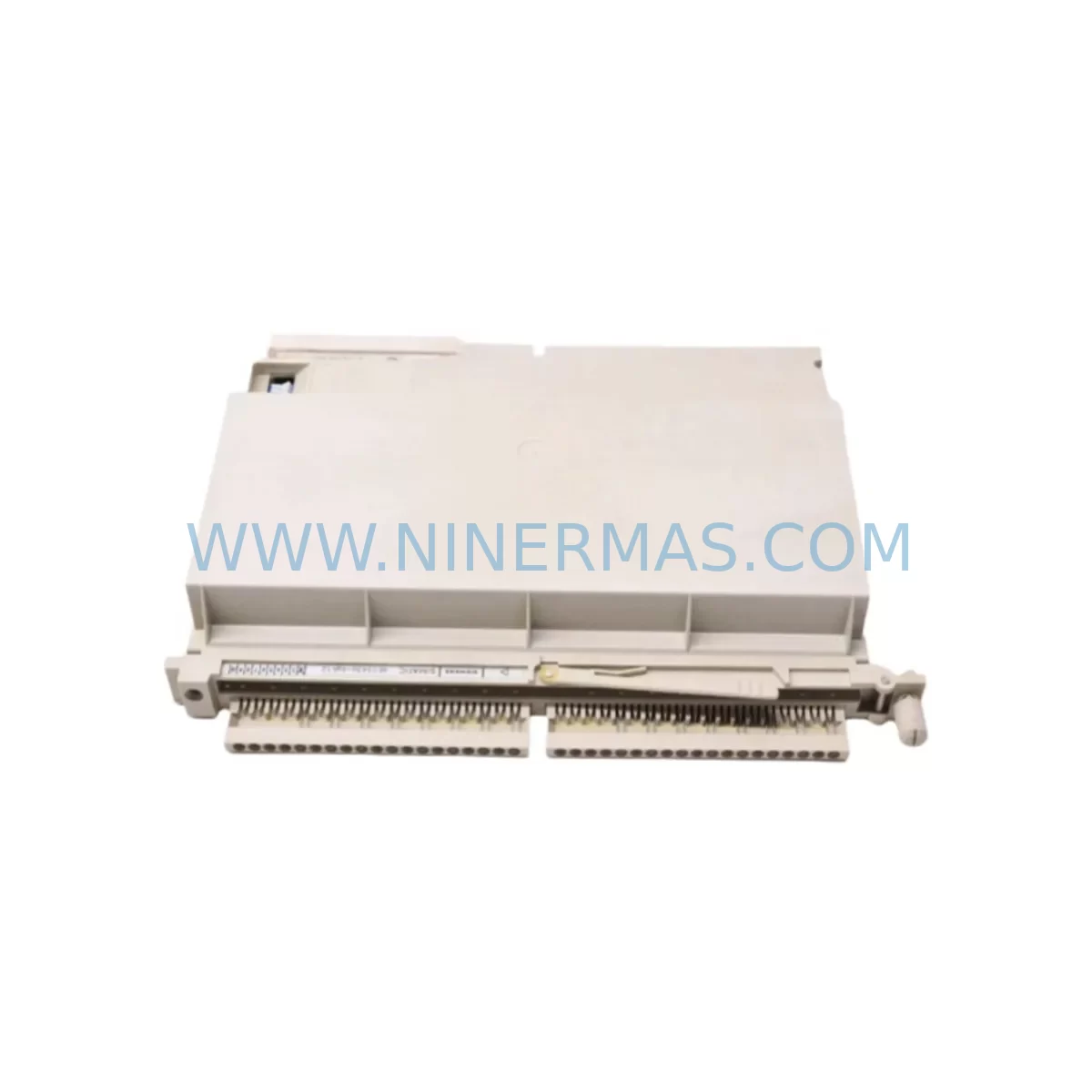

The Siemens 6ES5436-4UA12 is a SIMATIC S5-series digital output module engineered for dependable performance in the most demanding industrial control environments. Designed to interface directly with S5-115U, S5-135U, and S5-155U programmable logic controllers, this module delivers stable, high-integrity output switching across continuous production lines, critical interlock circuits, and heavy-duty control cabinets where unplanned downtime carries severe operational and safety consequences.

In industries such as petrochemical processing, electric power generation, metallurgy, mining, water treatment, and port logistics, the reliability of every digital output channel directly affects process safety. The 6ES5436-4UA12 addresses this by providing robust transistor-driven output channels with consistent switching response, low signal drift, and strong immunity to electrical noise — characteristics that are non-negotiable in high-electromagnetic-interference (EMI) environments where variable frequency drives, large contactors, and high-current bus bars operate in close proximity to control wiring.

At NINERMAS, every 6ES5436-4UA12 unit is sourced from verified industrial channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory program ensures rapid availability for maintenance teams operating under tight turnaround windows, supporting both emergency replacement and planned spare parts programs.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered SIMATIC S5 control cabinet, the 6ES5436-4UA12 digital output module operates as part of a tightly integrated safety and control architecture. Its reliable channel switching directly drives field actuators — solenoid valves, motor starters, relay coils, and indicator circuits — making its integrity central to the entire control loop.

To maintain system-wide safety, the 6ES5436-4UA12 is commonly deployed alongside the Siemens 6ES5431-4UA12 digital input module, which handles field signal acquisition on the same S5 rack. Together, they form a complete I/O layer that minimizes signal latency and reduces the risk of control interruption caused by mismatched module generations. Power supply stability for the rack is typically ensured by units such as the Siemens 6ES5955-3LC41 or 6ES5955-3LF41 power supply modules, which provide regulated 24 V DC and 5 V DC rails with built-in overload protection — critical for preventing voltage sag events that can cause spurious output toggling or module lockup.

In applications where communication integrity is equally important, the Siemens 6ES5521-8MA22 serial interface module and 6ES5524-3UA15 SINEC L1 communication processor are frequently installed in the same subrack, ensuring that the PLC maintains uninterrupted data exchange with SCADA systems and operator panels even under heavy electrical load. For analog process variables feeding into the same control strategy, the Siemens 6ES5464-4UA12 analog input module and 6ES5470-4UA12 analog output module complement the digital I/O layer, enabling closed-loop control of flow, pressure, and temperature without requiring a separate rack.

In safety interlock circuits — particularly in emergency shutdown (ESD) and fire-and-gas (F&G) systems — the output channels of the 6ES5436-4UA12 are often wired in series or parallel with relay output modules such as the Siemens 6ES5482-4UA11, providing redundant switching paths that reduce the probability of dangerous failure on demand. Surge protection devices installed at the cabinet terminal strip further shield the module’s output transistors from inductive kickback generated by solenoid loads, extending service life in high-cycle applications.

This integrated approach — combining reliable digital output switching, stable power supply, robust communication, and coordinated analog I/O — forms the foundation of a control cabinet strategy that minimizes unplanned downtime, reduces the risk of process upsets, and supports safe, continuous operation across the full plant lifecycle.

Critical Industrial Safety Applications

The Siemens 6ES5436-4UA12 has established a long service record across critical industrial sectors where control system reliability is directly linked to personnel safety and production continuity.

In petrochemical and refinery plants, this module controls shutdown valves, pump motor starters, and flare ignition circuits within SIMATIC S5-based safety instrumented systems. Its consistent switching behavior under high-temperature and high-humidity conditions — common in process areas near heat exchangers and cooling towers — makes it a preferred spare for maintenance engineers managing aging DCS and PLC infrastructure.

In electric power generation and substation control, the 6ES5436-4UA12 drives protection relay trip circuits, breaker control outputs, and alarm annunciator panels. The module’s short-circuit protection per channel prevents a single field fault from cascading into a rack-wide failure, a critical characteristic in high-availability power control applications.

In mining and mineral processing, where dust ingress, vibration, and wide temperature swings are constant challenges, the module’s robust construction and proven field reliability make it a dependable choice for conveyor control, crusher interlock, and ventilation fan management systems. Maintenance teams in these environments rely on fast spare parts availability — a requirement that NINERMAS’s in-stock program directly addresses.

In water and wastewater treatment facilities, the 6ES5436-4UA12 manages pump sequencing, valve actuation, and dosing system control within SIMATIC S5 installations that have operated continuously for decades. Its compatibility with existing S5 racks eliminates the need for costly controller migration, allowing plant operators to extend system life while maintaining full safety functionality.

In port and maritime logistics, where crane control systems and cargo handling equipment demand zero-fault output switching, this module’s transistor-based outputs provide the fast, repeatable response required for safe load management and anti-collision interlock circuits.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the 6ES5436-4UA12?
Every 6ES5436-4UA12 supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. If the module fails under normal operating conditions within this period, we provide a replacement or full technical support at no additional cost. Our warranty reflects our confidence in the sourcing and testing standards applied to every unit we dispatch.

Q2: Is the module tested before shipment?
Yes. All units undergo pre-shipment functional verification, including output channel switching tests and power-on diagnostics, before dispatch. This process ensures that the module arrives at your facility ready for installation, reducing commissioning time and eliminating the risk of receiving a defective spare during a critical maintenance window.

Q3: Is the 6ES5436-4UA12 compatible with all SIMATIC S5 subrack configurations?
The 6ES5436-4UA12 is designed for use with SIMATIC S5-115U, S5-135U, and S5-155U systems and fits standard S5 subracks. It is compatible with the S5 backplane bus and can be installed in any slot designated for digital output modules. For mixed-rack configurations or specific firmware version queries, our technical team can advise on compatibility prior to order confirmation.

Q4: Can NINERMAS support long-term spare parts supply for SIMATIC S5 systems?
Yes. NINERMAS maintains a dedicated inventory of SIMATIC S5 spare parts — including digital input/output modules, power supplies, CPU modules, and communication processors — to support long-term maintenance programs for facilities that continue to operate legacy S5 infrastructure. We can assist with scheduled procurement planning, emergency stock reservations, and multi-unit supply agreements to ensure your critical systems remain protected against obsolescence-driven downtime.
