Siemens 6EP1336-3BA10 PSU8200 Retrofit-Compatible Power Supply

Siemens 6EP1336-3BA10 PSU8200 Retrofit-Compatible Power Supply for Legacy Automation Systems

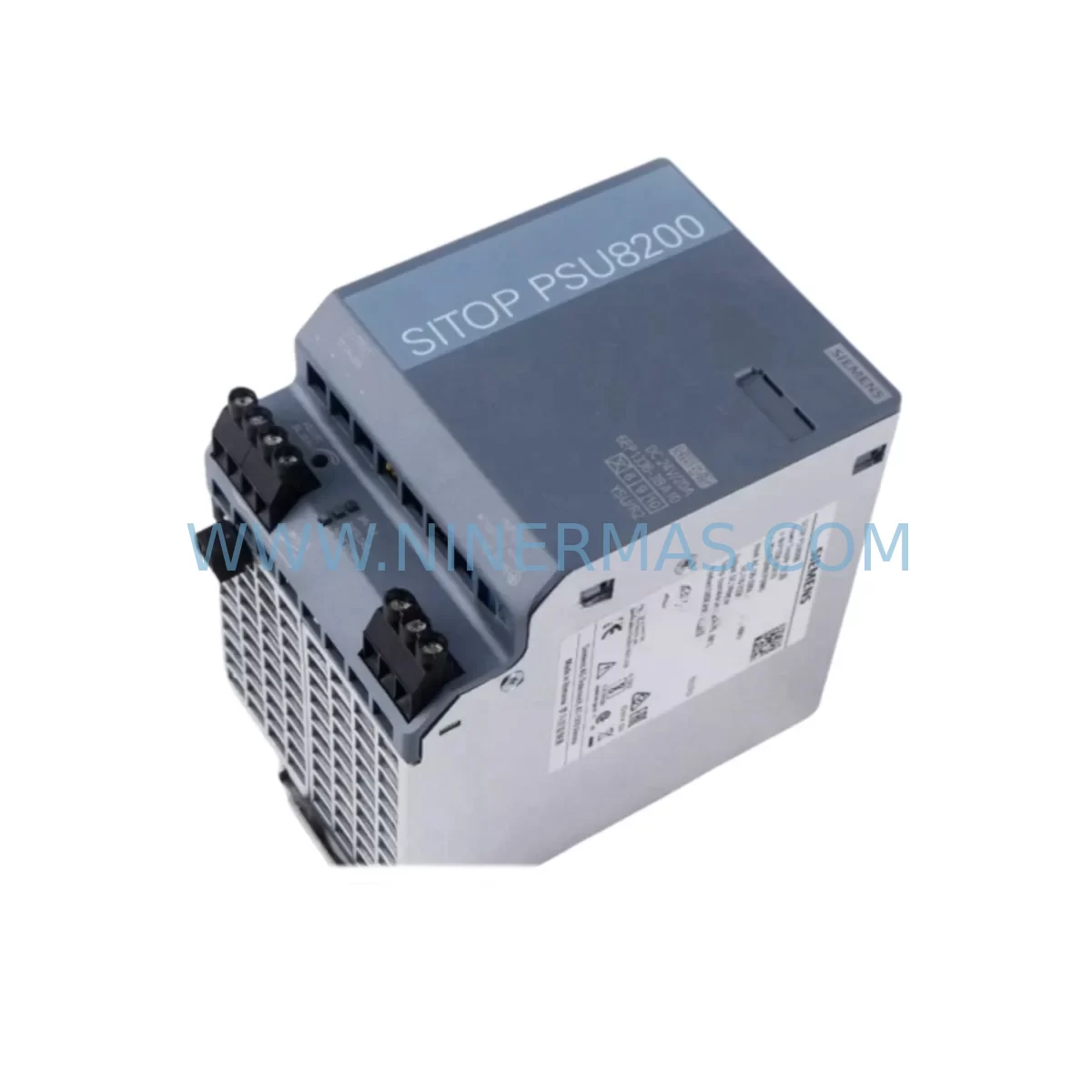

The Siemens 6EP1336-3BA10 is a SITOP PSU8200 series regulated 24 VDC power supply designed for demanding industrial environments. As legacy SIMATIC S7-300 and S7-400 control systems approach end-of-life, the 6EP1336-3BA10 remains one of the most sought-after retrofit-compatible power supply modules for facilities seeking to extend operational life without full platform migration. NINERMAS supplies this unit as a verified retrofit-compatible replacement, pre-shipment tested, with a 12-month warranty and fast global delivery.

Whether you are managing a brownfield upgrade in a chemical processing plant, replacing a failed power rail in a packaging line, or consolidating spare parts inventory for a multi-site maintenance program, the 6EP1336-3BA10 PSU8200 delivers the output stability and DIN rail form factor required for seamless integration into existing control cabinet layouts.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6EP1336-3BA10 in an active production environment requires careful pre-work to avoid unplanned downtime. Begin by auditing the total current draw of all connected modules on the 24 VDC bus. In a typical S7-300 rack, this includes the CPU module (such as a CPU 315-2 DP or CPU 317-2 PN/DP), digital input modules (SM 321), digital output modules (SM 322), and analog I/O modules (SM 331 / SM 332). If the control cabinet also houses a CP 343-1 PROFINET communications processor or a CP 342-5 PROFIBUS module, their current contributions must be included in the load calculation.

For systems that have been expanded over time — for example, where additional ET 200M distributed I/O racks have been added to the original PROFIBUS segment — the original PSU8200 rating may no longer be sufficient. In such cases, NINERMAS recommends reviewing whether a higher-output SITOP PSU8200 variant is appropriate before committing to a like-for-like replacement of the 6EP1336-3BA10.

Terminal wiring should be documented with photographs before disconnection. The PSU8200 uses clearly labeled screw terminals for L, N, PE (input) and +24V, 0V, PE (output). In cabinets where the 24 VDC bus feeds both the PLC backplane and field instruments — such as pressure transmitters, solenoid valve banks, or signal isolators — it is advisable to temporarily isolate field circuits during the swap to prevent transient voltage spikes from affecting sensitive instrumentation.

Where the control system includes an OP 277 or TP 177 HMI panel connected to the same 24 VDC rail, confirm that the HMI power input is isolated or separately fused so that the panel can remain powered during the PSU swap if a hot-swap procedure is being used. For systems using a SIMATIC S7-400 rack with a PS 407 power supply module, the 6EP1336-3BA10 typically serves as an auxiliary 24 VDC supply for field devices rather than the primary rack supply — verify the role of the unit being replaced before proceeding.

If the cabinet includes a SITOP UPS module (such as the SITOP UPS1600) for buffered power during mains interruptions, confirm that the UPS charging circuit is compatible with the replacement PSU output characteristics. Programming cables such as the PC Adapter USB A2 or MPI/PROFIBUS adapter should be on hand during commissioning to allow rapid program verification after power restoration.

Downtime Control During System Migration

Minimizing production downtime during a PSU replacement on a live S7-300 or S7-400 system requires a structured approach. Where a redundant power supply arrangement is not already in place, the recommended practice is to schedule the swap during a planned maintenance window and to perform a full CPU memory backup (RAM to EPROM or memory card) before de-energizing the rack.

Use STEP 7 or TIA Portal to upload the current program, hardware configuration, and data blocks to the programming device before the outage. This ensures that if the CPU loses its retentive memory during the power interruption, the program can be reloaded within minutes. For systems running continuous processes — such as boiler controls, compressor sequencing, or conveyor coordination — coordinate with the operations team to confirm that all field devices are in a safe state before removing power.

Once the 6EP1336-3BA10 replacement is installed and wired, restore power incrementally: energize the PSU first, verify the output voltage at the terminals (24.0–24.5 VDC under no load), then reconnect the PLC backplane and allow the CPU to complete its startup cycle. Monitor the diagnostic buffer in STEP 7 or TIA Portal for any fault entries related to power-up sequencing. Field devices should be reconnected last, after confirming that all I/O module status LEDs are green and the CPU is in RUN mode.

NINERMAS ships all 6EP1336-3BA10 units with pre-shipment test documentation, confirming output voltage, ripple, and load regulation results. This reduces on-site commissioning risk and supports rapid return-to-service. Stock availability is maintained to support urgent spare parts requirements, with express shipping options available for critical plant situations.

Retrofit Support FAQ

Q1: Is the 6EP1336-3BA10 a direct drop-in replacement for my existing PSU8200 unit?
Yes, the 6EP1336-3BA10 is a PSU8200 series unit and is dimensionally and electrically compatible with other PSU8200 variants of the same output rating. Confirm the output current rating on your existing unit’s nameplate matches the replacement before installation. No firmware or configuration changes are required.

Q2: What pre-shipment testing does NINERMAS perform on this unit?
Every 6EP1336-3BA10 supplied by NINERMAS is tested for output voltage accuracy, load regulation under rated current, ripple and noise levels, and input voltage range compliance. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this power supply support additional I/O modules that were added after the original system was commissioned?
This depends on the total current draw of all connected modules. If your system has been expanded with additional SM 321, SM 322, SM 331, or SM 332 modules, or if ET 200M remote I/O racks have been added to the PROFIBUS segment, recalculate the total 24 VDC load before ordering. NINERMAS can advise on appropriate PSU8200 variants if a higher output current rating is required.

Q4: What is the lead time and do you maintain stock for urgent requirements?
NINERMAS maintains inventory of the 6EP1336-3BA10 to support urgent spare parts and emergency breakdown situations. Standard orders are processed within 1–2 business days. Express and priority shipping options are available for critical plant requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock and delivery timelines.
