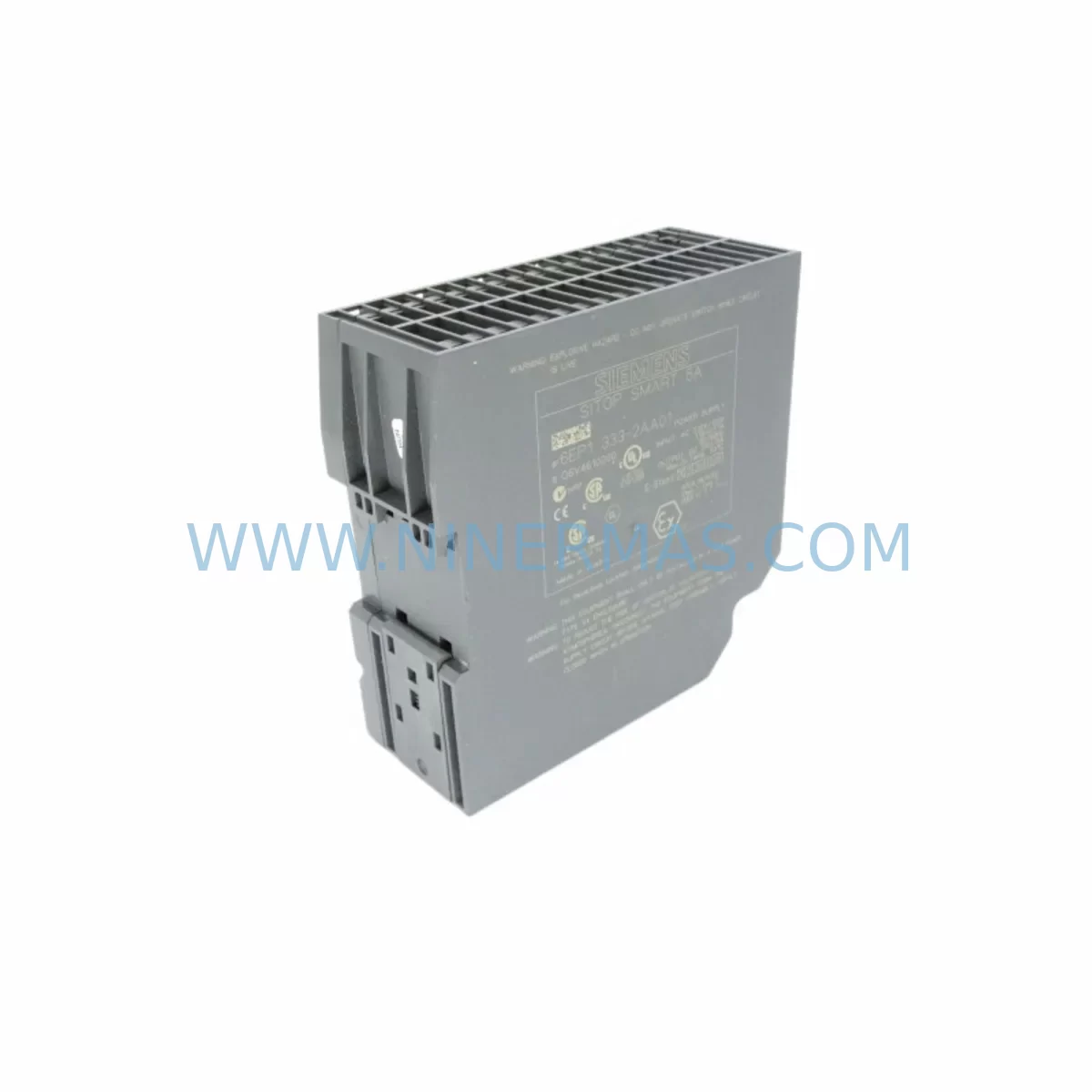

The Siemens 6EP1333-2AA01 is a SITOP series single-phase power supply module delivering a regulated 24 VDC / 3 A output, designed for continuous operation in industrial control cabinets, PLC panels, and distributed automation systems. As a service-ready spare part, the 6EP1333-2AA01 is an essential component for maintenance engineers managing Siemens S7-300, S7-400, and equivalent legacy control architectures where unplanned downtime carries significant production cost. Sourced as an original or OEM-equivalent replacement, this module supports rapid field substitution with minimal reconfiguration, making it a cornerstone of any proactive spare parts inventory strategy.

For facilities operating continuous production lines, having a verified replacement 6EP1333-2AA01 on the shelf eliminates the lead-time risk associated with emergency procurement. The module’s compact DIN-rail form factor and standardized terminal layout allow technicians to complete a swap in under 30 minutes, restoring system power without requiring firmware changes or parameter re-entry. Its wide AC input range (85–264 VAC) ensures compatibility across global facility voltages, reducing the need for site-specific variants in multi-plant spare parts programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the 6EP1333-2AA01, a thorough maintenance engineer will treat the power supply swap as an opportunity to audit the surrounding electrical circuit. The 24 VDC bus fed by this module typically powers a range of downstream components that should be inspected simultaneously to prevent a secondary failure from triggering another unplanned outage.

Begin with the input wiring and circuit protection: verify that the upstream miniature circuit breaker (MCB) or fuse — typically a 6 A or 10 A device — is within its rated service life and shows no signs of contact erosion. Check the AC terminal block connections for oxidation or loose crimps, as high-resistance joints are a leading cause of premature power supply failure. If the cabinet uses a Siemens SITOP UPS1600 or similar DC UPS buffer module downstream of the 6EP1333-2AA01, confirm that the buffer capacitors or battery pack are within their replacement interval.

On the DC output side, inspect the 24 VDC distribution terminal blocks — Phoenix Contact or Weidmüller-style feed-through terminals are common in Siemens panels — for proper torque and insulation integrity. The 6EP1333-2AA01 output feeds directly into the PLC’s CPU power rail and I/O modules; during the replacement window, verify that the Siemens SM 321 or SM 322 digital I/O modules show no blown channel fuses or damaged field wiring. If the system includes Siemens CP 343-1 or CP 443-1 Ethernet communication modules, confirm their status LEDs return to normal after power restoration — communication modules are sensitive to voltage dips and may require a cold restart.

For systems with Siemens IM 153 or IM 360/361 interface modules connecting remote ET 200 I/O racks, validate that the PROFIBUS or PROFINET link re-establishes cleanly after the power supply is restored. Intermittent communication faults following a PSU replacement are often traced to marginal bus termination resistors or degraded PROFIBUS connectors rather than the new module itself. Similarly, if the control cabinet houses a Siemens OP 177B or TP 177B HMI panel, confirm that the HMI boots correctly and that its 24 VDC supply rail is within tolerance using a calibrated multimeter.

Where signal isolation is required between field instruments and the PLC input cards, check any installed signal isolators or loop-powered barriers (such as Phoenix Contact MINI MCR or Pepperl+Fuchs Z-series) for correct output levels. A failing power supply can mask latent signal integrity issues that only become apparent once a healthy PSU is installed. Finally, review the 24 VDC relay outputs — particularly any Siemens 3TX7 or SIRIUS 3RQ intermediate relays — for contact wear, as these are high-cycle components that benefit from concurrent replacement during planned maintenance windows.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the incoming AC voltage at the PSU input terminals is within the 85–264 VAC range. Document the existing output voltage (should read 24.0–24.5 VDC under load) before de-energizing. Photograph terminal wiring for reference.

Step 2 — Safe isolation: Open the upstream MCB or isolator. Apply lockout/tagout (LOTO) per site safety procedures. Wait for the DC bus capacitors to discharge (typically 30–60 seconds).

Step 3 — Module removal: Loosen the AC input and DC output terminal screws. Unclip the module from the DIN rail using a flat-blade screwdriver at the bottom latch. Remove the unit.

Step 4 — New module installation: Clip the replacement 6EP1333-2AA01 onto the DIN rail. Reconnect AC input and DC output terminals to the documented torque values (typically 0.5–0.6 Nm for 2.5 mm² conductors). Verify no cross-connections.

Step 5 — Energization and verification: Close the upstream MCB. Measure the DC output voltage under no-load and then under full load. Confirm the green LED status indicator is steady. Verify all downstream PLC modules, I/O racks, and communication modules have resumed normal operation. Log the replacement in the maintenance record with date, technician ID, and new module serial number.

This workflow minimizes mean time to repair (MTTR) and ensures the replacement is documented for audit and warranty purposes. Keeping a pre-tested 6EP1333-2AA01 in the local spare parts cabinet reduces emergency response time from days to under one hour.

Spare Parts Support FAQ

Q1: Is the 6EP1333-2AA01 a direct drop-in replacement for older SITOP power supply variants?
Yes. The 6EP1333-2AA01 is dimensionally and electrically compatible with earlier SITOP single-phase 24 VDC / 3 A modules sharing the same DIN-rail footprint. Terminal assignments are standardized across the SITOP modular family, so no wiring modifications are required in most installations. Always verify the output voltage trim setting if the outgoing unit had been adjusted from the factory default.

Q2: How is the unit tested before shipment?
Every 6EP1333-2AA01 dispatched by NINERMAS undergoes bench-level functional testing: AC input energization, DC output voltage measurement under rated load, output ripple check, and LED status verification. A test record is retained internally. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: What is the recommended spare parts stocking strategy for this module?
For facilities with more than three Siemens S7-300 or ET 200 control panels powered by SITOP 24 VDC / 3 A supplies, we recommend maintaining a minimum of two 6EP1333-2AA01 units in the local MRO store. Power supplies are wear items with a typical service life of 7–12 years under normal operating conditions; proactive replacement at the 8-year mark or at first sign of output instability is best practice. Bulk procurement of 5–10 units qualifies for volume pricing — contact sale@ninermas.com for a quotation.
