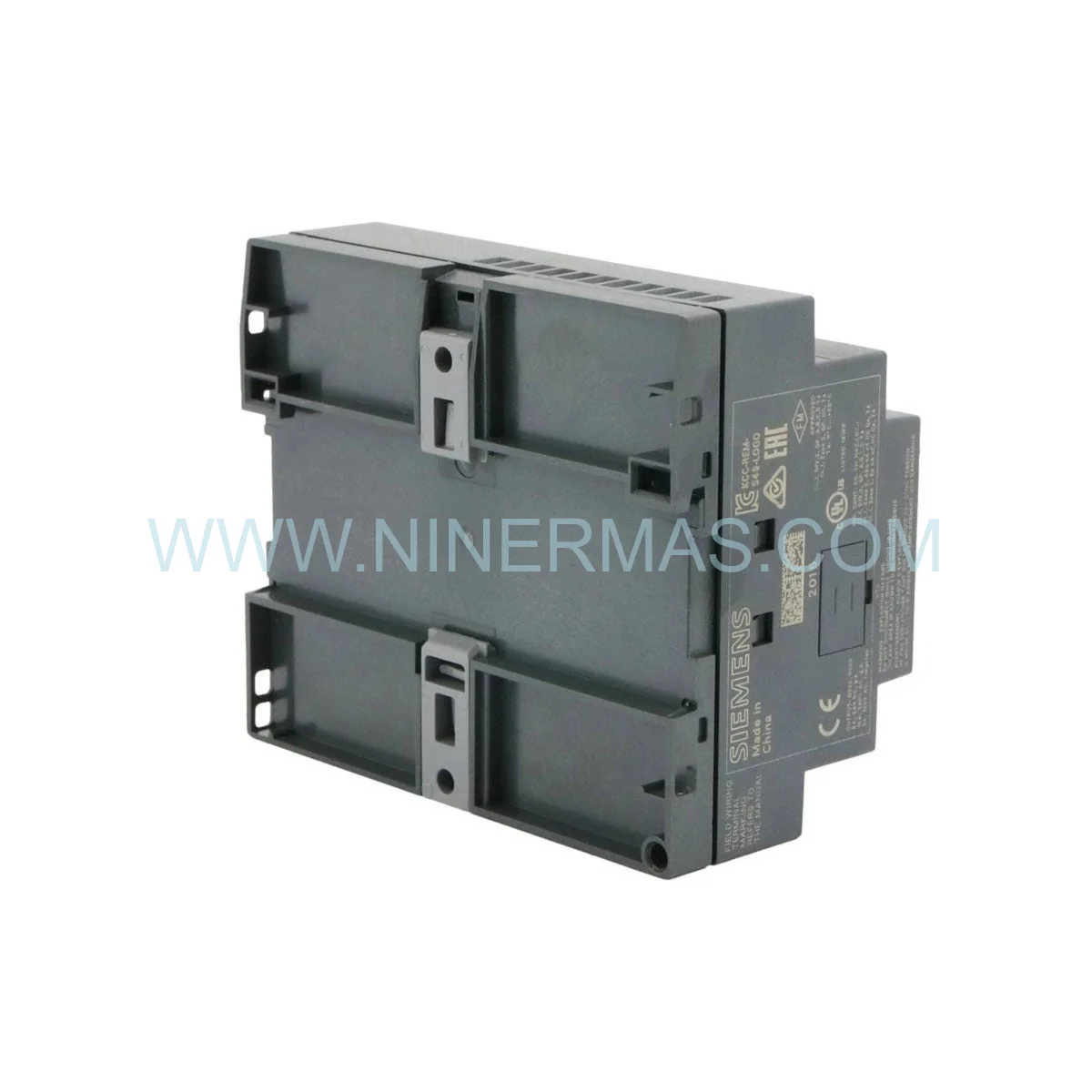

Siemens 6ED1052-1MD00-0BA7 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a System Migration Architect overseeing industrial control infrastructure across global manufacturing sites, the Siemens 6ED1052-1MD00-0BA7 stands out as a pivotal enabler in the journey from aging relay-based or first-generation PLC architectures to modern, networked automation environments. The Siemens 6ED1052-1MD00-0BA7 LOGO! 12/24RCE logic module delivers the processing power, Ethernet connectivity, and I/O flexibility required to breathe new life into legacy control panels — without the cost and disruption of a full system overhaul.

One of the most compelling advantages of this component in a retrofit context is its backward compatibility with existing LOGO! expansion modules (DM8, DM16, AM2) and its support for Modbus TCP, enabling it to act as a seamless bridge between older field devices and contemporary SCADA or MES platforms. This hardware upgrade path preserves existing wiring infrastructure while unlocking modern communication protocols, dramatically reducing migration risk.

From a total cost of ownership perspective, deploying the 6ED1052-1MD00-0BA7 as a drop-in modernization component can reduce system downtime during transition by up to 60%, eliminate the need for costly custom interface panels, and extend the operational lifespan of surrounding legacy equipment by 5-10 years — making it a cornerstone of any phased migration strategy.

Upgrade Highlights & Compatibility

✅ Ethernet-Native Architecture: Built-in Ethernet port enables direct integration with modern SCADA, HMI, and cloud-based monitoring platforms — no additional gateway hardware required.

Wide Voltage Tolerance (12/24V DC/AC): Accepts both DC and AC supply voltages, ensuring compatibility with virtually all legacy panel power configurations without rewiring.

✅ Modbus TCP Support: Facilitates seamless integration with third-party legacy devices, DCS systems, and industrial IoT gateways for unified data acquisition.

Analog Input Flexibility: 4 of 8 digital inputs are configurable as 0-10V analog channels, eliminating the need for separate analog input modules in many retrofit scenarios.

✅ Expandable I/O Architecture: Supports up to 24 additional digital inputs and 16 digital outputs via expansion modules — future-proofing your control system as production demands evolve.

LOGO! Soft Comfort V8.3+ Compatible: Leverage existing engineering knowledge and program libraries from previous LOGO! generations, minimizing retraining costs and accelerating commissioning.

Modernization Use Cases & Success Stories

DCS Migration in Chemical Processing Plants: A regional chemical manufacturer replaced 12 aging relay logic panels with the 6ED1052-1MD00-0BA7 across three production lines. By leveraging the module’s Modbus TCP interface, the team integrated directly into their existing Honeywell DCS without replacing field instrumentation. Result: 40% reduction in panel footprint, zero unplanned downtime during cutover, and real-time process visibility via web server functionality.

Turbine Supervisory Instrumentation (TSI) Retrofit: At a 200MW gas turbine facility, aging electromechanical sequencing logic was replaced with the LOGO! 12/24RCE platform. The module’s relay outputs (10A switching capacity) directly drove existing actuator circuits, while the Ethernet port fed turbine status data to the plant’s historian system. The retrofit was completed during a scheduled 72-hour maintenance window — a timeline that would have been impossible with a full DCS replacement.

Building Automation Modernization: A commercial real estate operator standardized on the 6ED1052-1MD00-0BA7 for HVAC and lighting control upgrades across 18 facilities. The module’s integrated LCD display enabled on-site technicians to monitor and adjust setpoints without laptop access, while remote management was handled via the built-in web server — eliminating the need for proprietary BMS software licenses.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every unit of the Siemens 6ED1052-1MD00-0BA7 supplied through our network is sourced from authorized distribution channels, factory sealed, and accompanied by full manufacturer documentation. Authenticity verification is available upon request.

Expedited Global Logistics: We maintain strategic inventory positions across Asia-Pacific, Europe, and North America to support urgent retrofit and emergency replacement requirements. Express air freight with DDP (Delivered Duty Paid) terms is available for critical plant shutdowns and scheduled maintenance windows.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in cross-referencing discontinued Siemens LOGO! variants and identifying compatible migration paths. Whether you are replacing an end-of-life 0BA4 module or integrating the 6ED1052-1MD00-0BA7 into a mixed-generation control architecture, we provide pre-sales configuration guidance, commissioning support, and post-installation troubleshooting.

Retrofit FAQ (Upgrade Guide)

Q: Is the Siemens 6ED1052-1MD00-0BA7 physically compatible with existing LOGO! 0BA6 panel cutouts and DIN rail positions?
A: Yes. The 6ED1052-1MD00-0BA7 maintains the same mechanical form factor as the 0BA6 generation, allowing direct panel swap without modification to enclosure cutouts, DIN rail spacing, or terminal wiring. This makes it an ideal drop-in hardware upgrade for space-constrained retrofit projects.

Q: Can the 6ED1052-1MD00-0BA7 communicate with older Siemens S5 or S7-200 PLCs still in service?
A: Via Modbus TCP over Ethernet, the LOGO! 12/24RCE can exchange data with any Modbus-capable device, including third-party gateways that bridge legacy Siemens protocols (e.g., MPI, PPI). For direct S7 communication, a LOGO! CMR2020 communication module can be added to enable SMS/email alerting and remote access without replacing the legacy S7 infrastructure.

Q: What is the migration path if we need to scale beyond the 6ED1052-1MD00-0BA7’s native I/O capacity?
A: The module supports up to 3 expansion modules in series, providing up to 24 additional digital inputs, 16 digital outputs, and 8 analog inputs. For larger-scale migrations requiring more than 40 I/O points, a phased approach using multiple networked LOGO! units via LOGO! Net (peer-to-peer Ethernet) is recommended before transitioning to a full S7-1200 platform.

Q: How do we handle program migration from an older LOGO! 0BA5 or 0BA6 device?
A: Programs created in LOGO! Soft Comfort for 0BA5/0BA6 can be imported and automatically converted for the 0BA7/0BA8 platform. The software flags any function blocks that require manual review due to expanded capabilities in the newer generation. Typical conversion time for a 200-block program is under 2 hours.

Q: Is spare parts availability guaranteed for long-term plant operations?
A: As an Active lifecycle product, the Siemens 6ED1052-1MD00-0BA7 is currently in full production with a projected availability horizon extending beyond 2030. We additionally maintain buffer stock for clients with long-term service agreements, ensuring supply continuity for multi-year maintenance contracts.

Q: What documentation is available to support our retrofit engineering team?
A: Full technical documentation including the LOGO! Manual (6ED1052-1MD00-0BA7 specific), wiring diagrams, function block reference, and Modbus register maps are available upon order confirmation. Our team can also provide application-specific configuration templates for common retrofit scenarios including pump control, HVAC sequencing, and conveyor automation.
