Siemens 6ED1052-1FB00-0BA8 Retrofit-Compatible Logic Module

Siemens 6ED1052-1FB00-0BA8 Retrofit-Compatible Logic Module for Legacy Systems

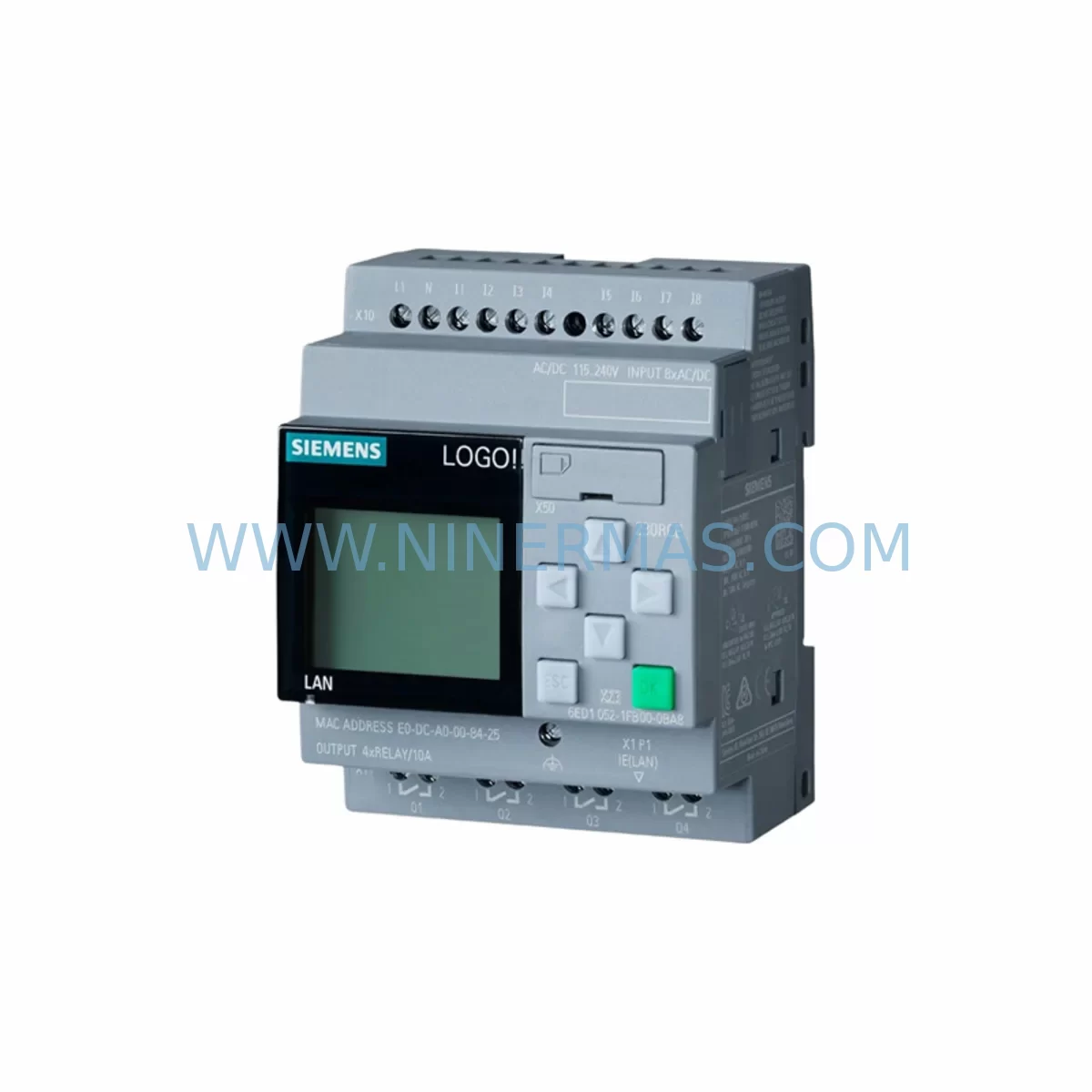

The Siemens 6ED1052-1FB00-0BA8 is a LOGO! 8 series compact logic module designed for small-scale automation, building control, and machine-level sequencing. As legacy LOGO! 0BA6 and 0BA7 installations reach end-of-service milestones, the 6ED1052-1FB00-0BA8 has become a primary retrofit target for engineers managing panel upgrades, control cabinet modernization, and spare parts lifecycle extension programs. With its integrated display, onboard I/O, and Ethernet communication capability, this module supports a smooth migration path from discontinued predecessors while maintaining compatibility with existing terminal layouts and DIN rail mounting configurations.

NINERMAS maintains verified stock of the 6ED1052-1FB00-0BA8, pre-shipment tested and covered under a 12-month warranty. Each unit is inspected for firmware integrity, I/O channel function, and communication port operability before dispatch. Lead times are confirmed at order placement, and long-term supply commitments are available for customers managing multi-site retrofit programs or scheduled maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When replacing a LOGO! 0BA6 or 0BA7 unit with the 6ED1052-1FB00-0BA8, the retrofit process begins with a full audit of the existing control cabinet. Engineers should document the current terminal block assignments for inputs I1 through I8 and outputs Q1 through Q4, cross-referencing against the original wiring diagram before any disconnection. The 24 VDC power supply feeding the legacy module must be confirmed to deliver stable regulated voltage; older LOGO! PSU units such as the LOGO! Power 24V/1.3A may require replacement with a higher-capacity unit if additional expansion modules are planned post-retrofit.

Expansion is a common requirement in retrofit projects. The 6ED1052-1FB00-0BA8 supports up to 24 I/O points when paired with compatible LOGO! expansion modules including the LOGO! DM8 24R digital expansion, the LOGO! AM2 analog input module, and the LOGO! AM2 AQ analog output module. For applications requiring temperature monitoring, the LOGO! TDE text display can be added to the bus without consuming additional DIN rail space beyond the standard module footprint.

Communication migration is a critical step for sites transitioning from isolated LOGO! installations to networked control architectures. The 6ED1052-1FB00-0BA8 includes an onboard Ethernet port supporting LOGO! network communication, enabling integration with SIMATIC HMI panels, SCADA systems, and remote monitoring platforms. Sites previously using serial communication adapters or standalone operation will need to plan IP address assignment, subnet configuration, and firewall rules as part of the migration scope. Where Modbus TCP or S7 communication is required for upstream SIMATIC S7-1200 or S7-300 integration, the Ethernet port supports these protocols natively without additional communication modules.

For control cabinets that also house SIRIUS contactor assemblies, circuit breakers, or terminal blocks from the WAGO 750 series or Phoenix Contact CLIPLINE range, the physical retrofit of the LOGO! module does not require structural changes to the cabinet. The 72 mm DIN rail footprint of the 6ED1052-1FB00-0BA8 matches its predecessors exactly, allowing the new module to occupy the same slot without rerouting adjacent wiring harnesses. Signal isolators may be required where field devices operate at voltage levels outside the module’s native input range, particularly in legacy installations using 110 VAC field signals converted through interposing relays.

Program migration from LOGO! Soft Comfort V6 or V7 to V8 is generally straightforward for standard function block logic. Timer functions, counter blocks, and comparator elements retain their parameter structures across generations. However, engineers should validate all message text blocks and parameter display configurations, as the 0BA8 display driver handles character encoding differently from earlier generations. A full simulation run in LOGO! Soft Comfort V8 prior to field download is strongly recommended to catch any block-level incompatibilities before the maintenance window begins.

Downtime Control During System Migration

Minimizing production downtime during a LOGO! retrofit requires a structured pre-migration preparation phase. Before the scheduled maintenance window, the existing program should be uploaded from the live 0BA6 or 0BA7 unit and saved in both the legacy format and converted to LOGO! Soft Comfort V8 format. A full I/O test should be performed on the replacement 6ED1052-1FB00-0BA8 unit in a bench environment, simulating the field input signals and verifying output relay operation against the expected logic sequence.

During the physical swap, the recommended sequence is: isolate the control cabinet power supply, photograph all terminal connections before removal, extract the legacy module, install the 6ED1052-1FB00-0BA8 on the DIN rail, reconnect terminals in documented order, restore power, and download the converted program via Ethernet or the onboard programming interface. For systems where the LOGO! module controls safety-critical outputs such as motor starters, valve actuators, or alarm circuits, a manual override or bypass arrangement should be in place to maintain field device control continuity during the swap interval.

Post-installation commissioning should include a live I/O verification cycle, confirmation of all timer and counter preset values, and a review of any networked HMI screens that reference LOGO! data blocks. Where the 6ED1052-1FB00-0BA8 is integrated with a SIMATIC HMI Basic Panel or KTP series panel via Ethernet, the HMI project may require a connection parameter update to reflect the new module IP address. Retaining the legacy IP address on the replacement unit is the simplest approach where network infrastructure permits. Full commissioning records, including I/O test results and program version confirmation, should be archived as part of the site maintenance documentation.

Retrofit Support FAQ

Q1: Is the 6ED1052-1FB00-0BA8 a direct drop-in replacement for LOGO! 0BA6 and 0BA7 units?
The 6ED1052-1FB00-0BA8 shares the same DIN rail footprint, terminal layout, and I/O count as the 0BA6 and 0BA7 predecessors, making it mechanically compatible for direct panel replacement. The primary differences are the addition of an Ethernet communication port and the requirement to use LOGO! Soft Comfort V8 for programming. Existing programs must be converted before download, but the core logic structure is preserved during conversion.

Q2: What pre-shipment testing does NINERMAS perform on the 6ED1052-1FB00-0BA8?
Each unit undergoes functional verification of all digital input channels, output relay contacts, the onboard display, and the Ethernet communication port prior to dispatch. Power-on self-test results are logged, and units that fail any channel test are quarantined and not shipped. All tested units are covered under a 12-month warranty from the date of shipment, with DOA replacement processed within 7 business days of confirmed fault report.

Q3: Can the 6ED1052-1FB00-0BA8 communicate with a SIMATIC S7-1200 or S7-300 controller?
Yes. The onboard Ethernet port supports S7 communication protocol, enabling data exchange with SIMATIC S7-1200 and S7-300 systems without additional communication modules. IP address configuration is performed through LOGO! Soft Comfort V8. For sites integrating the LOGO! module as a sub-controller under a SIMATIC master, the S7 connection parameters must be configured consistently on both devices.

Q4: Does NINERMAS offer long-term supply commitments for the 6ED1052-1FB00-0BA8?
Yes. NINERMAS supports scheduled procurement programs for customers managing multi-site retrofit projects or annual maintenance budgets. Stock reservation, fixed lead time agreements, and volume pricing are available on request. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss supply terms aligned with your project timeline.
