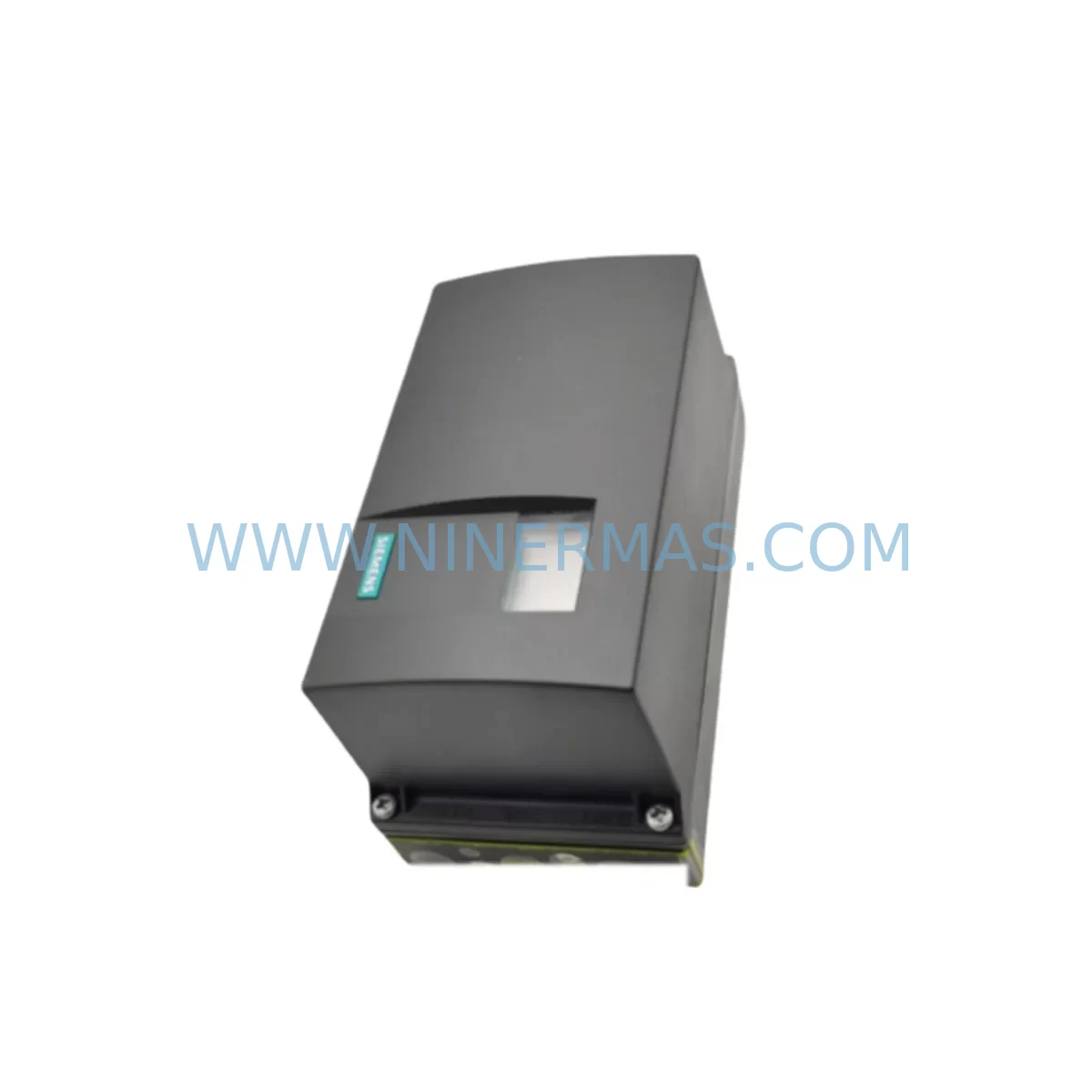

Siemens 6DR5220-0EM21-0AA0 Retrofit-Compatible Positioner

Siemens 6DR5220-0EM21-0AA0 Retrofit-Compatible Positioner for Legacy Systems

The Siemens 6DR5220-0EM21-0AA0 is an electropneumatic positioner from the SIPART PS2 series, engineered for precise valve positioning in process automation environments. As legacy control systems age and original spare parts become increasingly difficult to source, this unit serves as a direct retrofit-compatible replacement for discontinued positioner models across a wide range of industrial applications — including chemical processing, oil and gas, power generation, water treatment, and pharmaceutical manufacturing.

NINERMAS COMPANY LIMITED maintains verified stock of the 6DR5220-0EM21-0AA0, fully tested and shipped with a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm signal response, air supply integrity, and mechanical travel calibration before leaving our facility.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 6DR5220-0EM21-0AA0 into an existing control architecture, engineers must account for the full scope of the retrofit environment. In most legacy installations, the positioner interfaces directly with a 4–20 mA analog output card — commonly a Siemens S7-300 or S7-400 series analog output module such as the SM 332 or SM 334. Before disconnecting the old positioner, document the existing terminal block wiring, including the positive and negative signal leads, the supply air connection, and any feedback potentiometer or limit switch wiring that feeds back to the DCS or PLC.

In installations where HART communication is active, the 6DR5220-0EM21-0AA0 supports HART protocol natively, allowing asset management tools such as SIMATIC PDM or AMS Device Manager to communicate with the positioner over the existing 4–20 mA loop without additional wiring. This is particularly valuable when migrating from older positioners that lacked digital communication capability, as it enables remote diagnostics and valve signature analysis without physical access to the field device.

For control cabinets housing multiple positioners on a shared pneumatic manifold, verify that the supply air pressure regulator — often a Norgren or SMC unit mounted on the DIN rail — can sustain the required 1.4–7 bar range under simultaneous demand from all connected actuators. In high-density installations, a dedicated air preparation unit with coalescing filter and pressure gauge is recommended upstream of the positioner bank.

Where the retrofit involves migrating from a PROFIBUS DP network to PROFIBUS PA or HART, the 6DR5220-0EM21-0AA0 can be ordered with the appropriate communication module. In such cases, the DP/PA coupler — such as the Siemens FDC157-0 or a compatible Pepperl+Fuchs segment coupler — must be verified for segment load capacity, particularly if additional field devices such as pressure transmitters, flow meters, or temperature transmitters are sharing the same PA segment.

Rack and backplane considerations are equally important in modular PLC environments. If the host controller is a Siemens S7-400 with a UR2 or UR1 rack, confirm that the analog output module slot assignment matches the existing hardware configuration file in STEP 7 or TIA Portal. Changing the physical slot of an analog output module without updating the hardware configuration will result in addressing errors and may cause the positioner to receive no signal at startup.

For installations involving ET 200M or ET 200S distributed I/O stations, the interface module — such as the IM 153-2 or IM 151-3 — must be confirmed as compatible with the firmware version of the CPU. Outdated interface module firmware can cause intermittent communication faults that are difficult to distinguish from field wiring issues during commissioning.

HMI faceplate updates are often overlooked during positioner retrofits. If the existing SCADA or WinCC system displays valve position feedback from the old positioner’s analog feedback signal, verify that the new 6DR5220-0EM21-0AA0 feedback output range matches the expected 4–20 mA or 0–10 V range configured in the HMI tag database. A mismatch will result in incorrect position display on the operator screen, which can cause confusion during manual override operations.

Signal isolators — such as the Phoenix Contact MACX MCR-SL or Pepperl+Fuchs KFD2-STC4 — may be required in installations where the positioner loop shares a common ground with other instrumentation, or where the cable run exceeds 200 meters and signal attenuation becomes a concern. These isolators also provide galvanic separation that protects the PLC analog input card from field-side voltage transients.

Finally, programming cable access for initial configuration should be planned before the positioner is installed in a confined valve actuator enclosure. The 6DR5220-0EM21-0AA0 supports local configuration via its integrated keypad and display, but in installations where SIMATIC PDM is used for bulk configuration, a HART modem — such as the Siemens SITRANS AW200 or a compatible USB HART adapter — connected to the 4–20 mA loop terminals will allow full parameter upload and download without removing the positioner from service.

Downtime Control During System Migration

Minimizing unplanned downtime during a positioner retrofit requires a structured pre-commissioning checklist completed before the old unit is removed from service. Begin by capturing a full export of the existing positioner parameters using SIMATIC PDM or the local keypad — including the zero point, span, characteristic curve selection (linear or equal percentage), split-range configuration if applicable, and any alarm setpoints for position deviation or supply pressure loss.

Where process conditions allow, schedule the physical swap during a planned maintenance window rather than during an emergency breakdown. This allows time to verify the new 6DR5220-0EM21-0AA0 against the documented parameter set, perform the auto-calibration sequence with the valve in a known position, and confirm that the DCS or PLC is receiving the correct feedback signal before returning the loop to automatic control.

In continuous process environments where the valve cannot be taken offline, a bypass valve or manual handwheel override should be engaged before disconnecting the positioner air supply. This maintains process flow control during the swap and prevents an uncontrolled valve position change that could trigger a process upset or safety interlock.

After installation, perform a full stroke test — driving the valve from 0% to 100% and back — while monitoring the position feedback signal at the DCS. Confirm that the travel time matches the actuator specification and that there is no hysteresis or stiction visible in the position trace. Document the as-found and as-left valve signature for future reference and include it in the maintenance record for the asset.

NINERMAS ships the 6DR5220-0EM21-0AA0 with a pre-shipment test report confirming signal linearity, air tightness, and mechanical travel. This documentation supports your internal commissioning records and provides traceability for quality audits.

Retrofit Support FAQ

Q: Is the 6DR5220-0EM21-0AA0 a direct replacement for the 6DR5210-0EM21-0AA0?
A: The 6DR5220 and 6DR5210 share the same SIPART PS2 platform and NAMUR mounting interface. The primary difference is the enclosure and output configuration. In most single-acting actuator applications, the 6DR5220-0EM21-0AA0 can replace the 6DR5210 variant with no mechanical modification. Verify the air connection port orientation and terminal block layout before finalizing the swap.

Q: Does NINERMAS provide pre-shipment testing for this unit?
A: Yes. Every 6DR5220-0EM21-0AA0 shipped by NINERMAS undergoes functional testing including 4–20 mA signal response verification, pneumatic output pressure check, and mechanical travel calibration. A test report is included with each shipment. All units are covered by a 12-month warranty from the date of shipment.

Q: What wiring changes are required when replacing a legacy positioner with the 6DR5220-0EM21-0AA0?
A: In most cases, the existing 2-wire 4–20 mA loop wiring can be reused directly. Connect the positive signal lead to terminal 11 and the negative to terminal 12 on the SIPART PS2 terminal block. If the legacy positioner used a 3-wire or 4-wire configuration, the additional wires (typically for position feedback or limit switches) should be mapped to the corresponding terminals on the 6DR5220-0EM21-0AA0. Refer to the Siemens SIPART PS2 operating manual (A5E00074631) for the full terminal assignment diagram.

Q: What is the lead time and stock availability for the 6DR5220-0EM21-0AA0?
A: NINERMAS maintains ready stock of the 6DR5220-0EM21-0AA0. Standard orders are processed and shipped within 3–5 business days. For urgent retrofit requirements, expedited shipping is available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current inventory and arrange shipment.
