Siemens 6DR5210-0EG00-0AA0 Safety-Reliable Positioner

Siemens 6DR5210-0EG00-0AA0 Safety-Reliable Positioner for Critical Control Sites

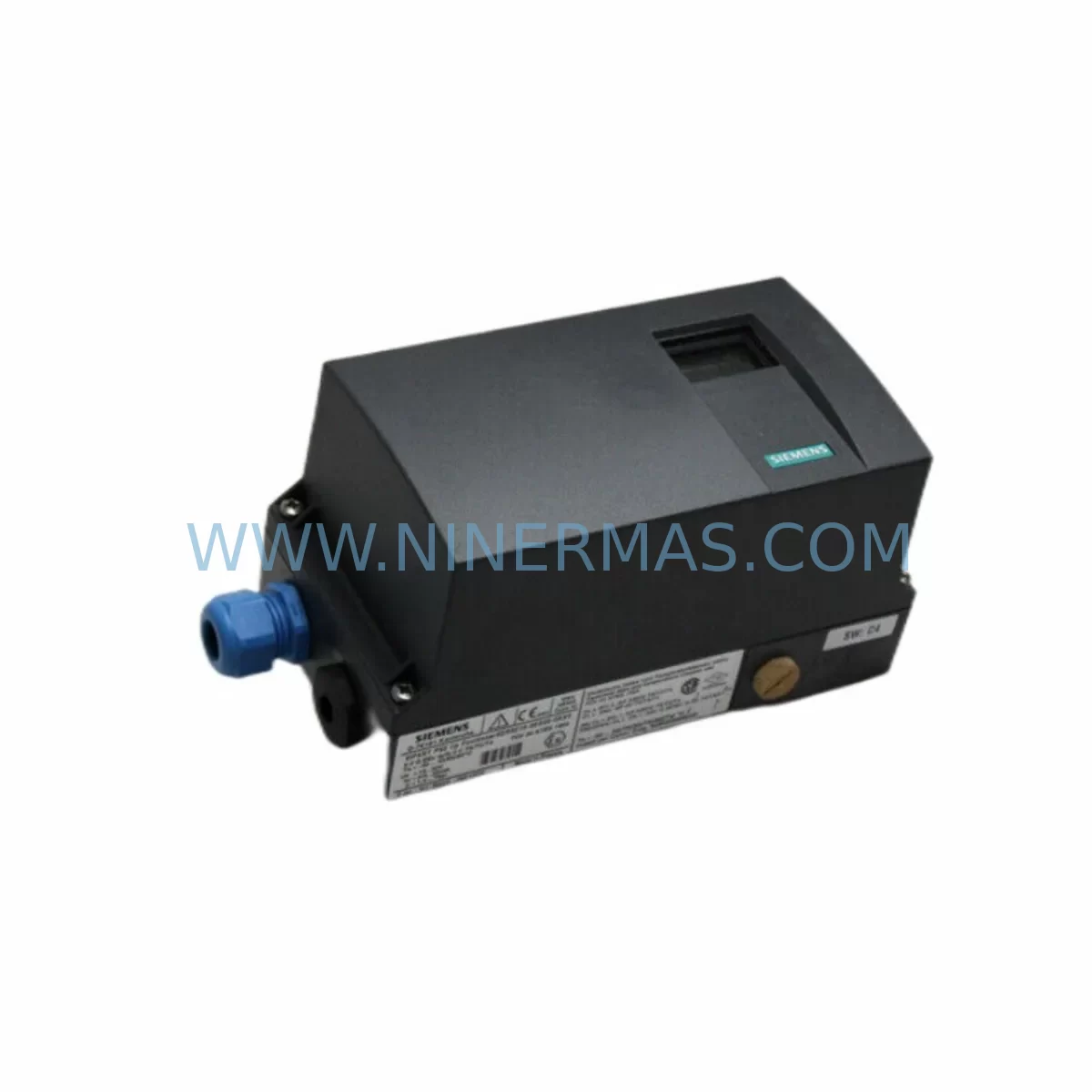

The Siemens 6DR5210-0EG00-0AA0 is an electropneumatic positioner from the renowned SIPART PS2 series, engineered for precise, safety-reliable valve positioning in demanding industrial environments. Designed to operate continuously under high electromagnetic interference, vibration, dust, moisture, and extreme temperature conditions, this positioner delivers consistent control loop performance where process uptime is non-negotiable. Whether deployed in petrochemical refining columns, power plant feedwater control, mining slurry circuits, or water treatment dosing systems, the 6DR5210-0EG00-0AA0 provides the positional accuracy and fault-tolerant operation that critical interlock and modulating control applications demand.

At NINERMAS, every unit of the 6DR5210-0EG00-0AA0 undergoes pre-shipment functional testing and calibration verification before dispatch. Our inventory program ensures rapid availability for planned maintenance shutdowns and emergency spare part replacements, backed by a 12-month warranty covering manufacturing defects and functional performance.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinets and field junction boxes serving continuous process plants, a single point of failure in the valve positioning chain can cascade into unplanned shutdowns, product loss, or safety system activation. The Siemens 6DR5210-0EG00-0AA0 is engineered to minimize these risks through its robust self-diagnostics, tight positional repeatability, and resistance to signal drift caused by temperature cycling or supply pressure fluctuation.

For complete loop integrity, the 6DR5210-0EG00-0AA0 is commonly deployed alongside the Siemens SIPART PS2 6DR5220-0EG00-0AA0 (double-acting variant) in parallel valve trains, ensuring redundant control capability on critical isolation duties. Power supply stability to the positioner loop is typically maintained by Siemens SITOP PSU100S 24V DC power supplies, which provide regulated, surge-protected DC power even during upstream grid disturbances — a common cause of positioner signal interruption in heavy industrial sites.

Signal integrity from the DCS or PLC to the positioner is protected by Siemens SIMATIC S7-300 or S7-400 analog output modules with built-in wire-break detection, preventing false positioning commands during cable faults. In high-EMI environments such as motor control centers or variable frequency drive (VFD) panels, shielded HART signal cables and Pepperl+Fuchs or MTL HART multiplexers are recommended to maintain clean 4–20 mA communication without interference-induced drift.

For safety instrumented systems (SIS) where the 6DR5210-0EG00-0AA0 is part of a SIL 2 or SIL 3 rated final element assembly, integration with a Siemens SIMATIC Safety CPU (e.g., CPU 315F or CPU 317F) and a dedicated solenoid valve manifold (e.g., ASCO Series 327 or Burkert Type 6014) provides the required de-energize-to-trip (DTT) architecture. Partial Stroke Testing (PST) routines can be executed through the positioner’s built-in PST function, reducing proof test intervals and maintaining SIL integrity without process interruption.

Surge and transient protection for the positioner’s signal wiring is best achieved with Phoenix Contact TRABTECH or Weidmüller VSSC surge protection terminals installed at the field junction box entry point. These components protect the sensitive 4–20 mA input circuitry of the 6DR5210-0EG00-0AA0 from lightning-induced transients and switching surges common in outdoor or exposed field installations. Completing the protection architecture, Siemens SIRIUS 3RV motor protection circuit breakers and 3RT contactors in the associated MCC panels ensure that actuator motor faults do not propagate back into the control loop, maintaining positioner signal stability throughout fault events.

Critical Industrial Safety Applications

The Siemens 6DR5210-0EG00-0AA0 is deployed across the most demanding process industries where valve control reliability directly impacts safety, environmental compliance, and production continuity:

Petrochemical & Refining: Used on feed control valves, reflux valves, and pressure let-down stations in distillation columns and reactor feed systems. The positioner’s ability to maintain accurate positioning under high-temperature, high-vibration conditions — while supporting HART diagnostics for predictive maintenance — makes it a preferred choice for turnaround spare part programs at refineries operating on 4–5 year maintenance cycles.

Power Generation: Applied to feedwater control valves, attemperator spray valves, and turbine bypass valves in coal-fired, gas-fired, and combined-cycle power plants. The 6DR5210-0EG00-0AA0’s fast response and tight deadband control reduce thermal stress on boiler tubes caused by valve hunting, directly contributing to plant availability and heat rate optimization.

Mining & Mineral Processing: Installed on slurry flow control valves, reagent dosing valves, and flotation cell level control loops. The IP65 protection rating and vibration-resistant construction ensure reliable operation in the dusty, wet, and mechanically aggressive environments typical of concentrator plants and heap leach facilities.

Water & Wastewater Treatment: Deployed on chemical dosing control valves, filter backwash valves, and effluent discharge control stations. The positioner’s low air consumption and precise modulation capability support energy-efficient operation in large municipal and industrial water treatment facilities.

Metallurgy & Steel: Used in blast furnace gas control, continuous casting cooling water valves, and rolling mill hydraulic control circuits. The positioner’s tolerance for high-temperature radiant heat and electromagnetic interference from large induction furnaces ensures uninterrupted control loop performance in steel plant environments.

Port & Marine: Applied to cargo loading arm control valves, ballast water treatment system valves, and LNG terminal pressure control loops. The corrosion-resistant housing and wide ambient temperature range support reliable operation in coastal and offshore environments subject to salt spray and humidity cycling.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Siemens 6DR5210-0EG00-0AA0?
All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional performance failures under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch or repair coordination within agreed lead times.

Q2: What pre-shipment testing is performed before dispatch?
Every 6DR5210-0EG00-0AA0 unit undergoes a full functional test including input signal response verification, output pressure linearity check, self-calibration (INIT) cycle confirmation, and HART communication validation. Test records are available upon request for quality documentation purposes.

Q3: Is the 6DR5210-0EG00-0AA0 compatible with my existing SIPART PS2 installation?
The 6DR5210-0EG00-0AA0 is a single-acting SIPART PS2 positioner compatible with NAMUR-standard linear and rotary actuators per IEC 60534-6. It supports direct replacement of earlier SIPART PS2 variants with the same mounting interface. For specific actuator compatibility or SIL loop integration requirements, our technical team can provide application support prior to order confirmation.

Q4: Can NINERMAS support long-term spare parts supply for this model?
Yes. NINERMAS maintains a dedicated inventory program for SIPART PS2 series positioners to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. We offer flexible stocking arrangements for customers with critical process applications requiring guaranteed availability of the 6DR5210-0EG00-0AA0 and related control components.
