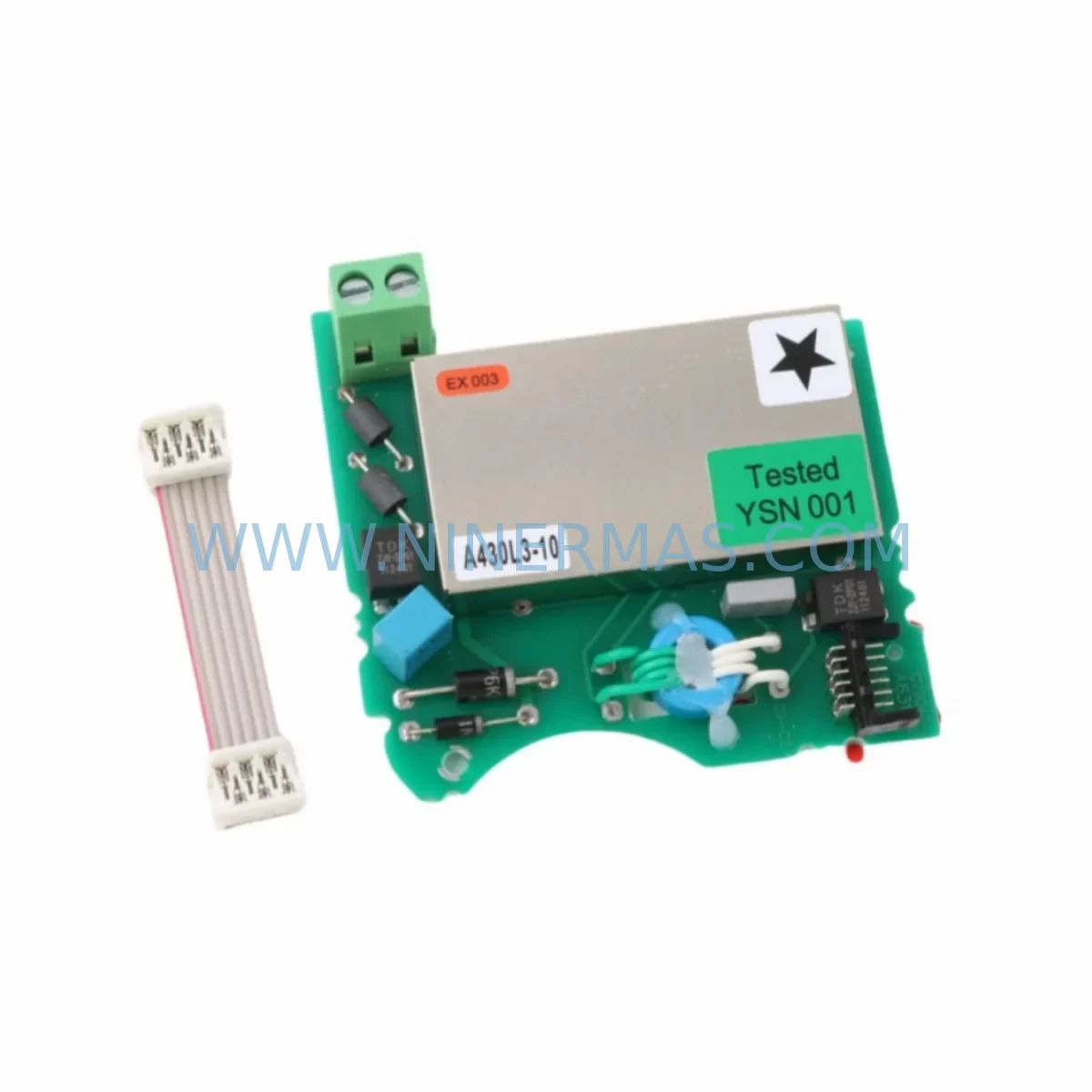

Siemens 6DR4004-8D Retrofit Positioner for SIPART PS2

Siemens 6DR4004-8D Retrofit-Compatible Positioner for SIPART PS2 Legacy Systems

The Siemens 6DR4004-8D is an electropneumatic positioner from the renowned SIPART PS2 series, engineered for precise control valve positioning in demanding industrial automation environments. As legacy control systems age and original components reach end-of-life, the 6DR4004-8D has become a critical retrofit solution for engineers managing older pneumatic valve actuator assemblies across process industries including oil & gas, chemical processing, power generation, and water treatment.

Whether you are replacing a discontinued positioner on an aging control panel, upgrading a legacy DCS loop, or migrating from an older SIPART PS1 or third-party positioner platform, the 6DR4004-8D provides a reliable, field-proven upgrade path with minimal disruption to existing wiring, tubing, and program logic.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 6DR4004-8D into an existing control system requires careful pre-engineering to avoid commissioning delays and unplanned downtime. The following considerations are essential for engineers and maintenance teams planning a positioner replacement or control loop upgrade.

Power Supply and Loop Integrity: The 6DR4004-8D operates on a standard 4–20 mA two-wire loop. Before installation, verify that the existing DCS analog output card — such as a Siemens SIMATIC S7-300 SM 332 or equivalent AO module — can source sufficient loop current and that the total loop resistance remains within specification. If the legacy system uses a separate 24 VDC positioner power supply, confirm whether the new device requires loop power only or an auxiliary supply.

Terminal Block and Wiring Adaptation: Legacy positioners from the SIPART PS1 generation or older third-party brands may use different terminal numbering and wiring conventions. When replacing with the 6DR4004-8D, cross-reference the existing field wiring against the SIPART PS2 terminal diagram. In many cases, a Siemens SIPART PS2 terminal adapter kit or a custom marshalling panel modification is needed to maintain clean wiring without cutting and re-terminating field cables.

Backplane and Rack Considerations: For installations where the positioner interfaces with a Siemens ET 200SP or ET 200M remote I/O station, confirm that the analog input/output modules assigned to the valve loop — such as the AI 4xI 2-/4-wire ST or AO 4xU/I ST — are correctly configured in the hardware catalog of TIA Portal or STEP 7. Module address assignments must be verified to prevent I/O mapping conflicts after the positioner swap.

HART Communication and Asset Management: The 6DR4004-8D supports HART protocol, enabling integration with plant asset management systems. If the existing infrastructure uses a Siemens HART multiplexer or a third-party HART gateway, verify that the device description (DD) file for the 6DR4004-8D is loaded in the asset management software. This is critical for remote diagnostics, partial stroke testing, and predictive maintenance workflows.

HMI Faceplate and Alarm Configuration: If the valve loop is monitored via a Siemens WinCC or WinCC Flexible HMI faceplate, review the alarm limits, position feedback scaling, and diagnostic status bits. The SIPART PS2 reports additional diagnostic information compared to older positioners, and HMI engineers may need to update the faceplate template to display fault codes correctly.

Signal Isolators and Barriers: In hazardous area installations, the 6DR4004-8D is often used in conjunction with Siemens SITRANS I/P signal isolators or Zener barriers. Confirm that the existing barrier model supports the HART signal pass-through required for remote configuration. Some older Zener barriers attenuate the HART signal and may need to be replaced with HART-transparent galvanic isolators.

Pneumatic Tubing and Air Supply: Inspect the existing pneumatic supply line, filter-regulator unit, and output tubing before installation. The 6DR4004-8D requires clean, dry instrument air. If the legacy positioner used a different port size or fitting standard, prepare the appropriate adapters. A Siemens SIPART PS2 accessory kit including gauges, vent plugs, and tubing fittings is recommended for a complete retrofit.

Programming and Logic Compatibility: In most DCS and PLC-based systems, the positioner replacement does not require changes to the control program logic, as the 4–20 mA interface remains identical. However, if the legacy positioner provided a discrete feedback signal (e.g., limit switch output) wired to a Siemens SIMATIC S7 DI module, verify that the 6DR4004-8D’s binary output configuration matches the original wiring and logic expectations.

Downtime Control During System Migration

Minimizing production downtime is the primary concern during any positioner replacement on a live process line. The following strategy is recommended for a controlled, low-risk migration using the Siemens 6DR4004-8D.

Pre-Commissioning Bench Test: Before taking the valve offline, perform a bench test of the 6DR4004-8D using a HART communicator or SIMATIC PDM connected to a current source. Verify that the positioner responds correctly to the 4–20 mA input signal, that the pneumatic output strokes the actuator through its full range, and that all diagnostic parameters are within normal limits. This eliminates device-related faults as a variable during field installation.

Parallel Wiring Preparation: Where possible, pre-wire the new positioner terminal connections on a temporary terminal strip before the scheduled maintenance window. This allows the field wiring to be transferred quickly during the actual cutover, reducing the time the valve is out of service. Coordinate with the DCS operator to place the loop in manual mode and confirm the valve position before disconnecting the legacy positioner.

Program Logic Preservation: The existing PID loop parameters, setpoint ramps, and interlock logic in the Siemens SIMATIC S7 or DCS controller do not need to be modified for a like-for-like positioner replacement. Document the current PID tuning values before the cutover so they can be quickly restored if the loop requires retuning after the new positioner is installed. The SIPART PS2 auto-calibration routine (INIT) will automatically determine the valve travel limits and set the internal position controller parameters.

Field Calibration and Handover: After installation, run the SIPART PS2 initialization sequence to auto-calibrate the positioner to the actuator. Verify the valve position feedback at 0%, 25%, 50%, 75%, and 100% setpoints. Confirm that the DCS faceplate displays the correct position value and that no alarms are active. Document the as-found and as-left calibration data for the maintenance record before returning the loop to automatic control.

Retrofit Support FAQ

Q1: Is the Siemens 6DR4004-8D a direct drop-in replacement for the SIPART PS1 positioner?
The 6DR4004-8D (SIPART PS2 series) is functionally compatible with SIPART PS1 applications in terms of the 4–20 mA input signal and NAMUR mounting interface. However, the terminal wiring layout and pneumatic port positions differ between generations. A wiring adapter or minor terminal modification is typically required. The SIPART PS2 also adds HART communication capability not present in the PS1, which can be leveraged for asset management if the infrastructure supports it.

Q2: Can the 6DR4004-8D be configured without a HART communicator?
Yes. The SIPART PS2 features an integrated local operator interface with pushbuttons and a display that allows full configuration and initialization without any external communication tool. The HART interface is optional and can be used additionally with SIMATIC PDM or a handheld HART communicator for remote diagnostics and parameter archiving.

Q3: What is the lead time and stock availability for the 6DR4004-8D?
NINERMAS maintains stock of the 6DR4004-8D to support urgent retrofit and breakdown replacement requirements. Standard orders are processed and shipped within 3–5 business days. For large-quantity orders or project-based procurement, please contact our sales team to confirm availability and delivery schedule. All units are covered by a 12-month warranty from the date of shipment.

Q4: Does NINERMAS provide pre-shipment testing for the 6DR4004-8D?
Yes. All positioner units undergo functional verification prior to shipment, including loop current response testing and pneumatic output verification. A test report can be provided upon request. Units are packaged in original or equivalent protective packaging to prevent transit damage. For critical retrofit projects, expedited shipping options are available — contact sale@ninermas.com for details.
