Siemens 6DP1616-8CA IM616 Service-Ready Spare Part

Siemens 6DP1616-8CA IM616 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

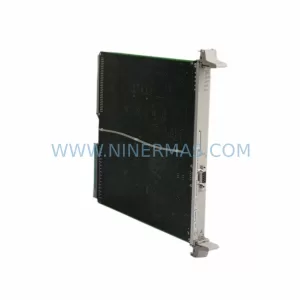

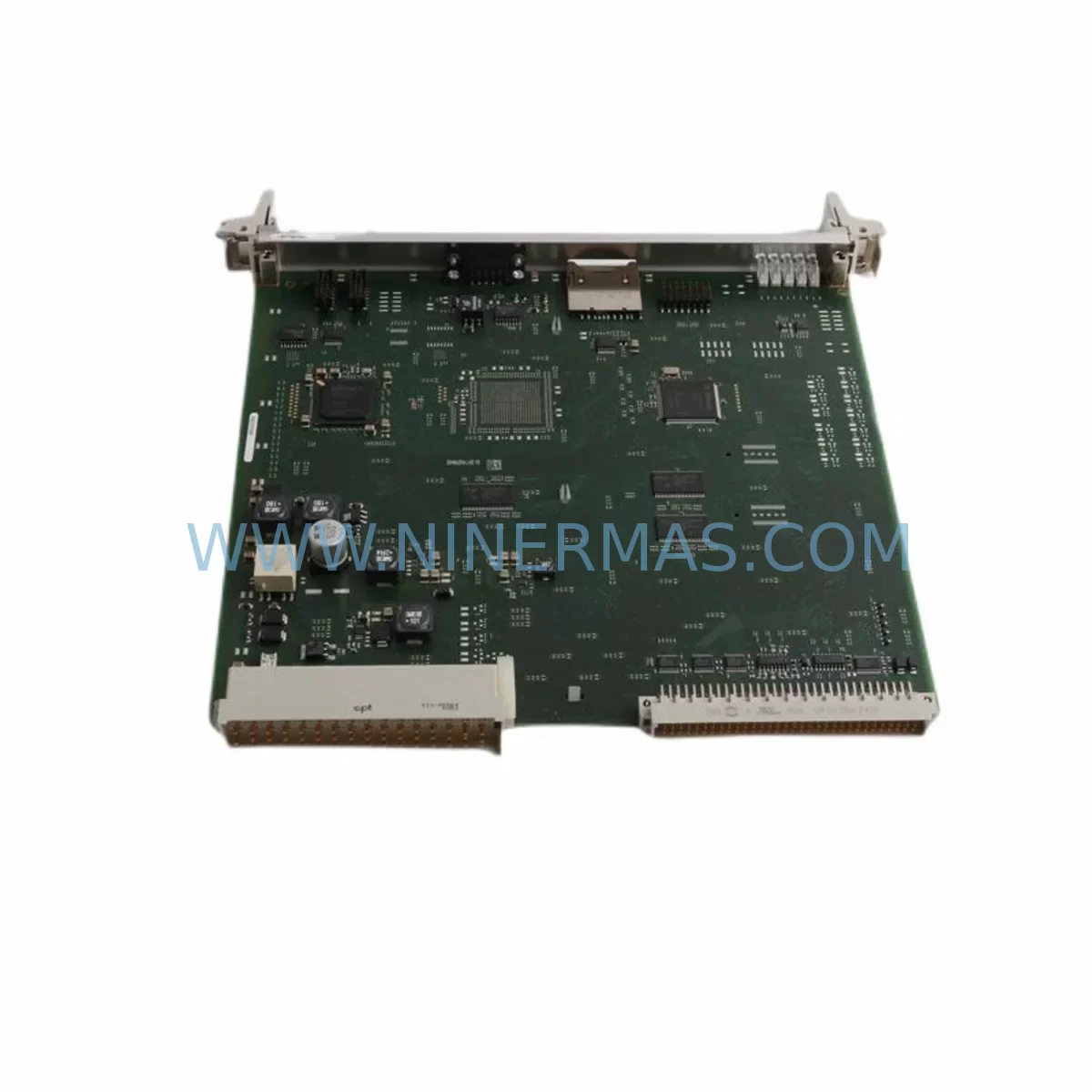

The Siemens 6DP1616-8CA is an IM616 PROFIBUS interface module designed for use within the SIMATIC S5 distributed I/O and process control architecture. As a critical communication bridge between the central controller and remote I/O stations over the PROFIBUS-DP network, this module plays a pivotal role in maintaining uninterrupted data exchange across the control cabinet. When this component fails or degrades, the consequences extend far beyond a single node — entire production lines dependent on PROFIBUS communication can halt, triggering costly unplanned downtime.

At NINERMAS, we supply the 6DP1616-8CA as a service-ready original spare part, fully tested prior to shipment and backed by a 12-month warranty. Whether you are managing a scheduled annual overhaul, responding to an emergency fault isolation event, or building a strategic spare parts inventory for aging SIMATIC S5 systems, this module is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6DP1616-8CA IM616 module is rarely an isolated task. In a functioning SIMATIC S5 control cabinet, this interface module operates in close dependency with a range of upstream and downstream components. Maintenance engineers and procurement engineers should treat this replacement as an opportunity to audit the broader communication and power infrastructure.

Begin with the PROFIBUS cable and bus connectors — degraded shielding or loose termination resistors are a leading cause of intermittent DP communication faults that are often misdiagnosed as module failure. Verify that the PROFIBUS DP address on the IM616 is correctly set to match the master configuration before reinserting the module into the backplane slot.

Inspect the S5 backplane bus connector for oxidation or mechanical damage, as a faulty backplane connection can cause the replacement module to report faults immediately after installation. If the system uses a PS 951 or PS 955 power supply module to feed the rack, verify output voltage stability under load — an under-voltage condition will prevent the IM616 from initializing correctly.

For systems with remote ET 200 stations connected via PROFIBUS, check the IM 308-C or IM 308-B master interface modules in the central rack. A failing master module can cause symptoms identical to a faulty IM616 slave interface. Similarly, review the CP 5431 or CP 5412 communication processors if the system integrates PROFIBUS with higher-level SCADA or MES networks.

On the I/O side, inspect digital input/output modules such as the 6ES5 series DI/DO cards connected to the same ET 200 station. A shorted output channel on a downstream I/O module can generate bus errors that cascade back to the IM616. Signal isolators and surge protection devices on field wiring should also be checked — particularly in environments with heavy motor loads or frequent switching transients.

For control cabinets with relay output modules or terminal block assemblies connected to the PROFIBUS node, verify that coil suppression diodes are intact and that terminal screws are torqued to specification. Loose field wiring is a common source of intermittent faults in aging S5 installations. If the cabinet includes an OP 17 or TP 27 HMI panel communicating over PROFIBUS, confirm that the HMI DP address does not conflict with the IM616 station address after replacement.

Procurement engineers building a spare parts inventory for SIMATIC S5 systems should consider stocking the 6DP1616-8CA alongside compatible power supply modules, PROFIBUS bus connectors with integrated termination resistors, and at least one spare backplane connector set. For facilities operating multiple S5 racks, a minimum of two IM616 units per site is a widely adopted industry standard for critical process environments.

Site Replacement Workflow

The 6DP1616-8CA is a direct replacement for aging or failed IM616 modules in SIMATIC S5 distributed I/O systems. The replacement procedure is designed to minimize downtime and maintain full system compatibility without requiring hardware reconfiguration of the central PLC.

Step 1 — Fault Isolation: Before removing the module, use the S5 diagnostic buffer or STEP 5 programming software to confirm that the fault is isolated to the IM616 and not to the PROFIBUS cable, termination, or master interface. Document the current DP station address setting on the module’s rotary switches.

Step 2 — Safe Removal: Power down the affected rack segment following your site lockout/tagout procedure. Disconnect the PROFIBUS bus connector from the IM616 front panel. Release the module from the backplane using the extraction levers and remove it from the slot.

Step 3 — Module Preparation: Set the DP station address on the replacement 6DP1616-8CA to match the documented address of the removed module. Verify that the module firmware version is compatible with your master configuration — consult the Siemens IM616 hardware manual if uncertain.

Step 4 — Installation and Commissioning: Insert the replacement module into the backplane slot and secure the extraction levers. Reconnect the PROFIBUS bus connector. Power up the rack and monitor the IM616 status LEDs — a steady green BF LED indicates successful DP communication establishment. Confirm all remote I/O stations are reporting correctly in the STEP 5 diagnostic view.

Step 5 — System Validation: Run a full I/O check on all channels connected to the restored PROFIBUS segment. Log the replacement in your maintenance management system and update the spare parts inventory accordingly.

This workflow applies equally to planned annual maintenance replacements and emergency fault recovery scenarios. The 6DP1616-8CA supplied by NINERMAS is tested and verified before shipment, reducing the risk of receiving a non-functional unit during a critical recovery operation.

Spare Parts Support FAQ

Q1: Is the 6DP1616-8CA still available as a new original spare part?
The SIMATIC S5 product line has reached end-of-life status with Siemens, but original spare parts including the 6DP1616-8CA IM616 module remain available through authorized industrial spare parts suppliers. NINERMAS maintains stock of tested original units to support legacy S5 installations that are not yet scheduled for migration. Contact our team to confirm current availability and lead time.

Q2: How is the 6DP1616-8CA tested before shipment?
Every unit supplied by NINERMAS undergoes functional verification prior to dispatch. Testing includes power-on initialization checks, PROFIBUS communication handshake verification, and visual inspection for physical damage to the backplane connector and front panel interface. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the 6DP1616-8CA be used as a direct drop-in replacement without reprogramming the PLC?
Yes, provided the DP station address on the replacement module is set to match the original unit and the PROFIBUS master configuration remains unchanged. No PLC reprogramming is required for a like-for-like replacement. If the system configuration has been modified since the original installation, consult your STEP 5 project documentation to verify compatibility before commissioning.

Q4: What is the recommended spare parts strategy for facilities running multiple SIMATIC S5 systems?
For facilities with two or more S5 racks dependent on PROFIBUS communication, we recommend maintaining a minimum of two 6DP1616-8CA units on-site as critical spares. Given the end-of-life status of the S5 platform, procurement engineers should consider a forward-buy strategy to secure sufficient stock for the remaining operational life of the installation. NINERMAS offers long-term supply agreements and can provide volume pricing for multi-unit orders. Contact sale@ninermas.com to discuss your site’s specific requirements.
