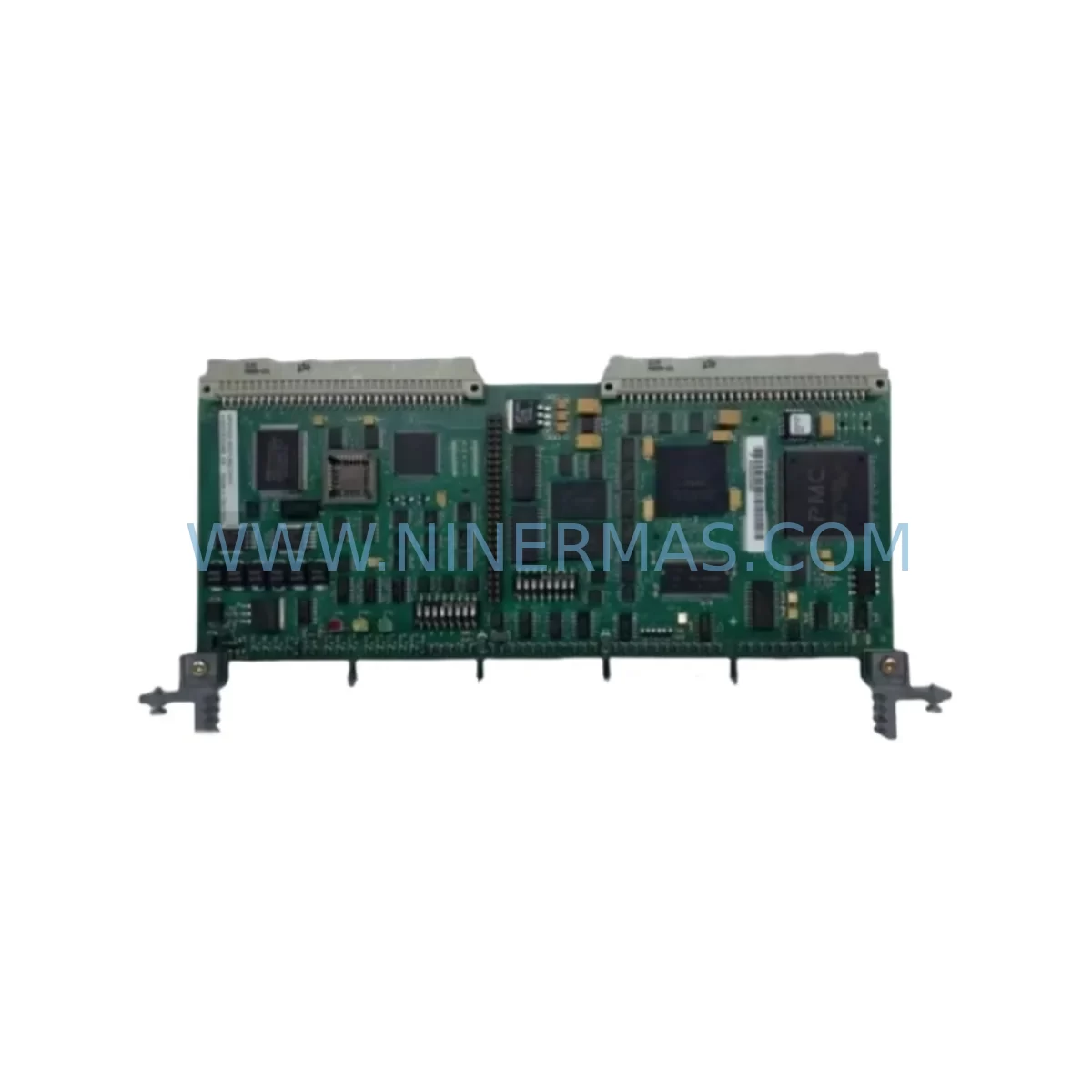

The Siemens 6DD1842-0AA1, also referenced under part number A5E00930469, is a SPW420 power supply module designed for use within the Siemens SIMADYN D modular automation and drive control platform. As a critical internal power supply component, the SPW420 provides regulated DC voltage rails to the SIMADYN D rack backplane, supporting processor cards, I/O modules, and communication interfaces within the control cabinet. When this module fails or degrades, the entire control rack may lose functionality — resulting in unplanned downtime, production loss, and extended recovery time if a verified spare is not immediately available.

At NINERMAS, we supply the 6DD1842-0AA1 SPW420 as a service-ready, tested spare part with a 12-month warranty, supporting maintenance engineers and procurement teams across manufacturing, energy, metals, and process industries who depend on SIMADYN D-based control systems for continuous operation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing SIMADYN D-based control systems, the 6DD1842-0AA1 SPW420 is rarely a standalone failure point. Power supply degradation in the SIMADYN D rack typically manifests as intermittent processor resets, unexplained I/O faults, or communication dropouts — symptoms that are often misdiagnosed before the root cause is traced back to the internal power rail. A structured maintenance approach requires evaluating the entire power distribution and signal chain within the control cabinet whenever the SPW420 is replaced.

During a planned replacement of the 6DD1842-0AA1, maintenance teams should simultaneously inspect the SIMADYN D rack backplane for signs of corrosion, damaged connector pins, or thermal stress. The PM5 or PM10 processor modules (such as the 6DD1600-0AK0 or 6DD1607-0AA0) that rely on the SPW420’s regulated outputs should be checked for firmware integrity and memory battery status. If the system uses CS7 or CS12 communication modules for PROFIBUS or serial links, verify that communication parameters remain intact after power restoration.

On the input side, confirm that the 24 VDC cabinet power supply feeding the SIMADYN D rack is within specification — a degraded external supply is a common cause of premature SPW420 failure. Inspect terminal blocks and wiring harnesses connected to the rack for loose connections or insulation breakdown. If the system includes UR6 or UR10 I/O modules (e.g., 6DD1681-0AE0 analog input cards or 6DD1682-0AE0 digital I/O modules), verify their status LEDs and channel diagnostics after the power supply is restored.

For systems integrated with Siemens SIMOREG DC Master or SIMOVERT MASTERDRIVES drive controllers, the SIMADYN D rack often serves as the closed-loop control platform. In these configurations, replacing the SPW420 should be followed by a full drive parameter verification and a controlled test run before returning the line to production. Additionally, if the control cabinet includes signal isolators or galvanic separation modules for analog feedback signals (4–20 mA or ±10 V), these should be tested for offset drift that may have occurred during the power interruption.

Procurement engineers should consider maintaining at least one 6DD1842-0AA1 SPW420 as a dedicated cold spare, particularly for facilities where SIMADYN D systems are no longer in active production by Siemens. Pairing this spare with a backup PM processor module and a set of PROFIBUS connectors and cables ensures that the most common failure scenarios can be resolved within a single maintenance shift, minimizing mean time to repair (MTTR) and protecting production continuity.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the 6DD1842-0AA1, document the current system status: note all active fault codes on the operator panel or HMI (such as a Siemens OP7, OP17, or TP270 connected via MPI), record the rack slot configuration, and photograph the wiring and module positions. Confirm that the replacement SPW420 carries the same part number and board revision where possible.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. Isolate the 24 VDC supply to the SIMADYN D rack. Allow capacitors to discharge (minimum 2 minutes) before handling the module. Verify zero voltage at the rack power input terminals using a calibrated multimeter.

Step 3 — Module Removal and Inspection: Carefully extract the SPW420 from its backplane slot. Inspect the backplane connector for bent pins or contamination. Check the failed module for visible damage — burnt components, swollen capacitors, or discolored PCB areas — and retain it for failure analysis if required by your maintenance records.

Step 4 — Installation of Replacement 6DD1842-0AA1: Insert the new SPW420 module firmly into the correct backplane slot. Ensure the module latch or retaining screw is secured. Reconnect the 24 VDC supply and restore power to the rack in a controlled sequence.

Step 5 — System Verification: Monitor the rack status LEDs on the SPW420 and adjacent processor modules during power-up. Confirm that all I/O modules initialize correctly and that communication links (PROFIBUS, MPI, or serial) are re-established. Perform a functional test of the controlled process before releasing the system to production.

Step 6 — Documentation: Update your CMMS or maintenance log with the replacement date, new module serial number, and post-replacement test results. Schedule a follow-up inspection at the next planned maintenance window to verify long-term stability.

Spare Parts Support FAQ

Q1: Is the 6DD1842-0AA1 still available as a new original spare, and what is the lead time?
NINERMAS maintains stock of the Siemens 6DD1842-0AA1 SPW420 as a service-ready spare part. In-stock units are function-tested and dispatched within 1–3 business days. For urgent maintenance requirements, contact our team directly to confirm current availability and expedited shipping options.

Q2: How do I verify compatibility between the SPW420 and my SIMADYN D rack configuration?
Compatibility is confirmed by matching the part number (6DD1842-0AA1) and board reference (A5E00930469) against your existing module label or the rack’s spare parts list in the system documentation. If you are replacing an older SPW module with a different suffix, contact NINERMAS with your rack configuration details and we will advise on cross-compatibility before shipment.

Q3: What does the 12-month warranty cover, and what is the return process?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, contact sale@ninermas.com with your order reference and a description of the fault. We will arrange a replacement or repair at no additional cost, subject to inspection.

Q4: Can NINERMAS support long-term supply of the 6DD1842-0AA1 for multi-site maintenance programs?
Yes. NINERMAS specializes in long-term supply of obsolete and hard-to-source Siemens automation spare parts, including SIMADYN D components. We can support blanket purchase orders, consignment stock arrangements, and multi-site procurement programs. Contact our sales team to discuss your annual maintenance requirements and volume pricing.
